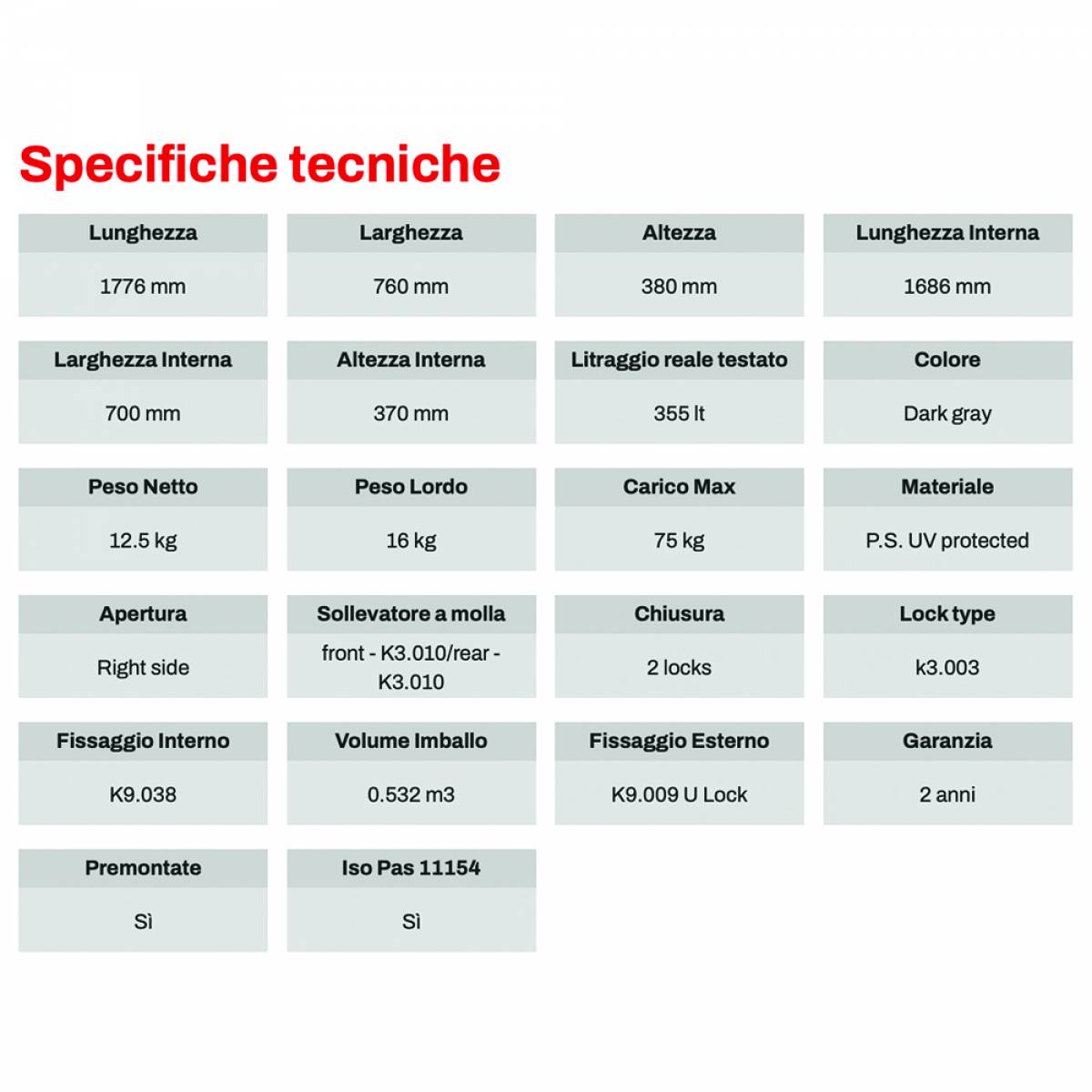

Roof box resulting from the innovative capacity of G3 technicians with the practical pre-drilling system that distinguishes the range of roof boxes. All you need is a ballpoint pen! Simple and fast, it allows the customer not to have to handle dangerous tools. The result is optimal, absolutely better than any other on the market: the pre-drilling system improves the precision of assembly and contributes to increasing the quality of the G3 box. Model: CARGO 5, Double locking with lock, for all the features and dimensions see attached image.

Bar distance: Min. 570 mm / Max. 900 mm

TECHNICAL SPECIFICATIONS
Length: 1776 mm
Width: 760 mm
Height: 380 mm
Internal Length: 1686 mm
Internal Width: 700 mm
Internal Height: 370 mm
Actual tested capacity: 355 lt
Color: Dark gray
Net Weight: 12.5 kg
Gross Weight: 16 kg
Max Load: 75 kg
Material: PS UV protected
Opening: Right side
Spring lift: front - K3.010/rear - K3.010
Closure: 2 locks
Lock type: k3.003
Internal Fixing: K9.038
Packaging Volume: 0.532 m3
External Fixing: K9.009 U Lock
Pre-assembled: Yes
Iso Pas 11154: Yes




barcode: 8010682009675
code: 22.105
