LaMagneto X is the new CEMP magnetotherapy for healthcare professionals, conceived and produced by I-Tech Medical Division, a leading company in the electromedical sector.

It is equipped with a large color display and two completely independent output channels to perform two different therapies at the same time.

Thanks to the special functions of program lock with password and therapy counters, 10 free memories, the therapist has full control of the rehabilitation path continued at home by his patients.

In this configuration, the Magneto X also includes the night kit with the Osteomat mattress, specific for cases where it is necessary to intervene simultaneously on multiple parts of the body for a prolonged period, such as in the case of osteoporosis, ideal for long-lasting night-time treatments on the whole body.

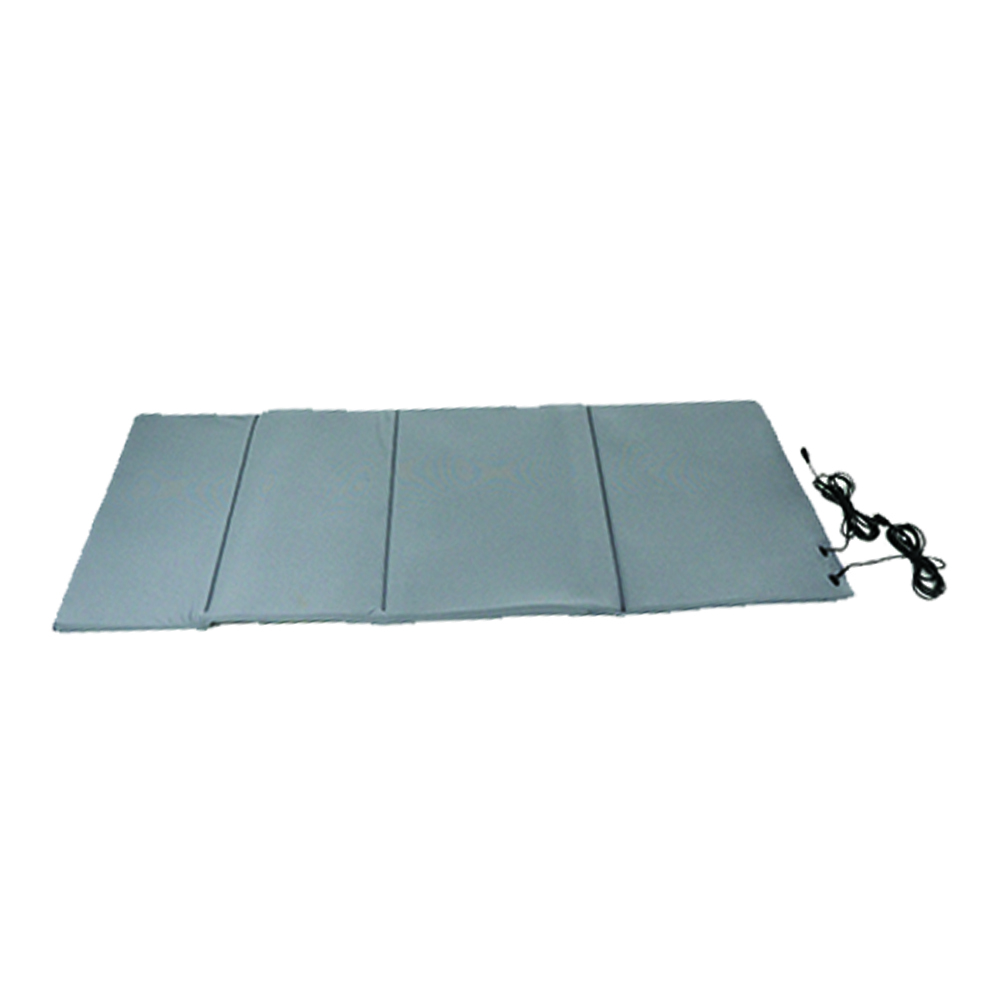

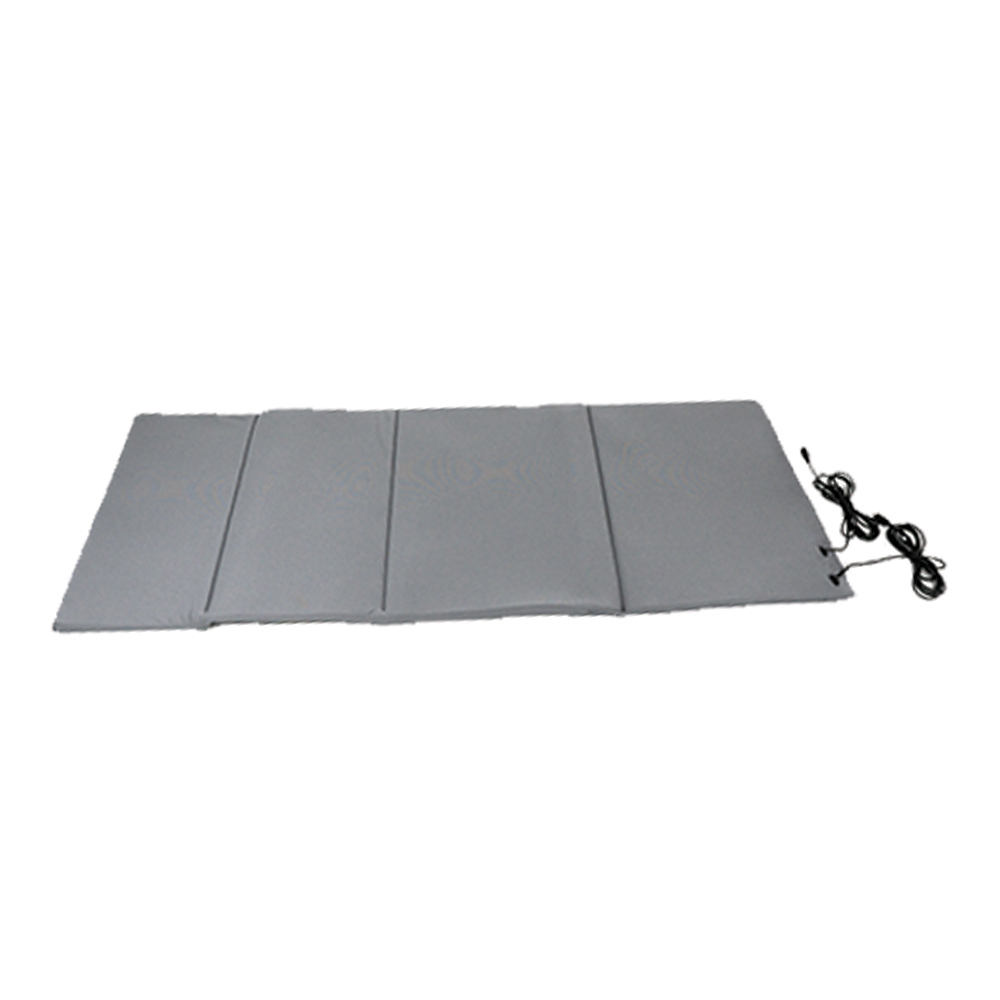

The Osteomat mattress for magnetotherapy is made up of 4 modular sectors: two active and two passive. The passive sectors provide a comfortable surface on which to lie down, while the active sectors are the therapeutic ones. They can be activated at will, thus allowing the areas of interest to be treated from time to time. The mattress for magnetotherapy contains a total of 8 solenoids (4 for each active sector) and two connection cables, which must be attached to the magnetotherapy device.

Softer and more comfortable thanks to its 8 ultra-thin and flexible solenoids
Lightweight and foldable for easy transport
4 active sectors for a true total body treatment
LaMagneto X is designed and indicated for the treatment, rehabilitation and functional recovery of pathologies affecting:

joints of the wrist, hand, shoulder, foot, ankle and knee
skeletal motor system
arthrosis
muscular atrophy and dystrophy
bursitis
bruises
degeneration of the musculoskeletal system
distortions
periarthritis
Benign lesions and muscle tears
tendonitis and tendinosis
Magneto X is particularly indicated for the treatment of delayed consolidation, osteoporosis, bone edema, osteonecrosis, as well as ulcers and neuropathies.

Thanks to the high intensity of the magnetic field it can generate, LaMagneto is particularly suitable for treating bone fractures even in the presence of rigid bandages or plaster casts.

The distinctive feature of the LaMagneto Pro device is the ability to manage two treatments simultaneously, setting different times and programs. It also includes program lock with password and therapy counters, 10 free memories.

LaMagneto X is a magnetotherapy device intended for both professional users (doctors, therapists, etc.) and home patients.

Main applications
Osteoporosis
Arthrosis/Arthritis
Anti-inflammatory
Edema
Fractures
Lumbago
Algodystrophy
Chronic pain

63 PROGRAMS
(All applications and the list of detailed programs can be found in the user manual downloadable from this page)

The Magneto X is a device approved and certified by the notified body TÜV Rheinland Italia (CE1936).

CHARACTERISTICS
CEMP magnetotherapy device with 2 independent channels
2 channels
Color display
Possibility of doing different therapies at the same time on two parts of the body or together with another person
Field strength up to 200 gauss per channel
Frequency from 1 to 120 Hz
63 programs present
List of last 10 programs used
10 free memories impo
Program “Lock” mode (the professional can set the device for the patient who at home simply has to unlock the device and activate the therapy with just 3 clicks)
Counter of therapies performed and total hours of use (allows the professional to verify the correct use of the device by the patient)

TECHNICAL FEATURES
Device dimensions: 180 x 110 x 50 mm
Field strength: adjustable with increasing scale up to 200 Gauss per channel
Square wave frequency: 1 - 120 Hz
Therapy time: user-settable
Power supply: UES36LCP-150200SPA power supply, out 15VDC-2A
Max. current absorbed: 1A
Insulation class (CEI EN 60601-1): II
Applied part (CEI EN 60601-1): BF

EQUIPMENT

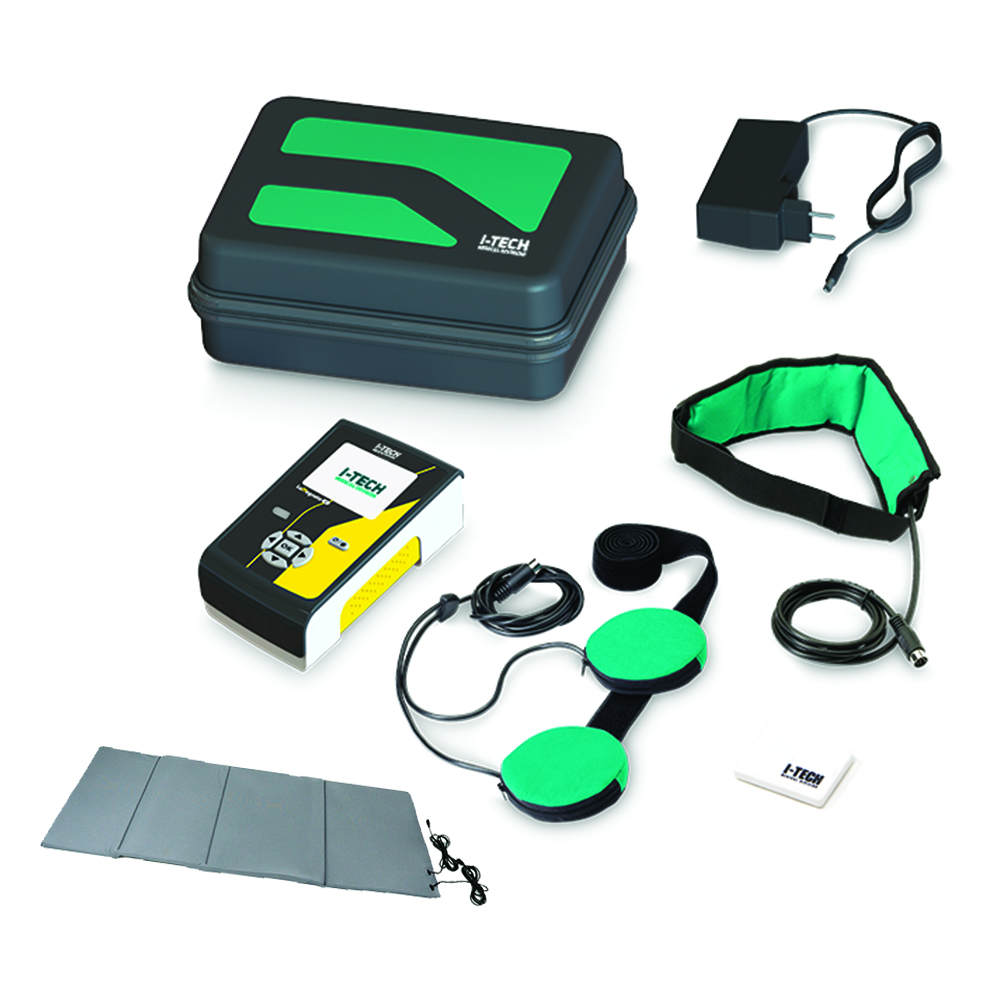

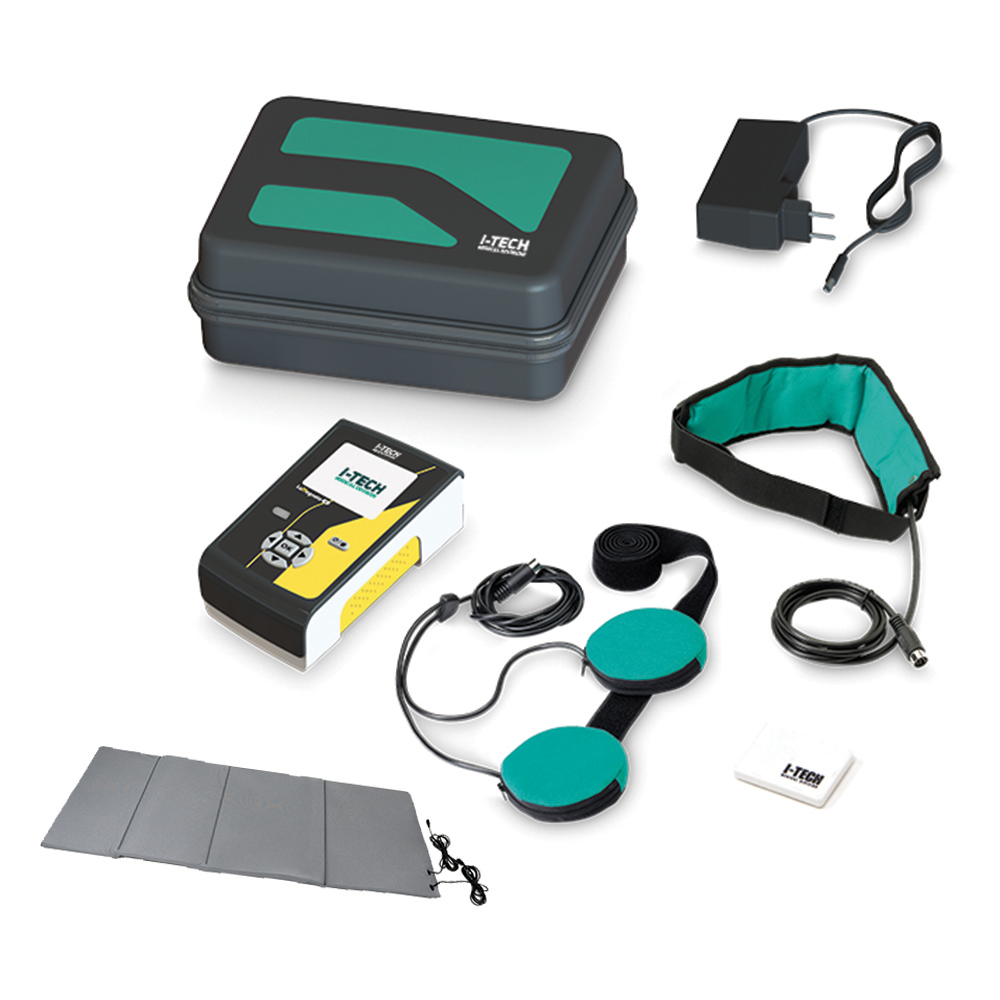

The LaMagneto Pro package contains:

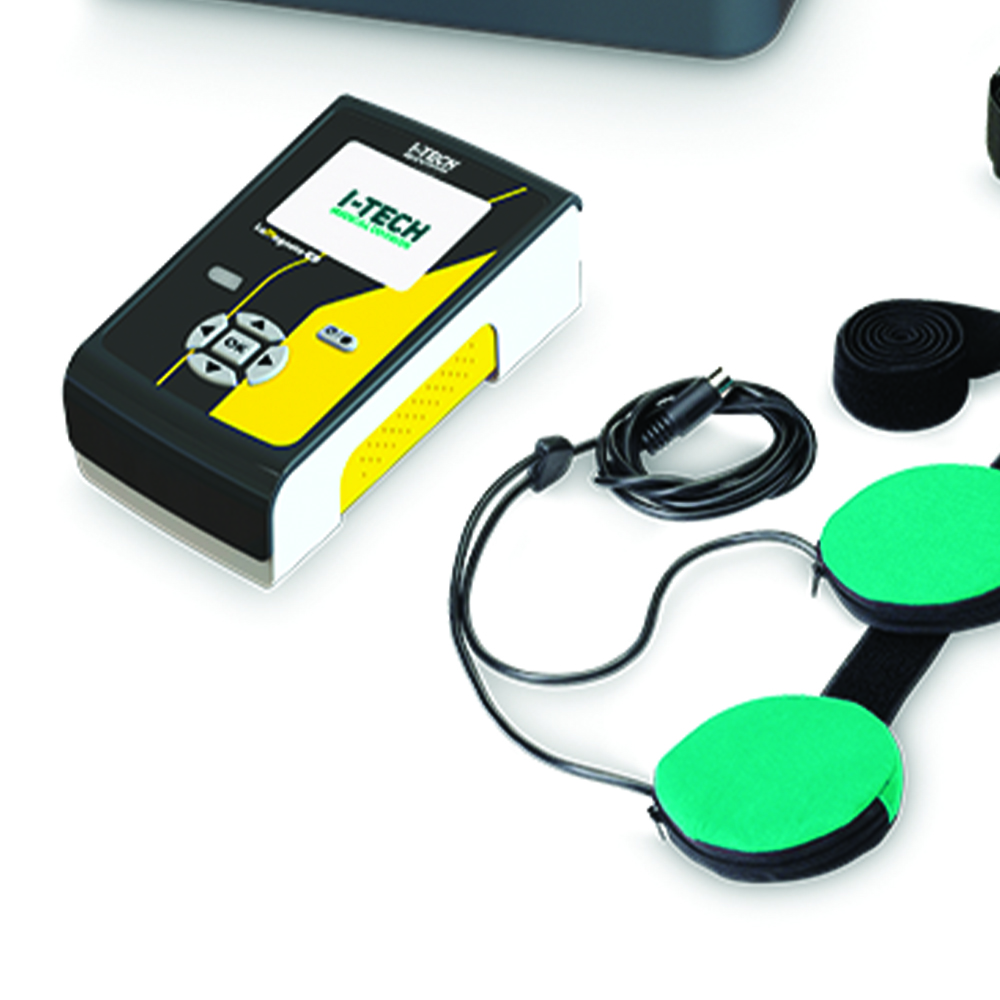

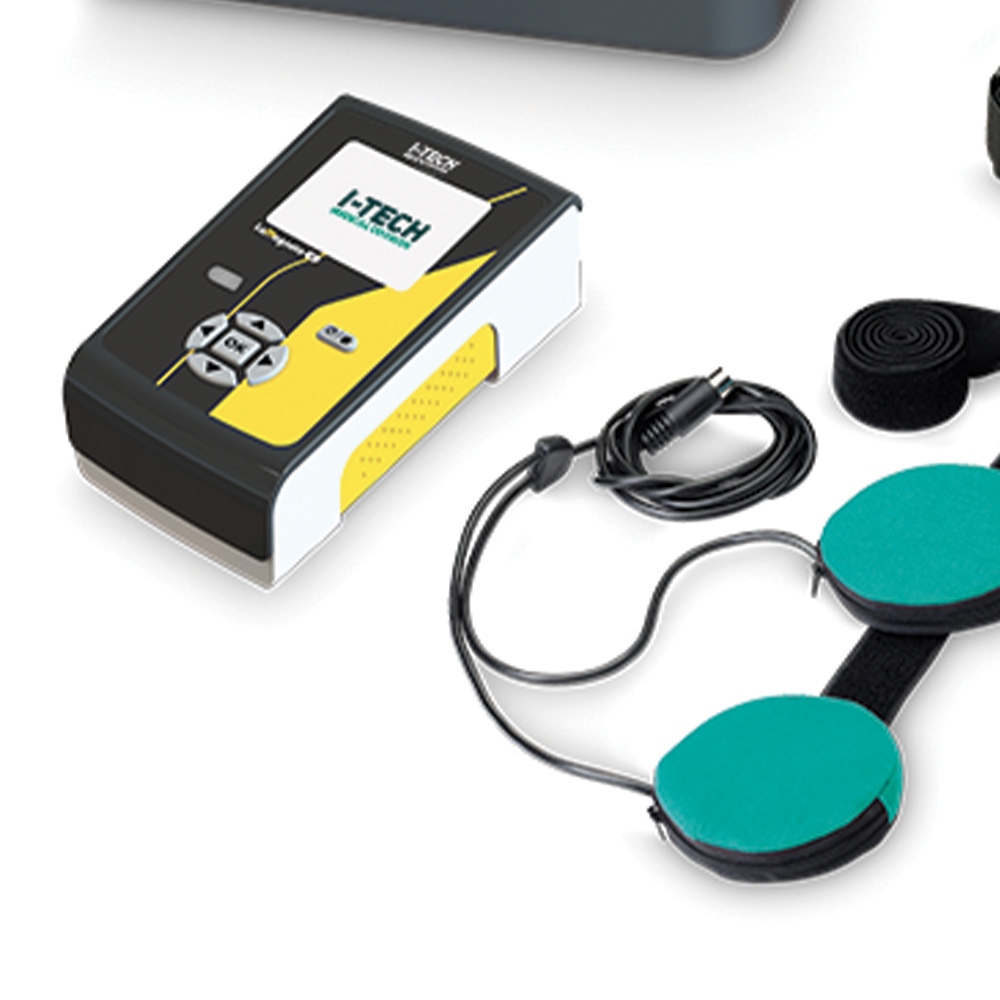

N°1 LaMagneto Pro device;

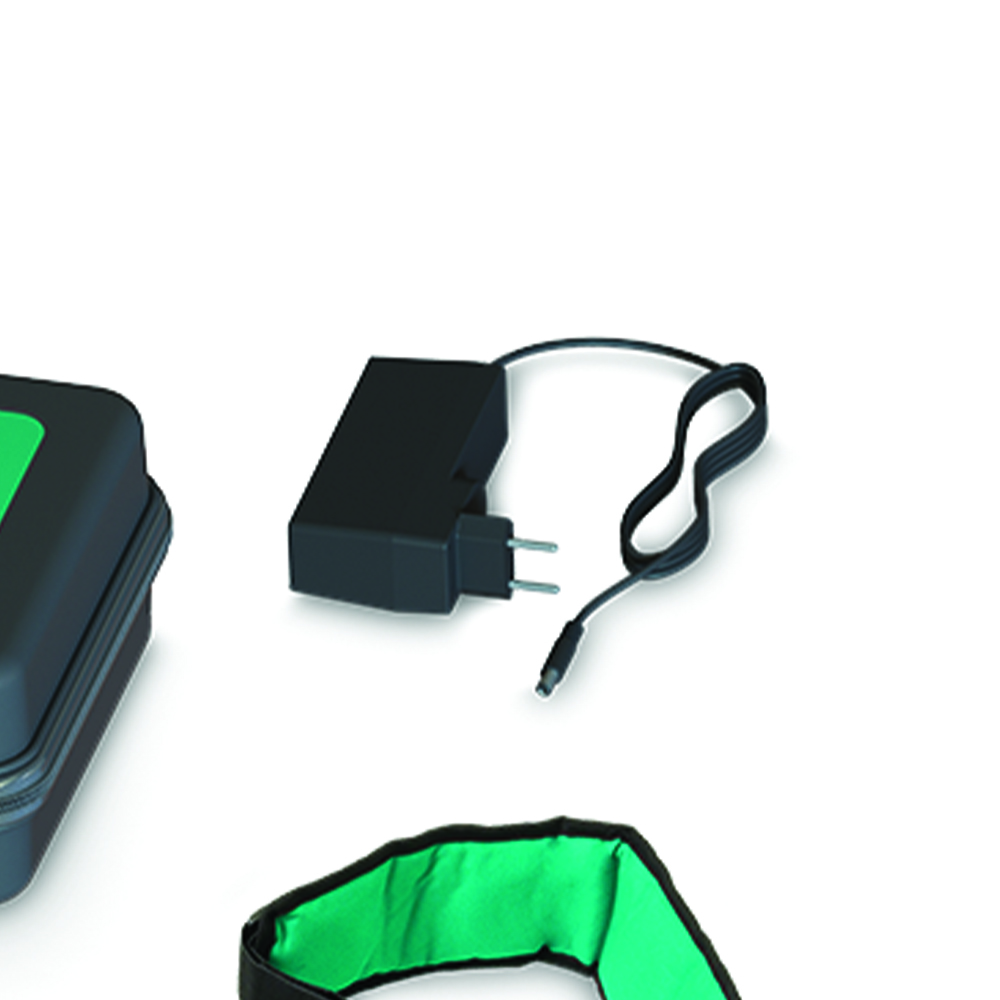

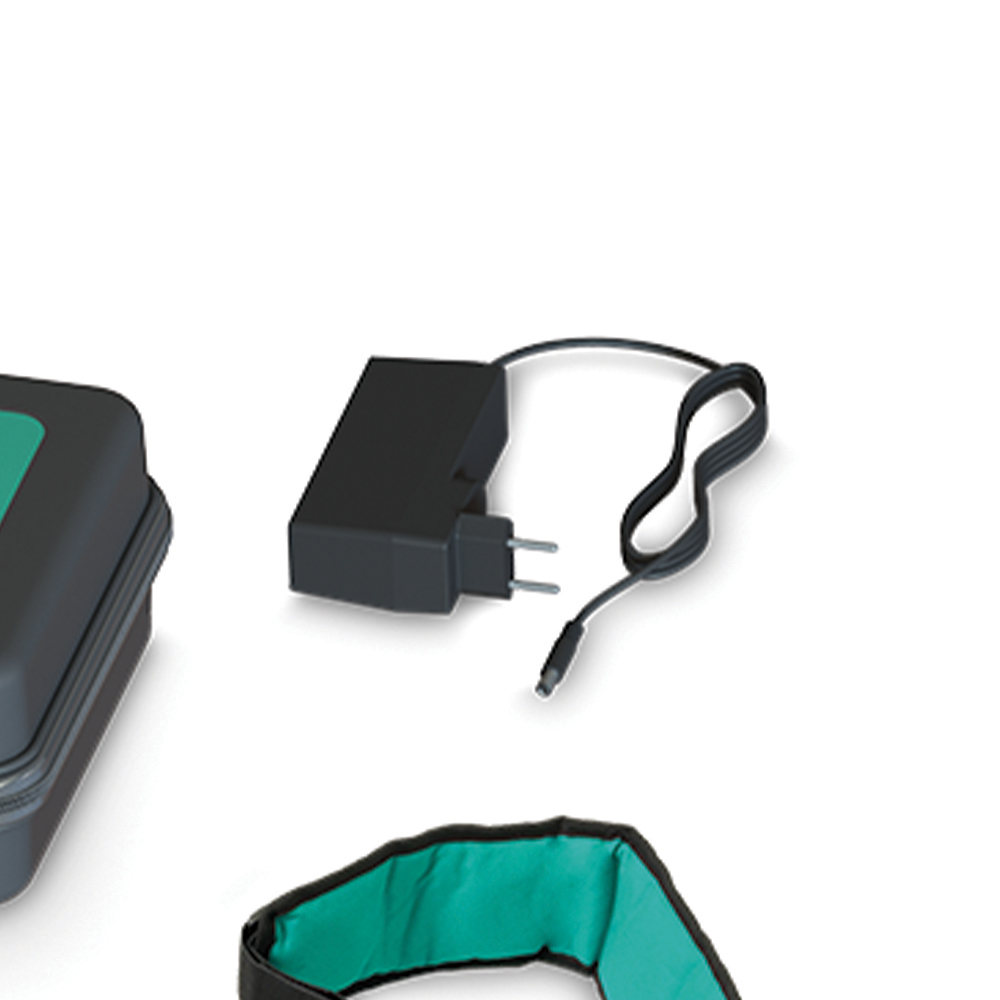

No. 1 medical power supply (cable approx. 1.5m);
No. 1 use and maintenance manual;

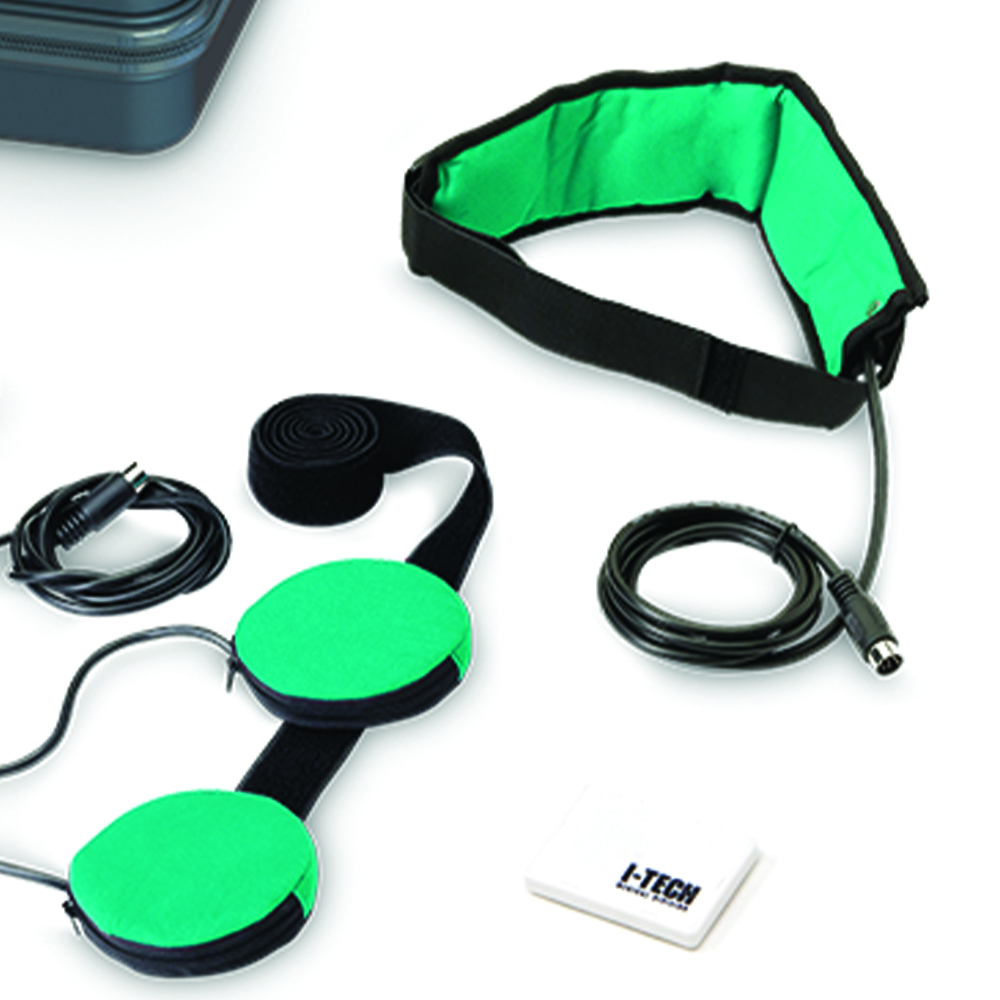

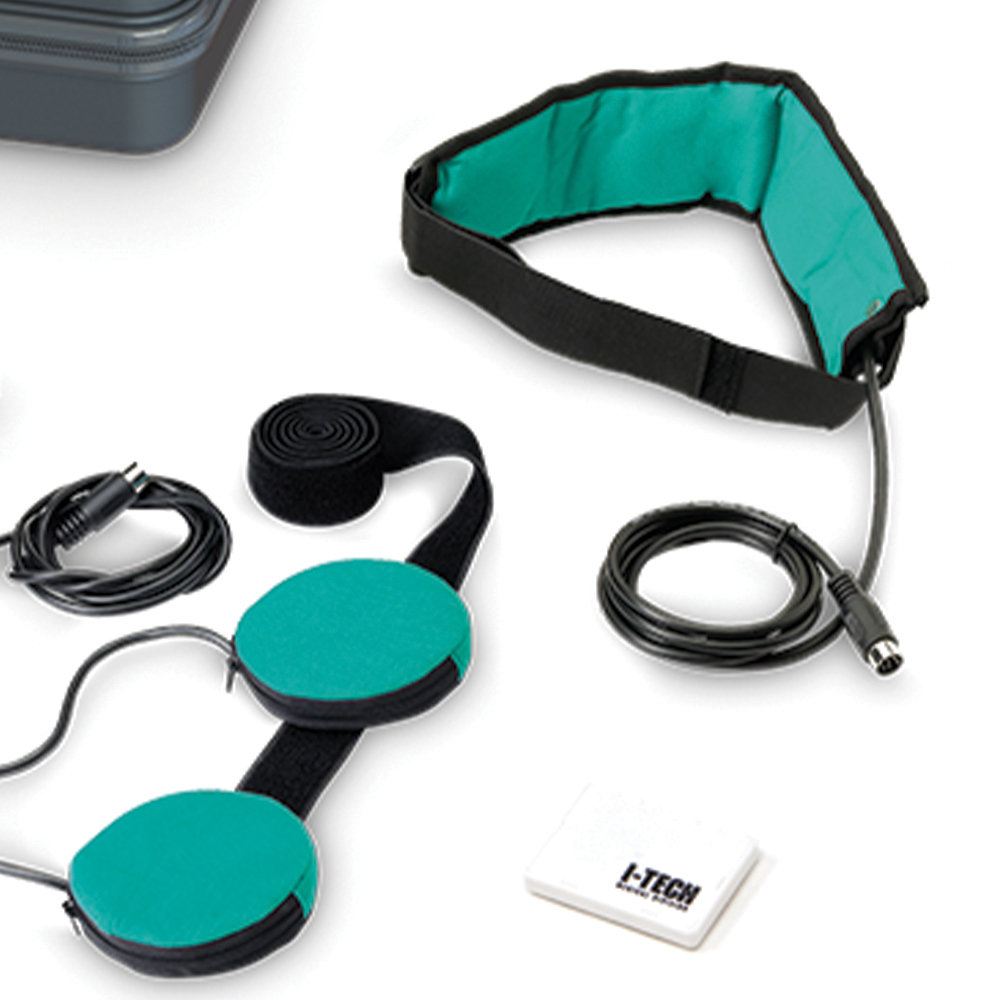

No. 1 band applicator with 3 solenoids (cable approx. 1.5m);
No. 1 professional applicator with pair of solenoids;
N.1 NEW OSTEOMAT mattress (160x65 cm)

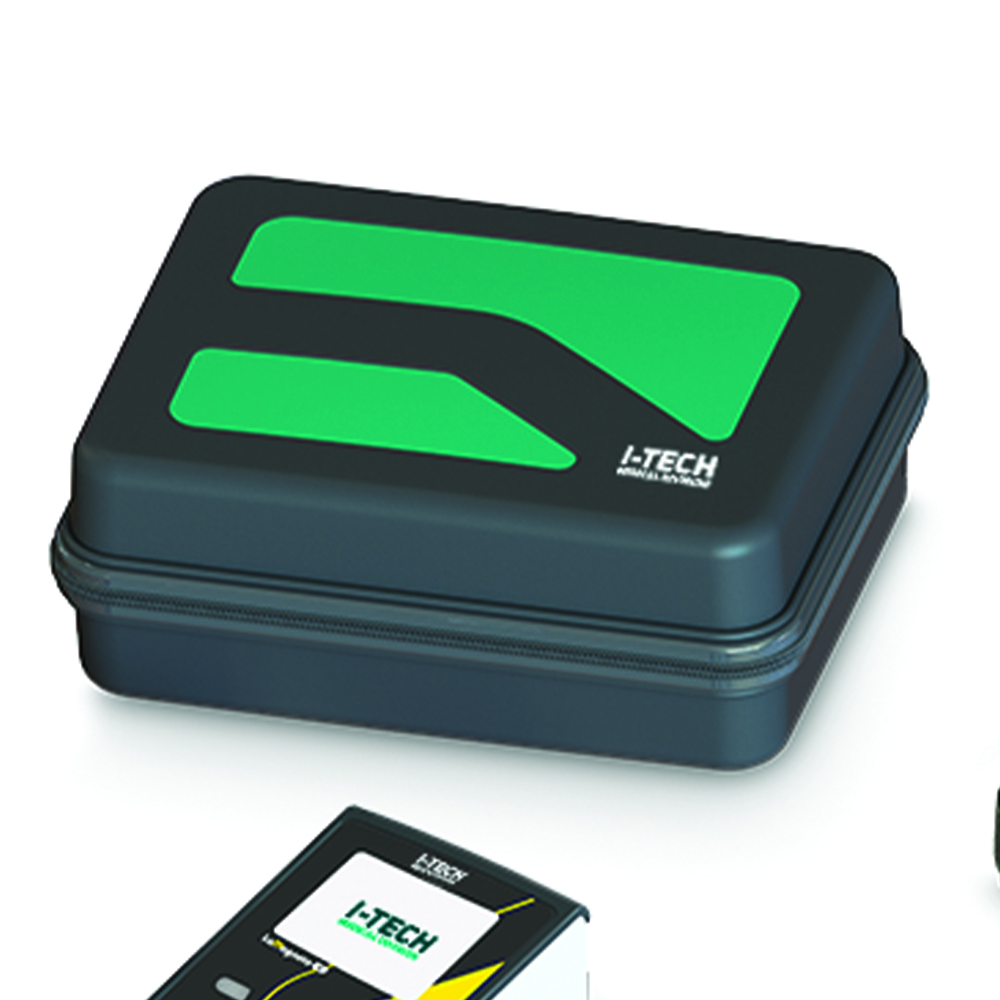

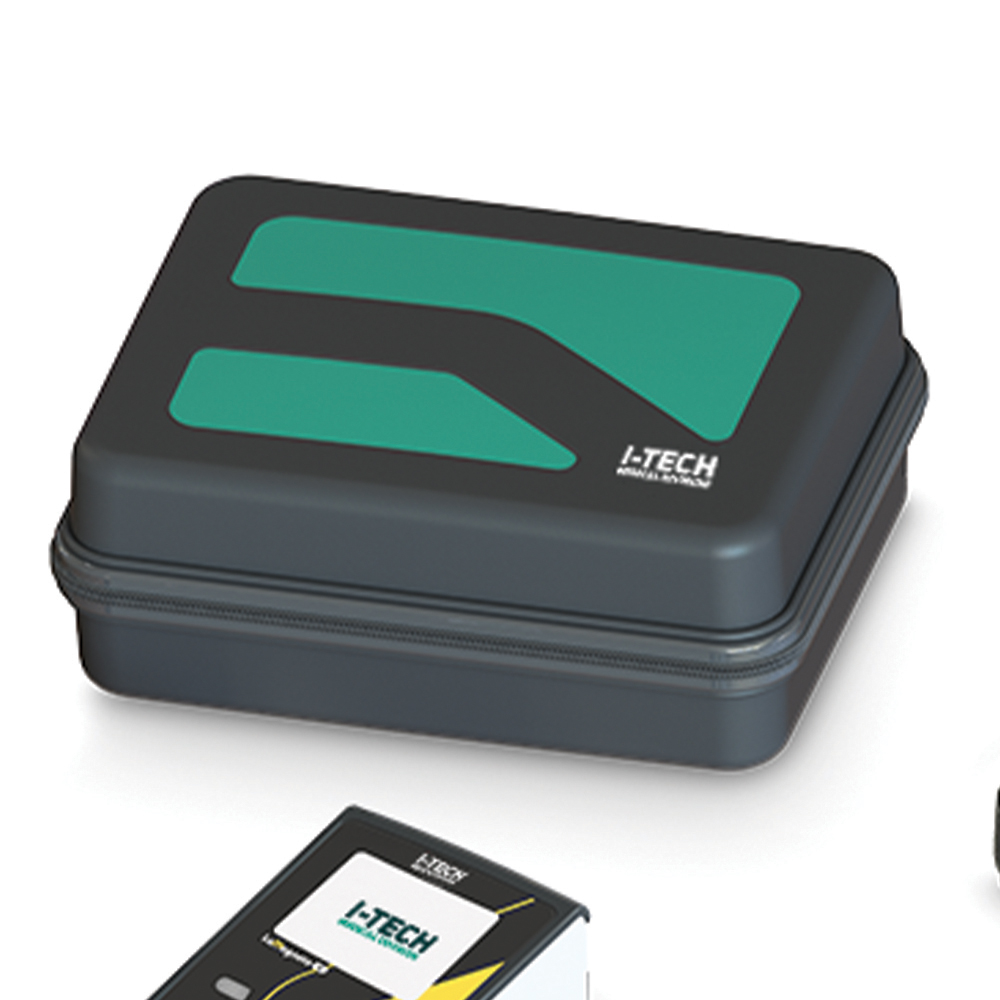

N°1 carrying bag;
Magnet for checking therapy execution;
Non-woven fabric band (TNT) 15x150 cm.

Compatible accessories
The applicators and accessories of the previous low frequency magnetotherapy models (Mag700, Mag2000, Mag2000 Plus) are perfectly compatible with the LaMagneto, LaMagneto Pro and LaMagneto X devices.





barcode: 8019781202031
code: 20204
