Trust our unmatched engineering with exclusive Suspension Elliptical Technology and PerfectStride Motion for an exceptionally smooth, ultra-comfortable workout experience, adjusting the incline to work the muscles you care about most.
Our Ascent Trainer A50 includes the exclusive Exact Force Induction Brake.

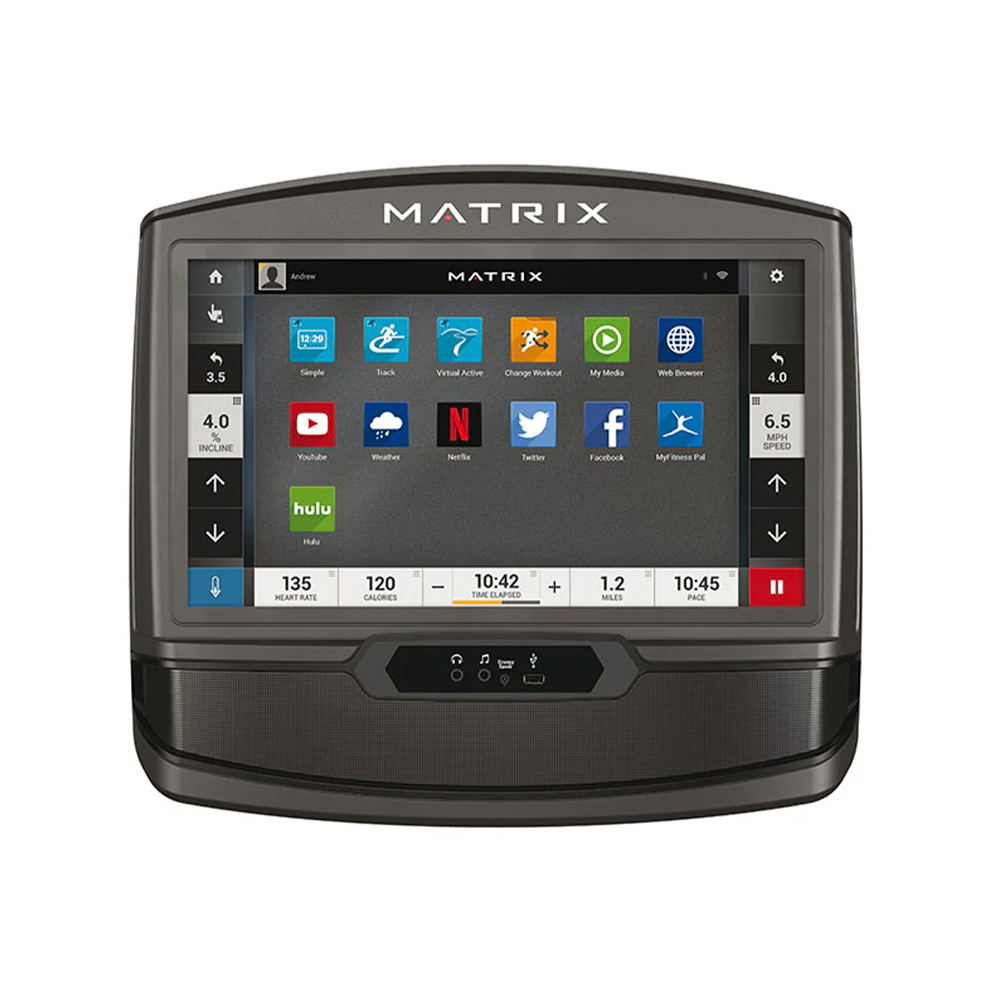

Our 16" console offers a bright HD touchscreen display to bring virtual journeys, movies, and videos to life. It includes WiFi, Bluetooth, and an HDMI port to stream anything your heart desires.

CONSOLE
DISPLAY TYPE 16” (40 cm) HD capacitive touch screen
WIFI ENABLED ViaFit connectivity, entertainment apps, software updates
BLUETOOTH ENABLED Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
HDMI PORT Streaming connection to multimedia devices, phones or tablets
USB INPUT Front: Use to access media from compatible devices and to install software updates.
Charges most devices up to 2.4 amps. Back: Provides power to USB-powered devices up to 1 amp.
SPEAKERS 5 watts
CONSOLE APP My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
PASSPORT READY No
VIAFIT CONNECTIVITY Yes
HEART RATE Bluetooth wireless heart rate, Polar Bluetooth heart rate strap included
EXTRA CONSOLE Integrated reading compartment, power saving mode, audio in/out
EXERCISES 13 total — manual, intervals, constant watts, Glutes, time goal, distance goal,
calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
FEEDBACK DISPLAY Elapsed time, target time, remaining time, clock, miles/kilometers, RPM, current speed (MPH / Km/h), pace, average pace, heart rate, maximum heart rate, calories, calories/hour, watts, METS, incline, previous incline, resistance, previous resistance
ASSEMBLED MONITOR WEIGHT 5.5 kg / 12 lbs.

CHASSIS
STEP HEIGHT 22 cm / 8.7”
STEP LENGTH 51–61 cm / 20” –24”
POWER REQUIREMENTS AC 120V, 15A circuit (voltage may vary outside the US)
RESISTANCE RANGE 30 levels, electronically adjustable
RESISTANCE SYSTEM Exact Force Induction Brake
PEDAL TYPE Oversized with rubber inserts
POWER INCLINATION 24%–54%
TILT ANGLE 24%–54%
MAXIMUM USER WEIGHT 159 kg / 350 lbs.
SPACE BETWEEN PEDALS 6.5 cm / 2.6”
HANDLE DESIGN: Double action, multi-position, stationary with buttons
resistance/incline and heart rate handles
ASSEMBLED MACHINE WEIGHT 148.5 kg / 327 lbs.
EXTRA Bottle holder, accessory compartment
FLYWHEEL WEIGHT ND
FRAME TYPE Ascent Trainer
ASSEMBLED DIMENSIONS 191 x 86 x 174 cm / 75.2” x 33.9” x 68.5”



code: A50-XIR
