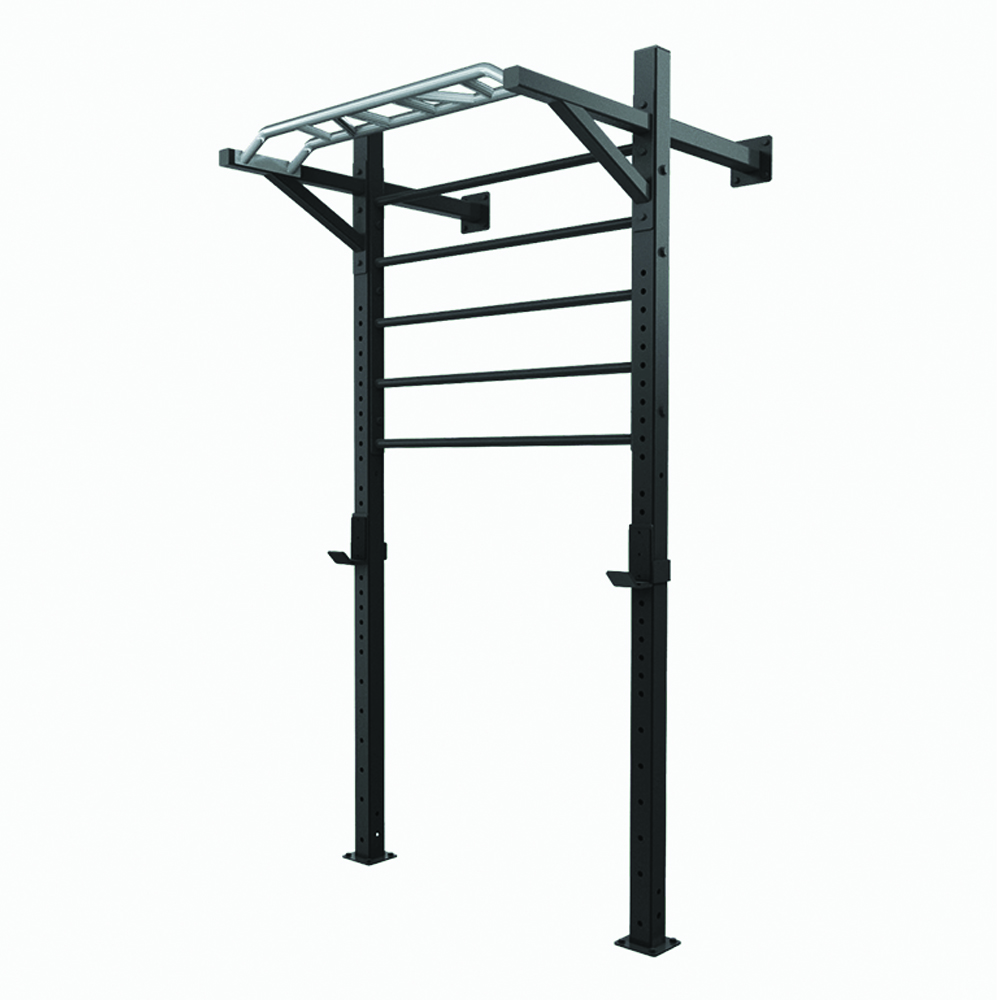

LDX-5000 is a multifunctional wall bars made with steel rungs and uprights.
Pull-up truss and barbell supports included

KEY POINTS
- Extra strong 6mm thick J-hook with UHMW (Ultra High Molecular Weight) protection

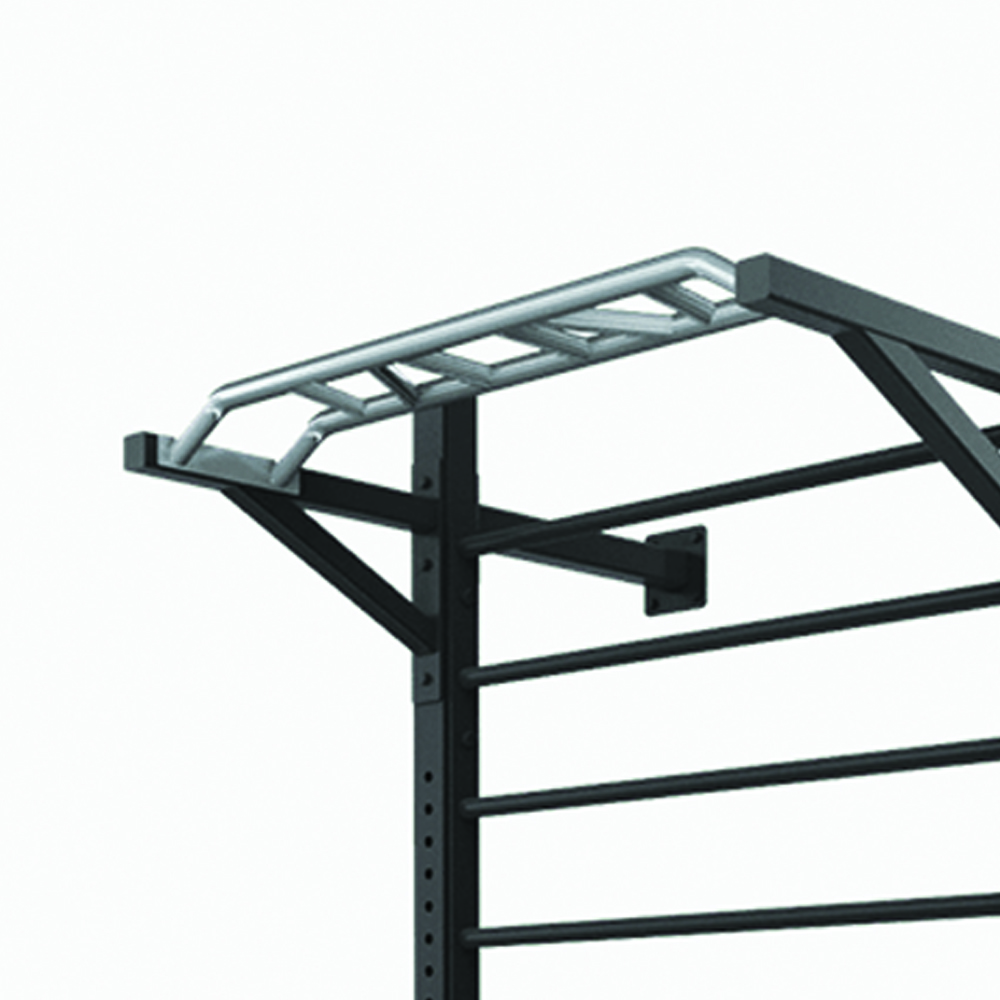

- Pull-up trellis: with six non-slip handles. Height from ground 2230 mm - width 1080 mm - ø36 and ø 30 mm

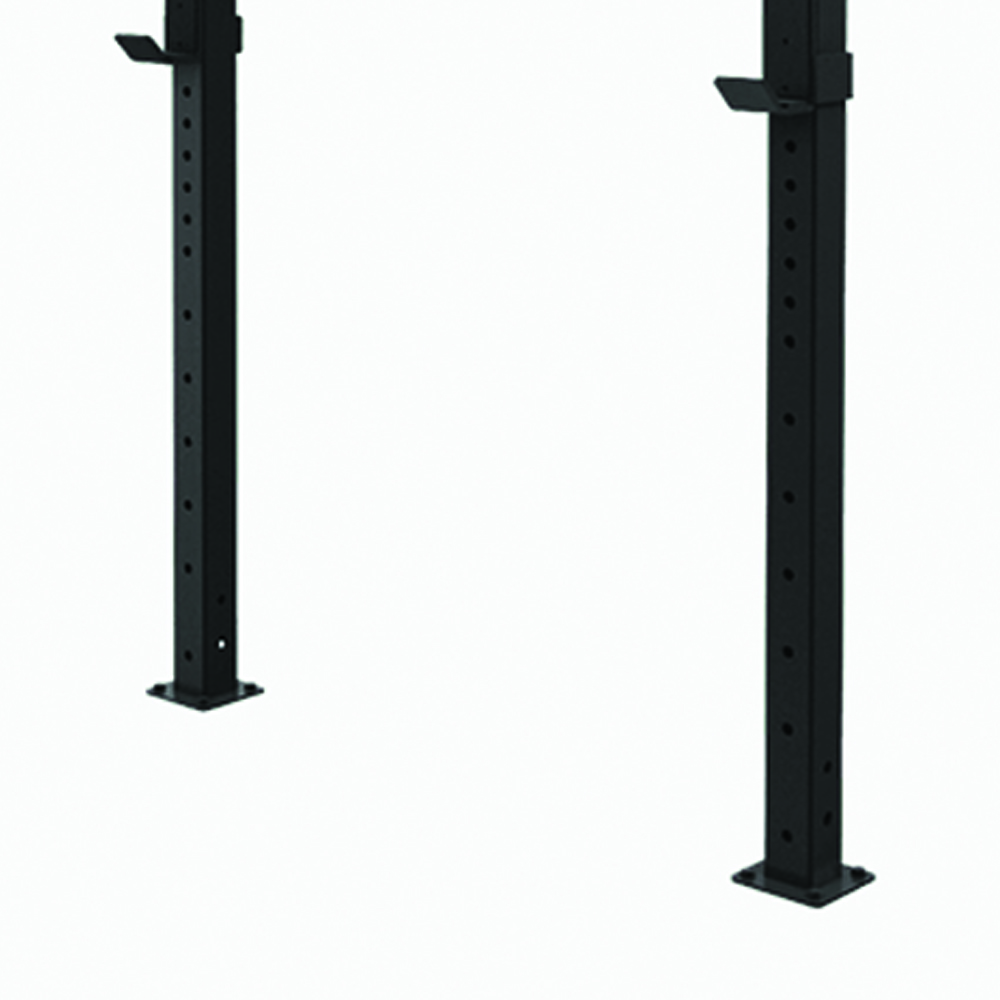

- STRUCTURE OF UPRIGHTS: tubular steel reinforced with square section 75x75x3 mm
- RUNG MODULE n°5 rungs 1050 x ø32, size 1050 x 60 x 872 mm. Fixing with bolts

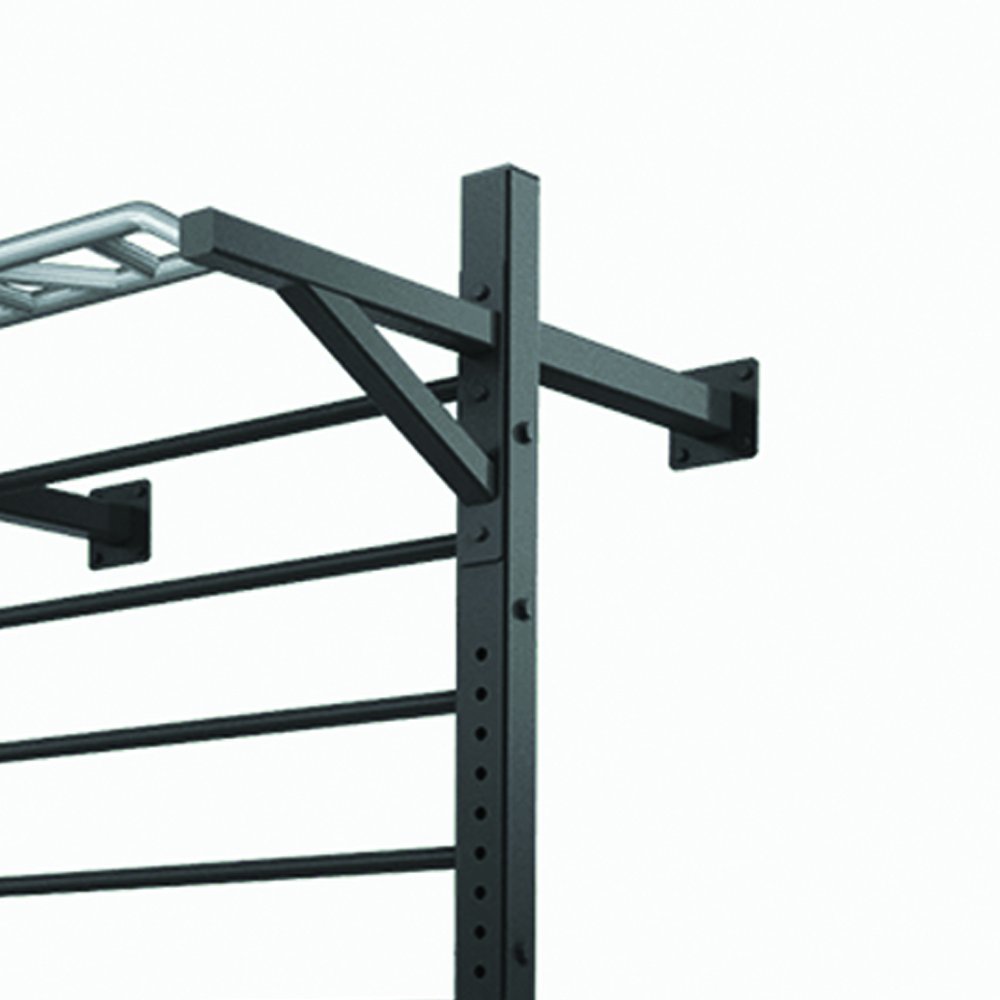

- WALL MOUNTING BRACKETS n°2 length 512 mm

TECHNICAL FEATURES
Maximum user weight: 120 kg
Equipment: 2 j-cups, pull-up frame
Pull-up trellis with six non-slip handles. Height from ground 2230 mm - width 1080 mm - ø36 and ø 30 mm
Rack configuration rung module n°5 rungs 1050 x ø32. Size 1050 x 60 x 872 mm. Fixing with bolts
Wall fixing brackets n°2 length 512 mm
Tubular structure with square section 75x75 mm - thickness 3 mm
Product Dimensions: 1143 x 1131 x 2425 mm
COMMERCIAL USE (EN20957-1 / EN957-4 class S)

OPTIONAL
- Code ALDX5-MPS: BACKREST CONFIGURATION RUNGS MODULE: n°6 rungs 1050xø32 mm. Size 1240x75x1125 mm. Fixing with bolts included
- Code ALDX5-SU STEP PLYO: platform surface 600x500 mm. Safety pin ø16 mm. Quick release fixing system with connection pin ø16 mm.
- Code ALDX5-B TARGET: disc size ø40 mm. Brackets thickness 6 mm
- Code AG75-P PARALLEL: dimensions 887x600x358 mm. Safety pin ø16 mm. Quick release fixing system with connection pin ø16 mm
- Code AG75-FS PAIR OF SAFETY LOCKS FOR BALANCE: thickness 8 mm. Support surface 500 mm. Equipped with protections and safety pins ø16 mm. Quick release fixing system with connection pin ø16 mm
- Code AGU-LD LANDMINE DOPPIO: universal joint with double seat for ø50 mm balancers. Length 250 mm
- Code AGU-GC ROPE HOOK: designed for battle rope, climbing rope and punching bag
- Code ALDX5-SM PAIR OF WALL BRACKETS: additional for wall mounting only

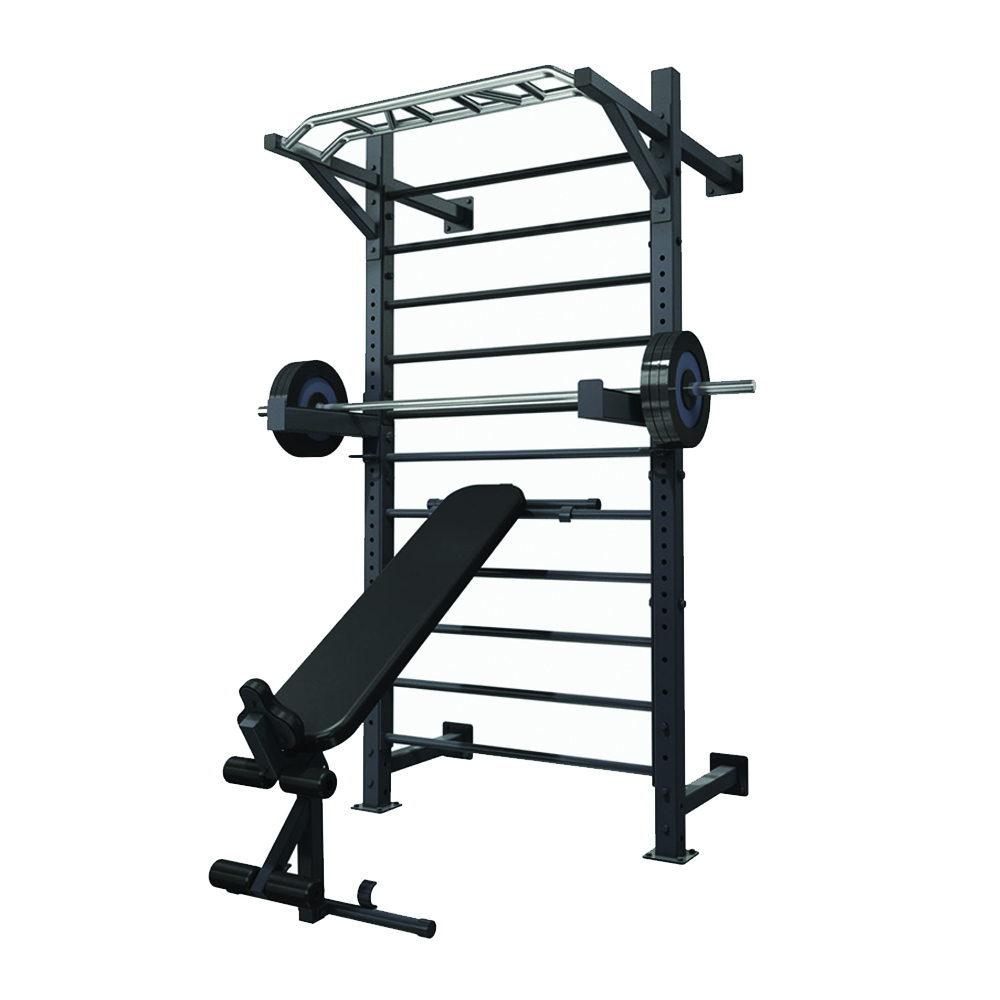

- Code PANCA-LDX3-5 BENCH: Size 1346x666x857 mm (in flat position). Backrest size 1230x300x50mm. 3-level inclination adjustment. Seat size 187x200x50 mm. Removable seat. 4 modes of use: flat bench, abdominal bench, inclined bench and declined bench. Quick release fastening system with 2 hooks. Ankle locking rollers included.



barcode: 8029975805528
code: LDX-5000
