1 center weight stack allows for quick and easy weight adjustments between sets
• Magnetic clip for attaching phones or tablets
• Optional weight stack: FTRHS weight stack for an additional 45 kg of weight (23 kg / 50 lbs effective resistance)
• Optional Handle Package: FTRHP Handle Package includes 5 training handles (straight bar, EZ curl bar, rope, sport handle, ankle weight)

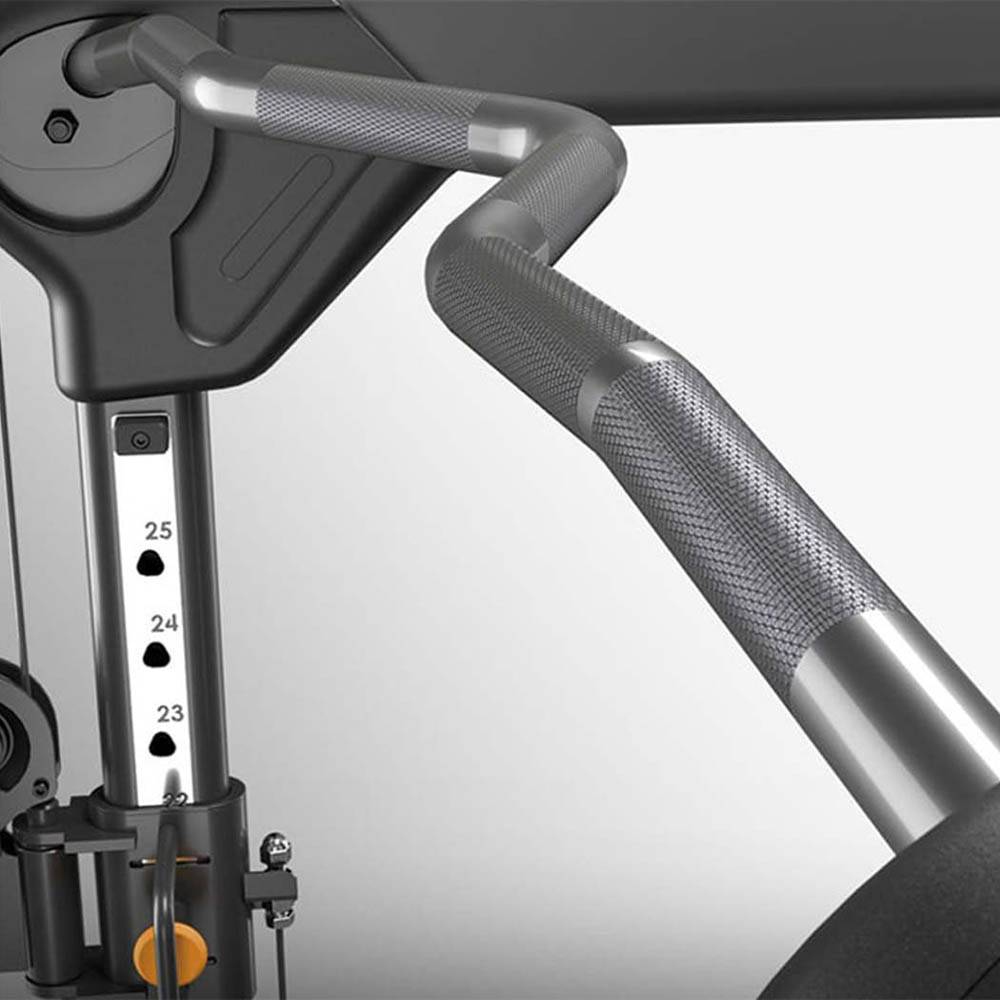

• Knurled multi-grip pull-up bar for greater exercise variety
• Compact overall height of 212cm / 83.5" allows the unit to be placed in rooms with low ceilings
• The label highlights the muscle groups targeted and the correct user positioning for a wide range of exercises
• One-handed pulley adjustment offers easy operation
• Pulley ratio 1:2 when both handles are in use for heavier controlled lifts. Pulley ratio 1:4 when only one handle is in use for more explosive movements.
• Enclosed handle provides a safe and secure mounting point for elastic bands

User accessories
ACCESSORY COMPARTMENT Integrated compartment for attachments, phone/tablet and optional accessories
MULTI-GRIP WEIGHT LIFTING BARS Different grip angles for a variety of exercises
LABELS Muscles worked, color coding, illustrations of start and end of exercise
COLOR CODING OF TAGS Yellow (chest), blue (legs), green (trunk)

Column weight
COLUMN WEIGHT PROTECTION Full front and rear coverage
STANDARD COLUMN WEIGHT 136 kg / 300 lbs. Running weight
STANDARD COLUMN WEIGHT 68 kg / 150 lbs. effective resistance with both handles in use (1:2 pulley ratio)
STANDARD COLUMN WEIGHT 34 kg / 75 lbs. effective resistance with one handle in use (1:4 pulley ratio)
OPTIONAL HEAVY STACK 180 kg / 400 lbs. Running weight
OPTIONAL HEAVY STACK 91 kg / 200 lbs. of effective resistance with both handles in use (1:2 pulley ratio)
OPTIONAL HEAVY STACK 45 kg / 100 lbs. of effective resistance with both handles in use (1:4 pulley ratio)

Adjustments
COLOR CODED PINS AND ADJUSTMENT POINTS Yes
USER ADJUSTMENT RANGE 25 user start options

Technical specifications
PRODUCT WEIGHT (STANDARD STACK) 245 kg / 540 lbs.
PRODUCT WEIGHT (HEAVY STACK) 290.5 kg / 640 lbs.
OVERALL DIMENSIONS (L x W x H) 129.5 x 137.5 x 212 cm / 51” x 54” x 83.5”
CABLE TRAVEL 231 cm / 91” with both handles in use
MAXIMUM EXERCISE WEIGHT 180 kg / 400 lbs.
MAXIMUM USER WEIGHT 136 kg / 300 lbs.

Frame and cables
FRAME COLOR Graphite Grey
CABLE TRANSMISSION Internally lubricated cables and joints
MACHINE ANCHOR POINTS Yes



barcode: 4711198046164
code: MXR-FTR30
