The best-selling bar football
Maracana is a football table in a slightly simplified version compared to the Deluxe, but equally successful because it is highly reliable and very easy to manage by the operator: the playing field can be easily cleaned because it can be separated from the upper part of the cabinet, while the mechanism internal sliding of the balls, which can be accessed by conveniently opening the cabinet, is made up of individually replaceable parts.
All parts (including those in wood) are assembled without the use of glues, to allow quick and easy replacement of spare parts. The cabinet is also equipped with a metal arm that supports the upper part when it is raised to allow access to the interior, making it easier to recover the collections and at the same time guaranteeing the safety of the operator.
The possibility of using - in addition to the standard mechanical coin mechanism - highly sophisticated coin acceptance systems (such as the electromechanical system or the GARL 2001 electronic system) makes it possible to satisfy the collection needs of any type of room.

DATA SHEET
Cabinet built in multilayer plywood and covered in plastic laminate. The strength of the materials used and the thickness of 3 centimeters make the structure extremely resistant. Color: gray-blue gradient upper band, black lower band.
The furniture structure is assembled by means of a system of metal hinges secured by screws and bolts, without the use of glues that would make it difficult to replace any parts.
Legs in beech wood with washable plastic peel effect paint. The considerable thickness - 5 centimeters - guarantees perfect stability on the ground.
Rods diameter mm. 16 in drawn steel with high torsion resistance with rustproof chrome plating. The quality of the material used, together with the thickness of 2.2 mm, prevents the rods from bending, maintaining a perfect shape for a long time. It is possible to choose between outgoing rods and retracting rods (telescopic).
Outgoing rods: the rods supplied as standard come out of the cabinet - on the side opposite the knob - according to the standard used in Italy and in international competitions.
Safety device for the rods (telescopic rods): on request it is possible to supply the football table with telescopic safety rods to replace the outgoing ones. Made of the same material and with the same technical characteristics as the outgoing ones, they differ in operation, which ensures the highest level of safety.
In fact, in the telescopic rods, a rod with a smaller diameter slides inside the rod with the cairns, the end of which re-enters the cabinet without coming out, thus avoiding the danger of blows to the face and eyes of children. The choice is strongly recommended if the users of the table football are children and in any case in all cases in which the table football is used in environments frequented by children.
The rods are fixed to the cabinet by means of nylon flanges containing a ball bearing.
The steel ball bearings inside the bushings that fix the rods to the cabinet greatly improve the smoothness of the rods: it increases the speed, and therefore the pleasure, of the game, while decreasing the stresses on the players' wrists.
Single-colored men in plastic material (moplen) representing a stylized human figure, fixed to the rods with direct molding: they do not move, they do not move, they maintain their position perfectly. Team colors: blue / red.
Playing field in tempered glass (5 mm thick) with green grass background and white lines that reproduce the ground of the stadium.
Abacus scoreboard, with cubes in colors coordinated with the cairns.
It is possible to open the cabinet to access the inside. A metal support is activated automatically to support the upper part of the football table when it is raised, allowing the necessary operations to be carried out in complete safety.
When the cabinet is open, the playing field can be separated from the upper part of the cabinet by opening two latches, to facilitate cleaning and any replacement of parts.
The internal sliding mechanism of the balls is made up of individually replaceable metal elements.

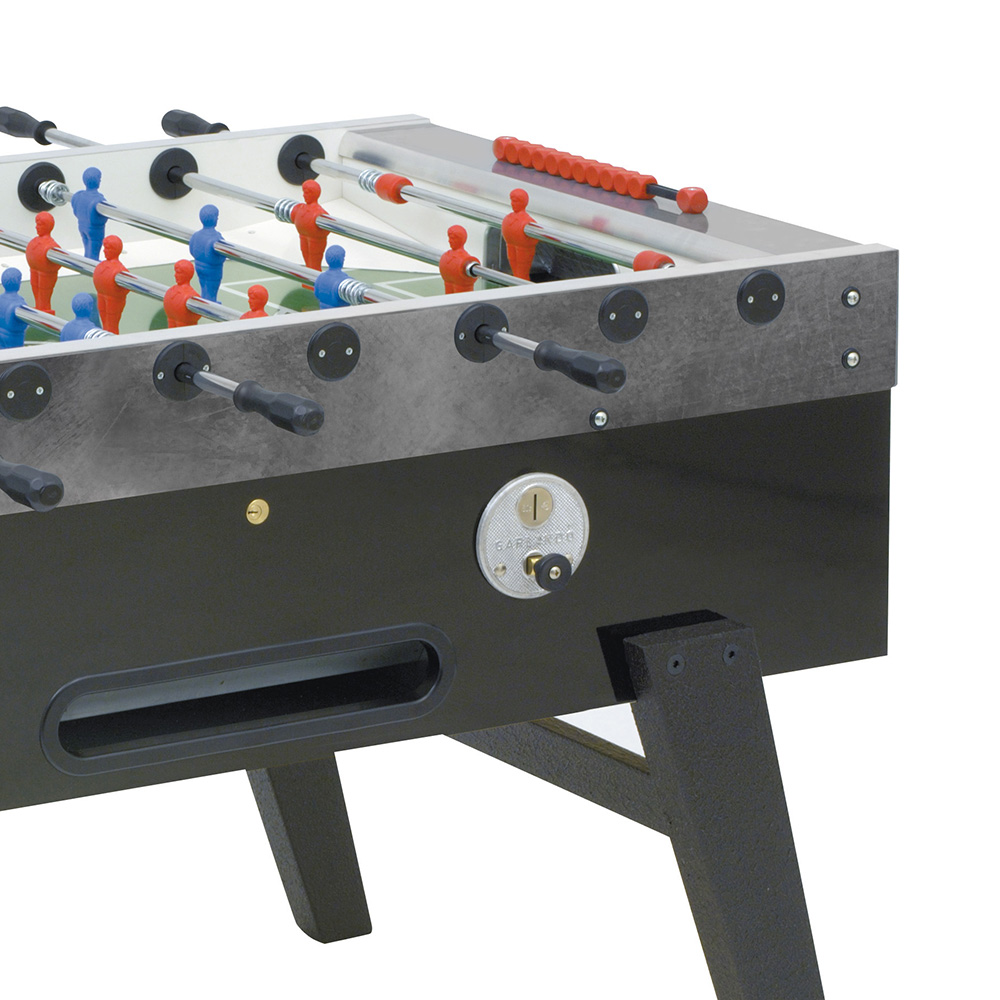

Maracana is equipped as standard with a mechanical pull-out coin mechanism, adjustable for any type of coin or token, which releases all the balls at the same time.
The following mechanical coin mechanism options are available on request: coin mechanism with counter, coin box with protected counter, coin box with protected counter and ejector.
Maracana can also be supplied with a disabled coin mechanism to play for free.
For more information on the different coin mechanism options, see the Coin Acceptors section.
10 white “Standard” balls supplied with each table football.

DIMENSIONS
MARACANA model
Length cm. 137
Width cm. 76
Width with outgoing rods cm. 120
Width with retracting rods cm. 110
Height cm. 90.5
Playing field cm. 115 x 70.5
Weight Kg. 90
Packaging cm. 140x 80 x 4



barcode: 8029975510019
code: A-4RCVL
