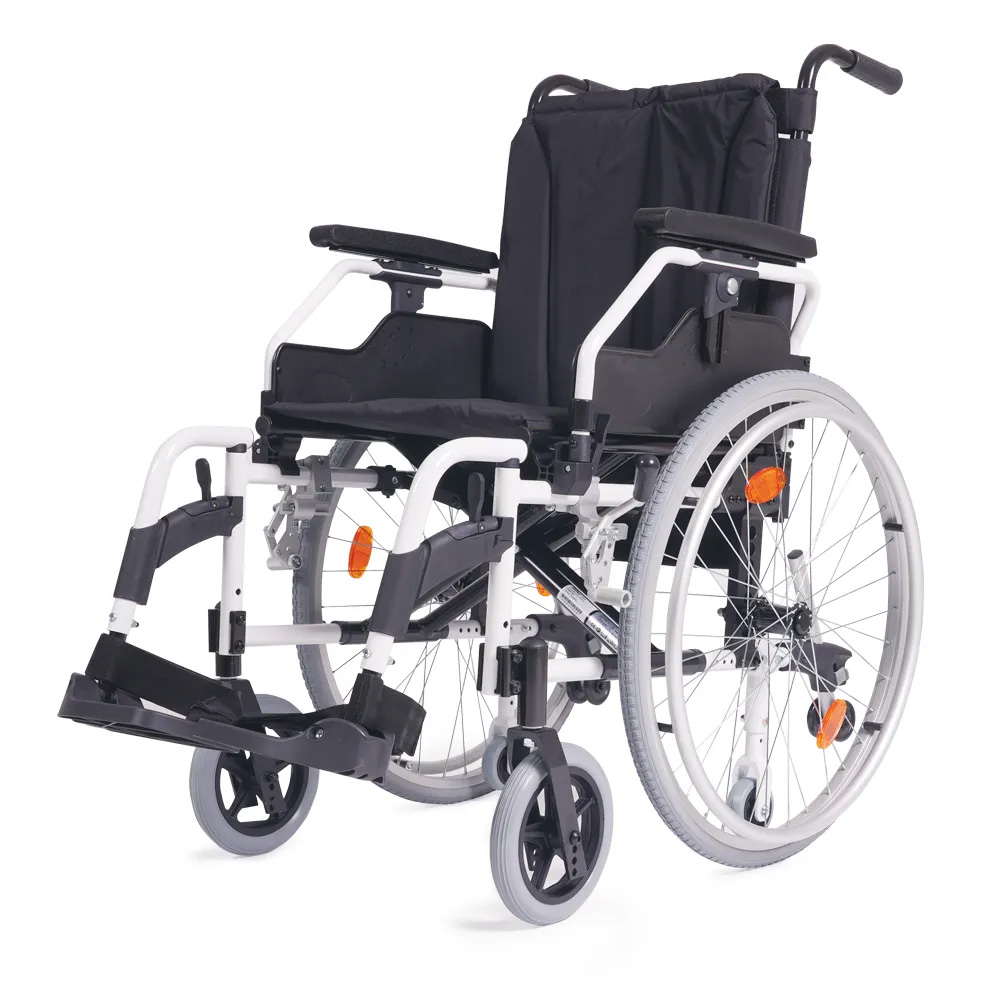

DEMETRA is a self-propelled folding wheelchair with a double-crossed circular aluminum frame. The DEMETRA wheelchair is available in nine different sizes: 38, 40, 42, 44, 46, 48, 50, 55, and 60; this suffix indicates the seat width in centimeters.

Description:
Suitable for continuous or prolonged daily use for many hours during the day and in clinical or environmental conditions that require easy maneuverability.
It consists of: a folding frame in high-strength light alloy, two large solid quick-release wheels at the rear, adjustable in 7 vertical positions and in 4 anteroposterior positions, equipped with a push ring, two small fixed swivel wheels at the front adjustable in height and inclination, fold-down and removable leg rests, separate and height-adjustable footrests, side panels to protect clothes with adjustable fold-down and removable armrests, transit wheels (for elevators or narrow passages - they allow movement once the rear wheels are extracted), equipped with parking brakes and anti-tip wheels.
Seat adjustable in multiple height positions and tensionable backrest fabric.

Features/Accessories supplied as standard
• Folding frame with double stabilizing cross in aluminum

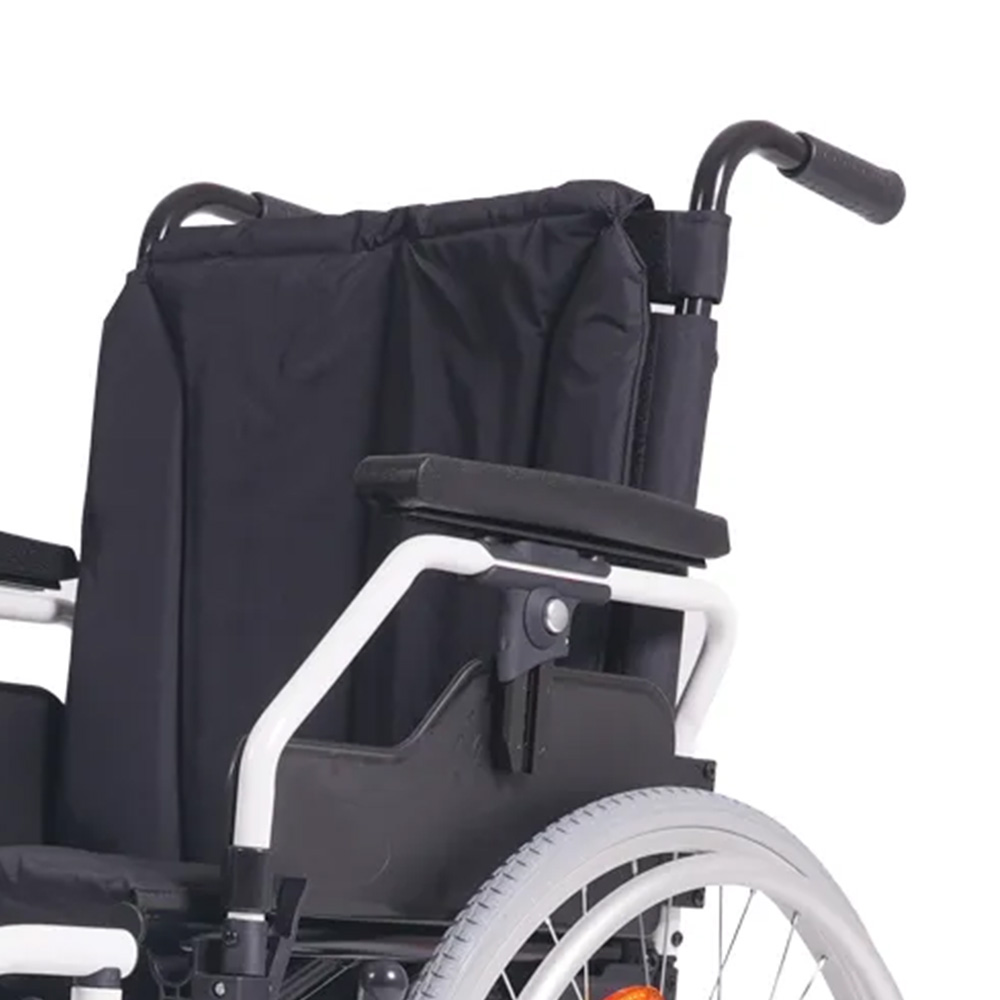

• Backrest with tubular elements covered with padding

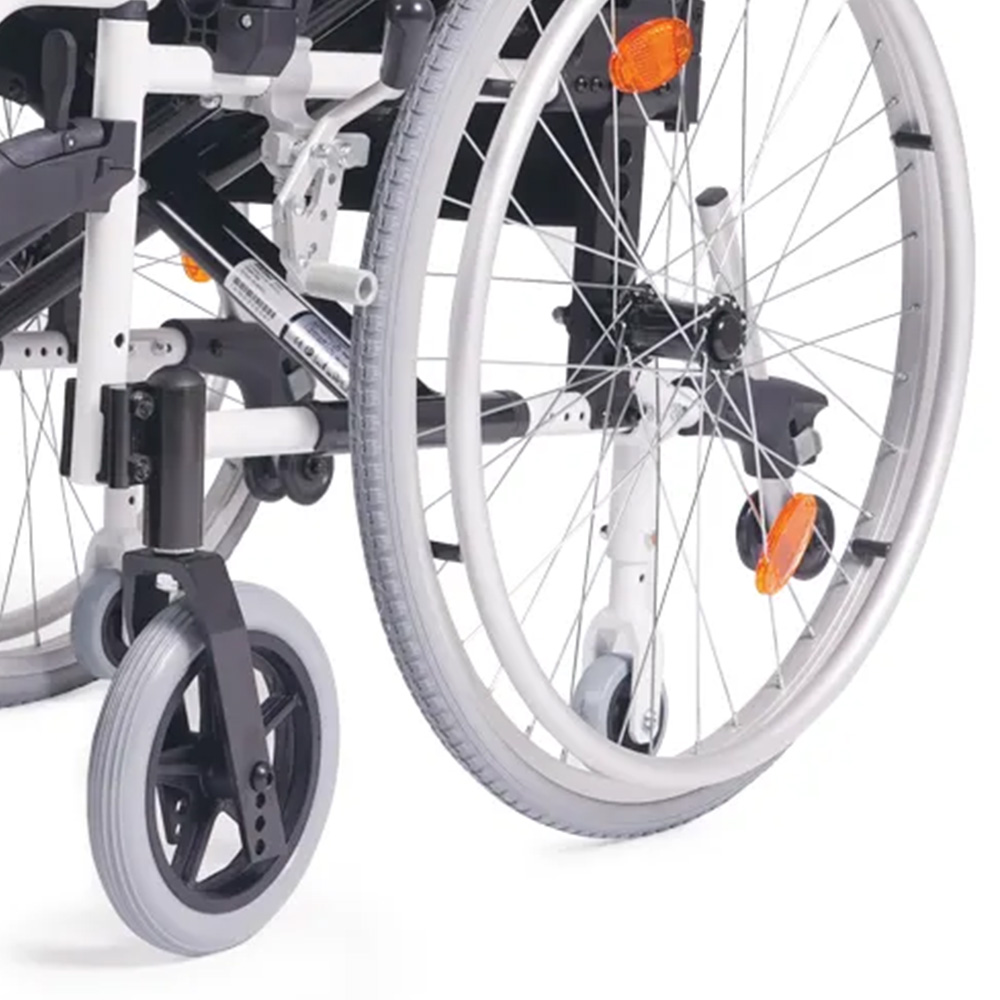

• Quick release solid rear wheels, diameter 600 mm (24”) equipped with brake
parking and a handrail ring for pushing. Adjustable to 7 vertical positions in 2cm increments.
Adjustable in 4 positions in an anteroposterior direction, 1.5cm increments. Available in several sizes (500
mm/20”, 550 mm/22”)
• Front wheels diameter 200 mm (8”) with swivel forks adjustable in height and inclination.
Available in multiple sizes (125 mm/5”, 150 mm/6”)
• Folding and removable legrests

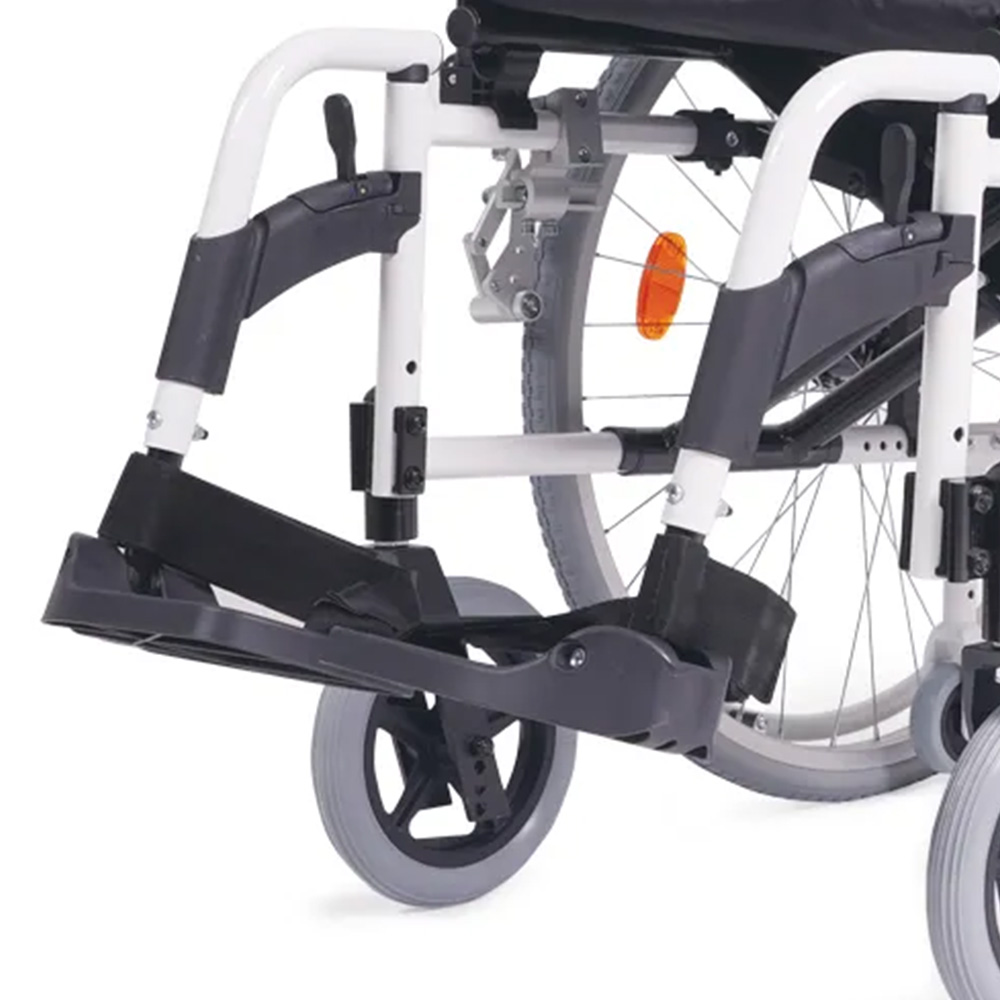

• Separate, plastic, foldable footrests, equipped with heel stops, adjustable in height
• Height-adjustable, foldable and removable armrests
• Side containment panels
• Transit wheels for movement with rear wheels removed
• Anti-tip wheels
• Tensile backrest cover
• Adjustable seat distance from the ground
• Parking brakes
• Storage pocket located on the back of the backrest
• Choice of colors: blue, white and red

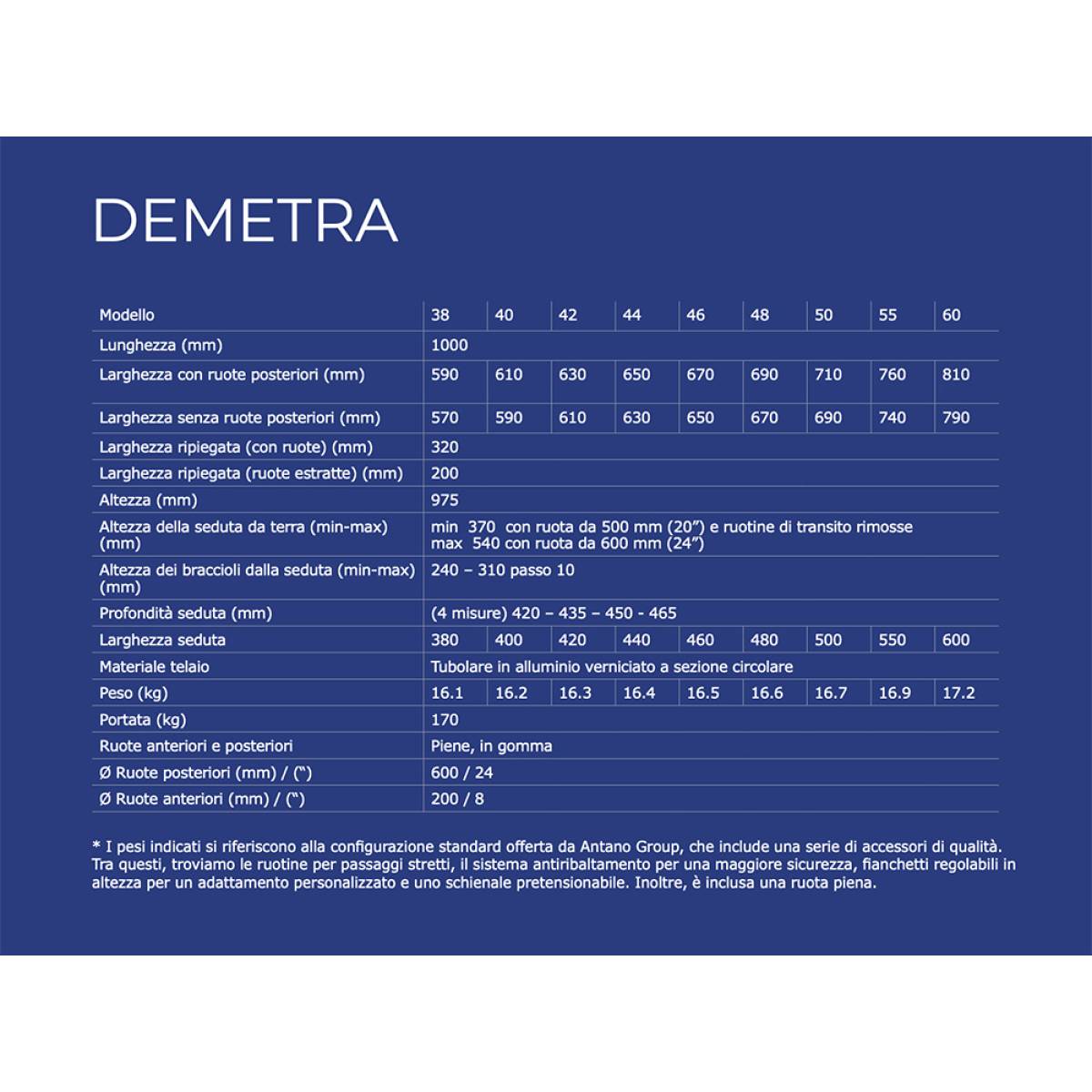

Technical data:
DEMETRA model
38 40 42 44 46 48 50 55 60
Length (mm) 1000
Seat width (mm) 380 400 420 440 460 480 500 550 600
Width with rear wheels (mm) 590 610 630 650 670 690 710 760 810
Width without rear wheels (mm) 570 590 610 630 650 670 690 740 790
Folded width (with wheels) (mm) 320
Folded width (wheels extended) (mm) 200
Height (mm) 990
Height of armrests from seat (min-max, mm) 250-320
Seat depth (min-max, mm) 400-475
Backrest height (min-max, mm) 440-540
Popliteal fossa distance (min-max, mm) 355-475
Seat width (mm) 380 400 420 440 460 480 500 550 600
Frame material Painted tubular aluminium with circular section 17.3 17.4 17.5 17.6 17.7 17.8 17.9 18.0
The weight includes all components of the standard configuration.
Weight in standard configuration (kg) 10.8 10.9 11.0 11.1 11.2 The transport weight refers to the wheelchair without rear wheels, footrests, anti-tip wheels and wheels for narrow passages.
Capacity (kg) 170
Front and rear wheels Solid, rubber
Rear wheel Ø (mm) / (“) 500-550-600 / 20-22-24
Ø Front wheels (mm) / (“) 125-150-200 / 5-6-8
Colors White/Red/Blue



barcode: 8052109691438
code: DEMETRA-BI38
