Electric wheelchair with folding aluminum frame and double crosspiece, backrest with padded nylon covering, with rear pocket.
Folding, height-adjustable semi-desk armrests with protective sides for clothes, removable and height-adjustable footrests.
12” rear wheels with full polyurethane tire on aluminum rim and mudguards, the front wheels are 8” mounted on aluminum fork.
Equipped with 1 10Ah lithium battery, to facilitate the transport of the folded wheelchair without having to remove it, it allows a range of 17 km, with the possibility of fitting an additional battery, upon request as an option, to increase the range up to 30 km.
Latest generation motors with Brushless technology without carbon brush wear.
Possibility of positioning the Joystick control on the right or left armrest, depending on your needs.
Additional rear joystick for assistant and elevating footrests available on request.

Technical features

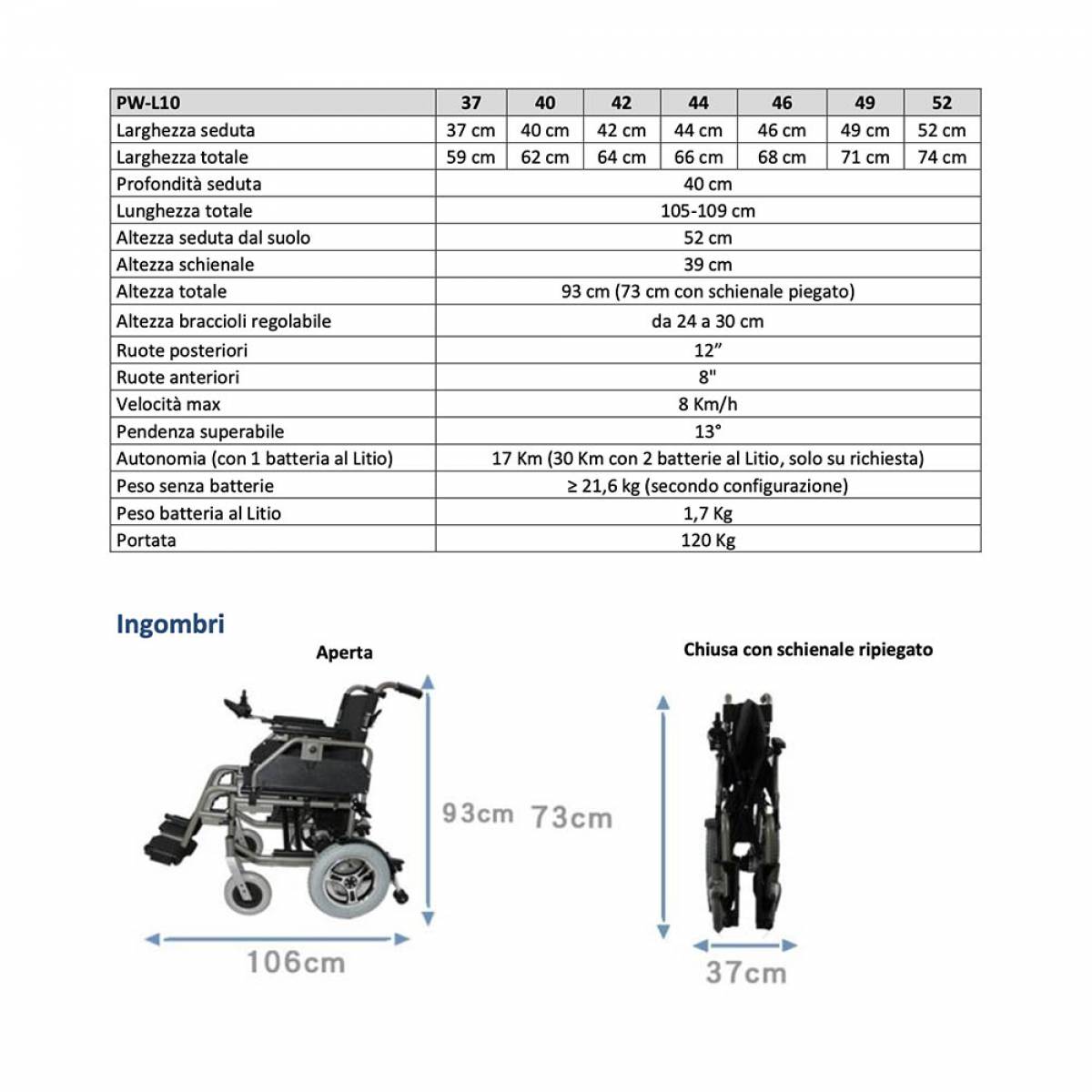

The PW-L10 model is available in 7 different seat widths, to suit every comfort and body type. Here are the available options:

Model Seat width Total width
PW-L10 37 37 cm 59 cm
PW-L10 40 40 cm 62 cm
PW-L10 42 42 cm 64 cm
PW-L10 44 44 cm 66 cm
PW-L10 46 46 cm 68 cm
PW-L10 49 49 cm 71 cm
PW-L10 52 52 cm 74 cm

Seat depth 40 cm
Total length 105-109 cm
Seat height from the ground 52 cm
Backrest height 39 cm
Total height 93 cm (73 cm with folded backrest)
Armrest height adjustable from 24 to 30 cm
12” rear wheels
8" front wheels
Maximum speed 8 km/h
Climbable slope 13°
Autonomy (with 1 lithium battery) 17 km (30 km with 2 lithium batteries, only on request)
Weight without batteries ≥ 21.6 kg (depending on configuration)
Lithium battery weight 1.7 kg
Capacity 120 kg

Optional equipment on request:
PW-L10-A01 Elevating platforms 2 pcs
PW-L10-A02 Rear Joystick Control
Additional 10Ah lithium battery, to increase autonomy



barcode: 8056992230217
code: PW-L10-37A
