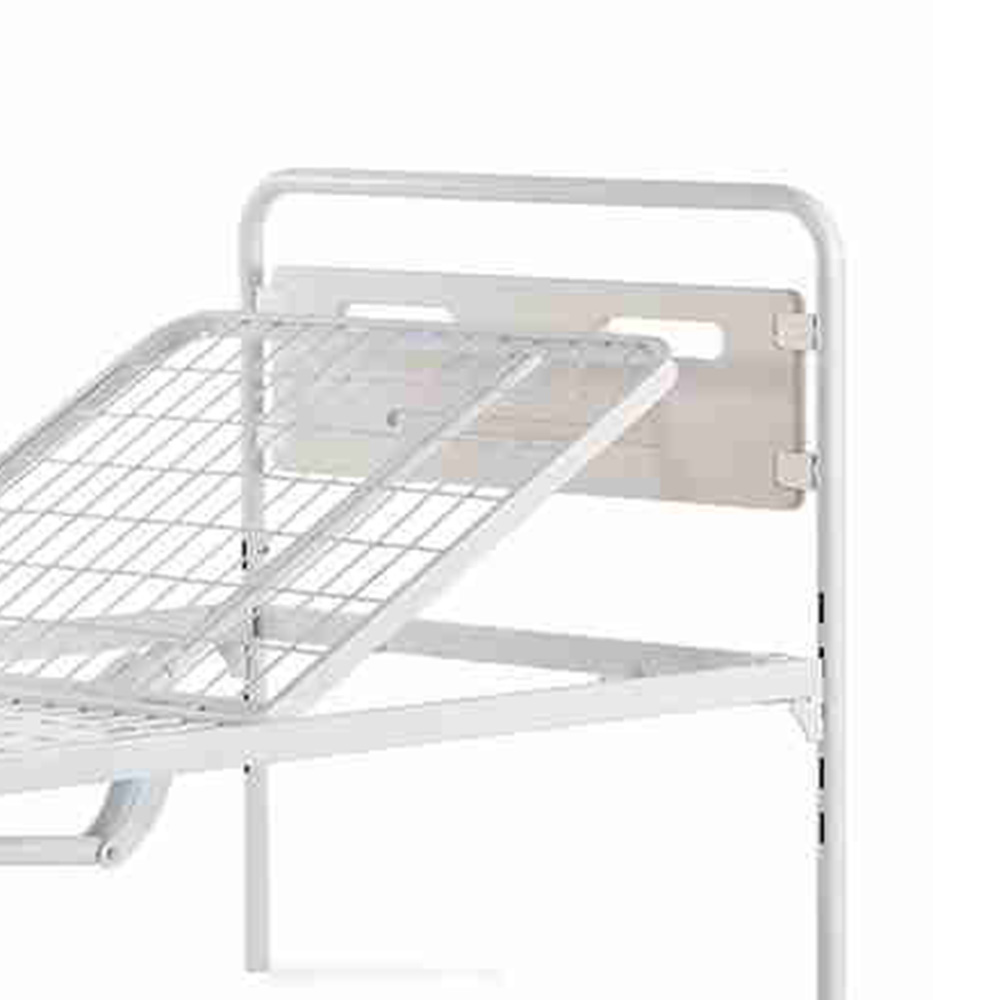

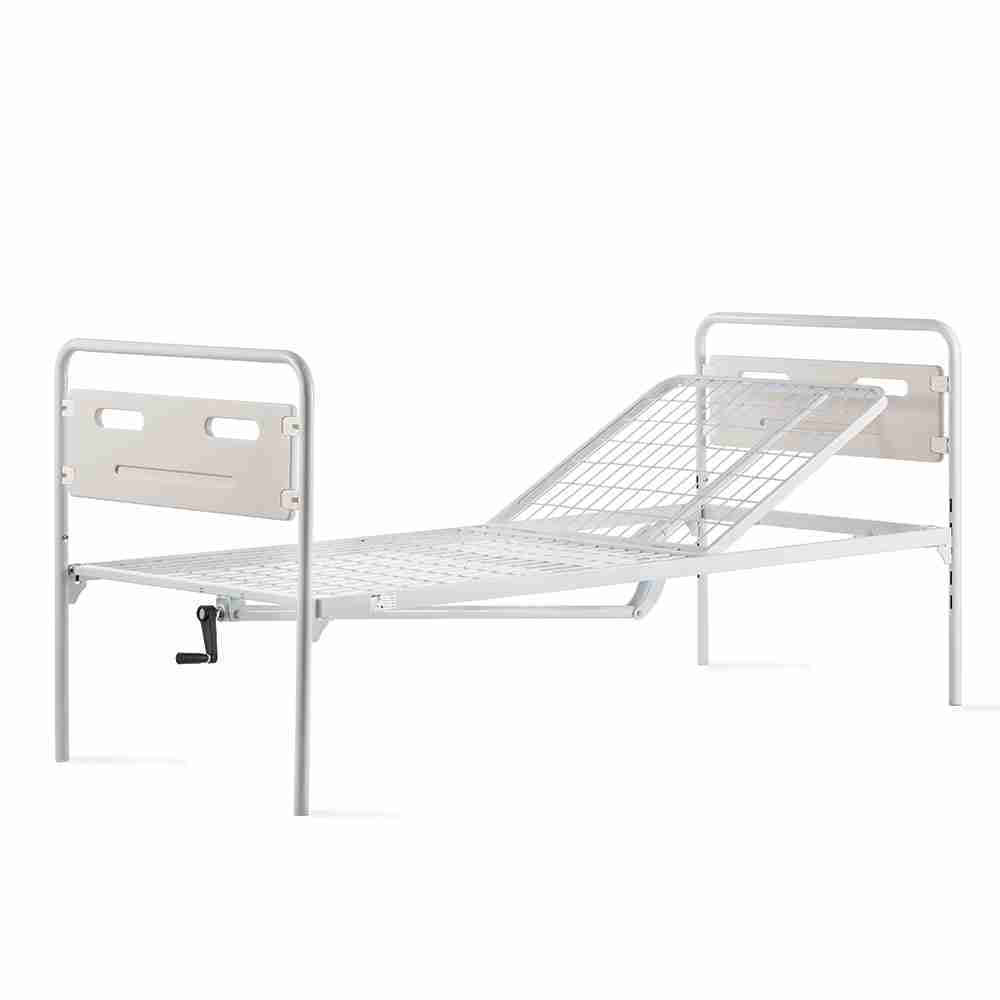

The bed is designed to accommodate a lifting pole and IV pole. The headrest section is adjustable via a screw system with a space-saving ergonomic knob.
Bed in painted steel tube (polar white) ø40x20x1.5 mm with rectangular section reinforced with cross bar.
Electro-welded mesh structure. Painted load-bearing backrests and polypropylene panel.

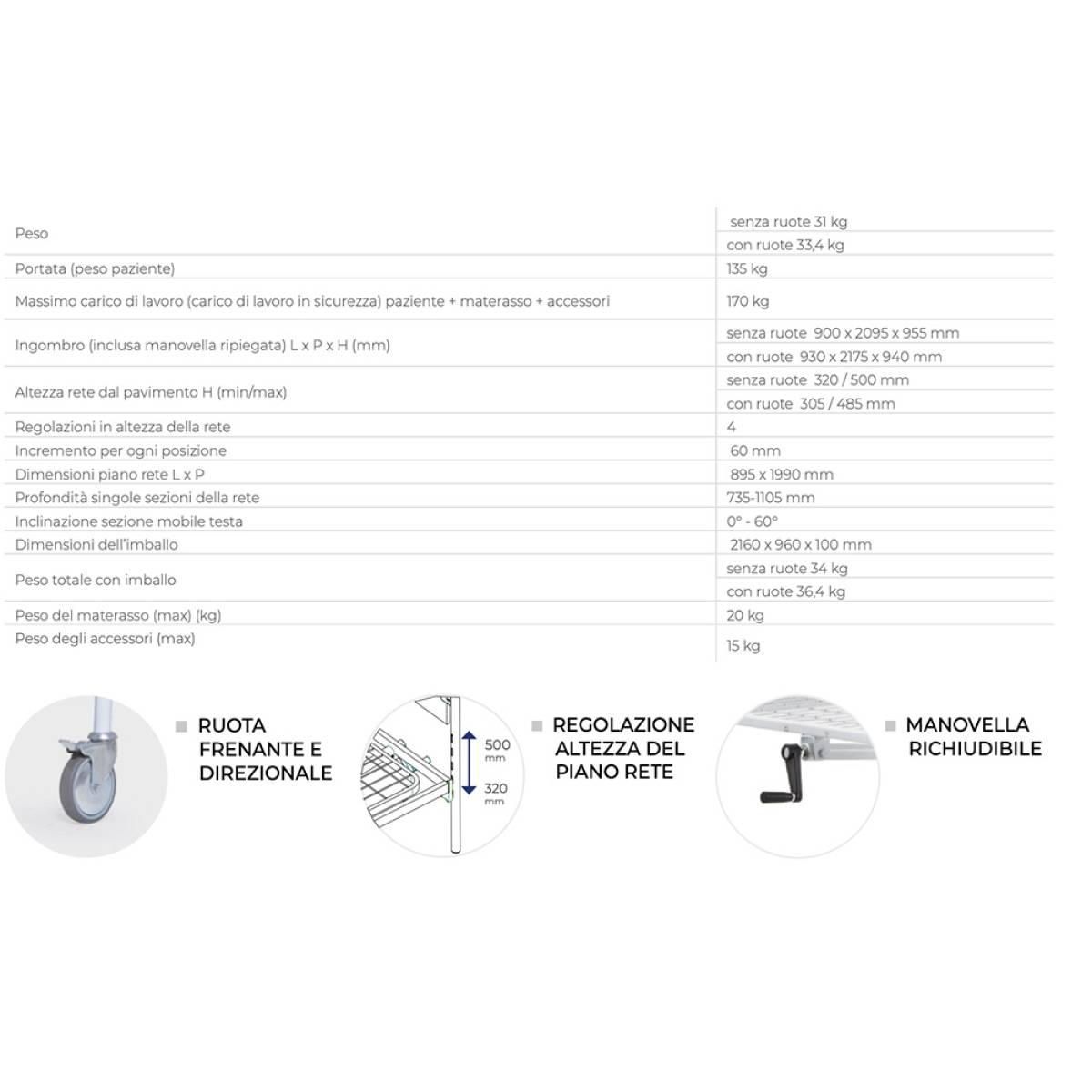

Weight without wheels 31 kg
Load capacity (patient weight) 135 kg
Maximum working load (safe working load) patient + mattress + accessories 170 kg
Overall dimensions (including folded crank) L x W x H (mm) without wheels 900 x 2095 x 955 mm
Height of the net from the floor H (min/max) SCALE 0.100 without wheels 320 / 500 mm
Height adjustments of the net 4
Increment for each position 60 mm
Bed base dimensions L x D 895 x 1990 mm
Depth of individual sections of the net 735-1105 mm
Tilt of the moving head section 0° - 60°
Packaging dimensions 2160 x 960 x 100 mm
Total weight with packaging without wheels 34 kg
with wheels 36.4 kg
Mattress weight (max) (kg) 20 kg
Weight of accessories (max) 15 kg

BRAKING AND DIRECTIONAL WHEEL
NETWORK HEIGHT ADJUSTMENT 300-500mm

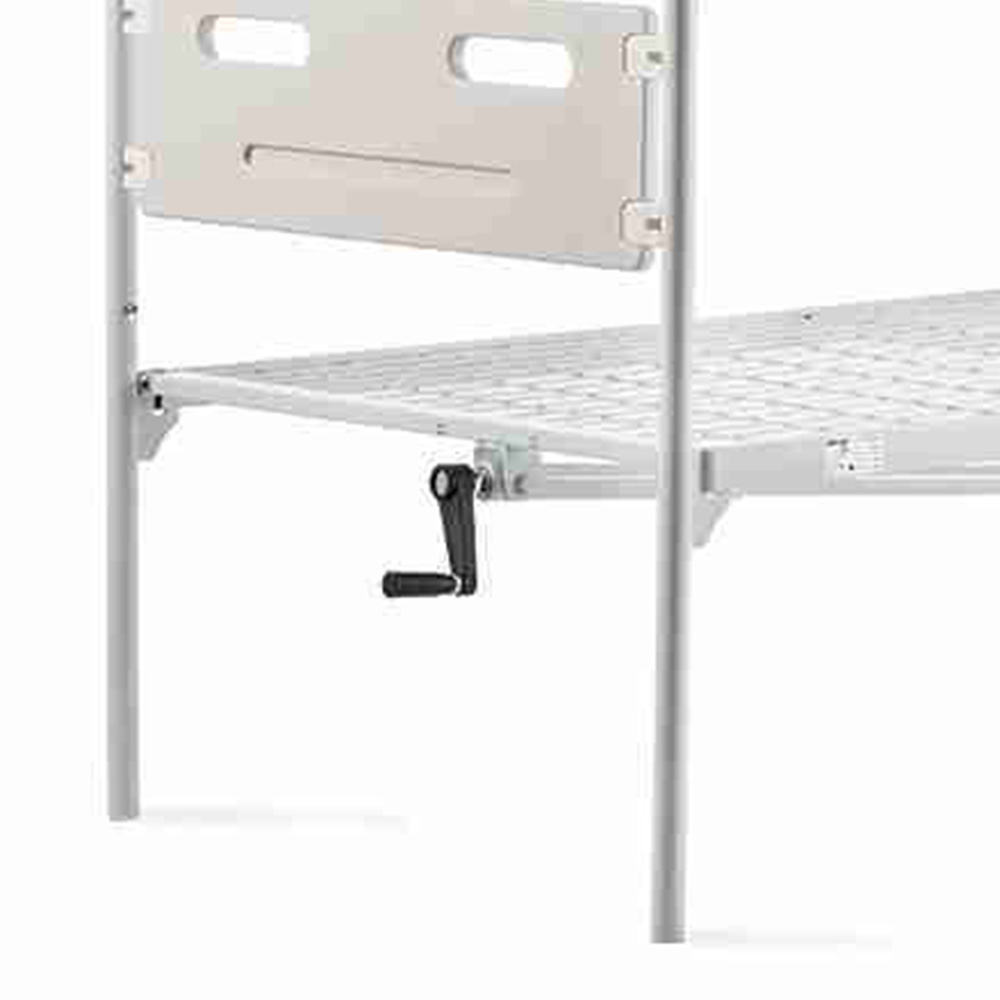

FOLDABLE CRANK



barcode: 8052109690165
code: EUCLIDE
