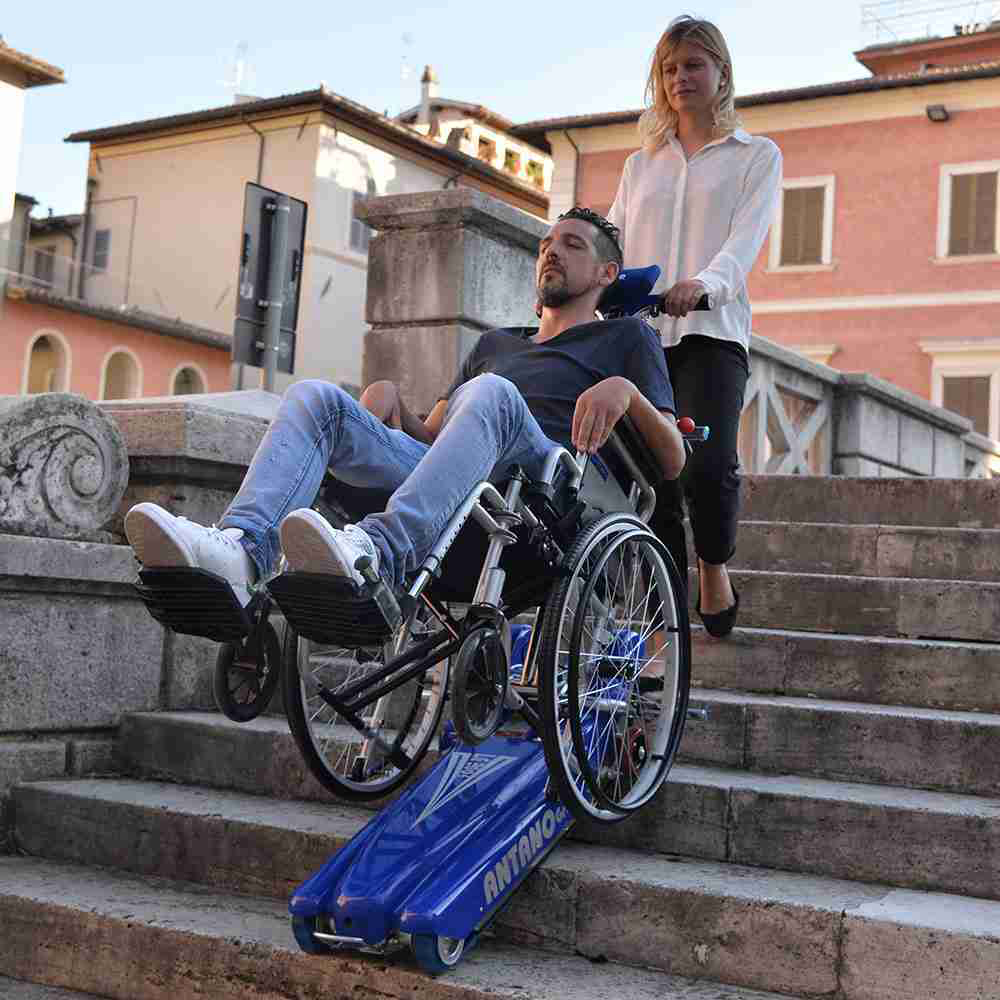

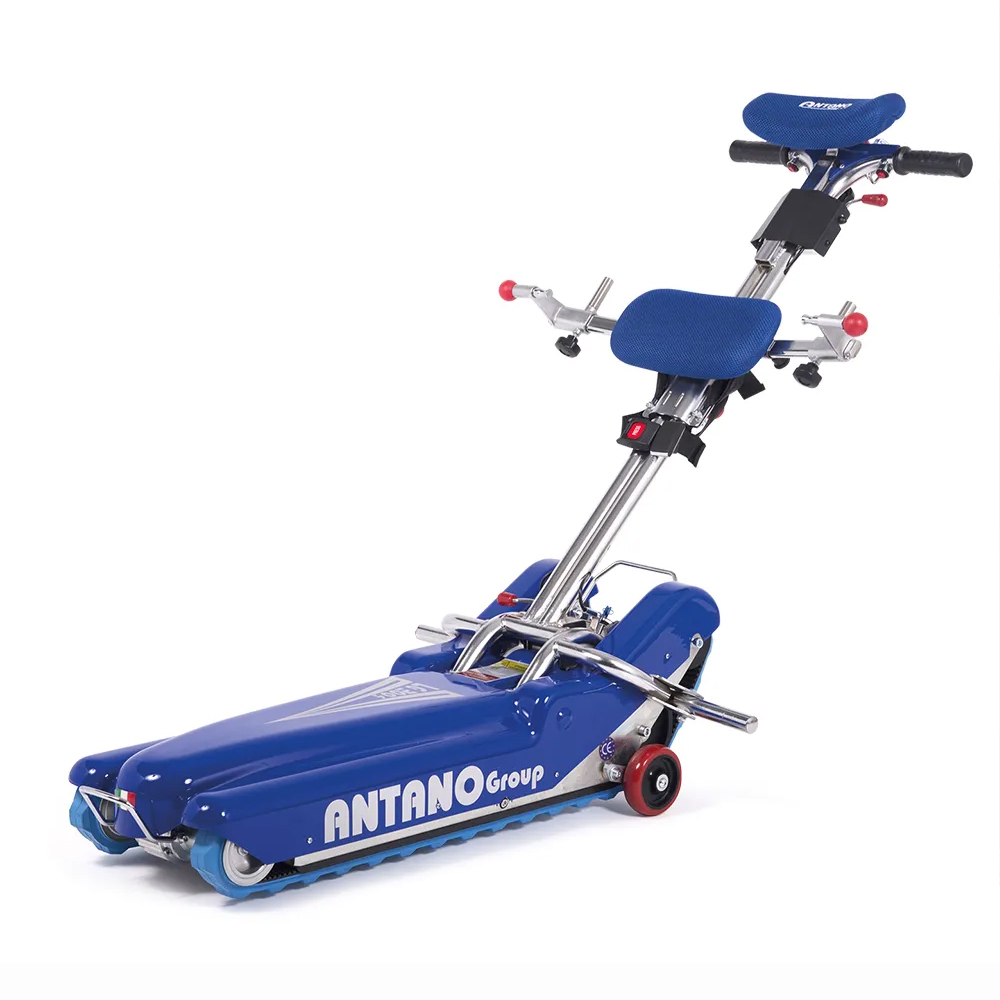

Technological innovation, a patient-focused approach, and attention to aesthetic details have led to the success of the LG2004 stairlift over the years, as have other Antano Group stairlifts in our shop. Today, the new version incorporates all the features developed over eight years of continuous product design and evolution.
Unparalleled ease of use, thanks to the patented maneuvering system that allows the stairlift to rotate on itself and in small spaces effortlessly.
Reliability, thanks to weight and mechanical management that allows for significant energy savings and longer battery life.
All innovations in a single product to make the daily life of non-ambulatory patients easier.

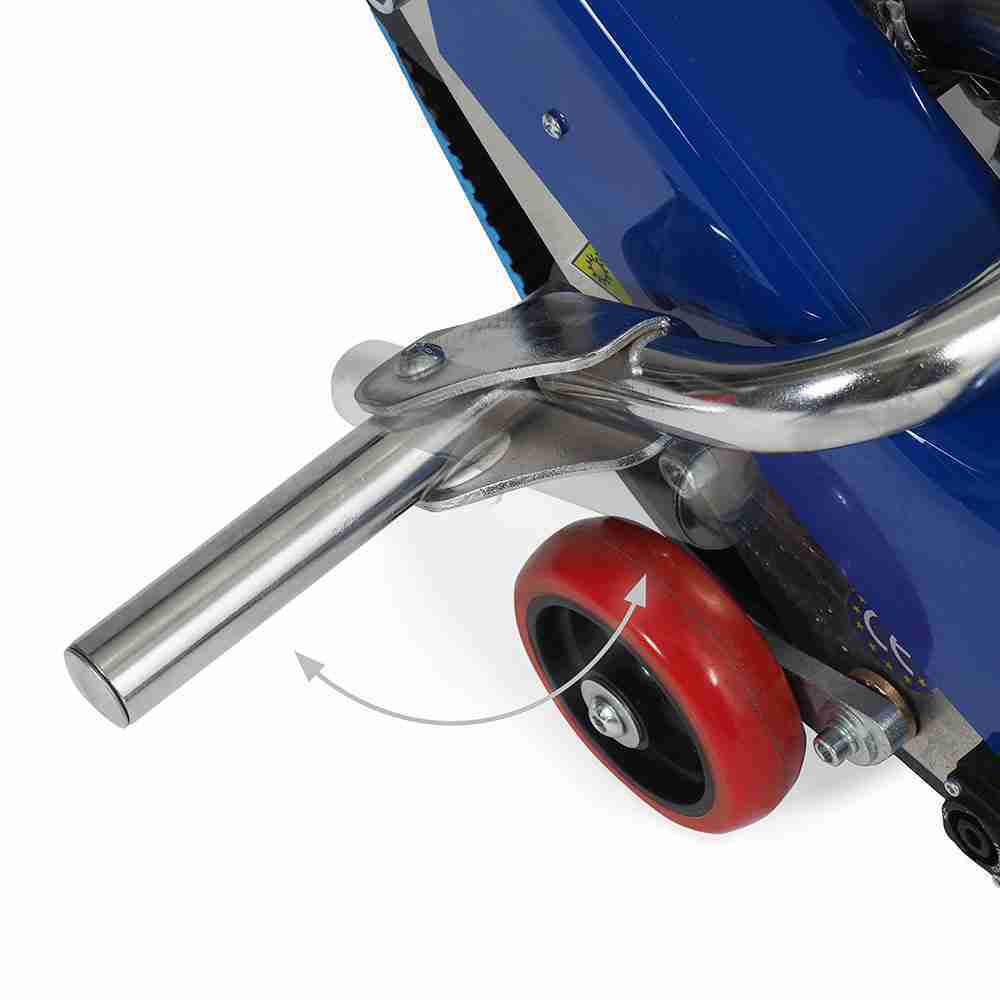

The safety release allows for manual movement of the four lifting wheels and tracks in an emergency. New foldable hooks have been introduced to reduce the stairlift's footprint.

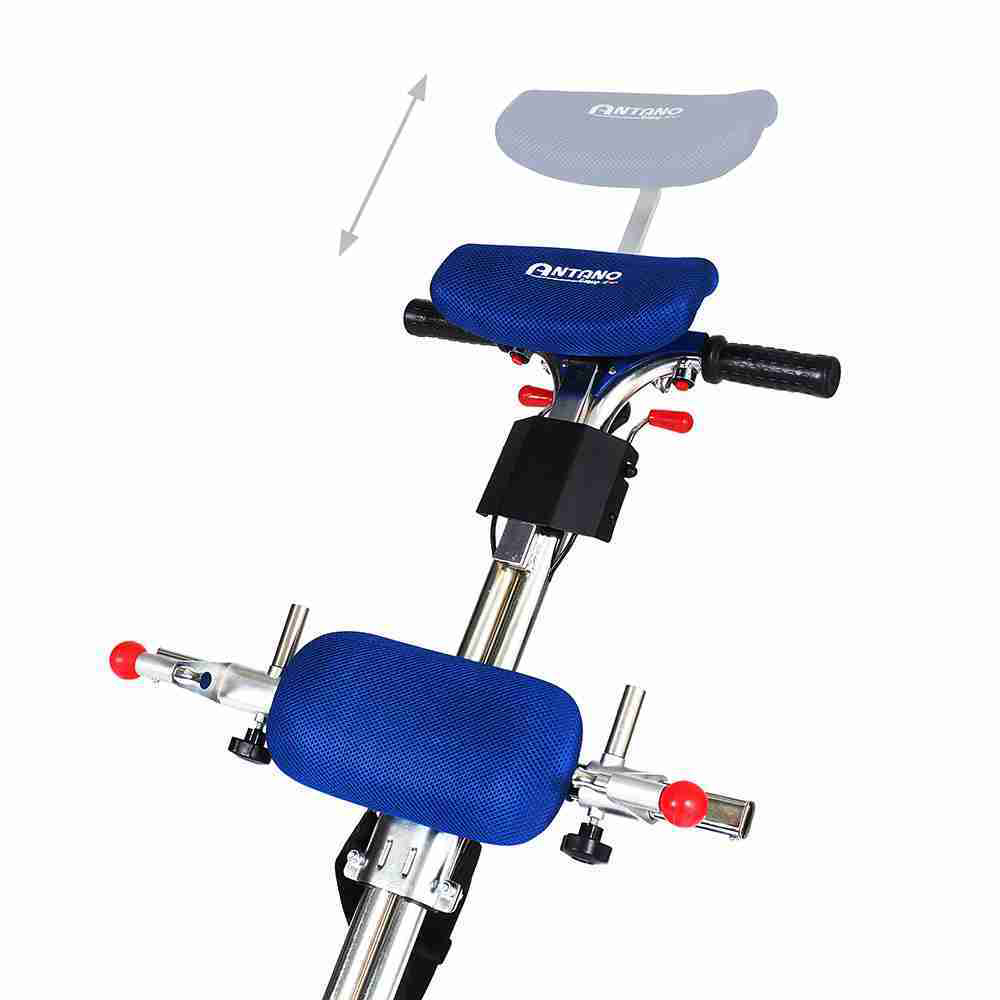

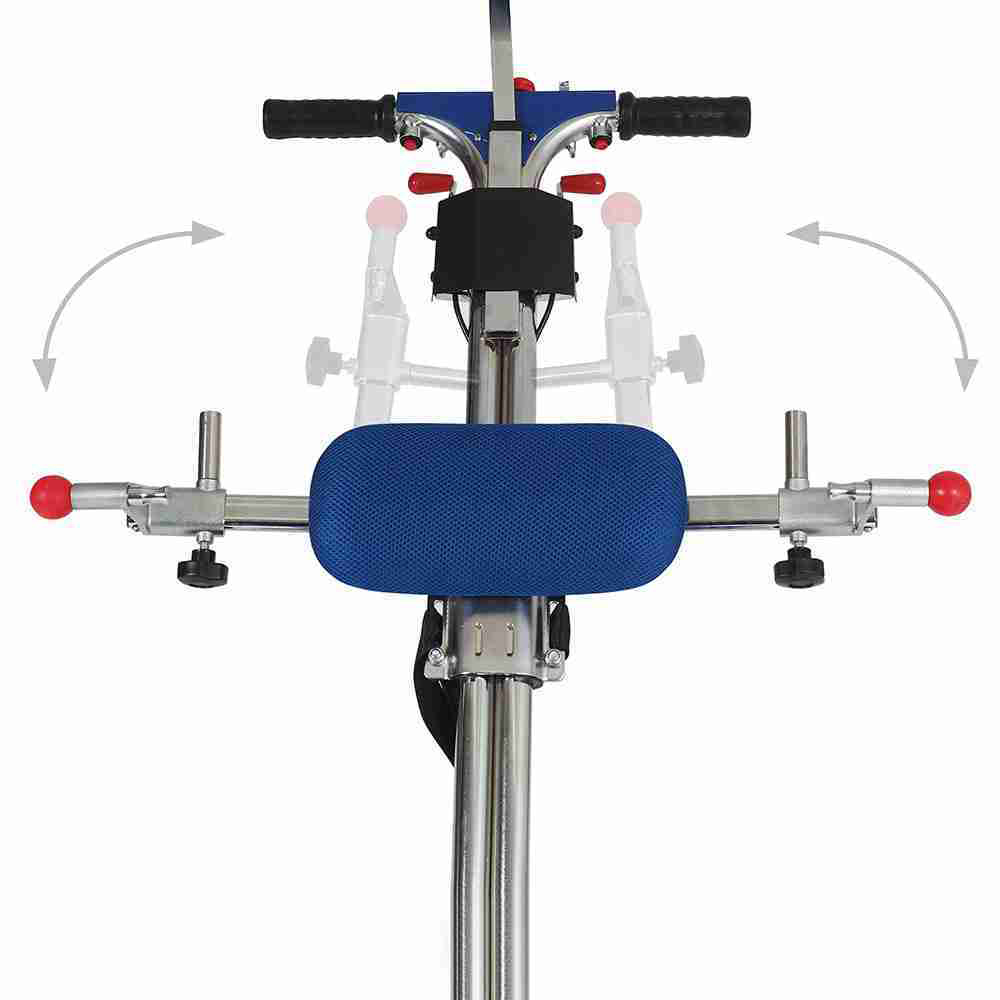

The new height-adjustable, padded double headrest provides maximum patient comfort. The tiller arm raises easily and effortlessly. A new top-release system allows the user to attach the wheelchair effortlessly and without having to move their feet.
The variant with a capacity of 150 kg is available - (LG2004/150)
Operation:

Accessories (optional)
A series of new accessories allow the LG2004 to be compatible with any type of wheelchair.
– Stairlift version with ramps for multifunctional high chairs and electronic wheelchairs
– Stroller skates
– Skates for wheelchairs with rear wheels Ø300
– Anti-tip wheel for stairlifts with ramps
– Footrest extensions for oversized wheelchairs

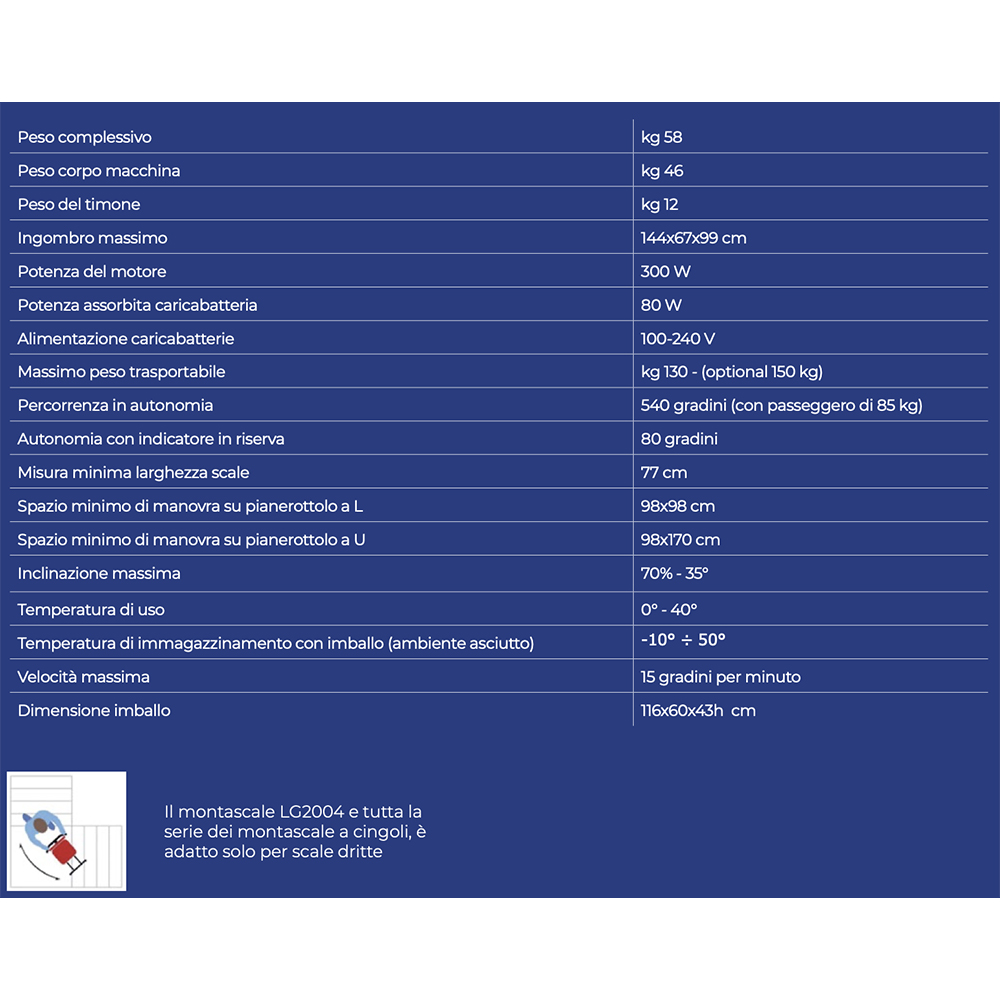

Technical Data
Total weight: 58 kg
Camera body weight: 46 kg
Rudder weight: 12 kg
Charger weight: 0.7 kg
Maximum dimensions: 144 x 67 x 99 cm
Motor power: 300 W
Charger power consumption: 80 W
Charger power supply: 220 V
Maximum transportable weight: 130 kg (optional 150 kg – 180 kg)
Self-driving: 540 steps (with an 85 kg passenger)
Autonomy with reserve indicator: 180 steps
Minimum stair width measurement: 77 cm
Minimum maneuvering space on L-shaped ladder: 98 x 98 cm
Minimum maneuvering space on U-shaped ladder: 98 x 170 cm
Maximum inclination: 70% 35°
Usage and storage temperature: -20° +50°
Maximum speed: 15 steps per minute

For this product it is not possible to request a RETURN or WITHDRAWAL because it is a customized product and/or built to the customer's order.



barcode: 8052109690486
code: LG 2004
