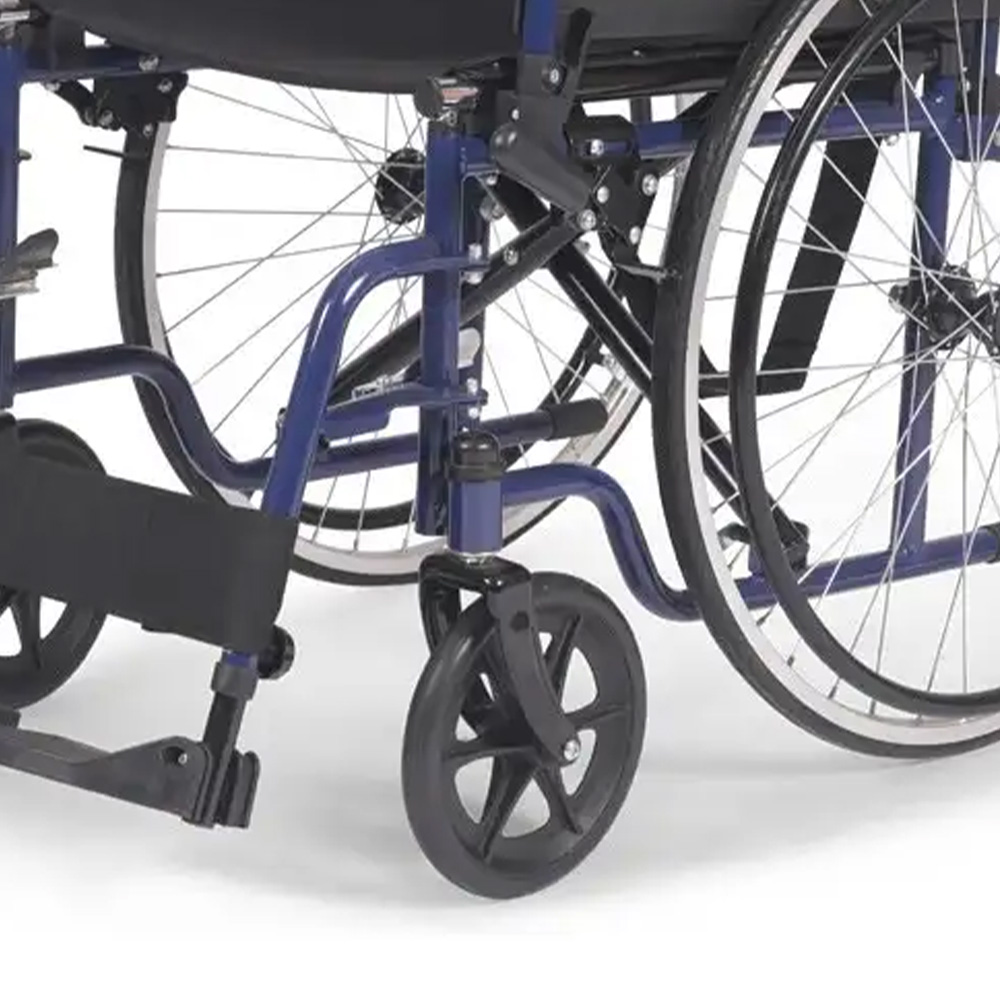

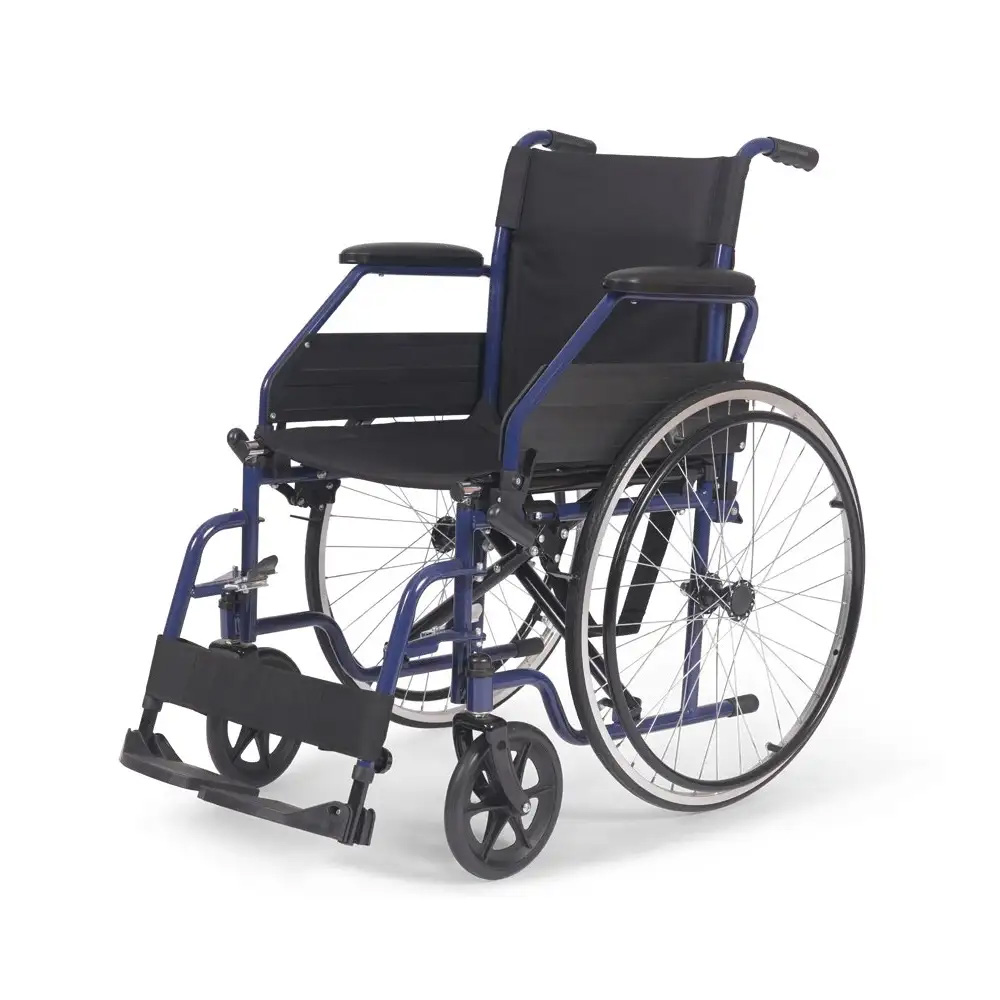

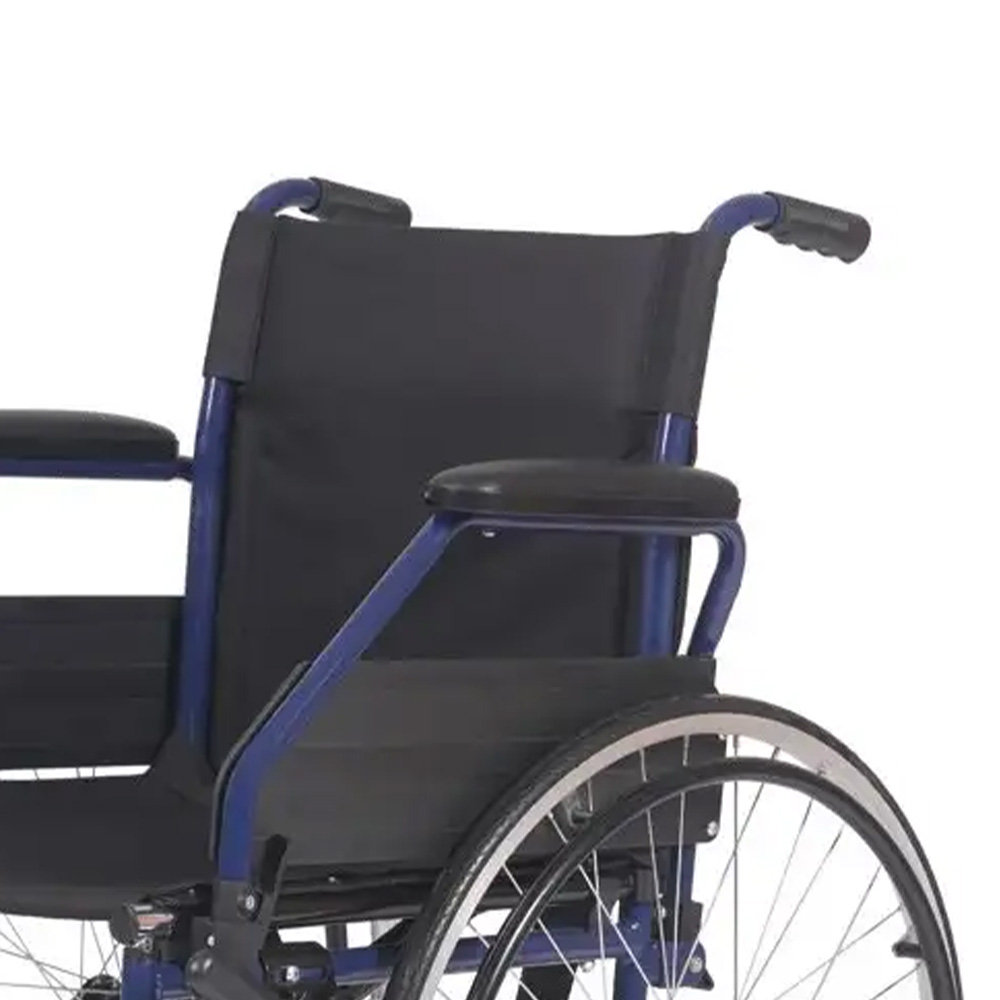

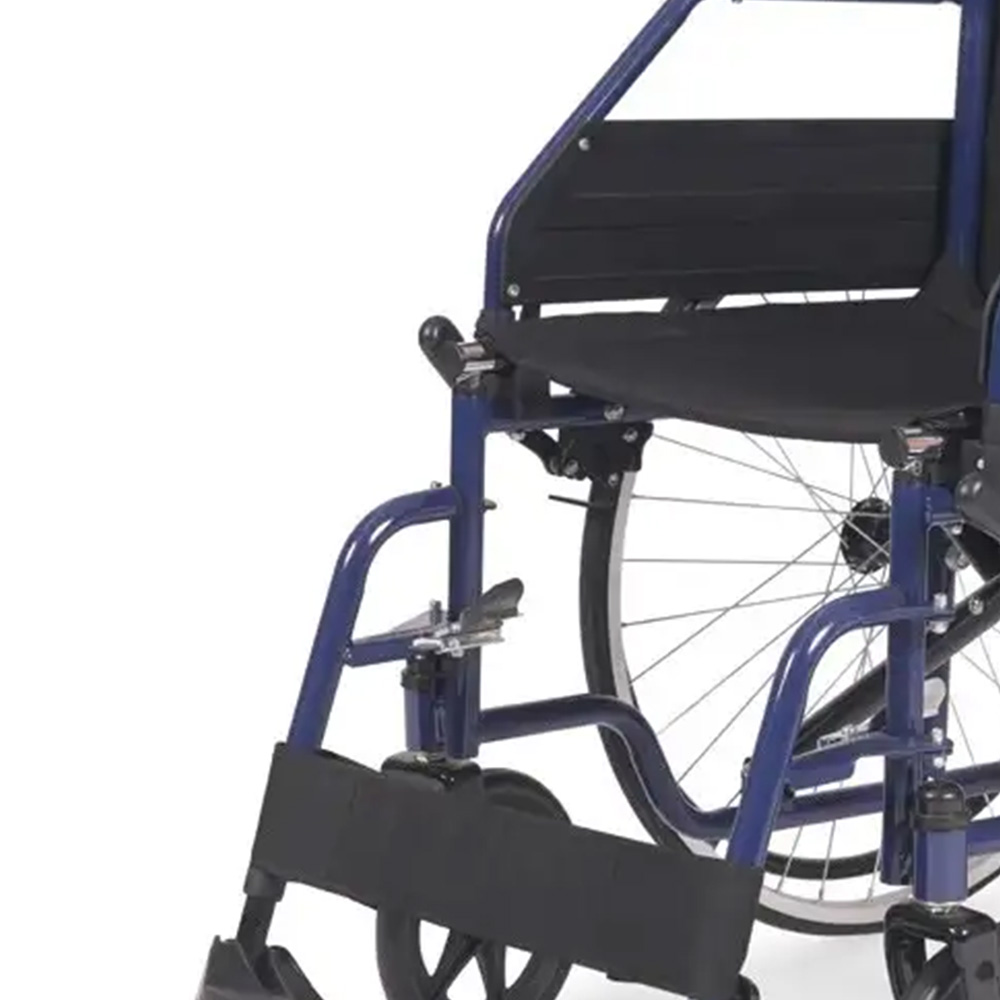

MINERVA 600 is a manual folding wheelchair with a painted tubular steel frame with a circular cross-section.
The MINERVA 600 wheelchair can be supplied in three different variants:
40, 42 and 45; this suffix expresses the width of the seat in centimetres.

Description:
Suitable for continuous or prolonged daily use for many hours during the day and in clinical or environmental conditions that require easy maneuverability. Folding frame, high-strength steel structure, two large rear wheels equipped with
push handrail rings, two small swivel front wheels with fork, fold-down and removable footrests, clothes protection sides with armrests, equipped with parking brakes.

Features/Accessories supplied as standard:
• Folding frame with stabilizing cross in painted steel.
• Upholstery made of washable, non-deformable and waterproof material.
• Backrest with padding.
• 600 mm diameter rear wheels equipped with parking brake and handrail rings for pushing.
• 190 mm diameter front wheels with swivel forks.
• Removable and laterally foldable footrest supports.
• Separate plastic footrests with full heel stop.
• Folding armrests with padding and interlocking system.
• Side containment sides.
• Tips to help overcome obstacles

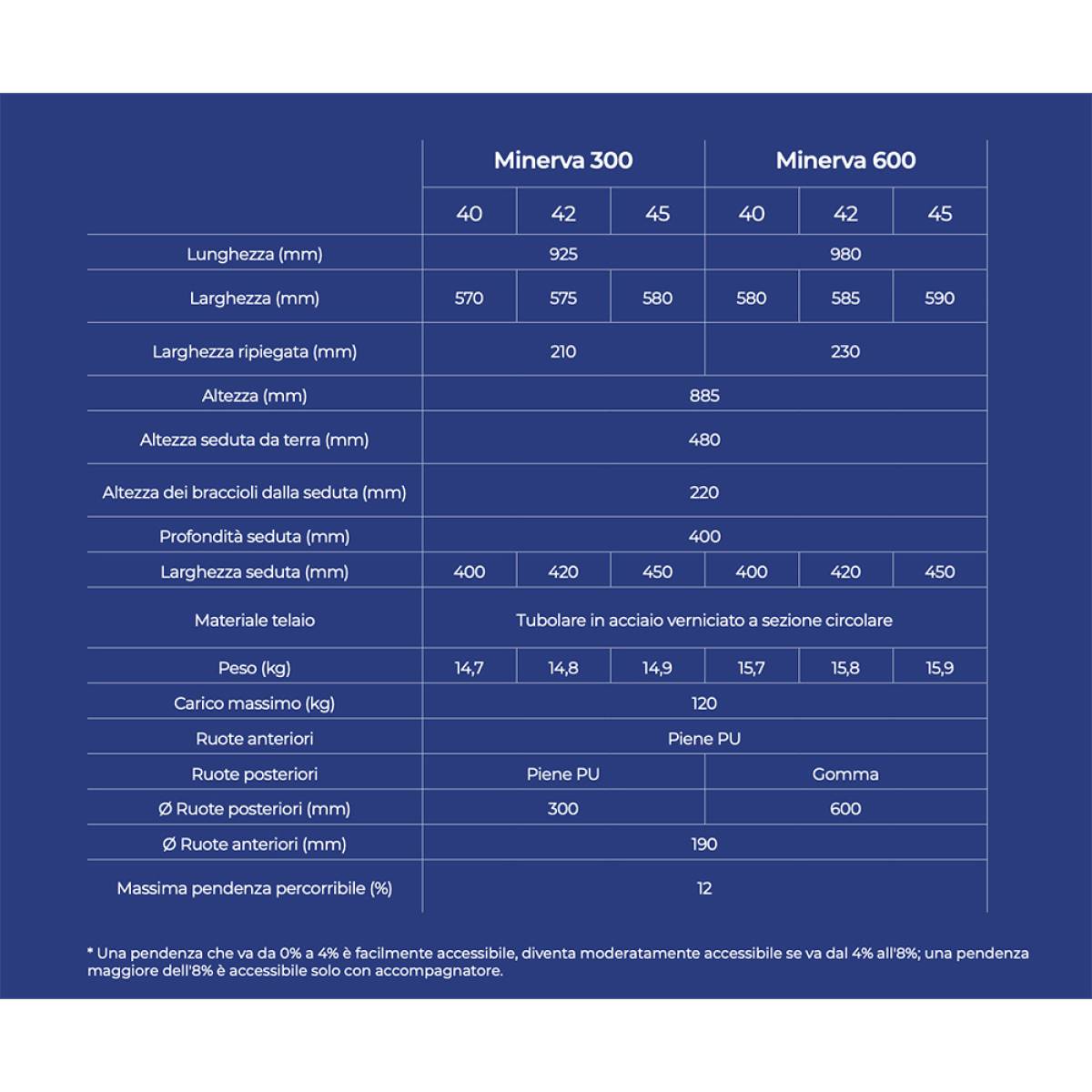

Technical data:
Model MINERVA 600
sitting 40 42 45
Length (mm) 980
Width (mm) 580 585 590
Folded width (mm) 230
Height (mm) 885
Seat height from the ground (mm) 480
Height of armrests from seat (mm) 220
Seat depth (mm) 400
Seat width (mm) 400 420 450
Frame material: Painted tubular steel
circular section
Weight (kg) 15.7 15.8 15.9
Maximum load (kg) 120
Front wheels Solid PU
Rear Wheels Rubber
Rear wheel Ø (mm) 600
Ø Front wheels (mm) 190
Maximum passable slope (%) 12



barcode: 8052109691643
code: MINERVA 600-40
