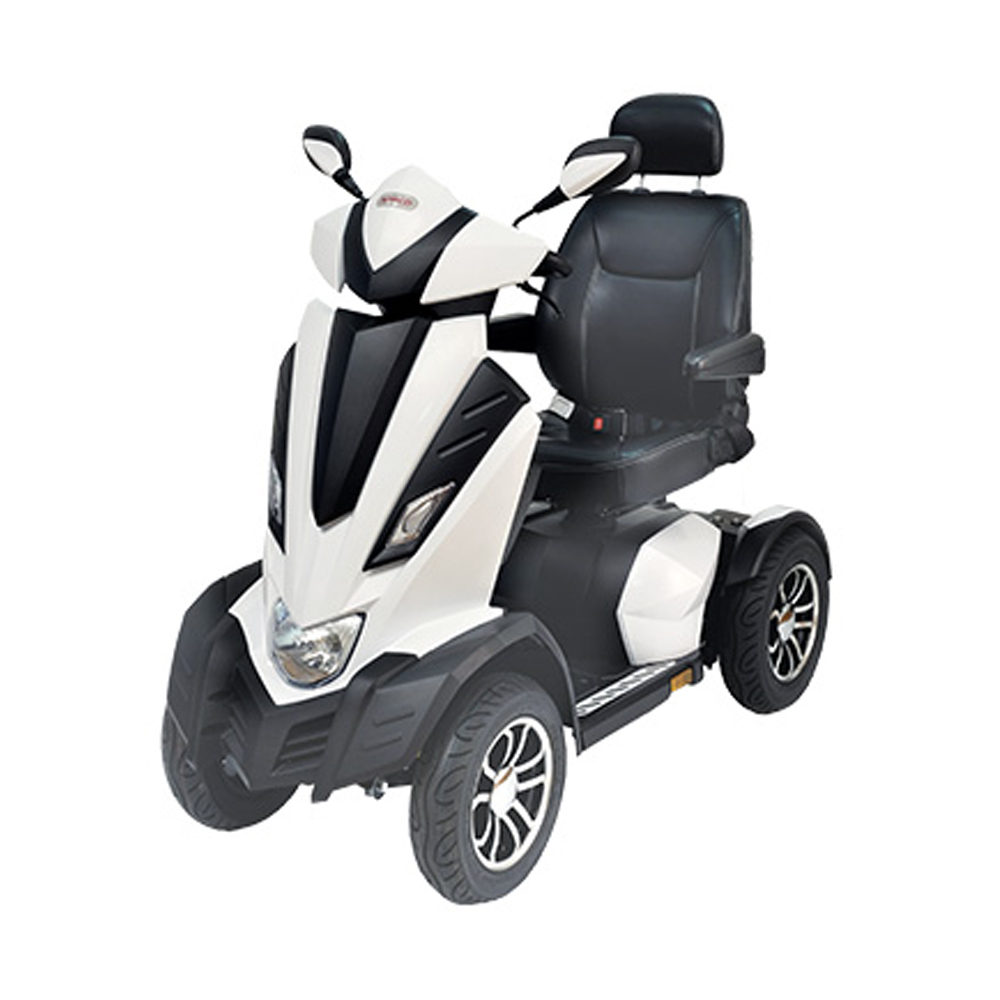

Scooter with considerable dimensions and evident robustness but, extremely
comfortable, agile and responsive.
4 pneumatic wheels with wide tread that ensures better comfort
Depth-adjustable steering column
Reclining and 45° rotatable backrest, complete with headrest and seat belt
Folding armrests, adjustable in height and width
2 Rearview mirrors
Front and rear LED lights and indicators
Horn and reverse warning buzzer
Double front suspension and mono shock absorber at the rear
On-board display with controls and information on battery, distance and speed
Additional parking brake in addition to the classic electric brake
Optimal performance between engine power and gearmotor ratio

Dimensions Total width: 73 cm
Total length: 175 cm
Height from ground: 23 cm
Footrest - seat height: 44 cm
Seat height from the ground: 70 cm
Seat width: 50 cm
Front wheels: 100/80-10
Rear wheels: 100/90-10
Maximum speed: 18 km/h
Maximum slope: 10°
Obstacle that can be overcome: maximum 10 cm
Range: 40 km (with 75Ah batteries) / 52 km (with 100Ah batteries)
Weight 117 kg without batteries
175 kg with 2 x 75 Ah batteries
182 kg with 2 x 100 Ah batteries
Maximum load 180 kg
Power Supply Standard Batteries: Pb 12 V 75 Ah (2 pcs)
Upgraded batteries: Pb 12 V 100 Ah (2 pcs)
Motor: 4 Pole 1300W 16:1
Control unit: Dynamic Rhino ll S-Drive 180Ah



barcode: 4719872902034
code: L4BF HS
