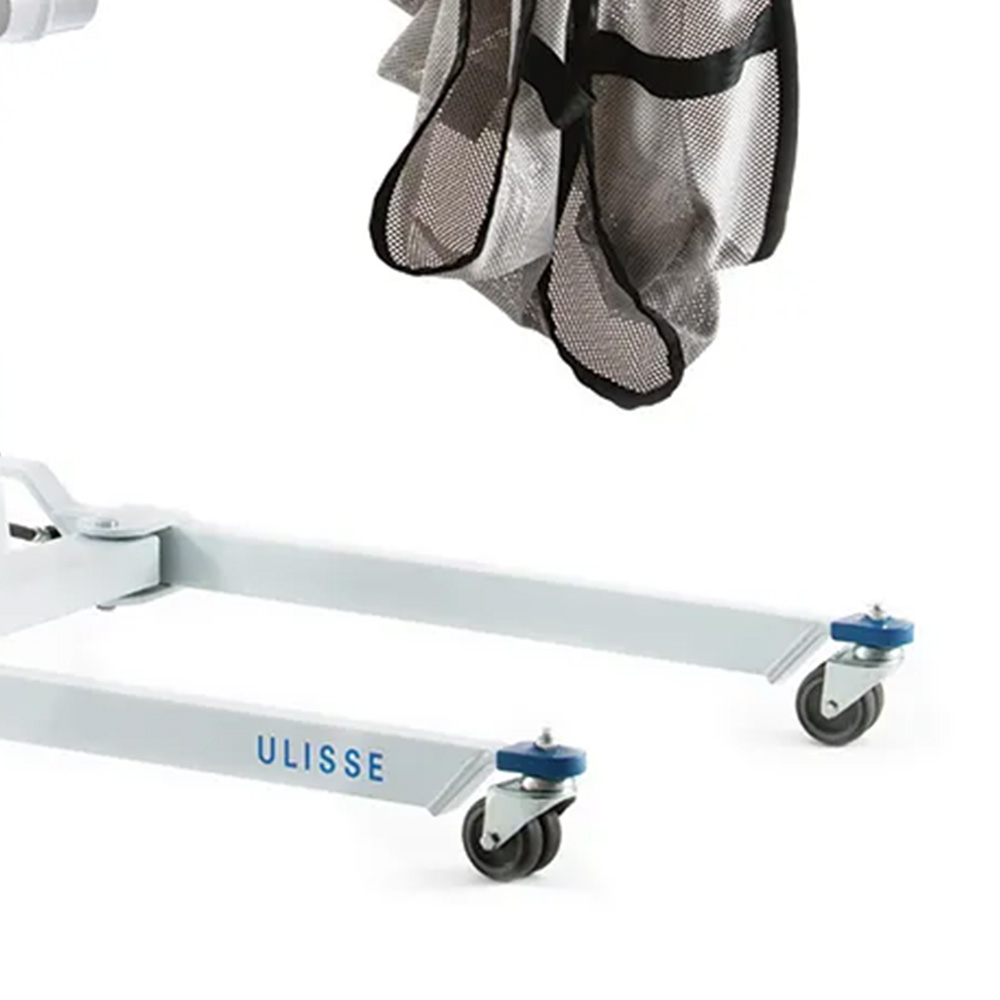

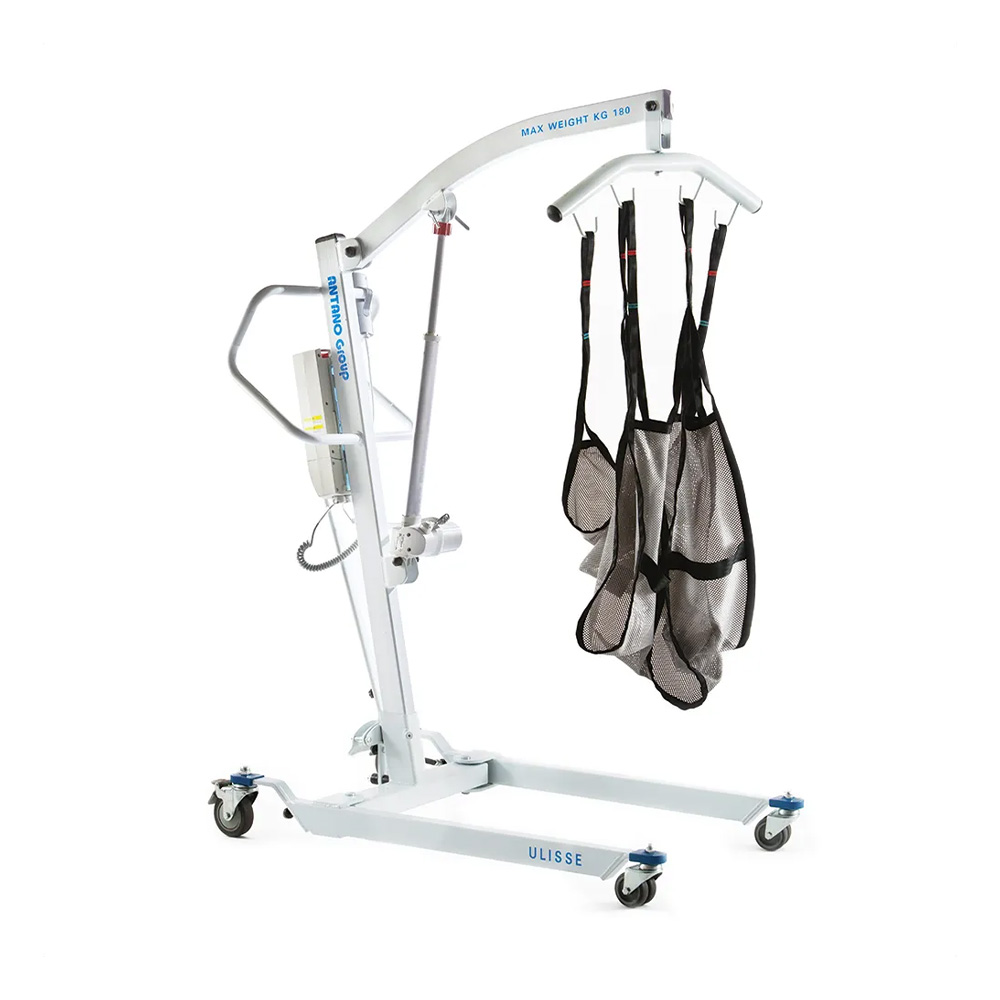

With a capacity of 180 kg, this lift is constructed of heavy-duty steel, with a three-position adjustable base and four casters, two of which have brakes.

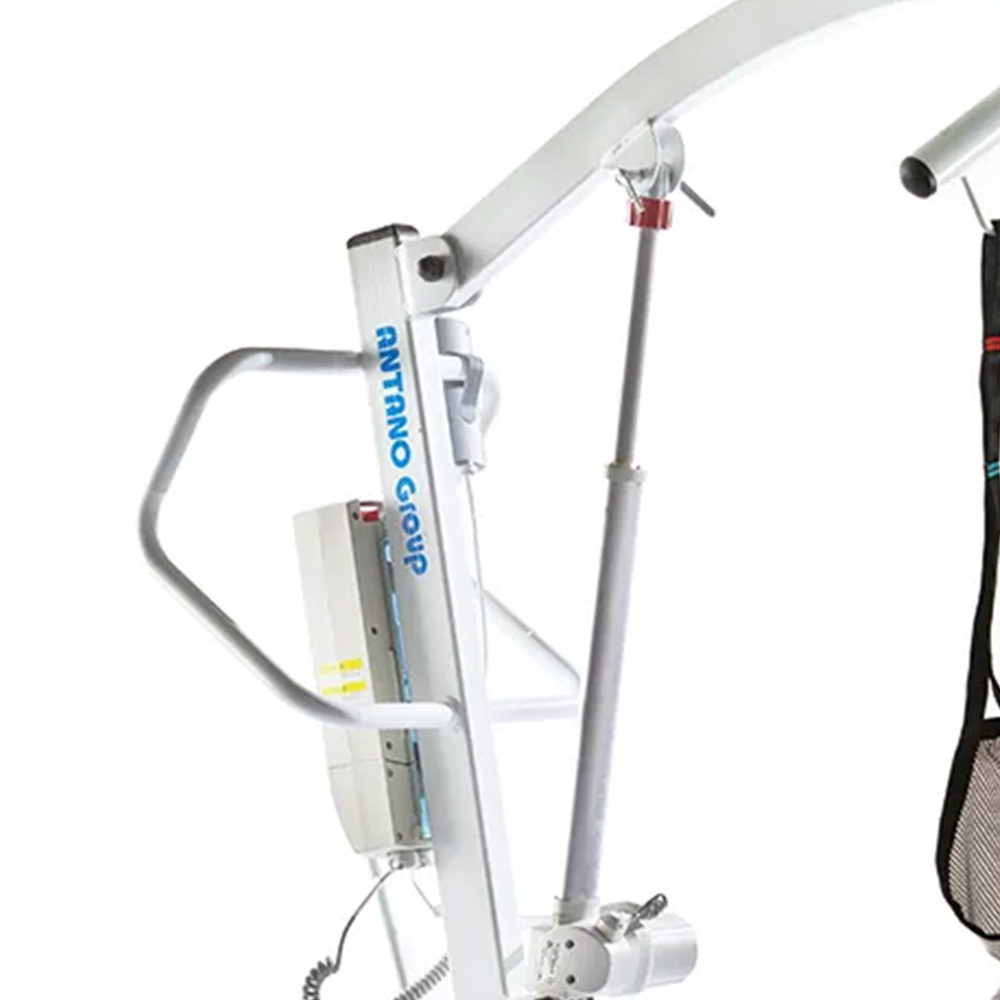

Movement is ensured by a 24V DC electric linear actuator, controlled by a wired push-button panel.
Includes a rechargeable battery and an emergency button for safety. Supplied with

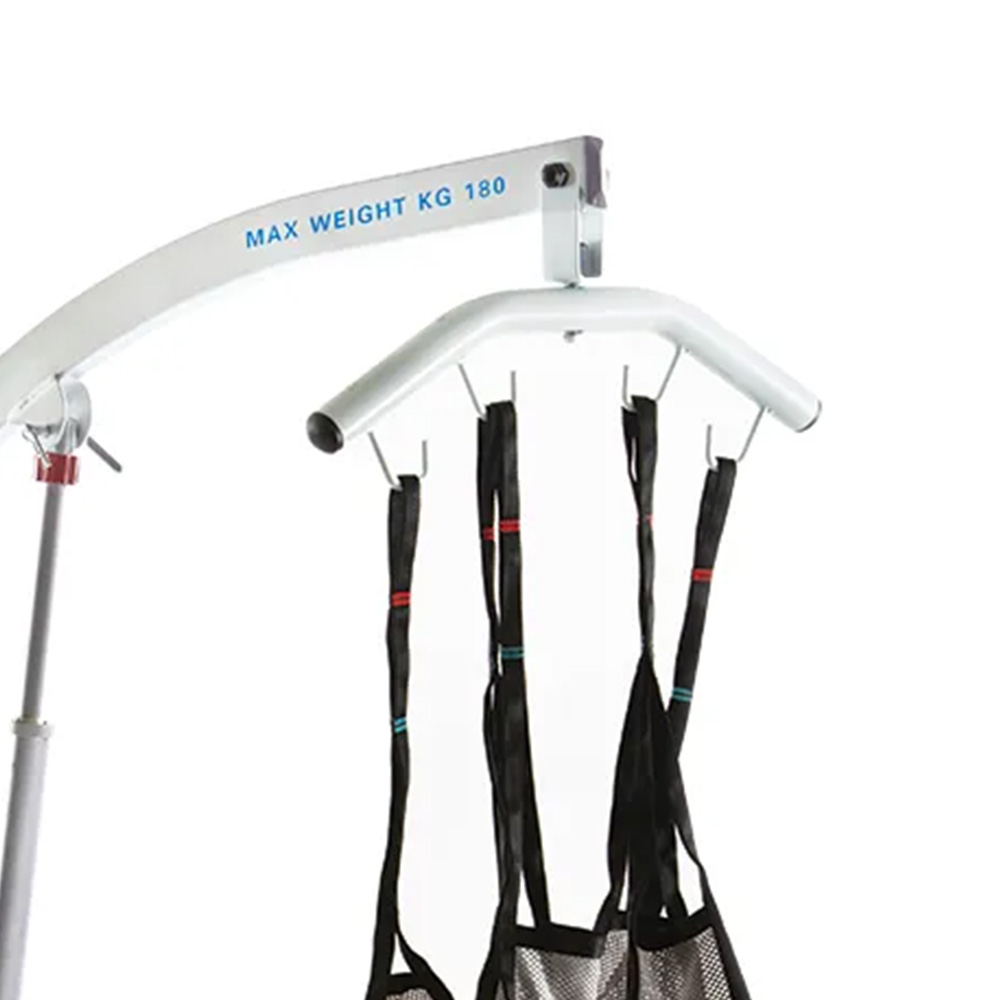

standard harness model M028/A for the head.

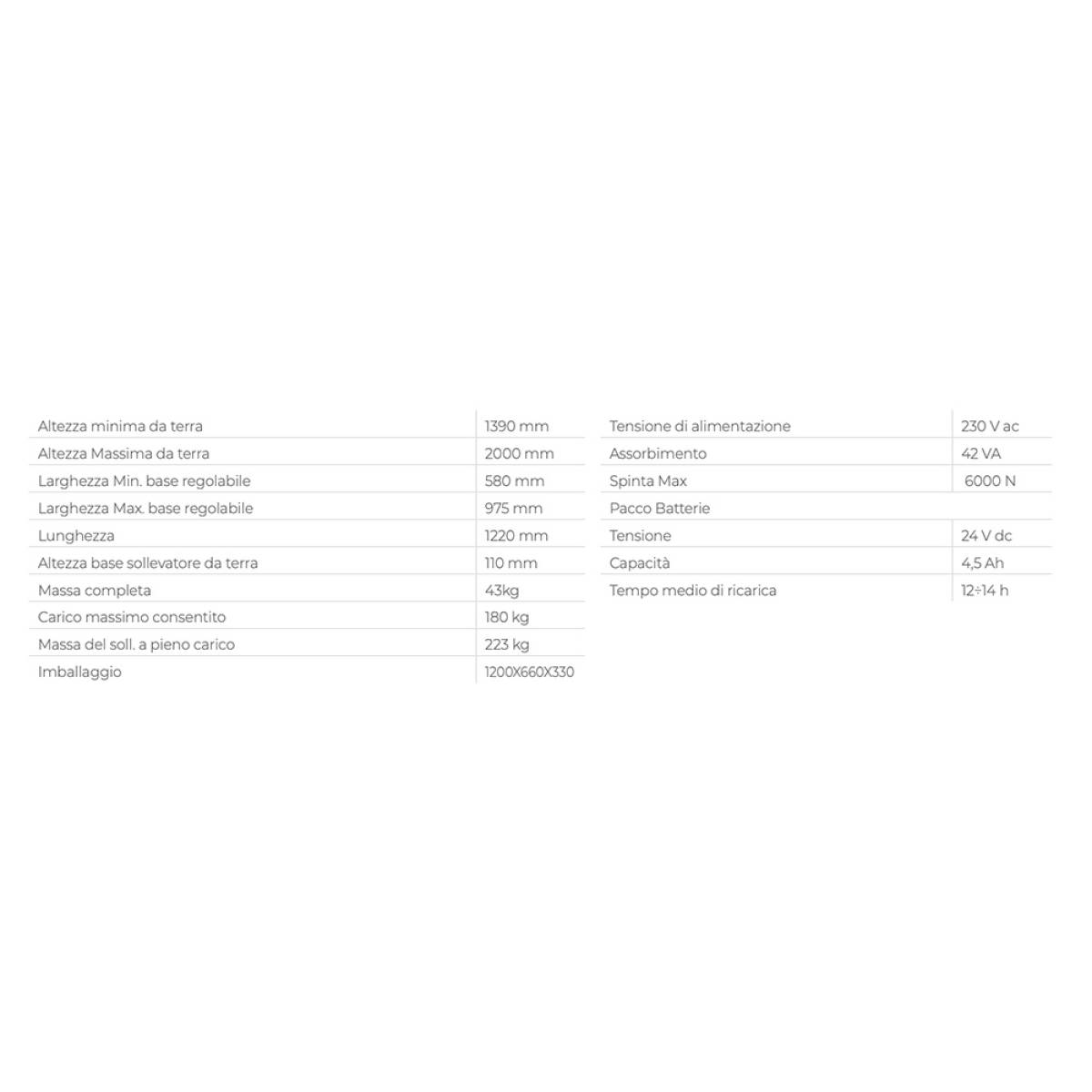

Minimum ground clearance 1390 mm
Power supply voltage 230 V ac
Maximum height from ground 2000 mm
Power consumption 42 VA
Min. width of adjustable base 580 mm
Max thrust 6000 N
Max. width of adjustable base 975 mm
Battery Pack
Length 1220 mm
Voltage 24 V dc
Lift base height from ground 110 mm
Capacity 4.5 Ah
Complete mass 43kg
Average charging time 12÷14 h
Maximum permitted load 180 kg
Loaded mass 223 kg
Packaging 1200X660X330



barcode: 8052109690981
code: ULISSE EL
