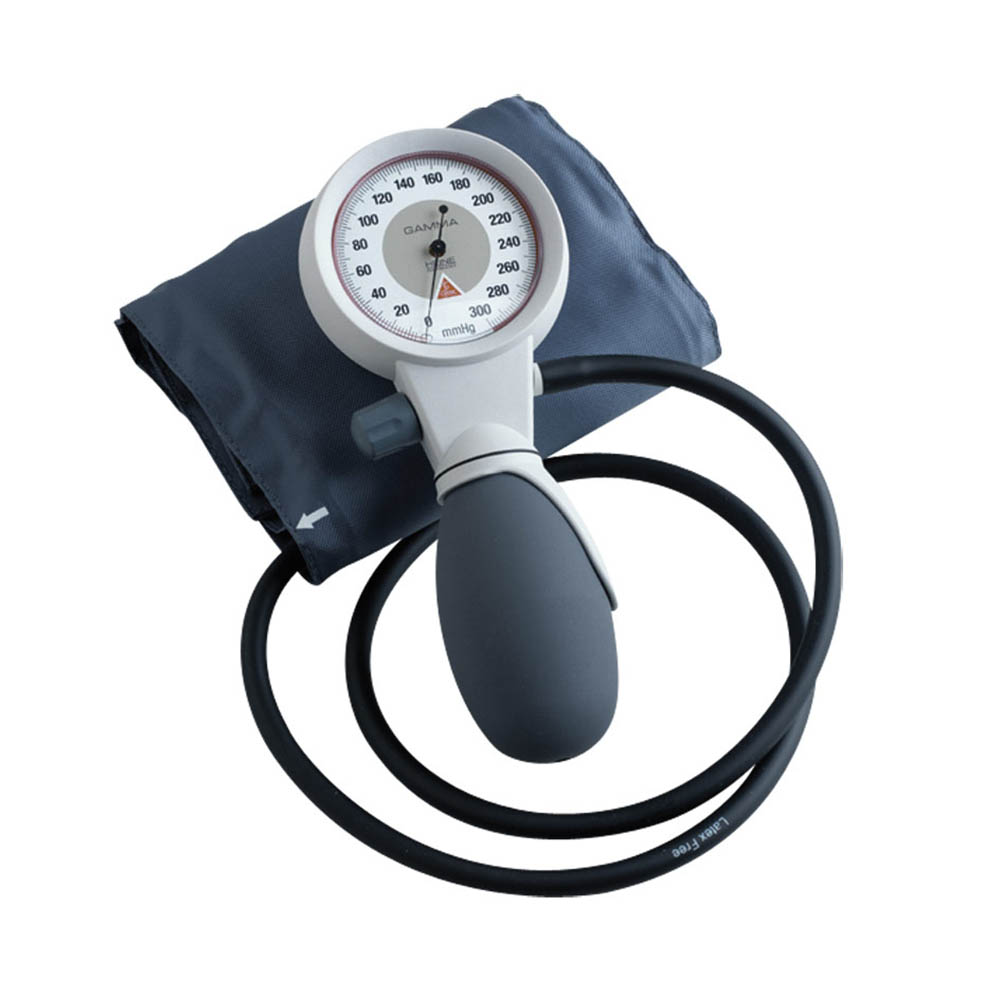

Palm-sized model that combines the high HEINE quality standard with precision certified by the Clinical Validation of accuracy according to the International Protocol of the European Society of Hypertension (ESH).
Elegantly designed, lightweight and well-balanced instrument.
Plastic chassis with protection from impacts and falls and with anti-slip coating on the back.

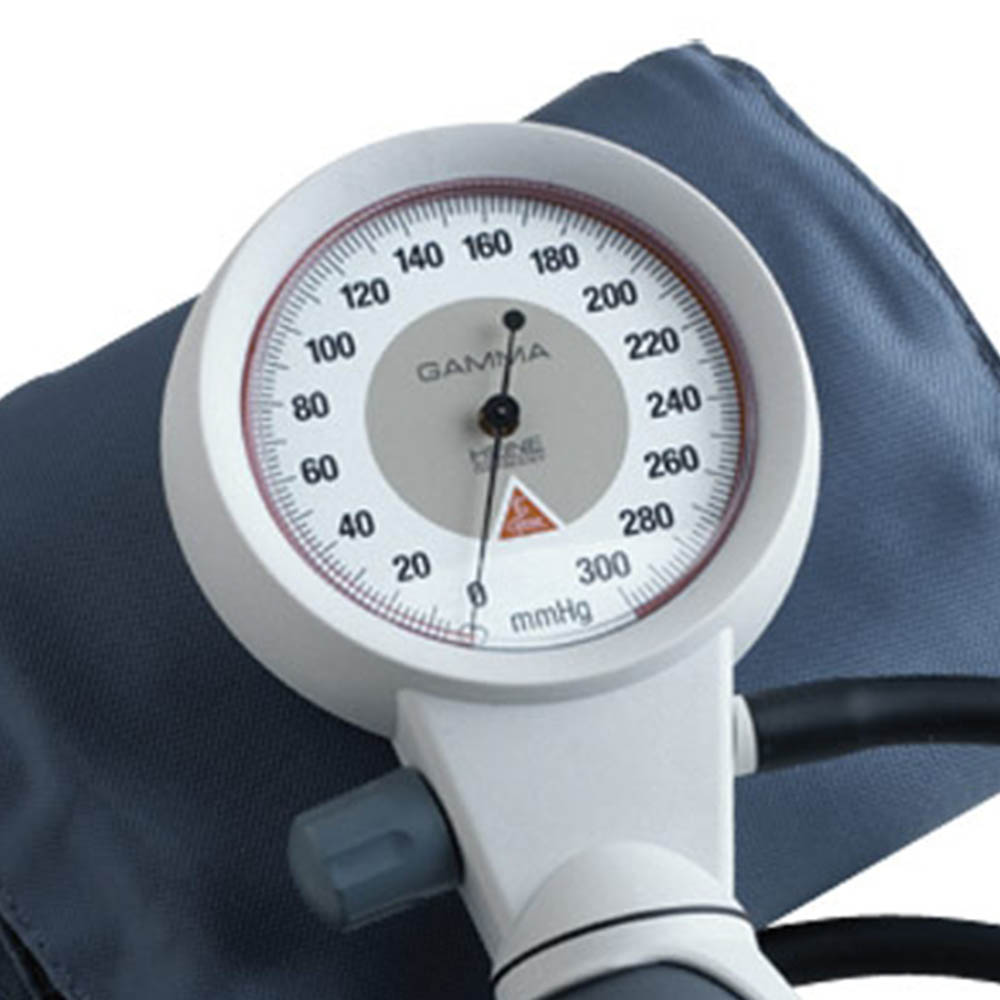

Large graduated dial with black numbers on a white background for clear reading of values.
High quality and precise calibrated hand.
German-made pressure gauge, with few moving mechanical parts, enclosed and anchored in a protection system, certified to withstand impacts and falls up to 1 meter high.
Innovative air distribution system to the cuff and pressure gauge, which allows to reduce pressure peaks to the aneroid mechanism, making the instrument precise and long-lasting.
Precision valve, slightly inclined for fine air release and rapid deflation, even for users with particularly large fingers.

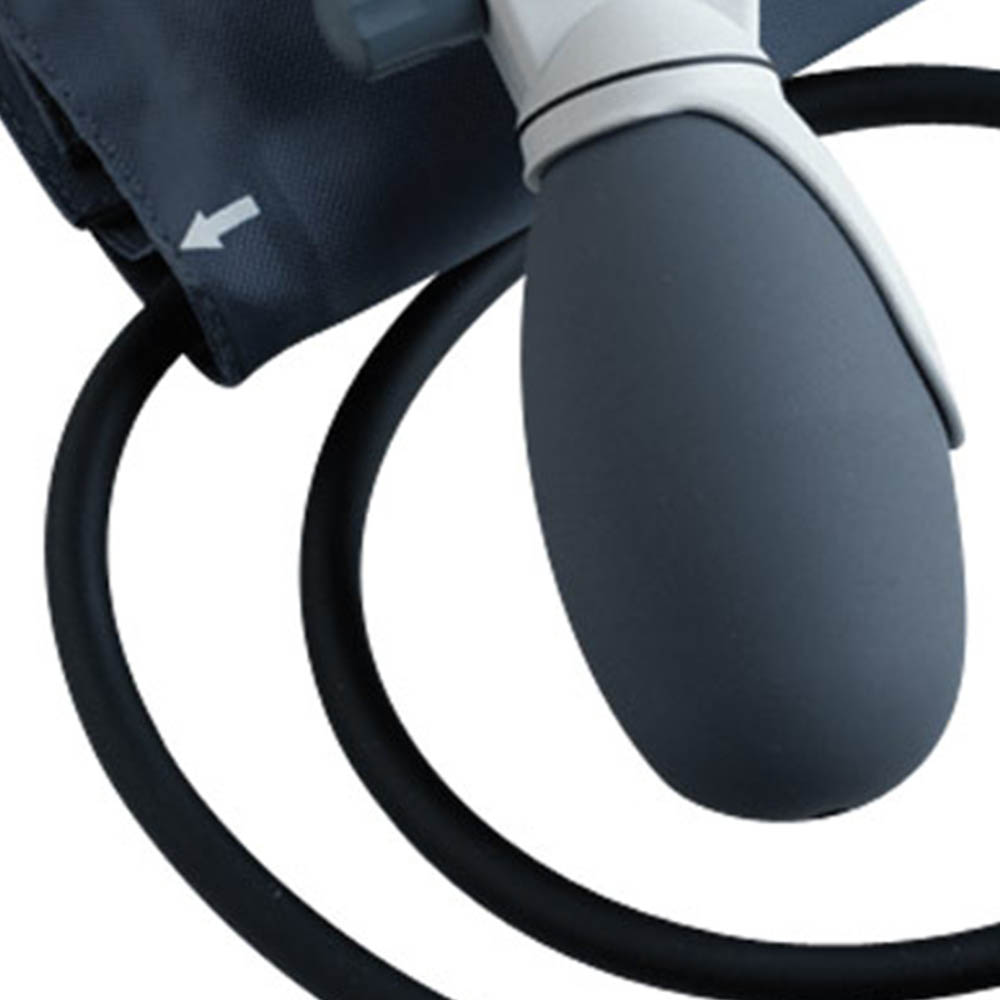

Large single ball, approximately 50% larger in volume than traditional ones, allows for rapid pressurization of the cuff, reducing measurement times.
High quality calibrated bracelet, with velcro closure, made with latex and phthalate free components.

Characteristics:
1-tube measuring system;
micro-filter that protects the valve and pressure gauge from dust ingress;
spoon made of thermoplastic material, adjustable for both left-handed and right-handed users;
10 year warranty against defects in design, materials and workmanship.

CND: C9006
Repertoire: 85576/R

Dial diameter 56 mm
Graduated scale 0 – 300 mmHg
Accuracy testing standards EN-1060-1, EN-1060-2; ANSI/AAMI SP9:1994, ANSI/AAMI/ISO 81060-1:2007; ESH Clinical Validation
in the adult population
Bracelet supplied suitable for limb circumferences from 29 to 41 cm
Weight 188 g



code: M-000.09.230
