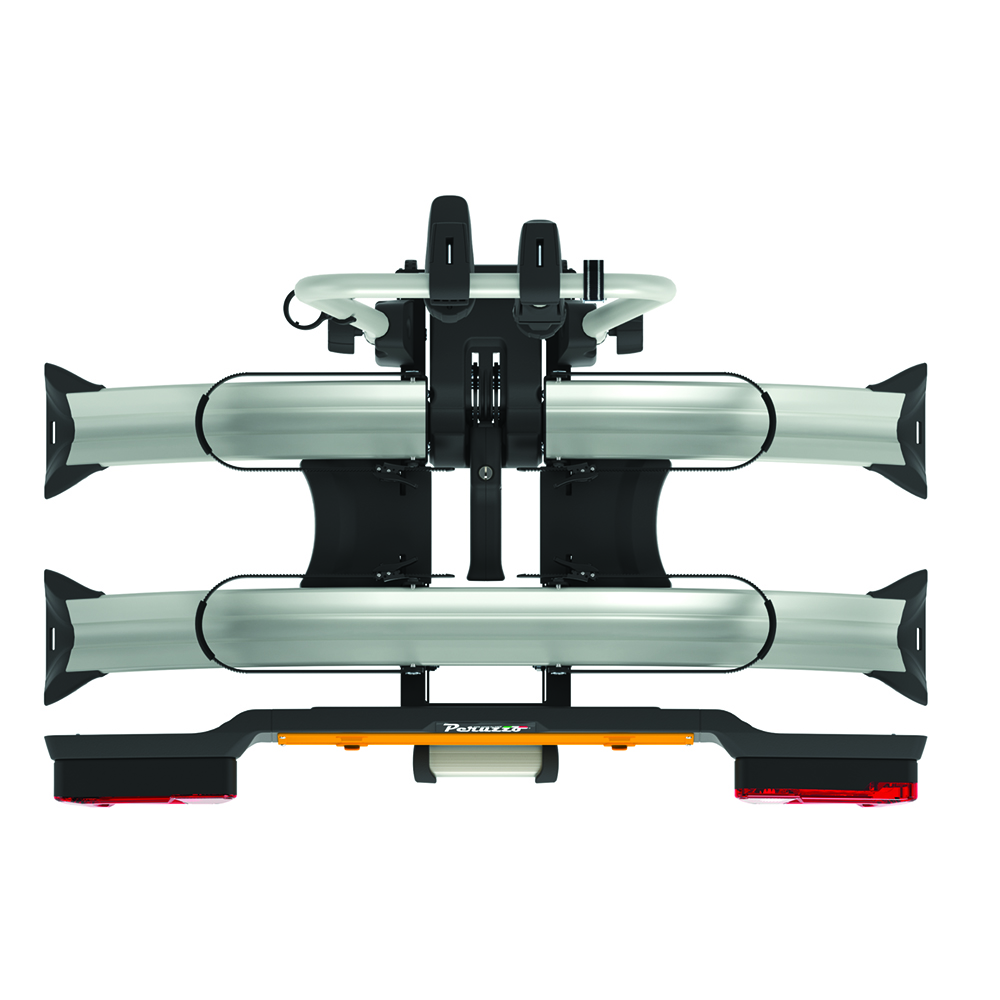

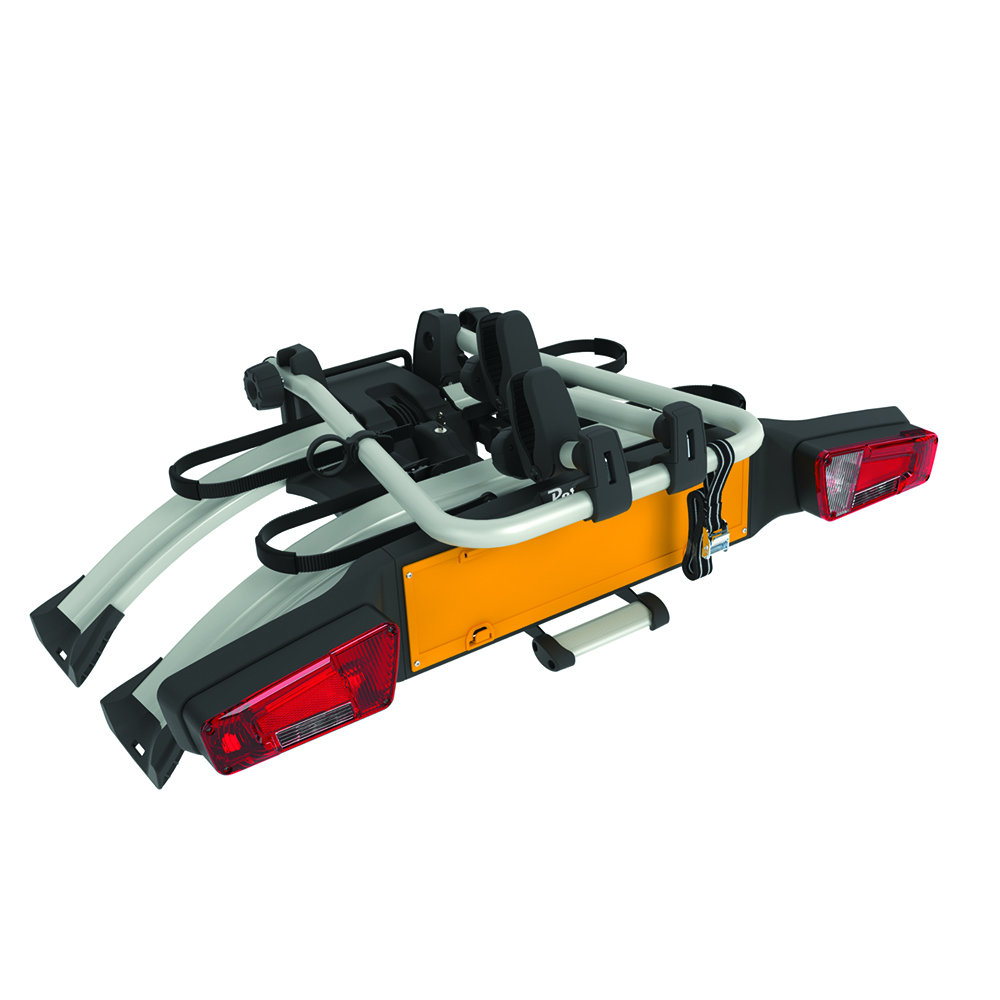

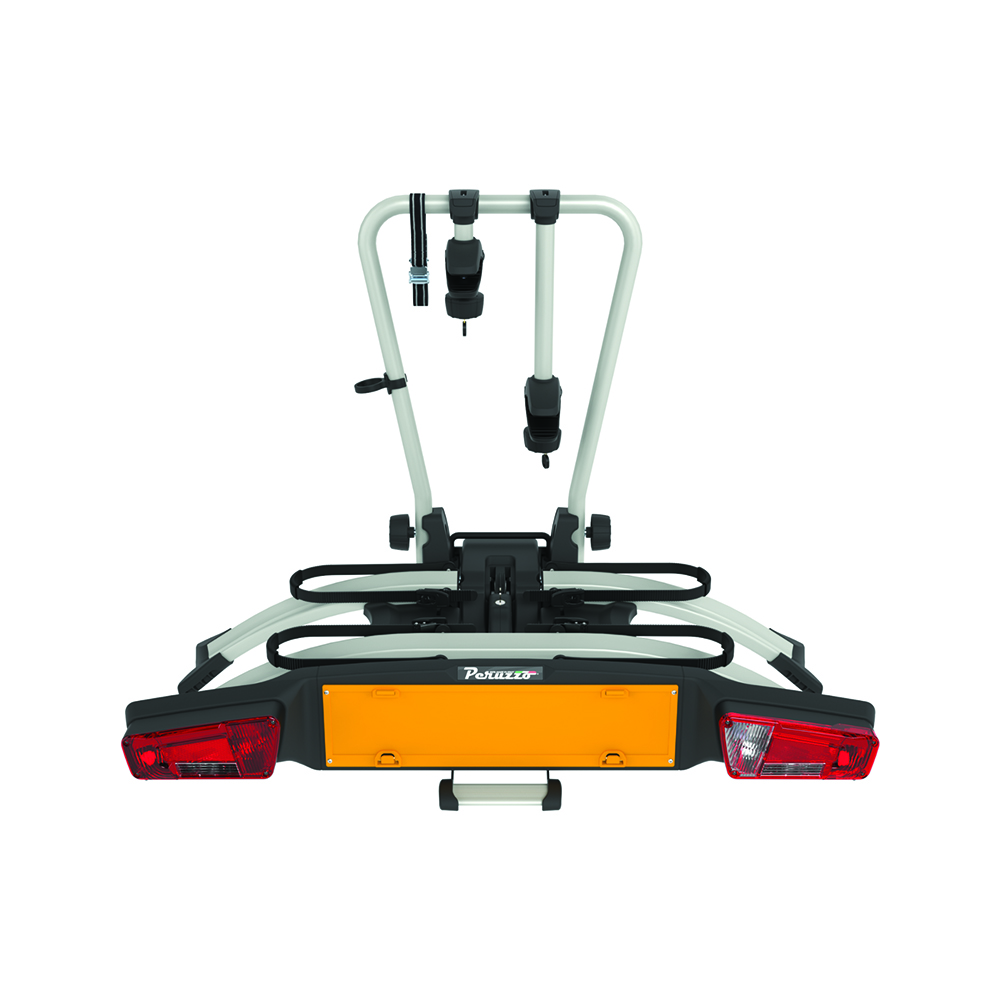

The Atlantis bike rack, thanks to the new front quick coupling system, allows for quick and practical application to the tow hook.
You can transport your E-bikes with peace of mind, thanks to the maximum load of 60 kg and the possibility of carrying bikes with a wheelbase of up to 135 cm
Equipped with all the arms to space the bikes and locking both between bike and bike rack and between bike rack and car.
The new straps equipped with jacks allow you to easily attach the wheels
The accessory art. Furthermore, 1002, which can be purchased as an optional, allows you to add a bike space

ATTENTION, ON VAN CARS IT IS NOT POSSIBLE TO ACCESS THE TAILGATE

Description
- maximum capacity 60 kg
- universal for all European standard tow hooks
- fully assembled
- scratch-resistant paint
- quick release system with key lock
- inclination using a comfortable pedal
- large wheel rest
- strap with jack system
- complete with knobs and key for locking the bike
- convertible into a 3-seater bike rack thanks to the specific accessory art 1002

Data sheet
item code 714
max number of bikes 2
Aluminum material
Arctic Gray colour
total maximum load (kg) 60
type of bike assembly Frame and wheel
max bike frame section dimensions (cm) 5
bike size (inches) from 12" to 29''
max width of bike wheels (cm) 12.7
max bike distance (cm) 135
distance between tracks (cm) 25
SI frame protection system
fixing with bike-bike rack key YES
fixing with bike-car rack key YES
tiltable YES
product weight (kg) 18.2
tested according to Tuv-GS
European approval YES
city crash test YES
e-bikes YES
fat bikes YES
packaging type Box
product dimensions (cm) 77*110*89




barcode: 8015058007149
code: 714
