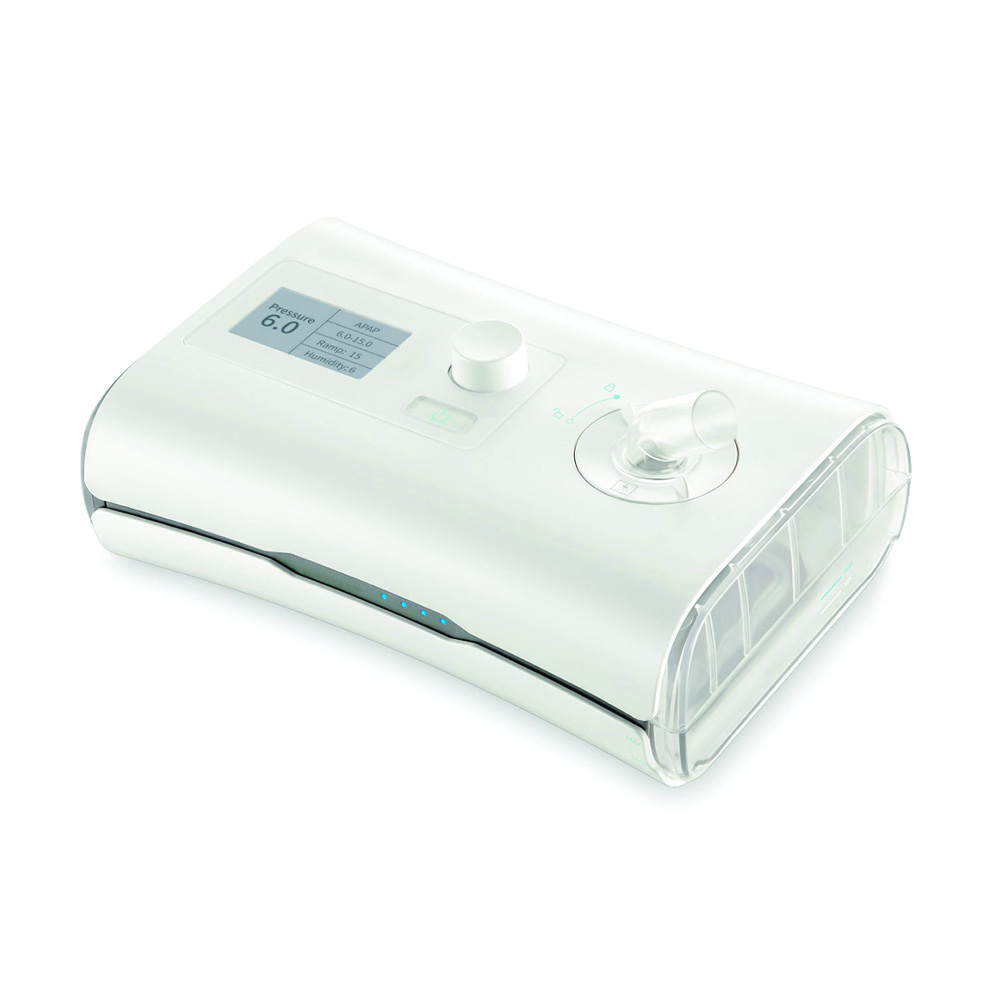

The positive pressure ventilator is indicated for the treatment of obstructive sleep apnea (OSAS) in patients weighing more than 30 kg.

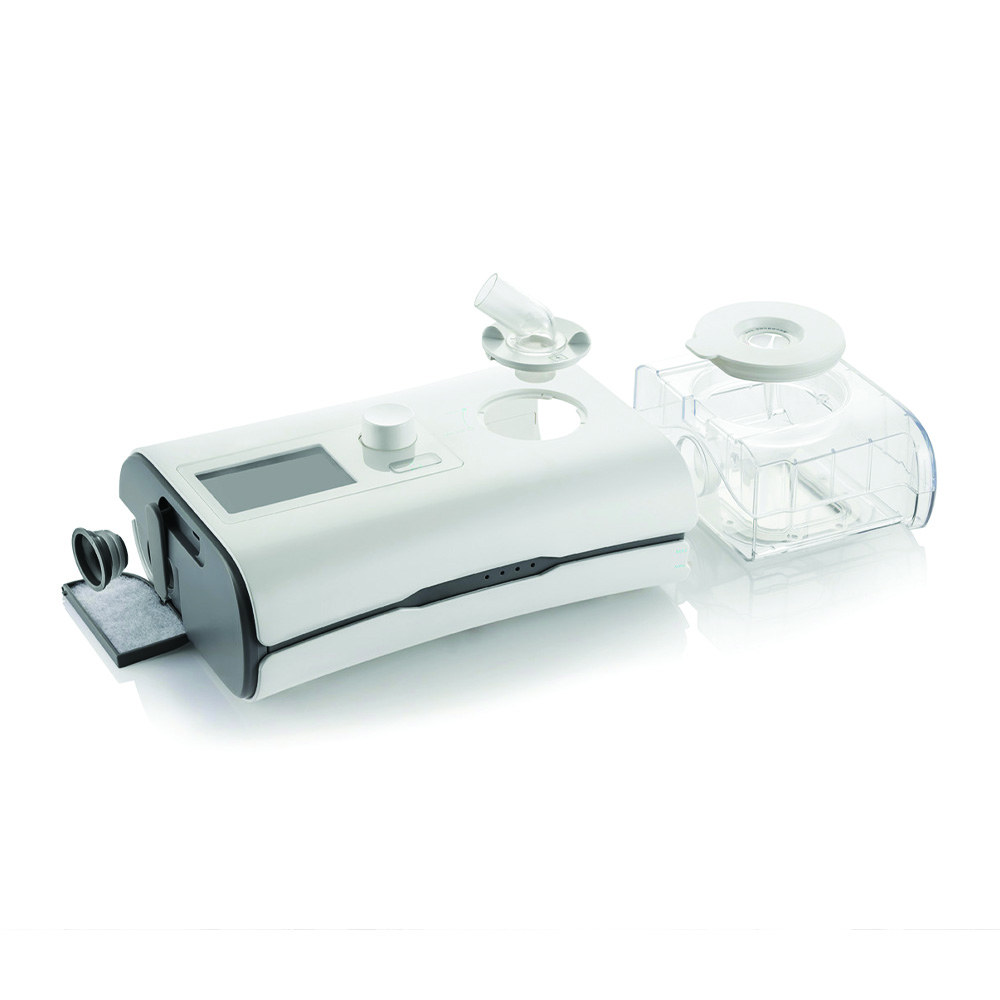

It consists of the main unit, the humidifier and the power supply.
Modern design, compact and easy to carry.
Complete with features such as:
- Easy to adjust ramp settings.
- Compensation of losses.
- Data collection on SD card.
- Visualization of AHI index and historical data.

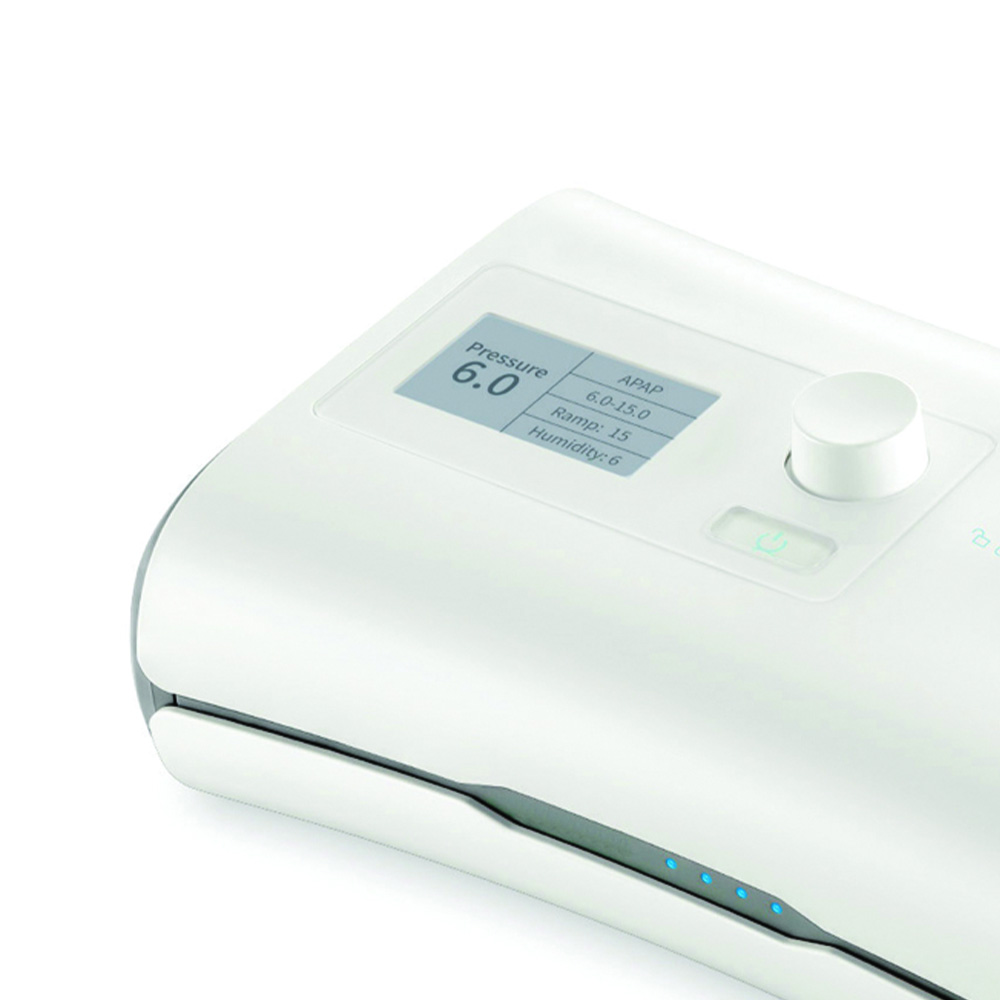

- Backlit LCD display and user-friendly interface.
- Silent operation.
- SMART START/STOP function with smart start and stop thanks to the function that detects the patient's breath.
- Degree of protection IP21.

Main features:
- Positive pressure fan with continuous air delivery.
- Simple and intuitive digital display through which it is possible to adjust the therapy parameters, check the settings during use and review the resulting data once use is finished.

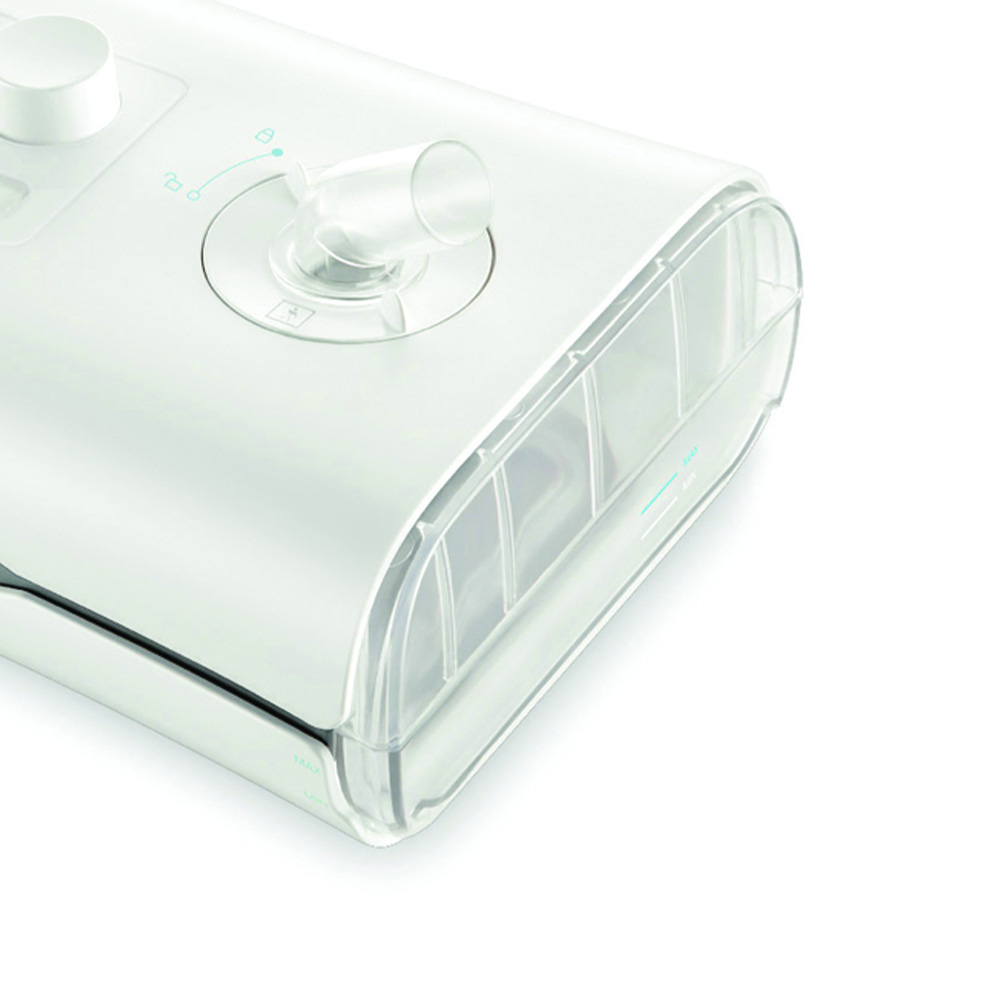

- Integrated humidifier to mitigate the unwanted effects of the therapy, such as dry mouth and nose.
- 8 GB Micro-SD to store data and detailed information on the therapy carried out and to allow downloading of data to a specific PC software.

Technical features:
Dimensions: 27.2 x 18.1 x 9.3 cm
Weight: 1.41kg
Power Input: 100~240VAC, 50~60Hz, 2A max
Output: 24V DC, 2.5A
Protection class: IP21
How to use: Continuous
Sound Pressure: ≤30dB（A）
Treatment pressure: 4~20 hPa (adjustable, 0.5hPa step) or 4~20 cm H2O
Initial pressure: 4~20 hPa (adjustable, 0.5hPa step) or 4~20 cm H2O
Ramp: 0~45 min (adjustable, 5 min step)
Smart START/STOP: Smart start and stop thanks to the function that detects the patient's breath
FPS function: Slight reduction of pressure in the expiratory phase to make therapy more comfortable
Compensation mechanisms: Altitude compensation, Loss compensation
Available modes: CPAP
Data transmission: Micro SD
Temperature:
Operation: +5℃~35℃（+41℉~95 ℉), non-condensing
Transportation: -20℃~70℃（-4℉~158℉）
Storage: -20℃~70℃（-4℉~158℉）
Humidity:
Operation: Relative Humidity 15%~90%, non-condensing
Transportation: Relative Humidity 15%~90%
Storage: Relative Humidity: 15%~90%
Atmospheric pressure range: Operation: Relative humidity
Altitude: <3000m

Supplied:
1 Humidifier
1 Air Hose
2 Filters
1 mask strap
1 Carrying bag
1 Micro SD
1 Power supply
1 user manual



code: LTK405
