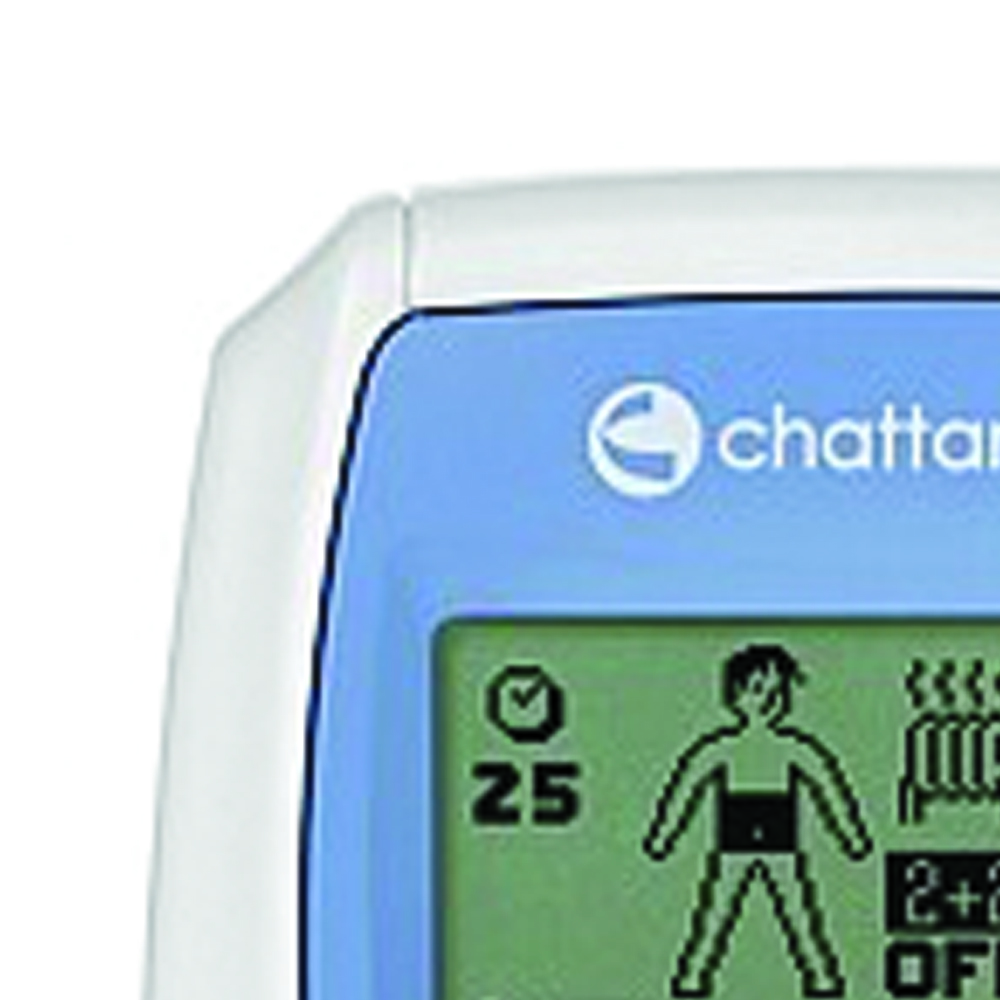

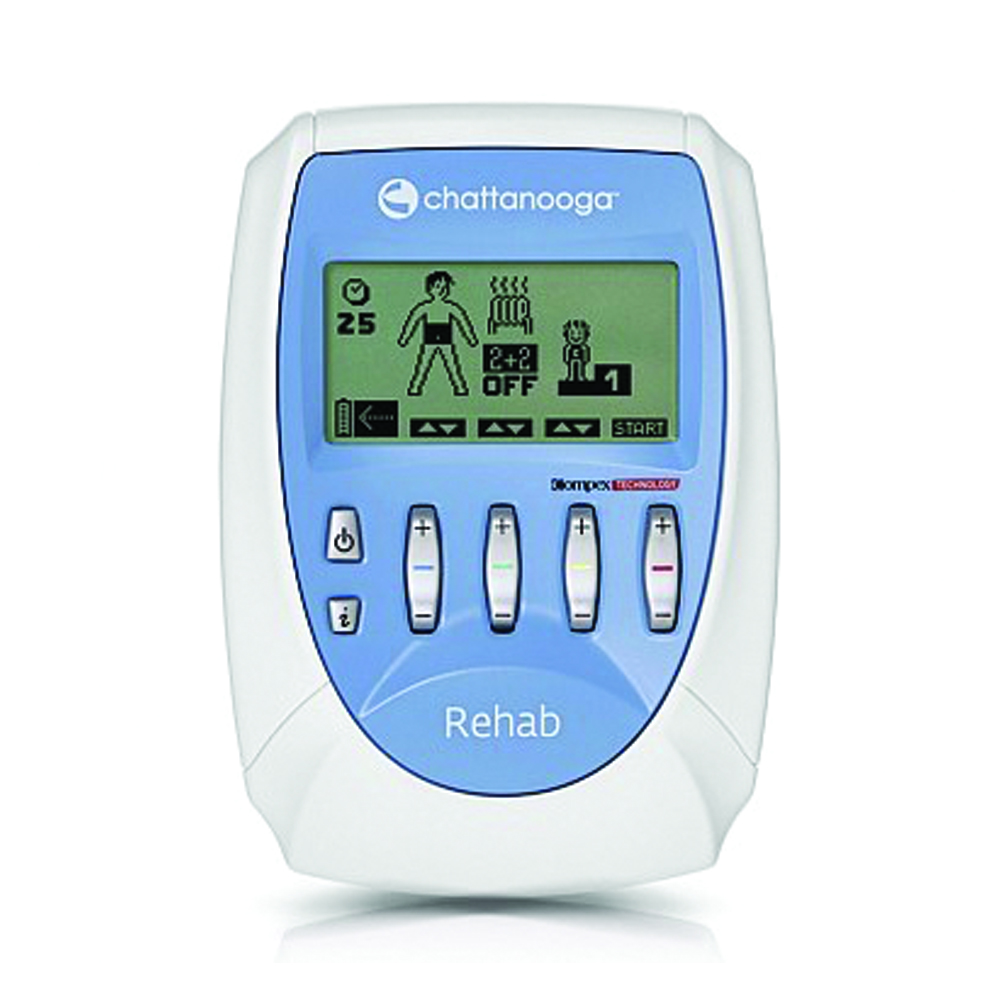

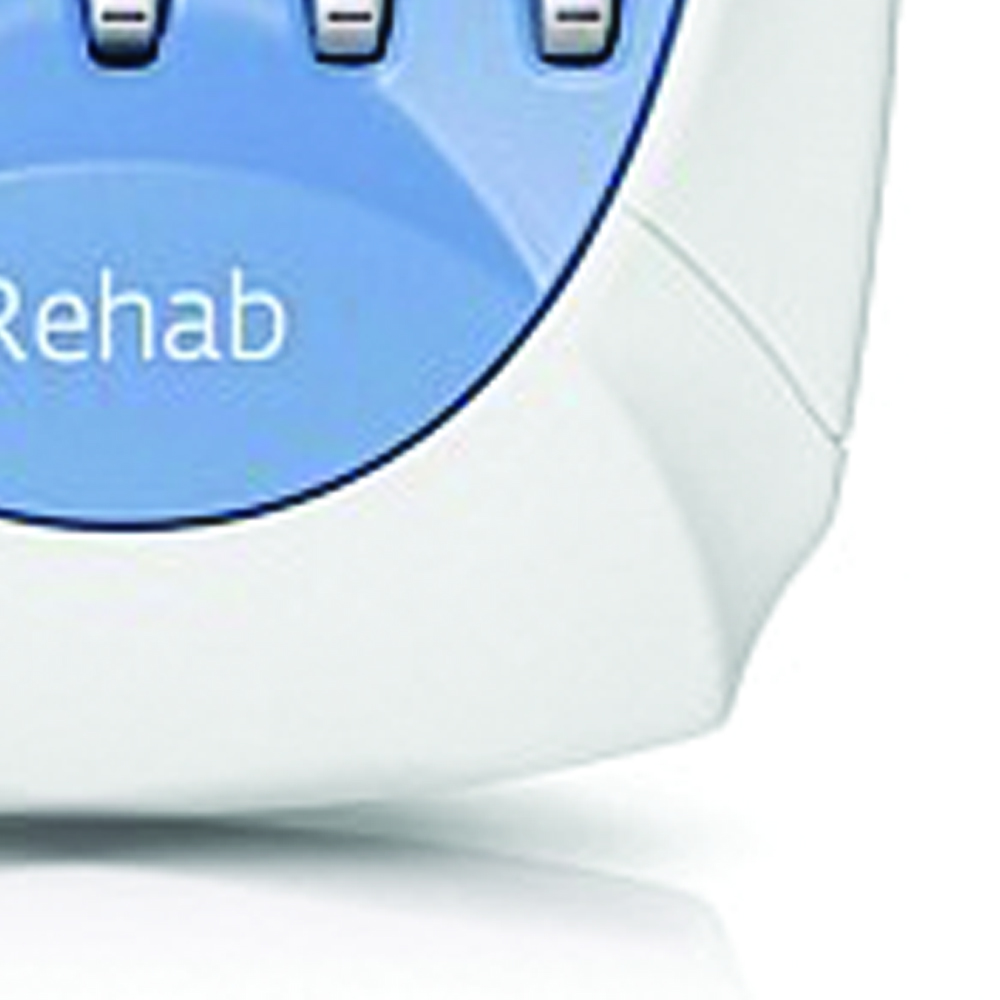

Rehab is a 4-channel electrostimulator designed for physiotherapists and rehabilitation clinics that require standard use of electrostimulation.
It allows you to manage pain, treat vascular disorders and stimulate muscles with simple programs, responding to the main needs of professionals.

Therapeutic indications:
- Analgesic action
- Muscle rehabilitation
- Wound Healing
-Increased Circulation

Muscle Intelligence technology
Physio is Mi-Ready (integrated Mi technology on all 4 channels) includes 2 Mi cables. Muscle Intelligence functions are automatically available when the Mi cable is connected to the device.

4 MI functions available on all 4 channels:
Mi-Scan: a personal touch - This function uses the sensor to determine and adapt the optimal stimulation parameters for each patient and each session.
Mi-Action: Patient participation - Active combined exercise allows the therapist to better integrate electrotherapy into treatments. With Mi-Action, patients can activate stimulation with their own voluntary muscle contraction.
Mi-Tens: Self-regulating pain therapy - Allows continuous control of the stimulation intensity level to eliminate unwanted contractions during a pain relief program.
Mi-Range: Intensity Control - Graphically indicates to the therapist the minimum and maximum intensity level, to enhance optimal muscle contractions in low frequency programs (endocrine type).
Trigger Function
Start a phase of voluntary work where required by the protocols (hemiplegic foot, spasticity).
2+2 channels or 2+Tens
It allows you to choose a program for channels 1 and 2 and select another from the 2+2 program list for channels 3 and 4. This allows you to treat two different body parts, two patients at the same time or combine TENS and NMES in a single treatment.
Skip
This useful tool, included in the kit together with the specific program, helps to find the optimal positioning of the electrode.
Motor point pen
This useful tool included in the kit together with the specific program, helps to find the optimal positioning of the electrode.
I-Button
It allows you to adjust the intensity on all 4 channels simultaneously, directly access your 5 favorite programs or check the statistics (number of contractions, intensity level) during sessions.
Pause Mode
Pauses stimulation when electrodes need to be repositioned.
Programmability
It is possible to create and customize programs, based on specific patient parameters.
Autonomy and fast charging
Daily autonomy; with the charger included in the kit, a complete charging cycle lasts a maximum of 2h30.
Plug-Button Cables and Adapters
The devices come with 4 cables with plug + snap adapters to connect both plug electrodes and snap electrodes.

Technical Features:
- Medical Device: Class IIa
- Electrical protection: IP22
- Electrical safety class: Class II, type BF
- Compliant with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
- Battery 941213: rechargeable nickel-metal hydride (NiMH) battery (4.8 V 2000 mA/h)
- Battery charger: to recharge the batteries supplied with the Rehab/Theta/ stimulators
- Physio only chargers with code 68301X can be used.
- Neuro-stimulation programs: Rehab, Theta and Physio devices
- Channels: Four independent and separately adjustable channels
- Pulse shape: compensated constant rectangular current
- Maximum pulse intensity: 120 mA
- Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) with minimum increments of 0.25 mA
- Pulse width: 30 to 400 µs
- Maximum electric charge per pulse: 96 micro coulombs (2x48 µC, compensated)
- Standard pulse ramp time: 3 µs (20%-80% of maximum current)
- Pulse frequency: 1 to 150 Hz
- Dimensions: 138 x 95 x 33 mm (Height x Width x Depth)
- Weight: 300 g including battery

Equipment:
- Rehab Device
- Quick charger
- Drums
- Set of 4 pin cables
- Snap adapter set
- Protective shell
- 2 Pack of small electrodes (5x5 cm 1 snap)
- 2 Pack of large electrodes (5x10 cm 2 snaps)
- User manual and practical guide on CD/USB
- Quick start guide + warning booklet
- Electrode positioning booklet
- Motor point pen
- Carrying bag
- Belt clip



barcode: 888912585026
code: 2533110
