I-Tech Orthomag® is the first professional low-frequency PEMF magnetotherapy device for orthopedic use that can be used anywhere and at any time.
It is very small, wearable and in synergy with its ergonomic universal applicator you are free to carry out all your daily activities without even realizing you are wearing it.

Orthomag® has two preset programs. The first (Key L) works at a frequency of 50 Hz suitable for the treatment of pathologies affecting bone tissue (e.g. arthrosis, fractures, osteoporosis). The second (Key H) at 75 Hz recommended instead for problems related to inflammatory conditions (e.g. tendonitis, lumbago, cervicalgia).

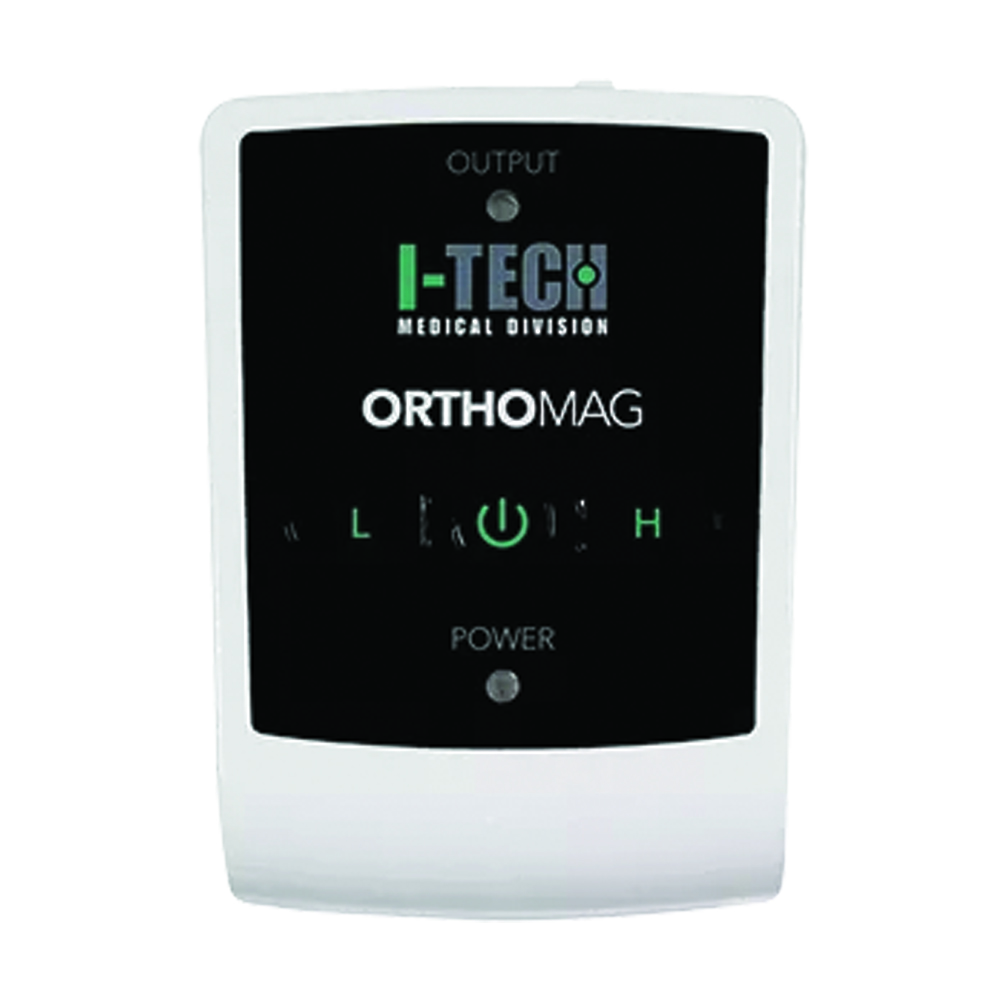

Both programs have a maximum intensity of 25 Gauss. The generator has two two-color LEDs that indicate the program settings and the operating settings (connection to the mains, battery, charge level).

ADVANTAGES
The Orthomag® applicator is patented and unique. It is very light, comfortable to wear and above all it is FLEXIBLE and adapts perfectly to the physiology of your body.
No low frequency magnetotherapy applicator currently on the market has such a reduced thickness and weight. It flexes to adapt to the shape of your body.
Orthomag® has a latest generation 900 mA lithium battery without memory effect which guarantees 4 hours of therapy operation.
Orthomag® has a convenient belt clip so you can wear the generator without any uncomfortable hindrances.
The patented Orthomag® universal applicator is ultra-thin, flexible and ergonomic (only 5mm thick and 100g in weight). It definitively solves all the limitations of conventional low-frequency magnetotherapy applicators: weight, size and rigidity.

It is made of biocompatible silicone rubber and adapts perfectly to all points of the body for maximum therapeutic efficacy.

Orthomag® can be plugged into the mains socket while you are lying on the sofa or into the cigarette lighter socket of your car while you are driving (12V/24V for cars and trucks – sold separately).
When you are on the move you can use it on battery power, without having to worry about its duration. Orthomag® has a latest generation lithium battery with a therapy autonomy of 4 hours.

MAIN APPLICATIONS
The Orthomag® universal applicator, thanks to its extremely flexible and lightweight structure, always allows optimal contact with the body part to be treated. The emission of the electromagnetic field therefore occurs in a focused and effective way, avoiding unnecessary energy dispersion.
Below is a list of the main pathologies that you can treat with Orthomag®. These are just some of the infinite applications that the Orthomag® universal applicator makes possible.

Neck: Cervicalgia; Cervical arthrosis.
Shoulder: Periarthritis; Calcific tendonitis.
Wrist: Carpal Tunnel; Osteoarthritis; Arthritis.
Elbow: Lateral epicondylitis; Epitrochleitis; Arthritis.
Ankle: Algodystrophy; Bruises; Sprains.
Hip: Coxarthrosis; Post-surgery prosthesis consolidation; Periarthritis.
Back: Lumbago; Lumbosciatica; Vertebral collapse; Postoperative recovery of bone fixation; Herniated disc.
Knee: Post-surgery prosthesis consolidation; Anterior cruciate ligament rehabilitation; Meniscopathy; Gonarthrosis; Arthritis.

TECHNICAL FEATURES
Power supply Lithium-polymer battery, 3.7V 900mAh
Battery charger model AK12G-1200100V, input 100-240V 50/60Hz, 0.5A. Output 12V, 1A
Max. current absorbed ≤300 mA (in therapy)
Insulation class (CEI EN 60601-1) II
Applied part (CEI EN 60601-1) BF
Dimensions and weight (L x W x H) 97.9x71.8x30mm, 88gr
Field strength 20 Gauss ±30%
Square wave frequency 50 Hz (L program), 75 Hz (H program)
Pulse width 16ms (L program), 10.66ms (H program)
Duty cycle Therapy time 80%
Default to 4 hours

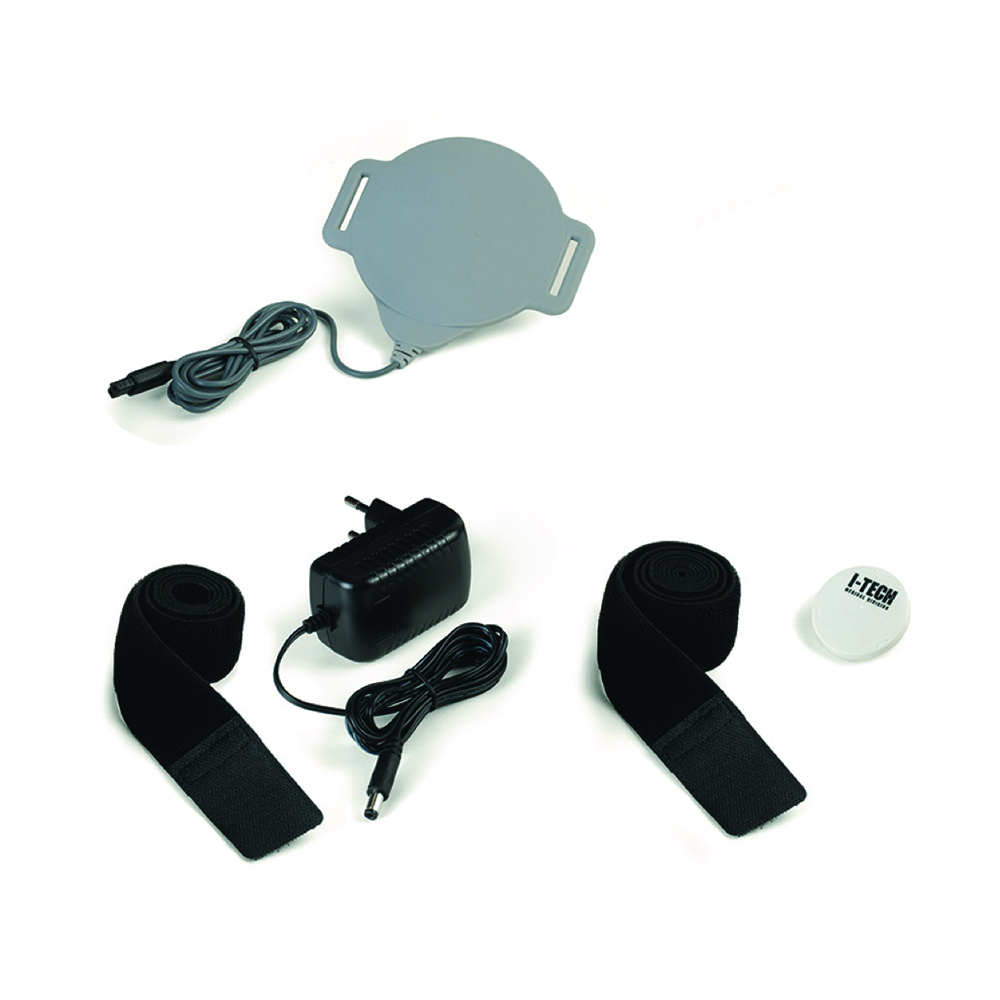

EQUIPMENT
1 ORTHOMAG device
1 charger (cable approx. 1.5m)
1 use and maintenance manual
1 flexible universal applicator (cable approx. 1.5m)
1 carry bag
1 Emission Test Magnet
2 elastic fastening bands (size S and L)




barcode: 8019781011015
code: 10103
