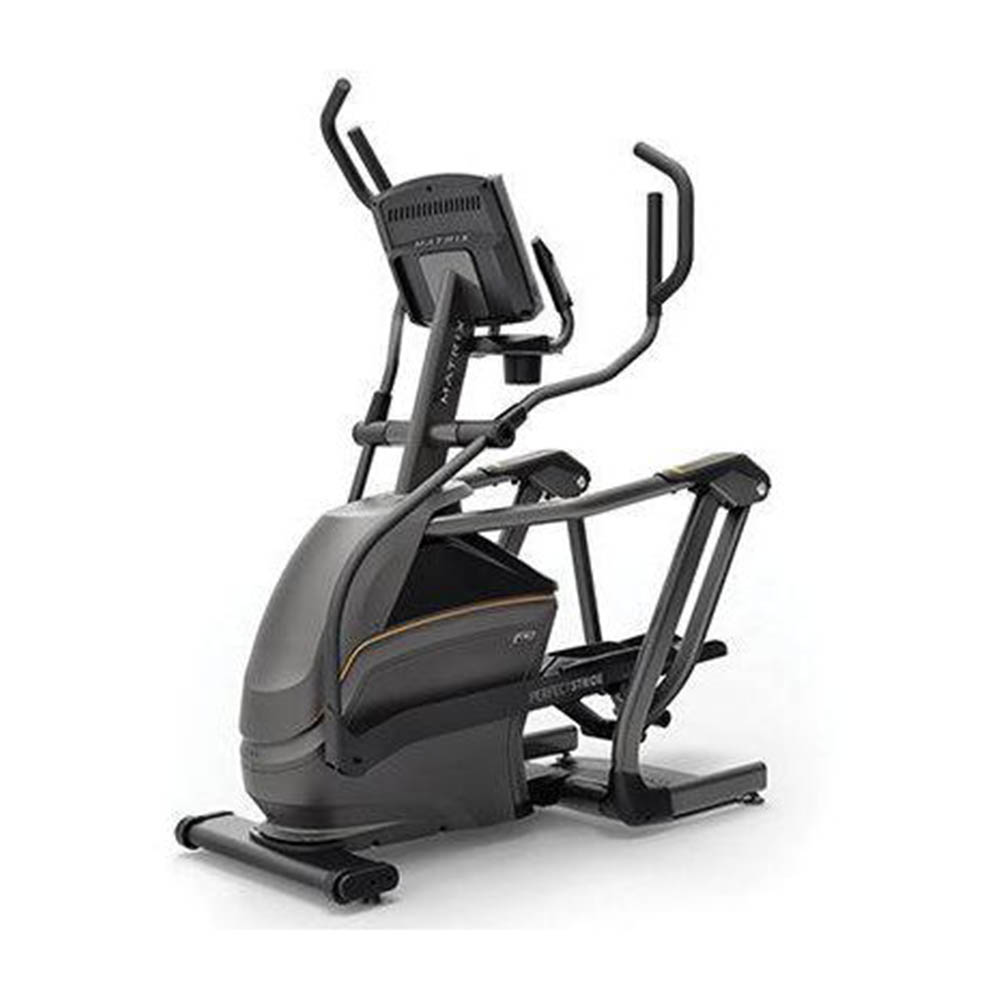

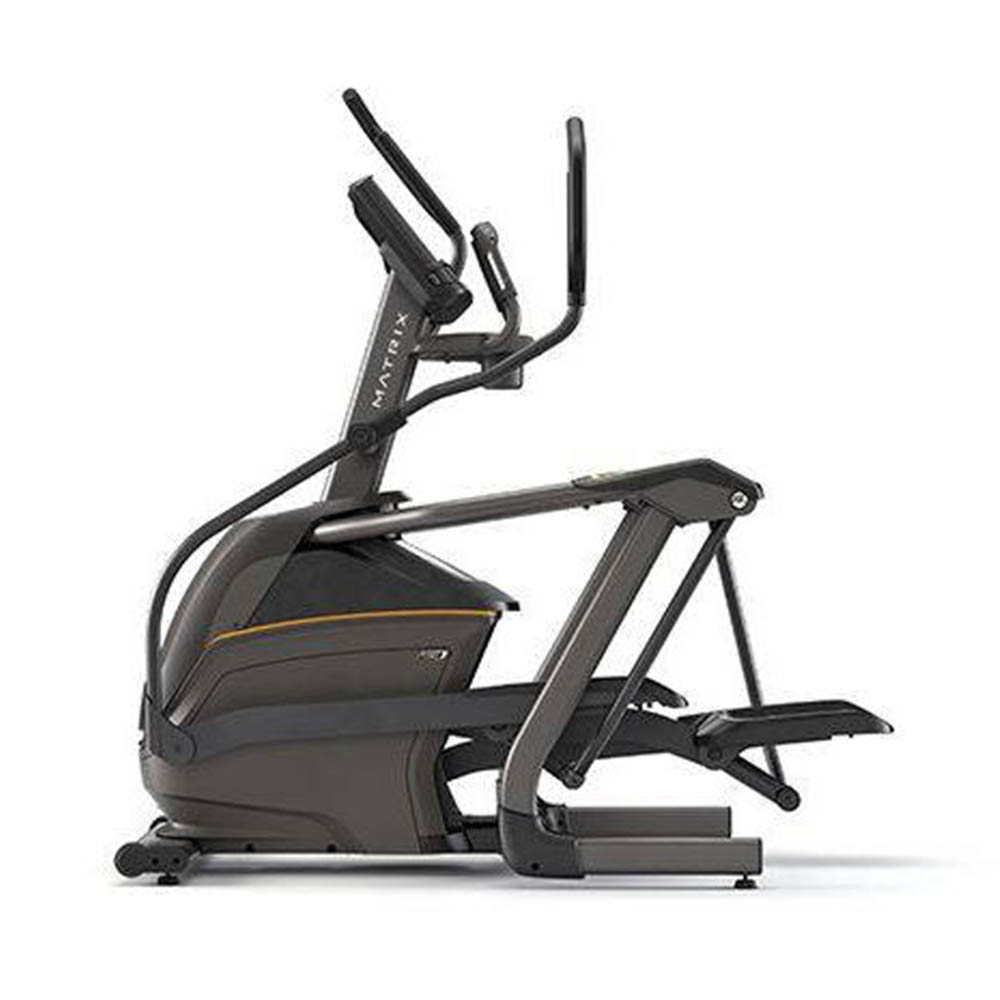

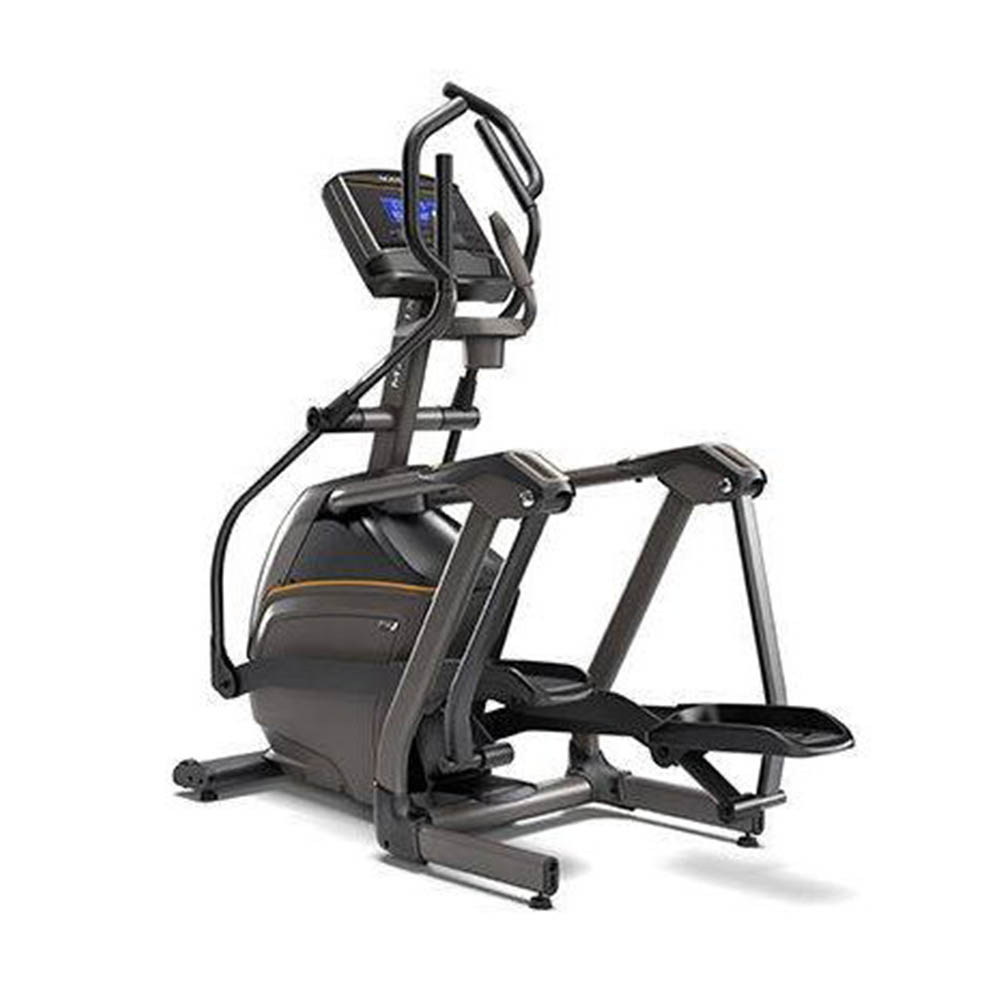

Crafted to fit your home like no other, our compact suspension elliptical offers harmony of design and natural motion for the most comfortable and smoothest elliptical motion experience in the industry.
Our E50 elliptical includes our exclusive Suspension Elliptical and Exact technologies
Force Induction Brake.

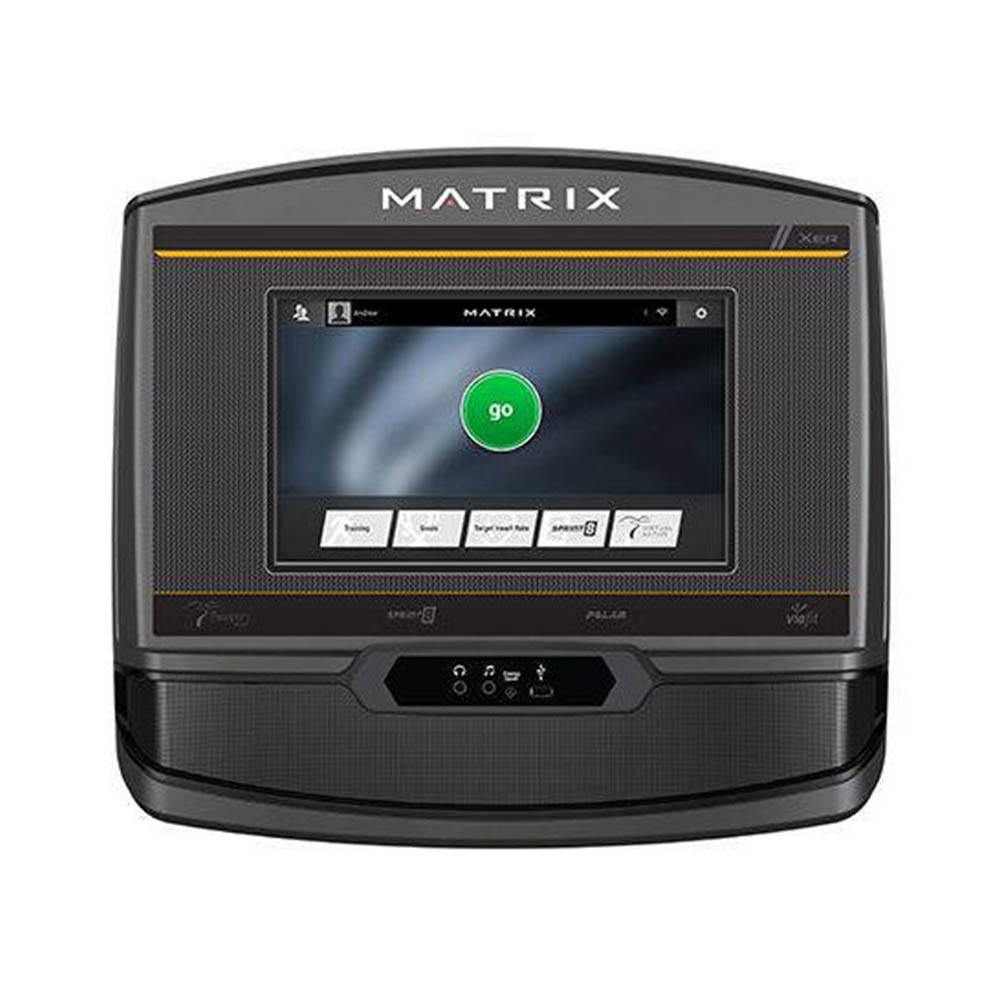

Our XER console includes a clear 10" touchscreen display and an intuitive home screen that offers easy access to entertainment. WiFi and Bluetooth are available.

CONSOLE
DISPLAY TYPE 10” (26 cm) capacitive touch screen
WIFI ENABLED ViaFit connectivity, entertainment apps, software updates
HDMI PORT No
USB INPUT Front: Use to access media from compatible devices and for
install software updates.
Charges most devices up to 2.4 amps.
SPEAKERS 3 watts
CONSOLE APPS My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
PASSPORT READY No
VIEWFIT CONNECTIVITY Yes
HEART RATE Bluetooth wireless heart rate, Polar Bluetooth heart rate strap included
EXTRA CONSOLE Integrated reading compartment, power saving mode, audio
in/out
EXERCISES 12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
FEEDBACK DISPLAY Elapsed time, target time, remaining time, clock, miles/kilometers, RPM, current speed (MPH / Km/h), pace, average pace, heart rate, maximum heart rate, calories, calories/hour, watts, METS, resistance, previous resistance
ASSEMBLED MONITOR WEIGHT 4.5 kg / 10 lbs.

CHASSIS
STEP HEIGHT 23 cm / 9.1”
MAXIMUM USER WEIGHT 51 cm / 20”
USER WEIGHT CAPACITY 147 kg / 325 lbs.
RESISTANCE RANGE 30 levels, electronically adjustable
RESISTANCE SYSTEM Exact Force Induction Brake
SPACE BETWEEN PEDALS 6.35 cm / 2.5”

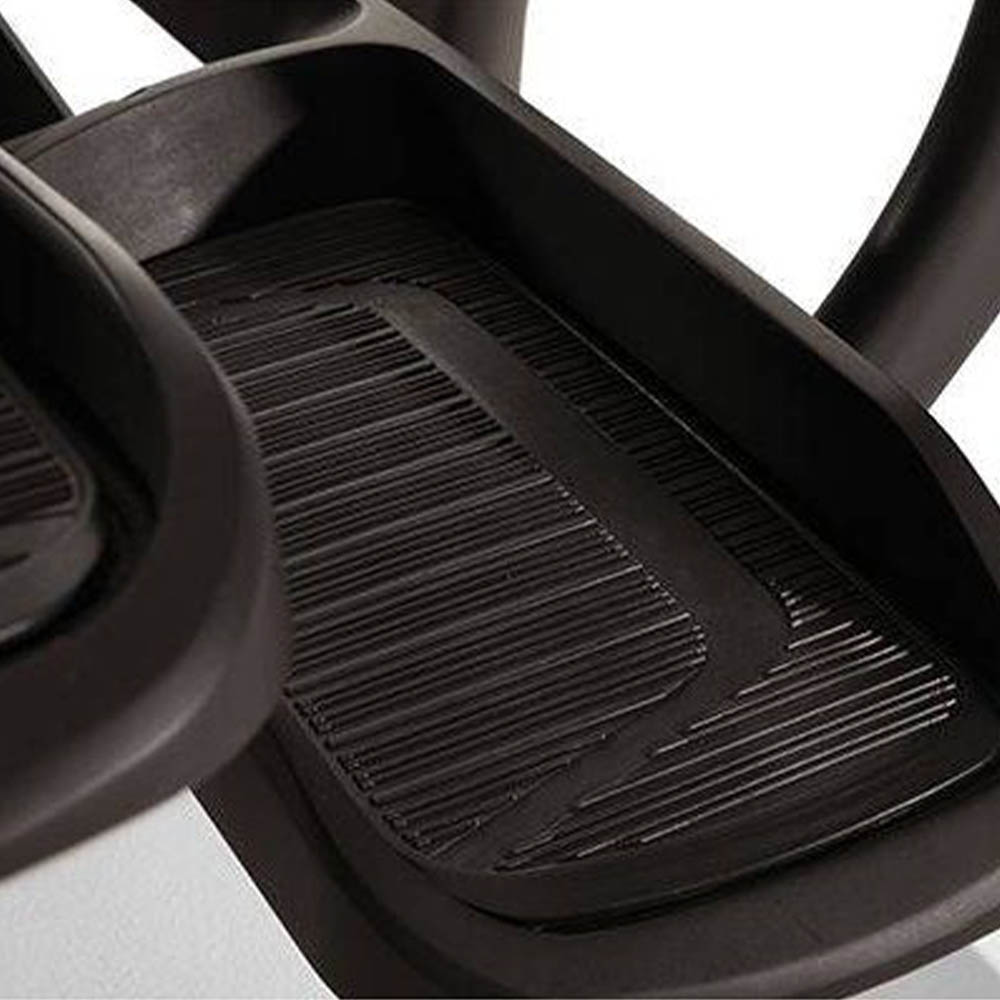

PEDAL TYPE Oversized with rubber inserts
INCLINATION POWER ND
POWER REQUIREMENTS AC 120V, 15A circuit (voltage may vary outside the US)
FLYWHEEL WEIGHT ND
FRAME TYPE Suspension Elliptical Trainer
HANDLE DESIGN Dual action multi-position, stationary with resistance buttons and heart rate handles
ASSEMBLED MACHINE WEIGHT 133 kg / 293 lbs.
EXTRA Bottle holder, accessory compartment
ASSEMBLED MACHINE DIMENSIONS 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)



code: E50-XER
