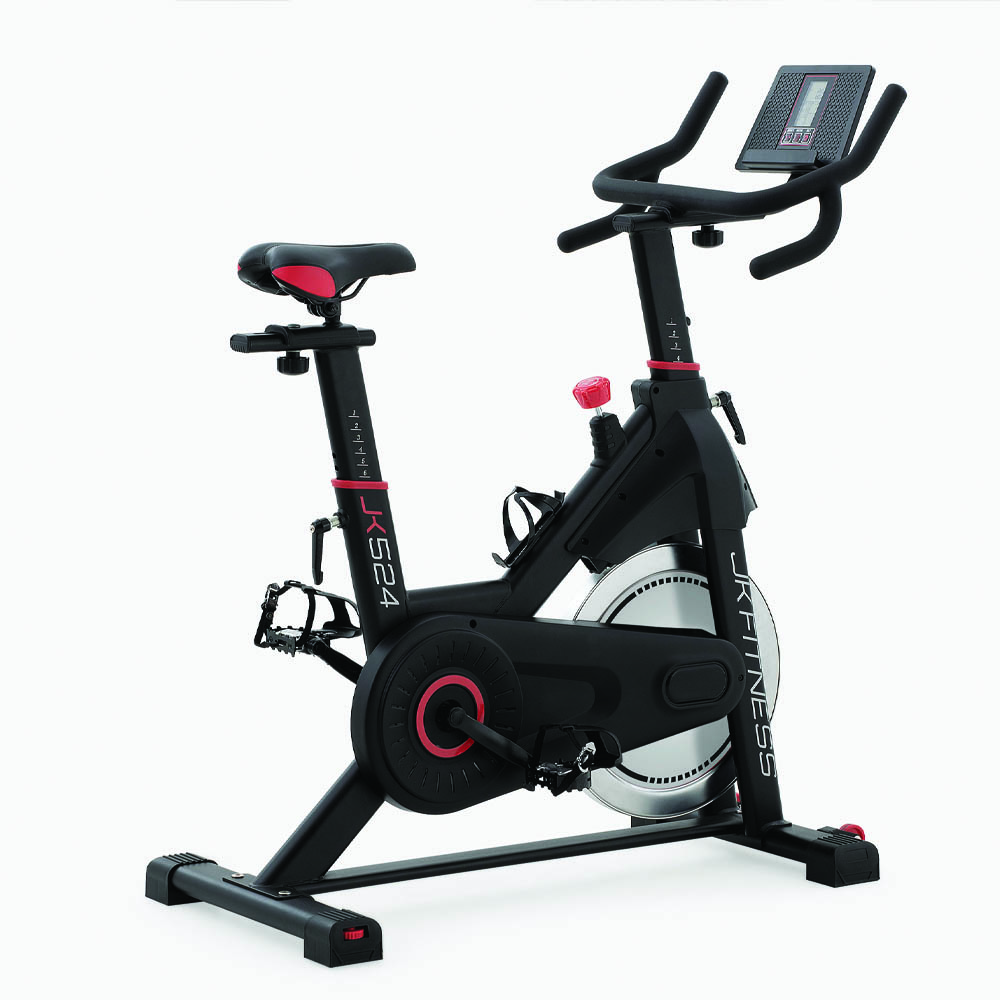

The new JK 524 indoor bike was created to confirm the average JK home fitness offering by improving performance compared to the previous range, with decidedly more modern and sporty lines thanks to the new total black matt-glossy look.

Technical features
The new JK 524 is a mid-range magnetic spin bike in the home fitness world with a fixed-gear transmission with a silenced belt equipped with a large inertial system with a flywheel mass of 20 kg (balanced flywheel) and a 16.5 cm crank, which allow for smooth and hesitant pedaling at all speeds. The effort is adjusted via a command with a manual selector with “millimetric” resistance that also acts as an emergency brake in the event of sudden pedaling stops by the user. For good comfort, the JK 524 indoor bike has a saddle height adjustment of 12 positions (leg measurement from 74.5 cm to 90.5 cm) and depth of 7.5 cm, the handlebars can be adjusted in height to 8 positions and in depth of 6 cm. These adjustments allow you to always find the correct position in the saddle for each user, even very tall people! The racing design saddle, anatomical and with a central hole, helps and improves the feeling on board for all people, ensuring comfortable and long pedaling without particular discomfort. The non-slip racing pedal in iron with a foot strap, helps maintain the correct support of the shoe in all phases of pedaling, even the most intense ones.

Training Tracking

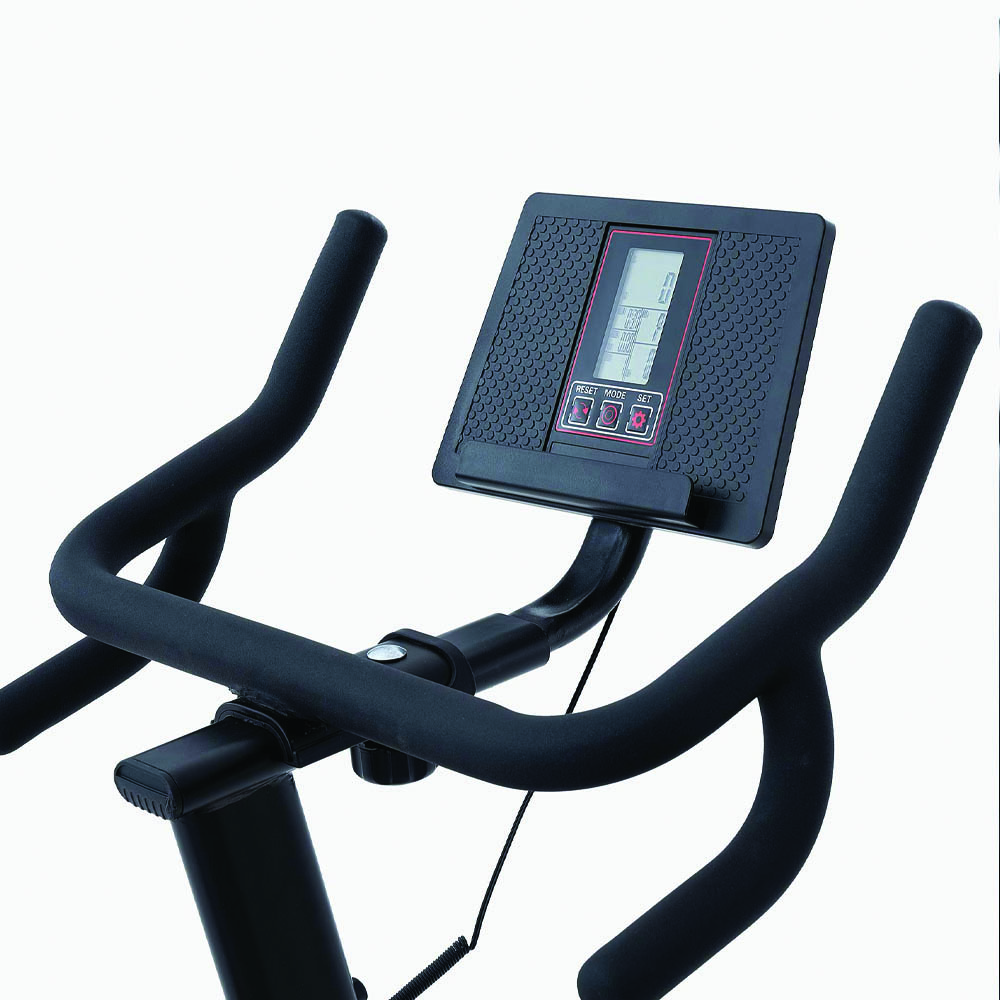

The cycle computer with multi-information LCD display inserted in the console with a mobile phone / tablet holder adjustable in inclination, allows you to keep all the parameters of the race under control, such as: time, distance, speed, RPM, calories, Watts, heart rate. The JK 524 gym bike is equipped with a sensor in the console to detect the heart rate of the user via the heart rate monitor during sessions of a more intense cardio workout; the heart rate monitor is optional and must be purchased separately.

Interactive training
The new JK 524 indoor bike with built-in receiver can connect to the most important fitness APPs (Zwift – Kinomap) to make cardio training more fun, pedaling around the world or challenging friends on virtual online tracks!

Practicality and comfort

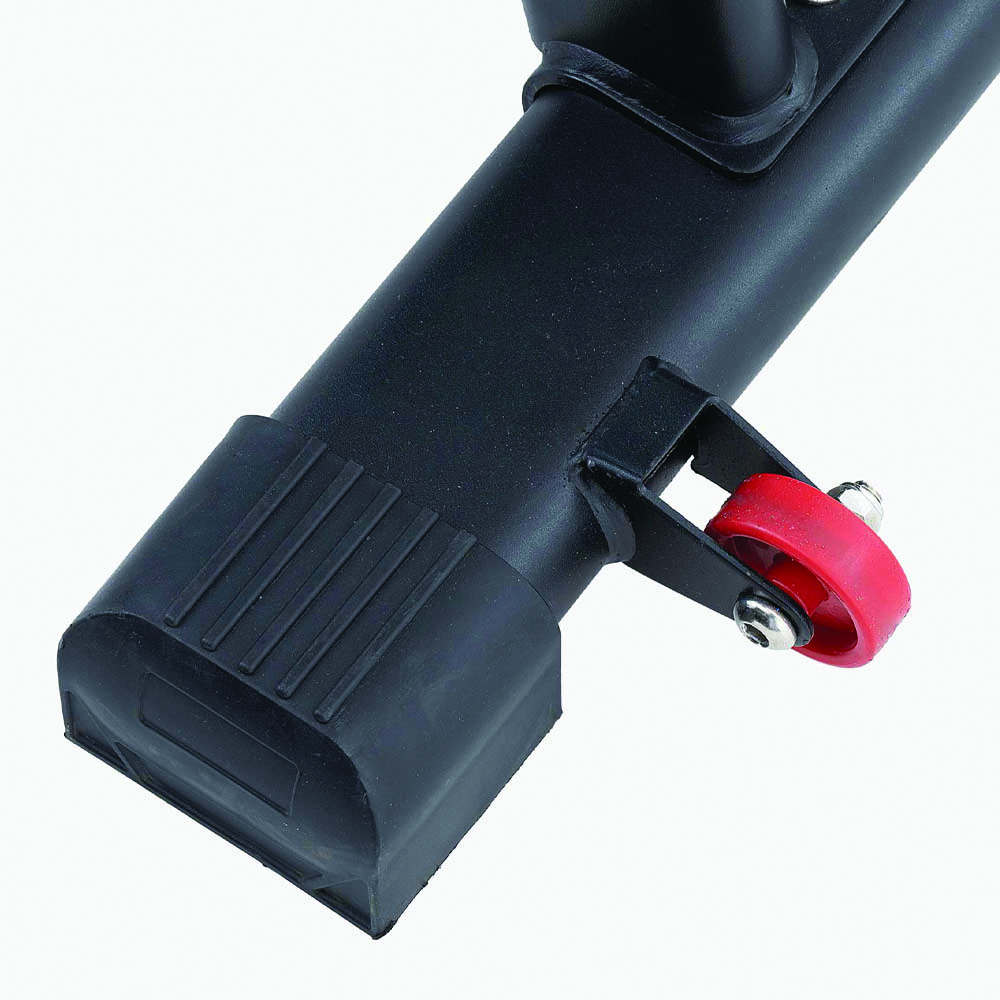

The sturdy steel frame of the JK 524 rests on large stabilizers with four non-slip feet (self-leveling rear) allows it to support a maximum user weight of 130 kg, while at the front there are two transport wheels, which allow easy movement of the JK 524 spin bike from one room to another. The new JK 524 fitness bike is a magnetic spinning bike that weighs 37 kg and is compact 117 x 51 cm H 130 cm; practically perfect for those who want top performance but do not have large spaces at home. JK Fitness offers the best spin bikes on the market with a perfect quality/price ratio.

TECHNICAL FEATURES
Magnetic resistance
Manual adjustment
Micrometric / infinite resistance levels
Flywheel mass 20 kg
Max user weight 130 kg
Silent belt drive
3-piece bottom bracket
Crank length 16.5 cm chrome
Iron structure pedal with toe strap
Q factor 182 mm (LH 90 mm DX 92 mm)
Ratio 1 to 4.25
Fixed Gear
Brake pressure knob
Multi-information cycle computer console 1 display, inclination adjustment
Displayed data time, distance, speed, RPM, calories, Watts, heart rate
No programs
Ergonomic multi-grip handlebar, with low "crono" grips, dipping coating, Ø 34 mm
Built-in 5.3KHz HRC receiver
Optional heart rate monitor
Integrated sensors for app connection
Compatible apps Kinomap*, Zwift* (*subscription not included)
Cell phone holder Yes (tablet & smartphone)
Product dimensions 117 x 51 cm H 130 cm
Pedal saddle height 74.5 / 90.5 cm
Saddle-handlebar distance 41.5 / 53.5 cm

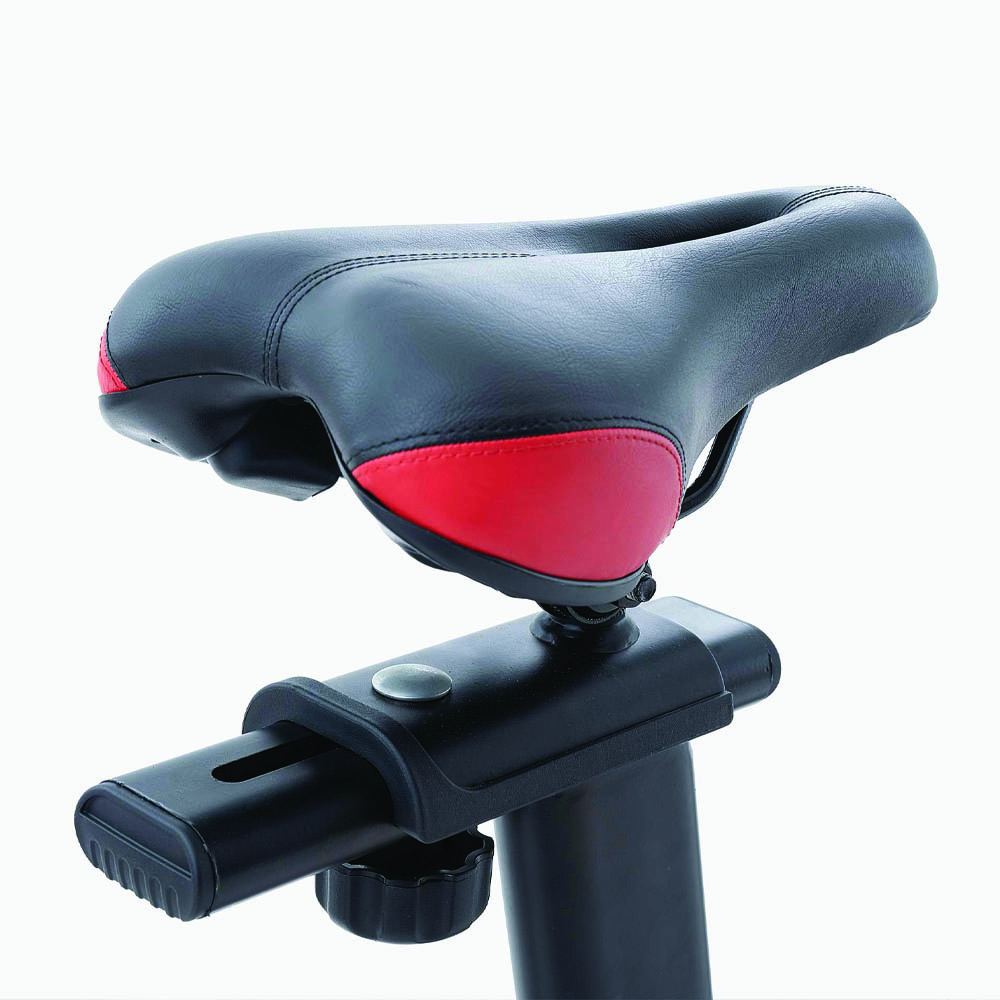

Anatomical saddle, with central hole

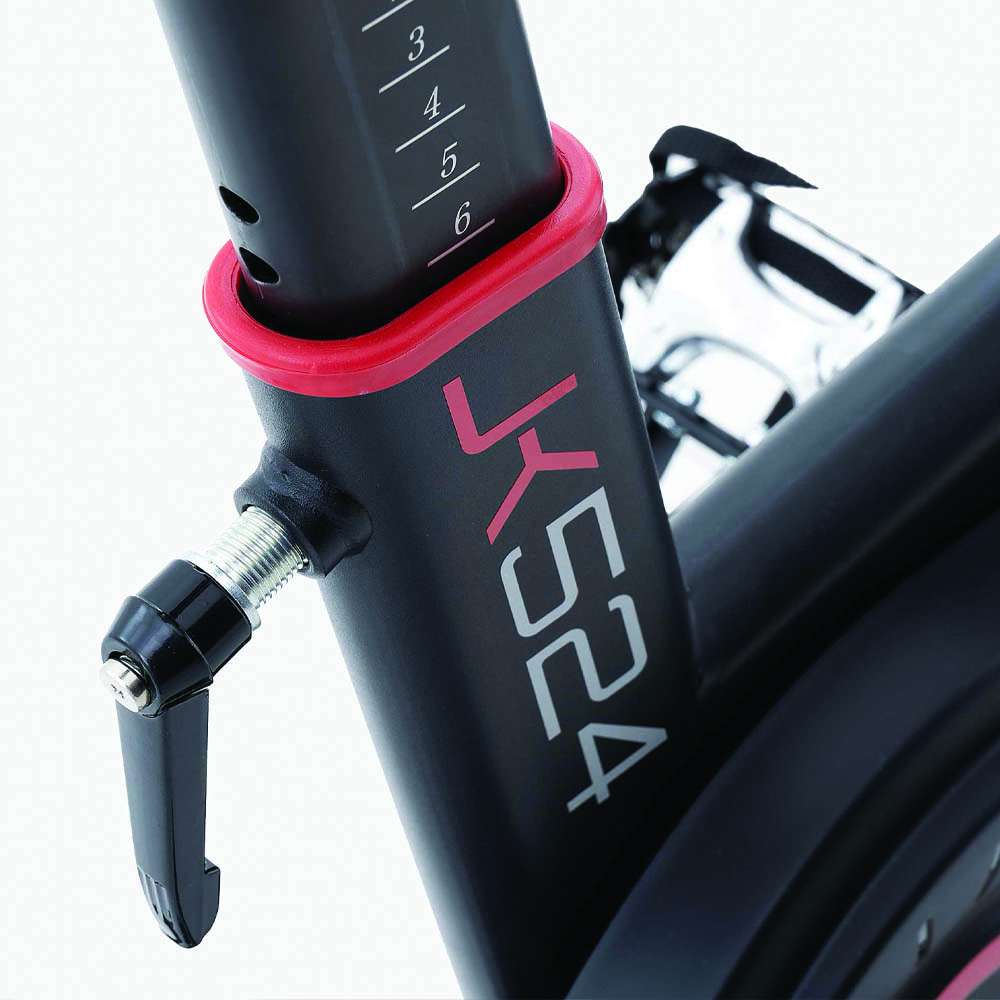

Saddle height adjustment with 12-hole selector, micrometric depth 7.5 cm

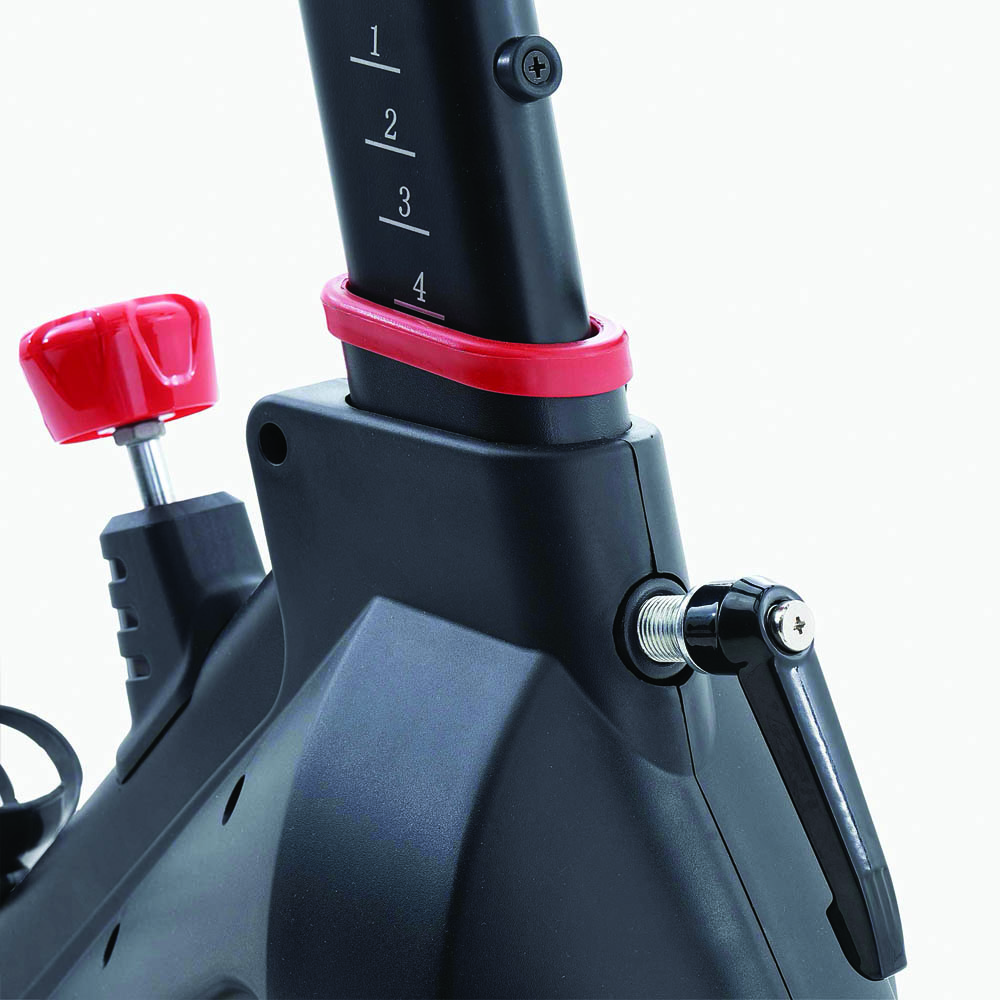

Handlebar height adjustment with 8-hole selector, micrometric depth 6 cm
Stabilizers with 2 rear self-leveling feet
Transport wheels Yes
Packaging dimensions 103 x 19 x 80 cm
Product weight 38 kg
Gross weight 41 kg
Product class HC
CE, RoHS, EN957 certifications



barcode: 8031906205246
code: JK524
