Indicated for the prevention of bedsores up to IV STAGE.

The first four static functioning elements with pillow function for the head; the remaining part is divided into 2 sections with 2-way alternating operation.

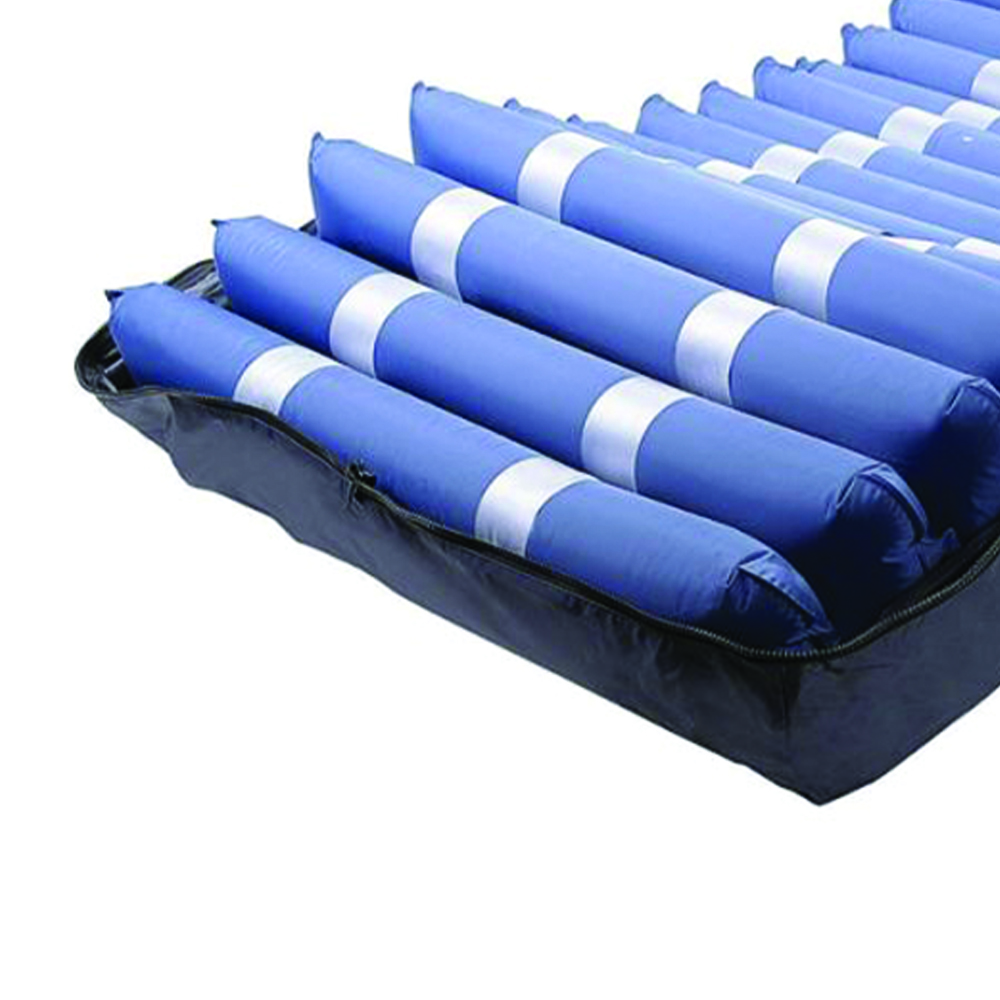

Complete with padded blanket in biocompatible Nylon/PU, waterproof, breathable, verified according to European fire reaction standards and equipped with zips on all four sides for easy removal and cleaning.
Fixing of the mattress to the bed using supplied straps and fitted with grommet eyelets. The height of the elements allows you to use the mattress without using an additional mattress.

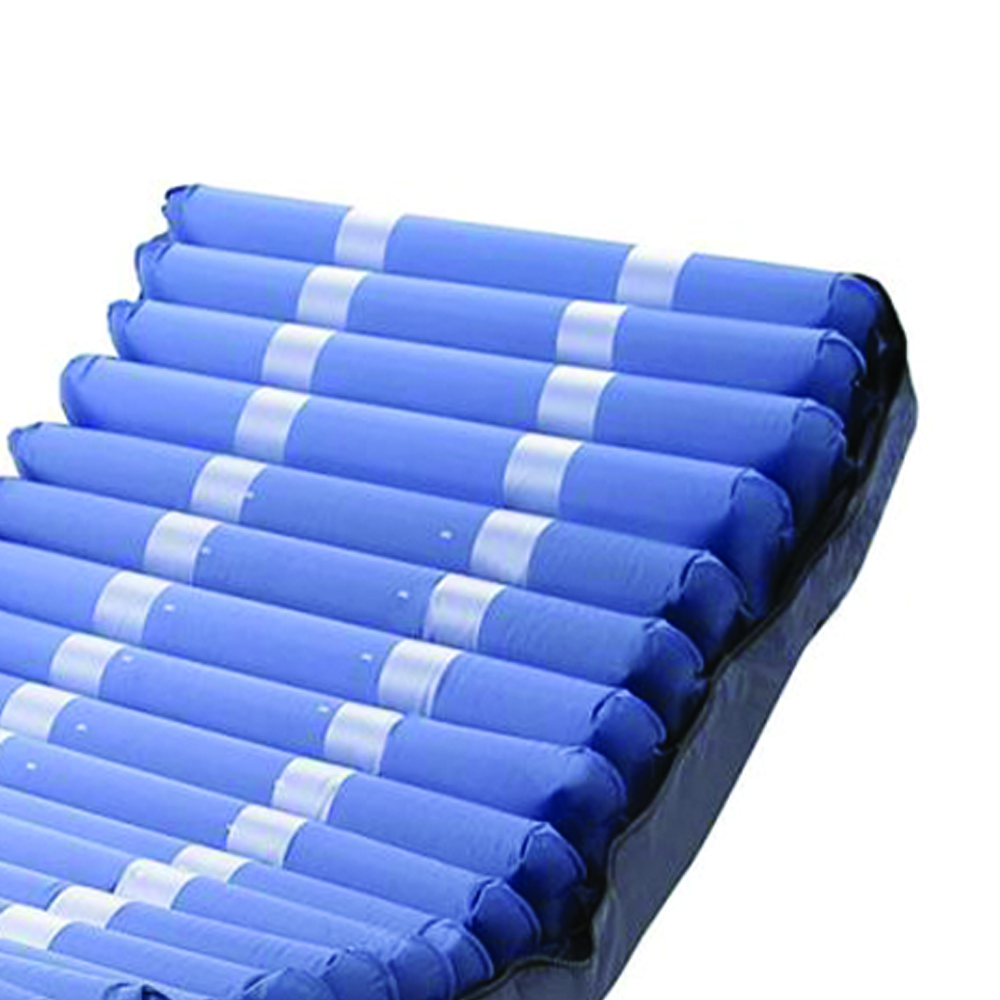

The elements are made with the CELL-ON-CELL technique which divides the section into two single modules of which the lower one remains constantly inflated so as to avoid an excessive BOTTOM-OUT effect (sinking), and guarantee safety in the event of a lack of current.

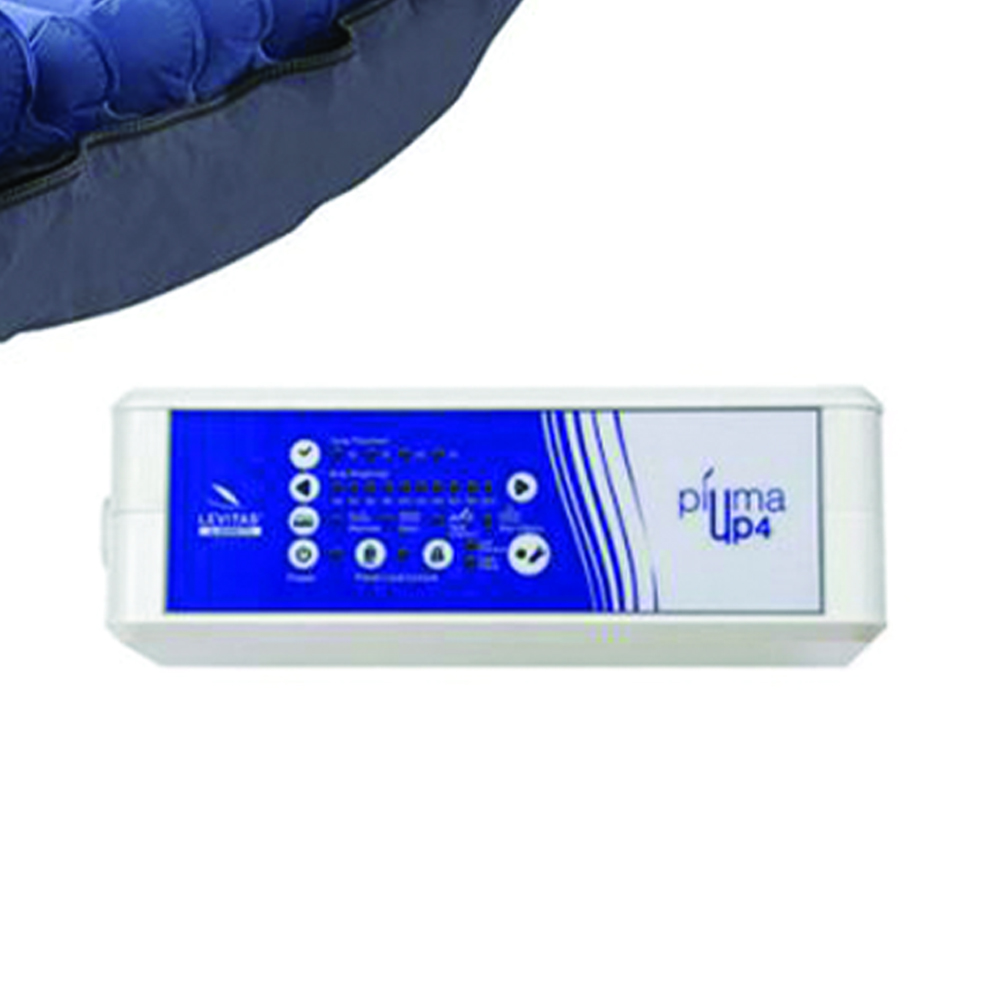

The digital compressor is equipped with pressure and cycle duration adjustment, visual and audible alarm for low pressure and replaceable air filter.
The STATIC function blocks the alternating system and turns it into a normal mattress. Mattress/compressor connection via fast connectors with closure, usable in case of patient transport.

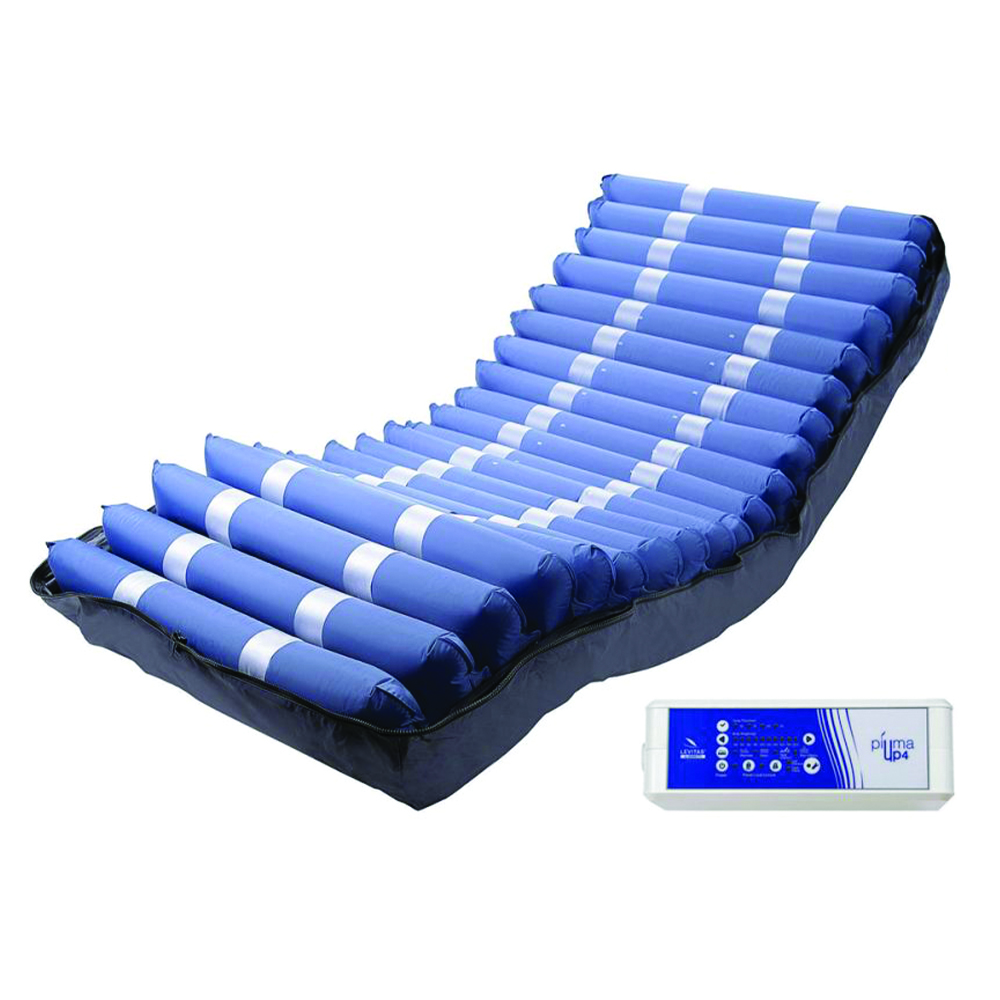

Elements that make up the kit:
LAR404 Mattress only
LAR712 PIUMA UP4 compressor only

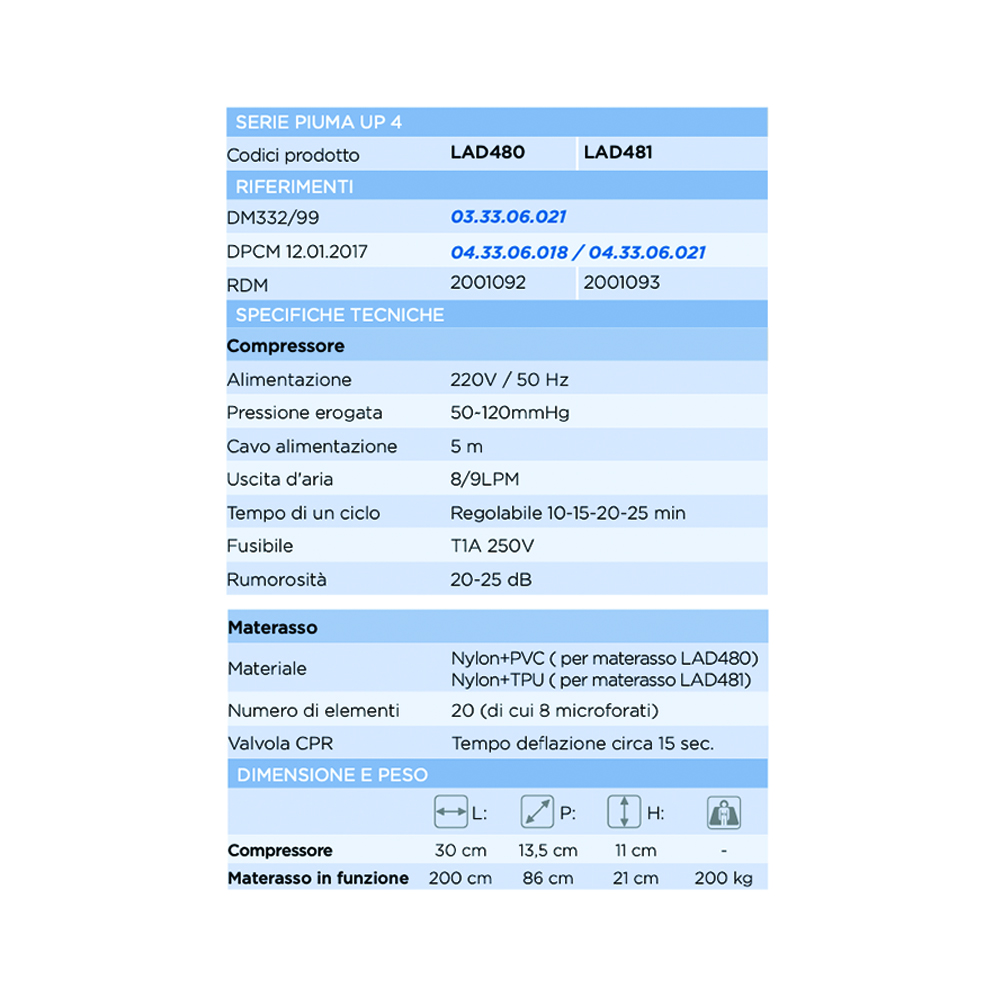

Technical features:
Technical specifications of the compressor (LAR712):
- Power supply: 220 / 50Hz
- Power cable: 5 Mt
- Electrical classification: class I Type BF
- Fuse: T1A 250V
- Pressure delivered: 55 - 120 mmHg
- Air outlet: 8/9 l/min.
- Noise level: 20 - 25dB
- Cycle time: 10-15-20-25 Minutes adjustable
- Protection: IP21
- Deflation time: about 15 Seconds Variable
- Compressor dimensions: L:30 x D:13.5 x H:11cm

Technical specifications of the mattress (LAR404):
- Mattress dimensions: 200 x 86 cm
- Number of elements: 20
- Height of swollen elements: 20.3 cm
- Micro-perforated elements: 8
- Capacity: 200kg
- Mattress material: Nylon + TPU
- Blanket material: Nylon + PU

Supplied:
1 dedicated blanket



barcode: 8052879642784
code: LAD481
