Indicated for the prevention and treatment of bedsores up to IV STAGE.

The first three static functioning elements with pillow function for the head; the remaining part is divided into 2 sections with 2-way alternating operation.
Complete with padded blanket in biocompatible Nylon/PU, waterproof, breathable, tested according to European fire reaction standards and equipped with zips on all four sides for easy removal and cleaning.
Fixing of the mattress to the bed using supplied straps and fitted with grommet eyelets.
The height of the elements allows you to use the mattress without using an additional mattress.

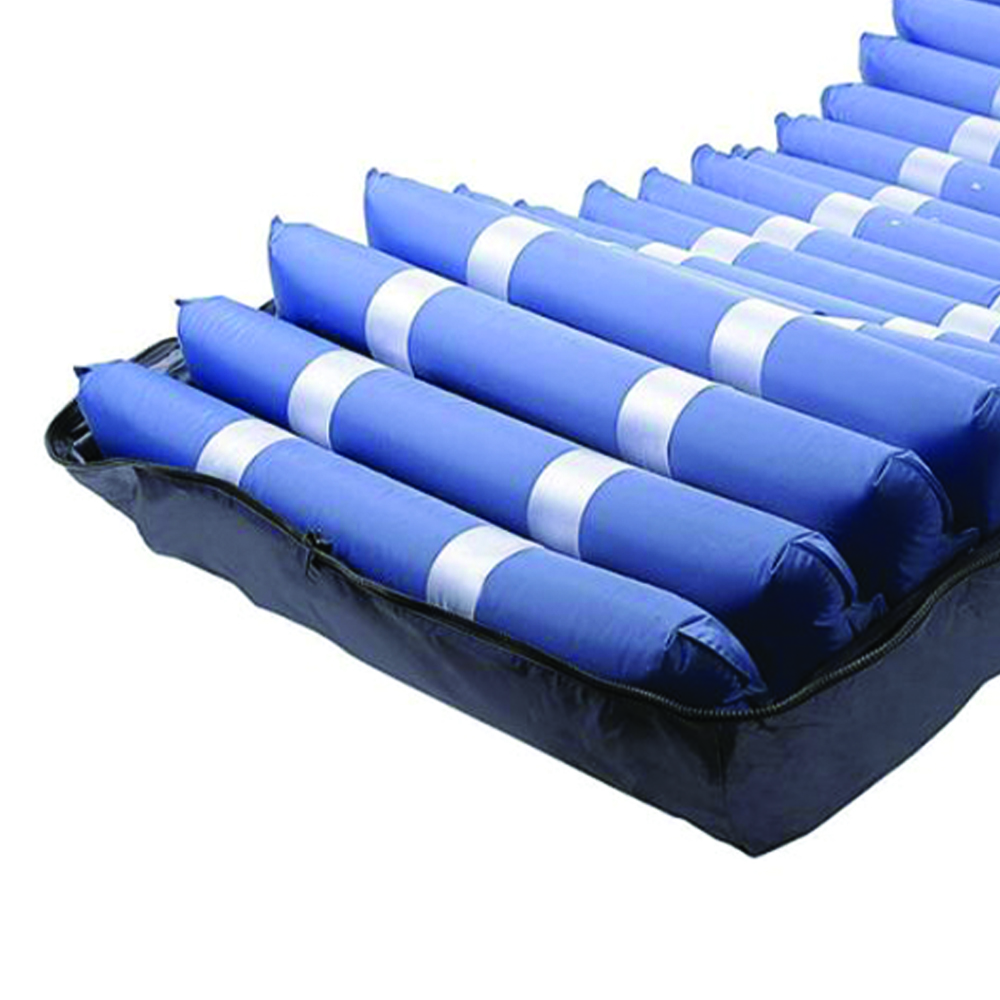

The elements are made with the CELL-ONCELL technique which divides the section into two single modules of which the lower one remains constantly inflated in order to avoid an excessive BOTTOM-OUT effect (sinking), and guarantee safety in the event of a power failure.

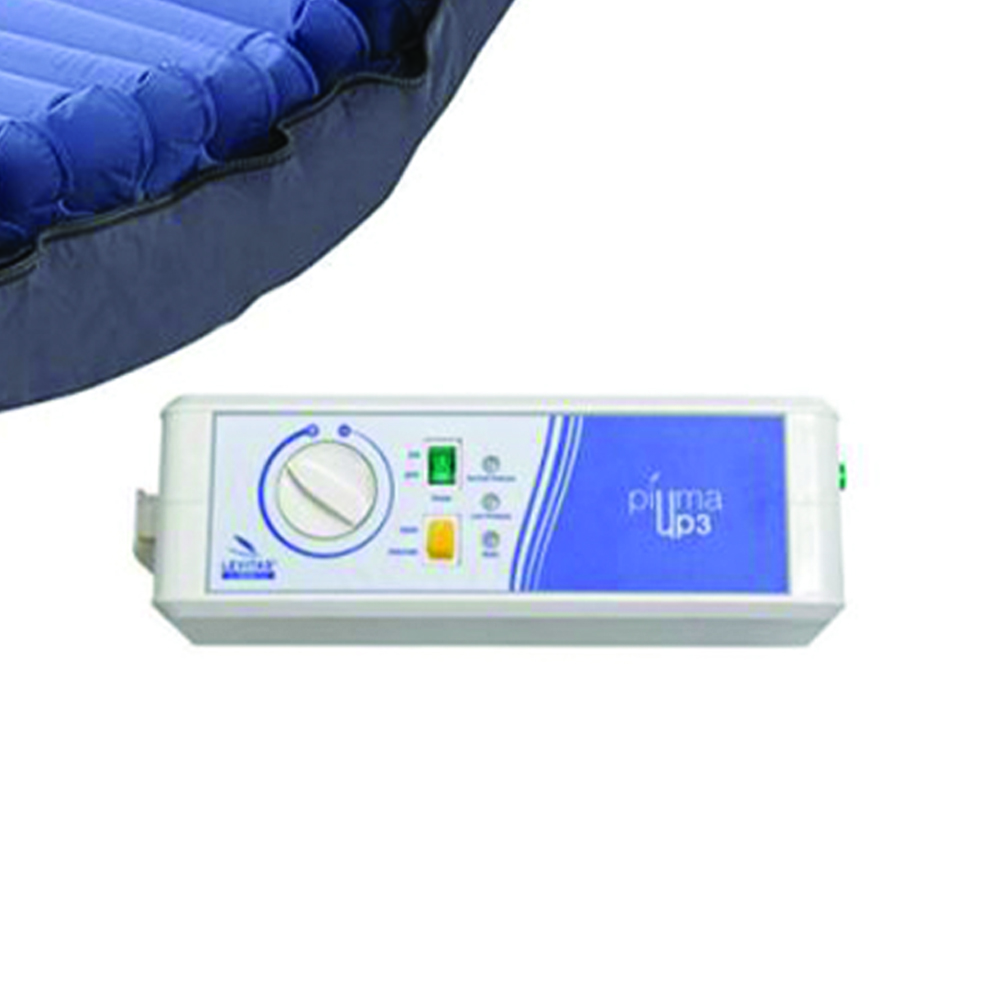

The compressor is equipped with manual pressure regulation, visual and audible alarm for low pressure and replaceable air filter.
The STATIC function blocks the alternating system and turns it into a normal mattress. Mattress/compressor connection via fast connectors with closure, usable in case of patient transport.

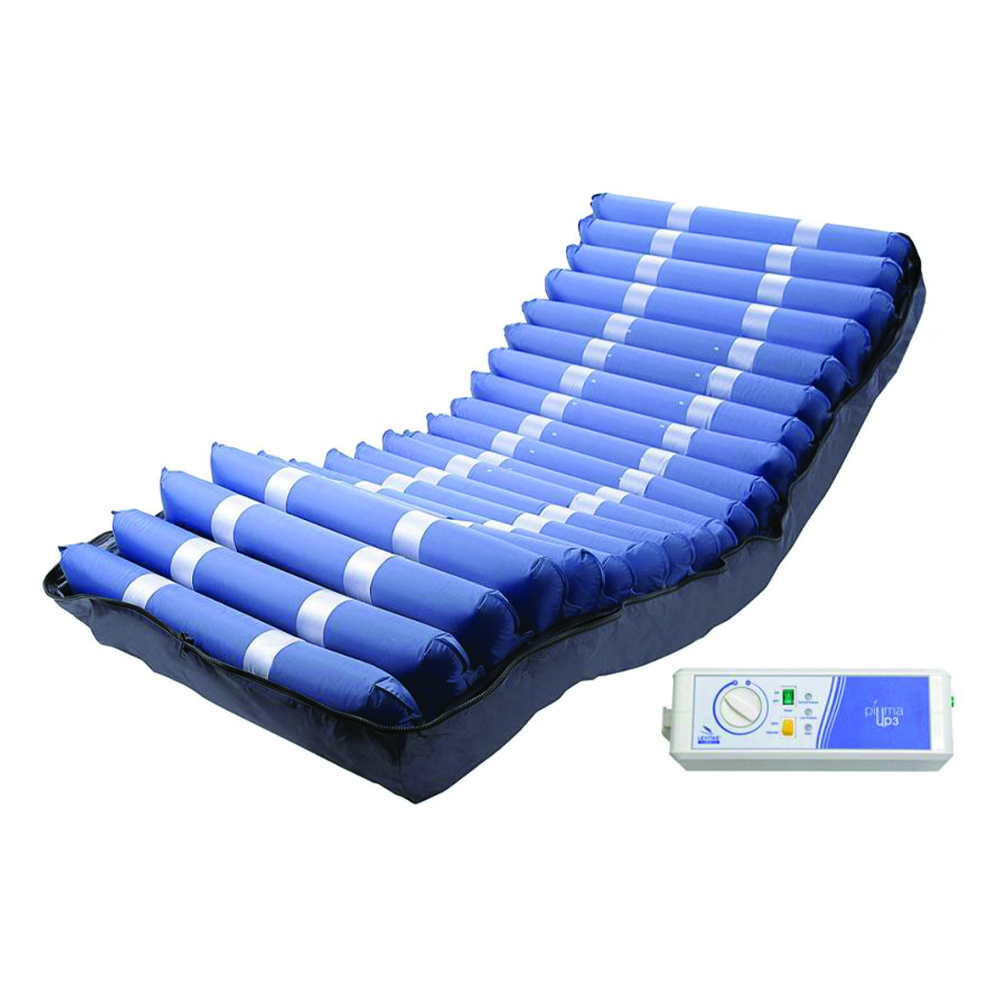

Elements that make up the kit:

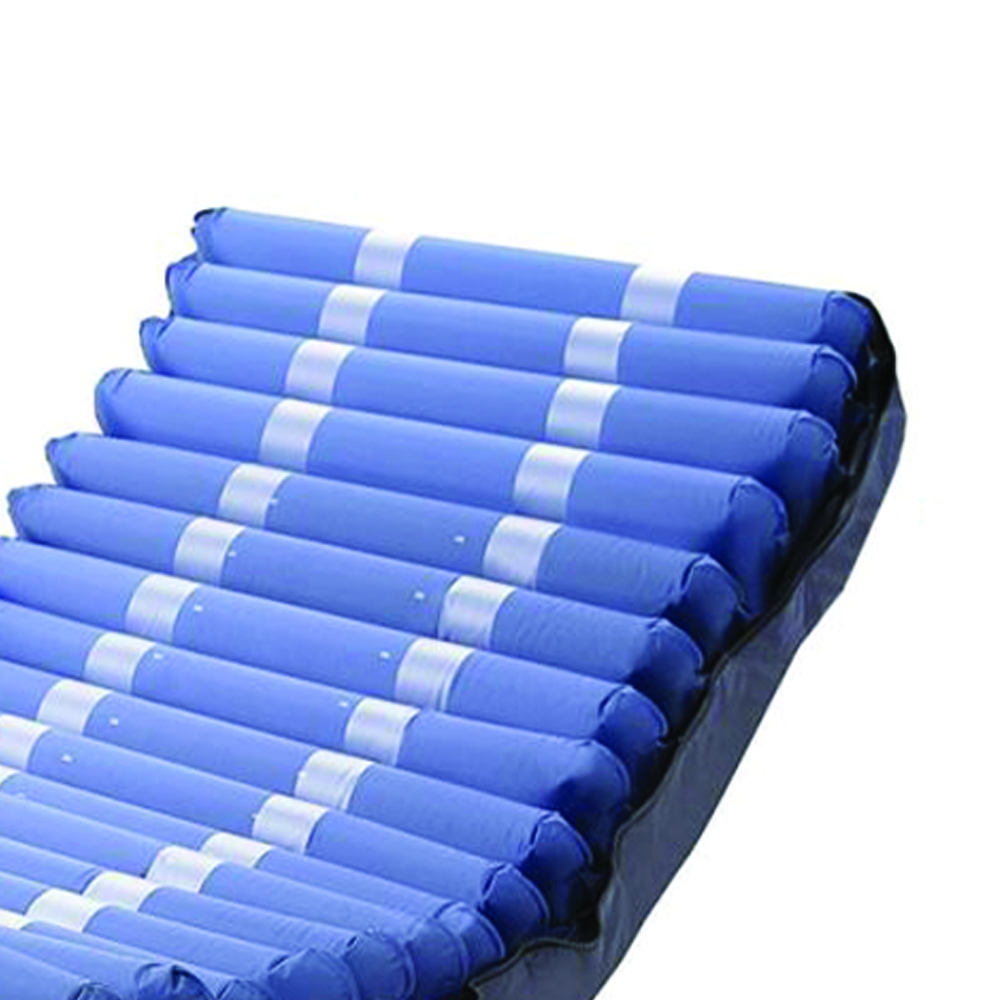

LAR404 Nylon® + TPU mattress only
LAR711 Only Piuma Up3 compressor with regulation

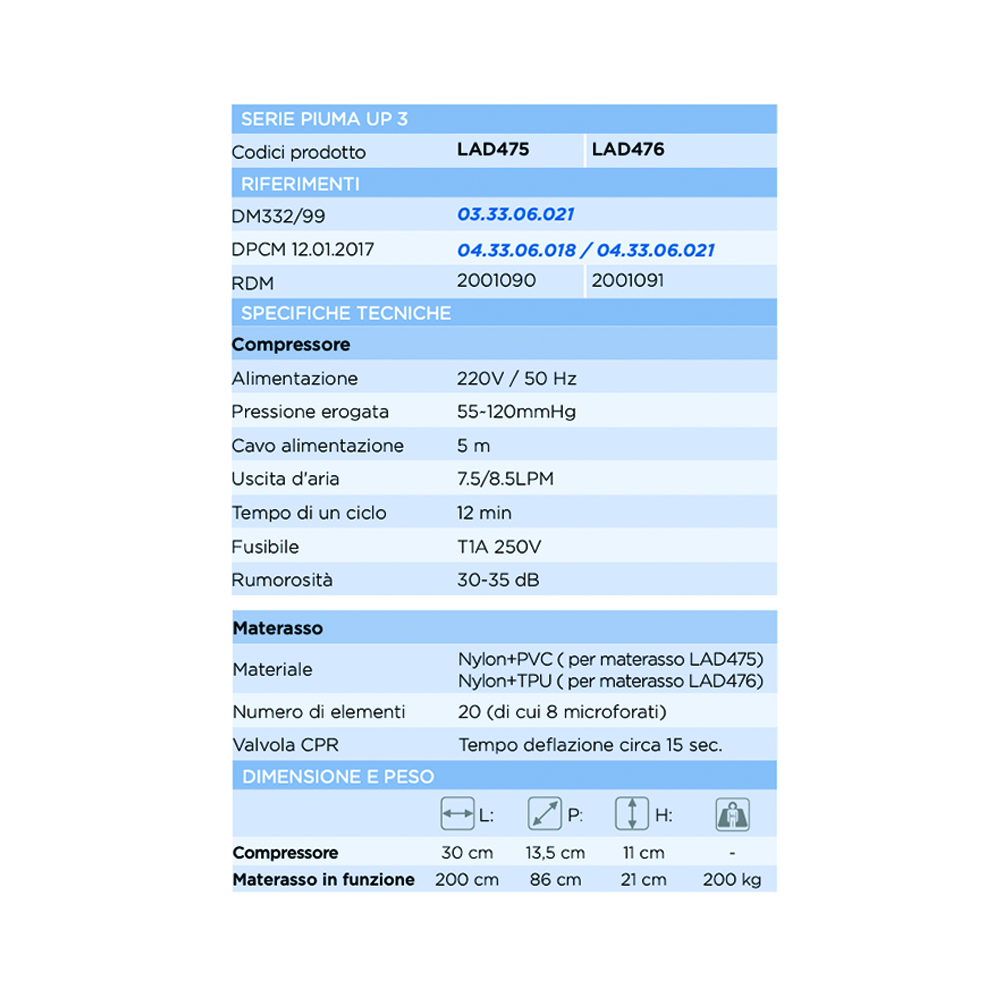

Technical features:
Compressor Technical Specifications (LAR711)
- Dimensions: L:30 x D:13.5 x H:11cm
- Power supply: 220V / 50Hz
- Output pressure: 55~120mmHg
- Power cable: 5 m
- Air output: 7.5/8.5LPM
- Cycle time: 12 min
- Fuse: T1A 250V
- Noise: 30-35dB

Technical specifications of the mattress (LAR404)
- Dimension in operation: L:200 x D:86 x H:21cm
- Material: Nylon+TPU
- Inflated item height: 20.3cm
- Number of elements 20
- Micro-perforated elements: 8
- CPR valve Deflation time approx. 15 sec.
- Capacity: 200kg



barcode: 8052879642760
code: LAD476
