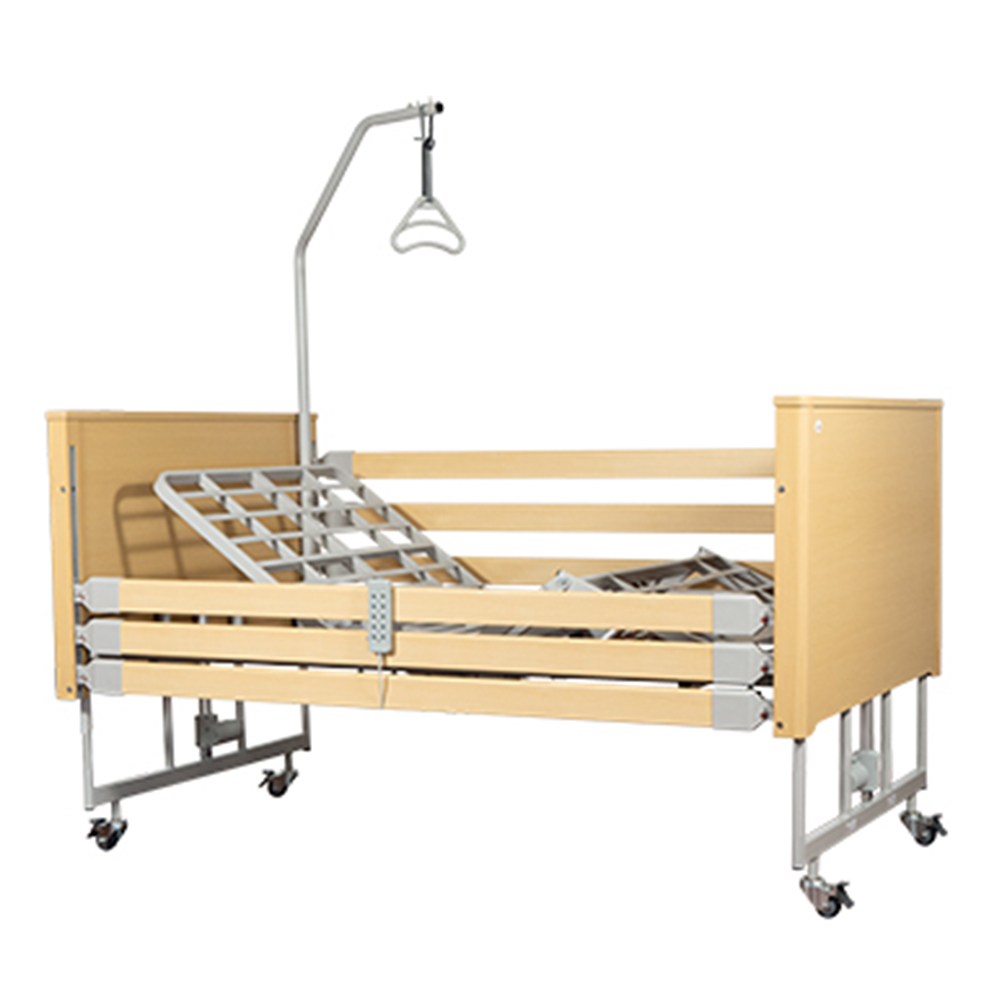

Bed specially designed to support heavy weights and support the most demanding users
robust.

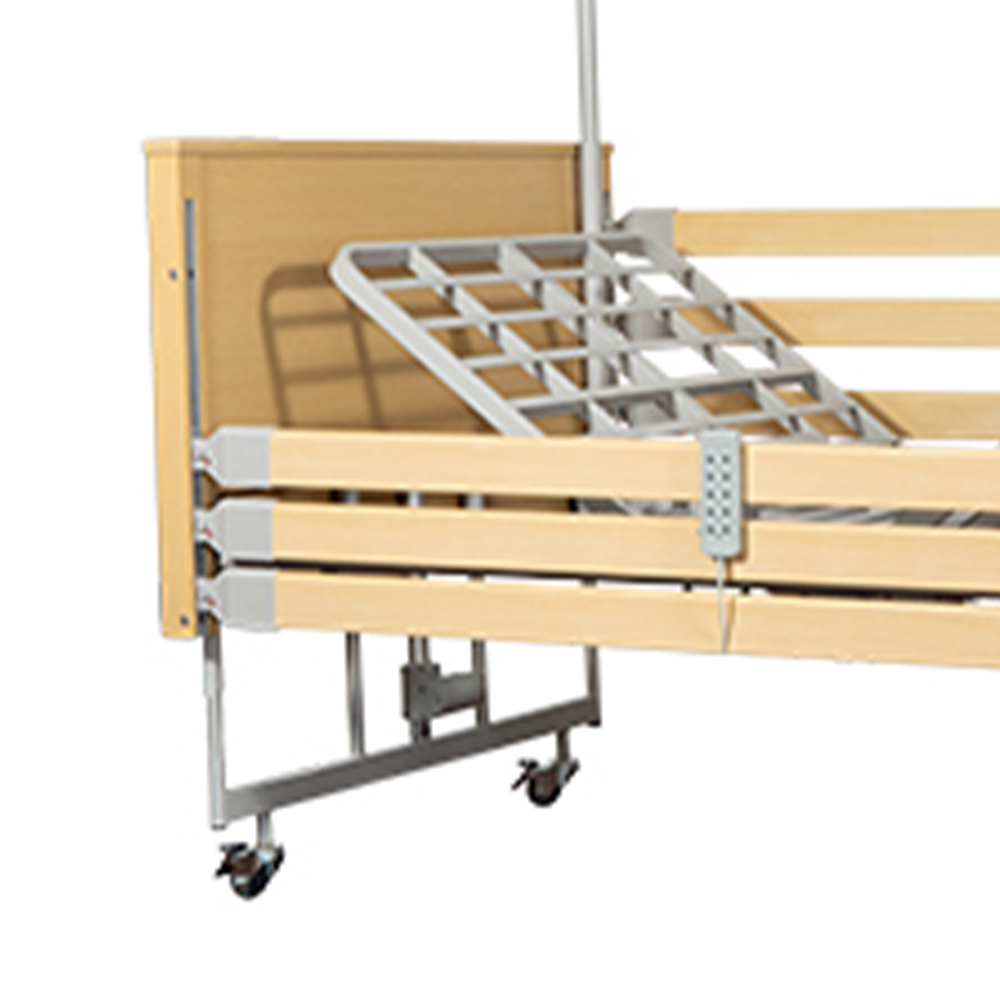

• Triple aluminium side containment sides, adjustable in height and covered with
a wood-effect film matching the headboard and footboard

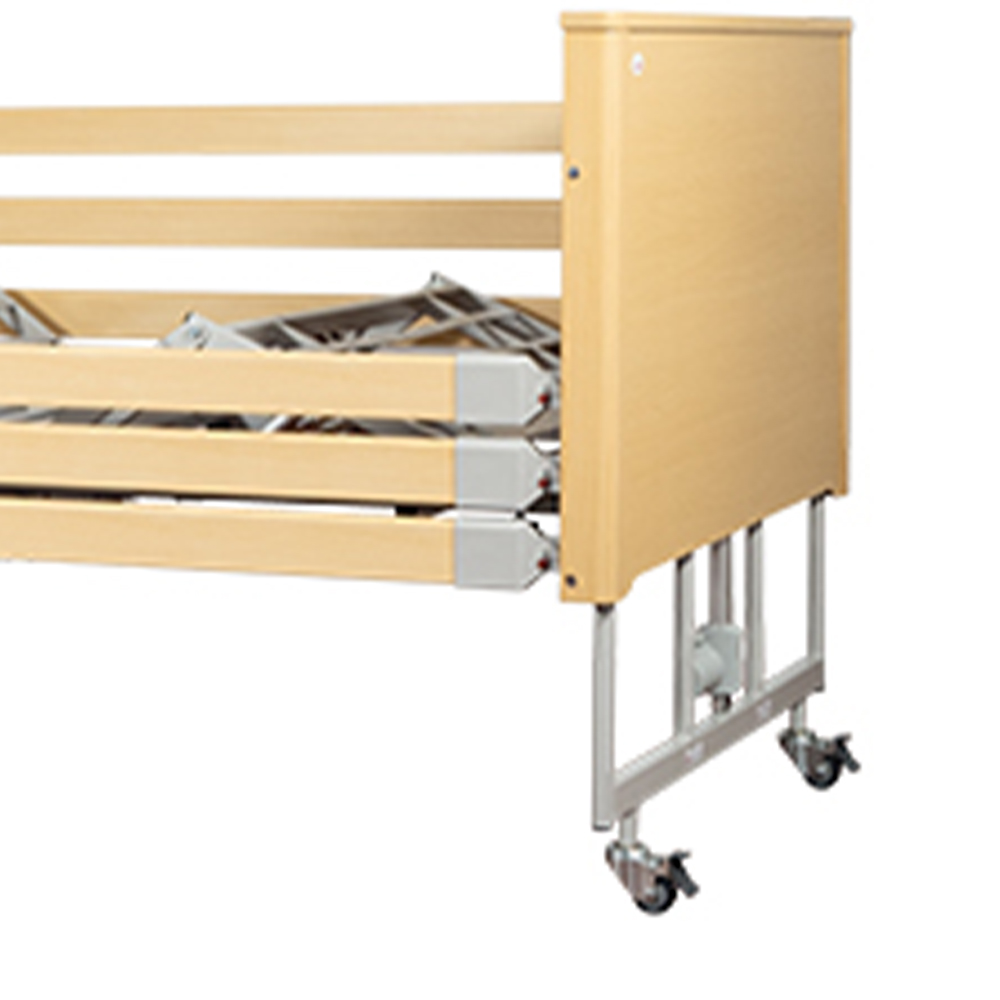

• Four swivel wheels with parking brake
• Electric adjustment of the backrest and thigh/leg area
• Additional manual adjustment of the foot area via rack
• Height adjustment of the bed base
• Trendelenburg and Anti-Trendelenburg function thanks to two actuators positioned at the
end
• Remote control equipped with magnetic key that allows activation only by
authorized personnel

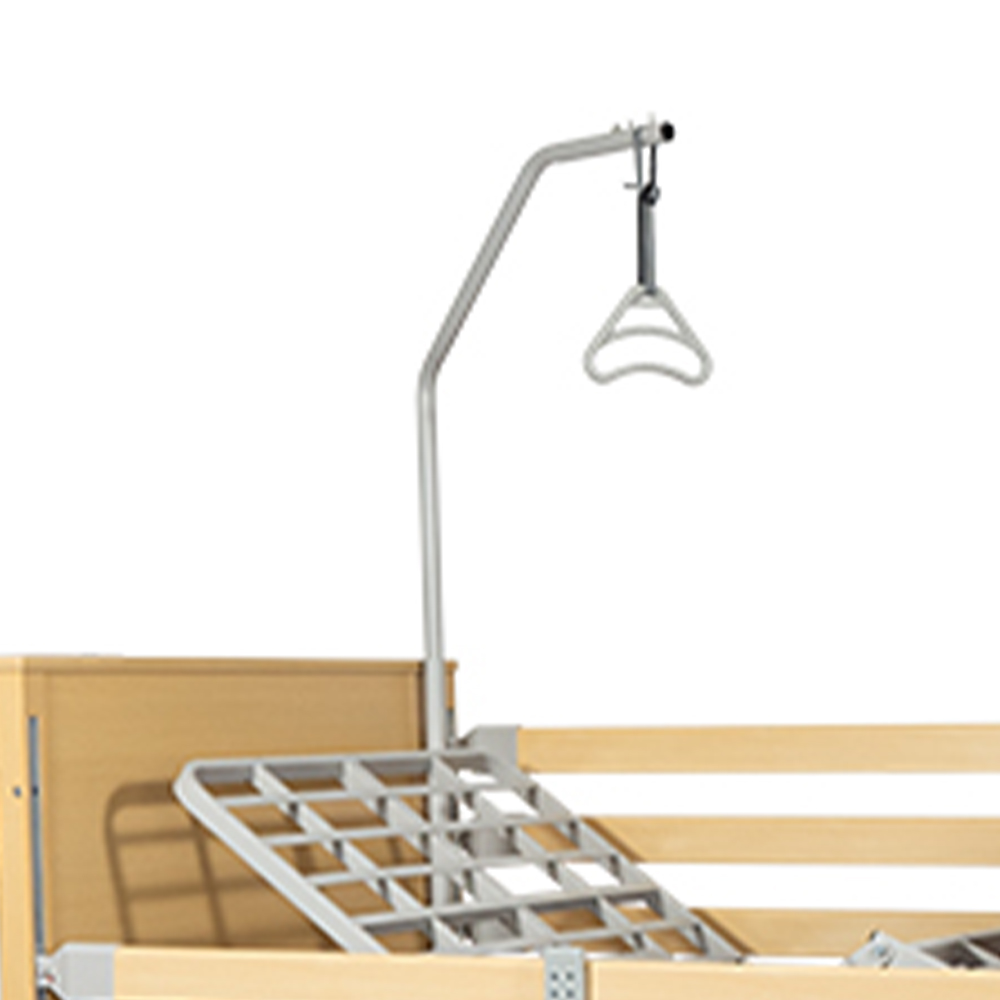

• Standard patient lifting triangle compliant with EN 60601-1
• Back section adjustment 0°-70°
• Thigh section adjustment 0°- 30°, simultaneously with knee flexion 0°- 20°
• Side guards available as accessories code 18/23/I

Maximum load: 350 kg
User load 300 kg
Dimensions Net width: 120 cm
Maximum overall width: 136 cm
Net length: 200 cm
Maximum overall length: 217 cm
Height of the bed base from the ground: adjustable from 30 cm to 70 cm
Height of footboard and headboard: 62 cm
Power Supply CONTROL UNIT
Type: Ti-Motion TC1 Series
Input voltage: AC 100-240V, ±10%, 50Hz
Intermittent (periodic engine operation): 10% (2 min – 18 min)
Sound pressure level: Max 48 dB
PUSHBUTTON PANEL
Type: Ti-Motion
ELECTRIC MOTORS FOR MATTRESS SURFACE ADJUSTMENT
Type: Ti-Motion TA7 Series
Intermittent (periodic engine operation): 10% (2 min –18 min)
Maximum speed without load / full load (mm/s): 38 / 23.2
Electrical protection class II
Materials Metal mesh
Wooden structure



barcode: 08054181767223
code: 15000019
