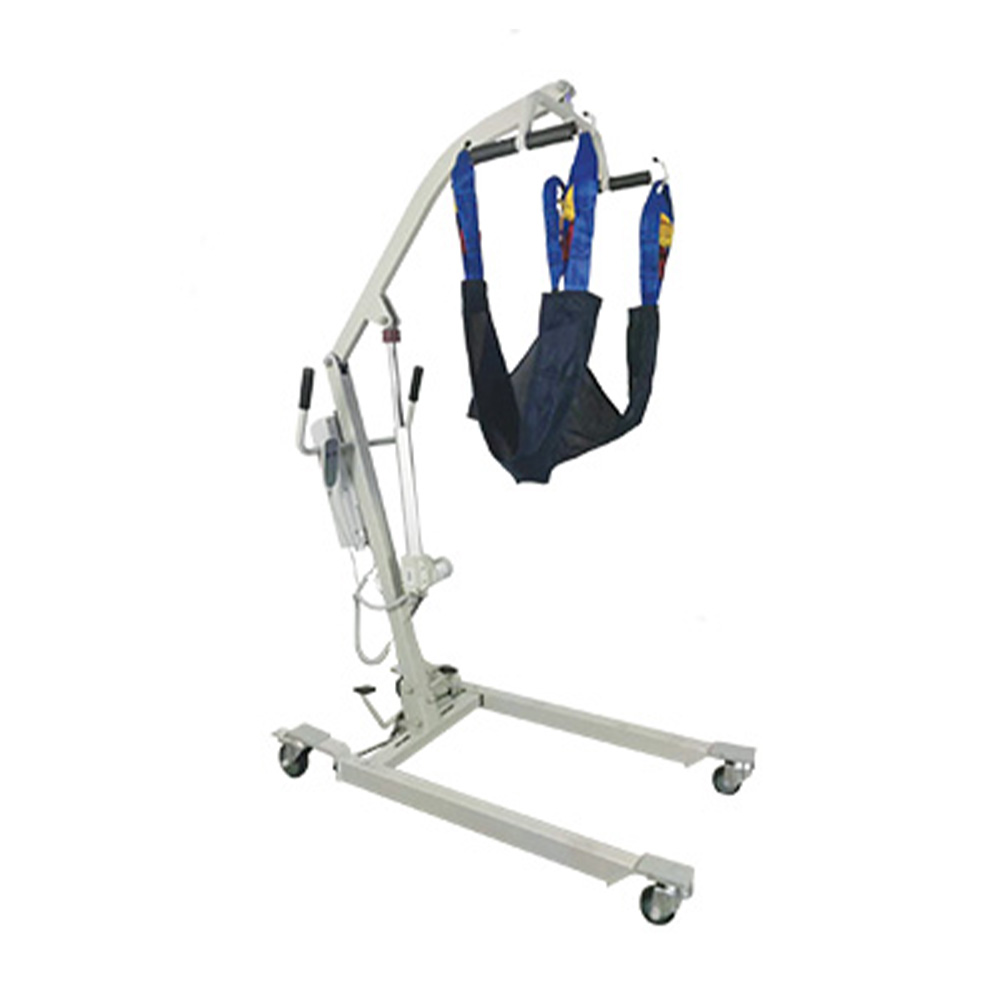

Mobile patient lift recommended for both home and facility use
health care.
• Low voltage electrical system equipped with battery and electric activator
• Emergency button to lower the piston in case of malfunction
• Safety lock button when moving the patient

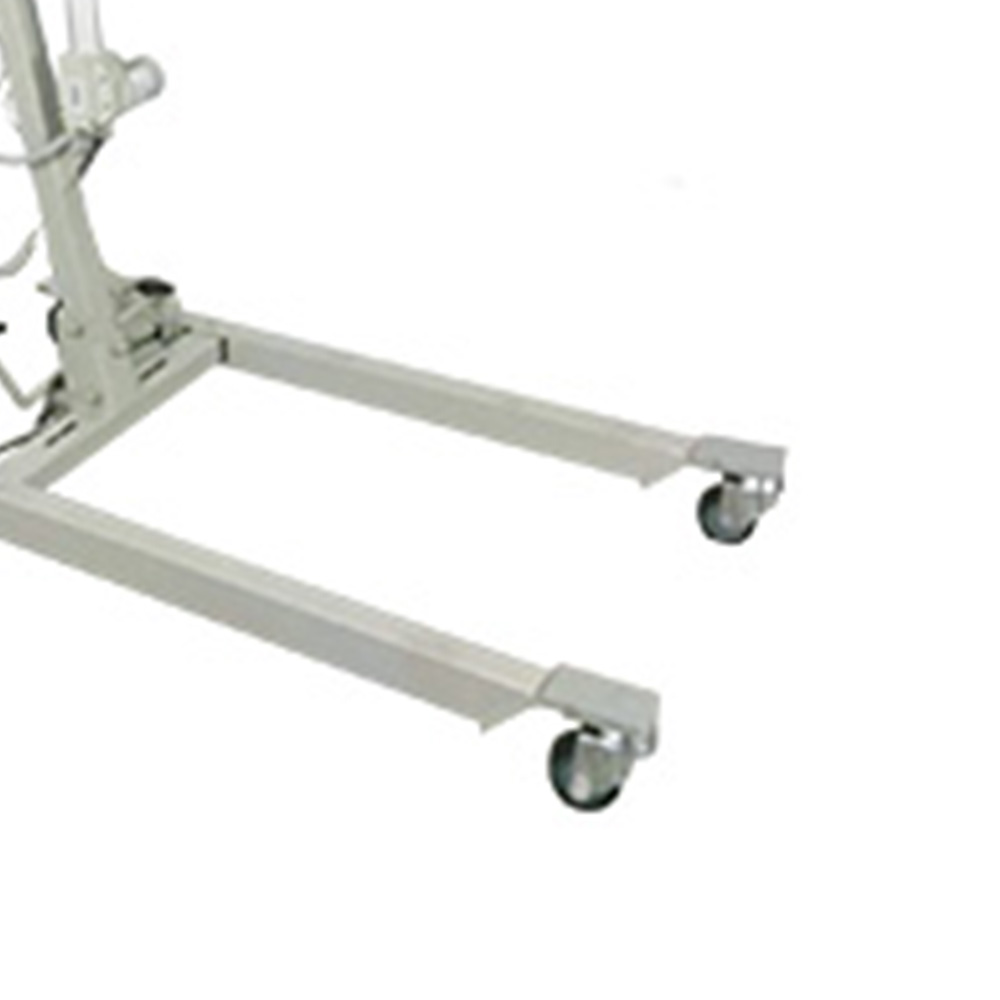

• Width-adjustable base using the appropriate lever

Dimensions
Depth: 115 cm
Lifting capacity: 32" to 75"
Maximum arm height: 190 cm
Base width: maximum 86 cm
Internal base width: 49 cm
Barbell width: 51 cm
Push handles height: 100 cm
Steel tube diameter: 5 cm
Front wheels: diameter 100 mm
Rear wheels with brake: diameter 100 mm

Maximum load 150 kg

Power Supply
Engine: RICHMAT
Power supply: 220V
Battery charger power supply: 24V DC
LA4E actuator:
Push load: 8,000 N
• Color: light grey RAL7035
• Protection class: IPX4, IPX6 (no manual lowering)
• Motor: 24 V DC
• Manual lowering in case of emergency
Duty cycle: 10%, 2 minutes of continuous use followed by 18 minutes of rest
• Operating temperature: 5ºC to 40ºC
• Storage temperature: -10ºC to +50ºC

Noise level
• Noise level: 50 dB (A) in accordance with DS/EN ISO3743-1



barcode: 08054181768992
code: 15030110
