Main features:
- Reliable and comfortable frame.
- Motorized seating system adjustable in both tilting and reclining of the backrest.
- Tensionable backrest.

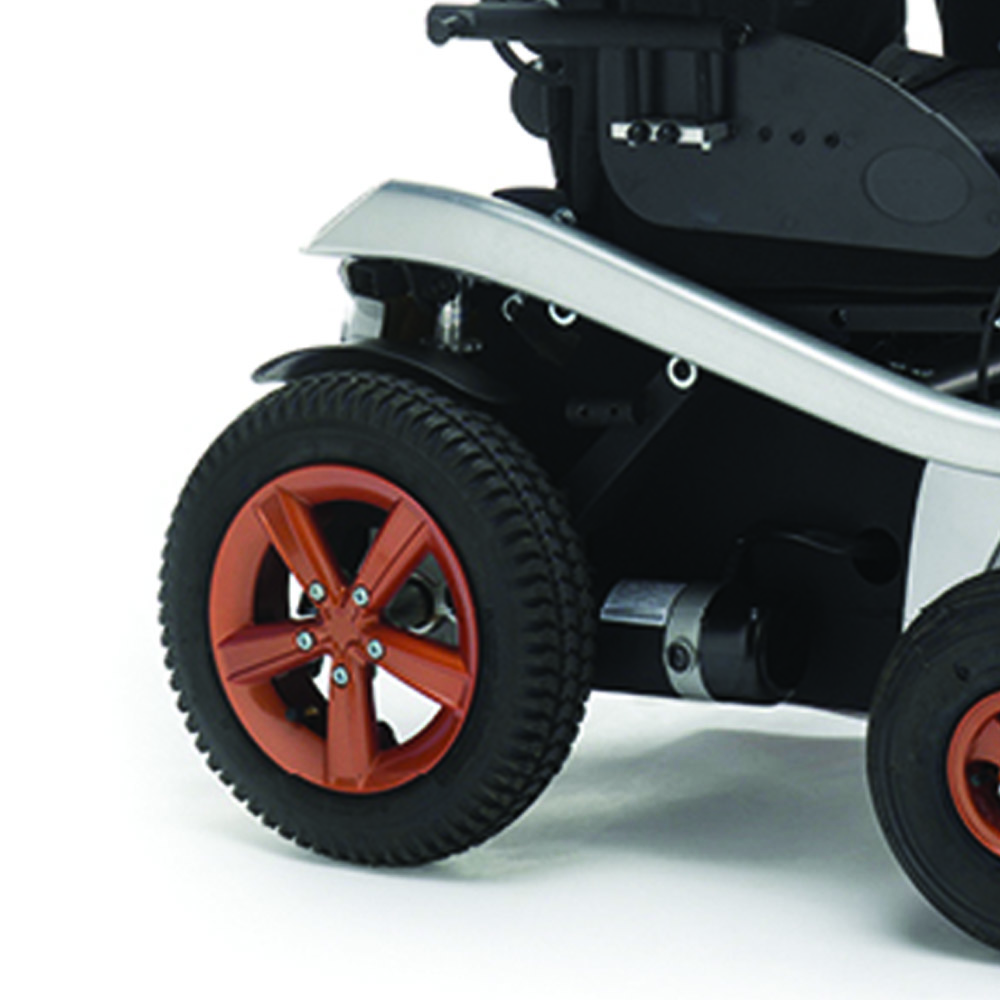

- Swivel front wheels.

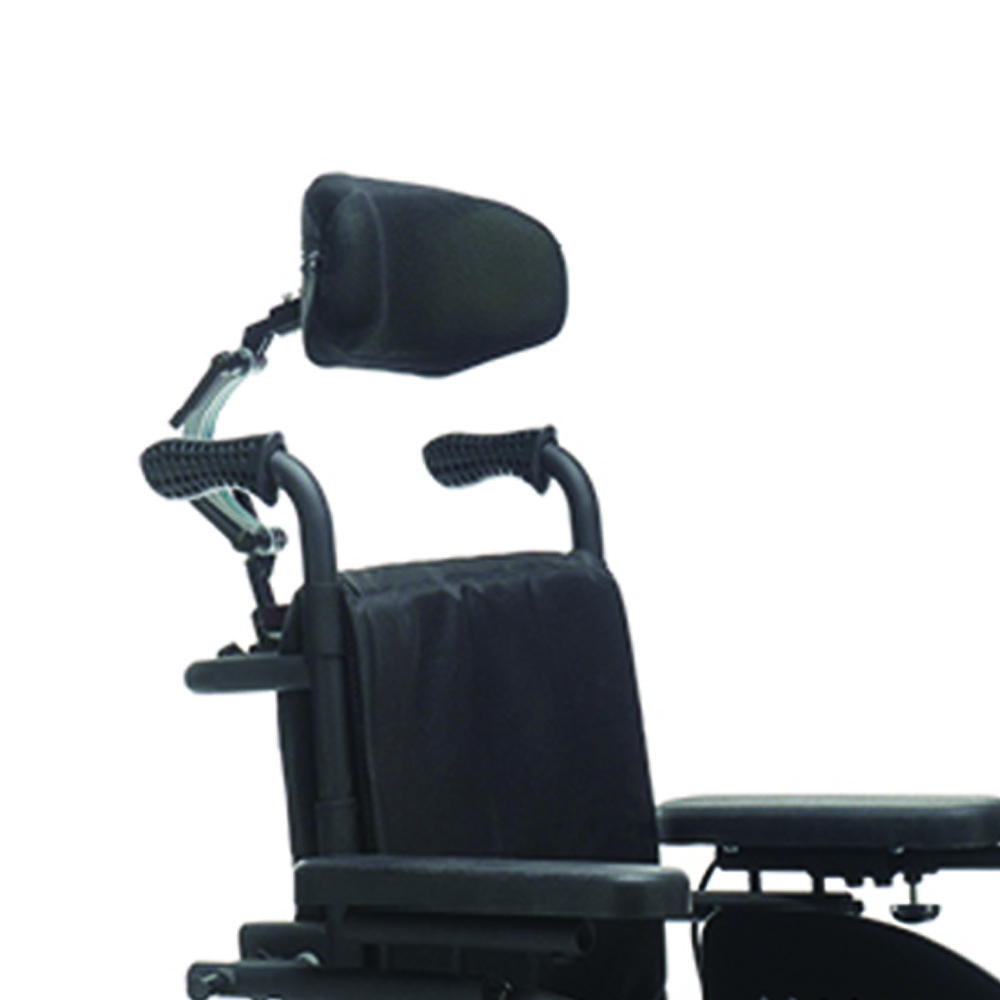

- Headrest adjustable in height, depth and inclination by means of a ball joint.
- Adjustable air suspension for ride comfort.
- Fully LED front and rear lighting system.
- Rear direction indicators incorporated directly into the load-bearing frame for an accurate design.

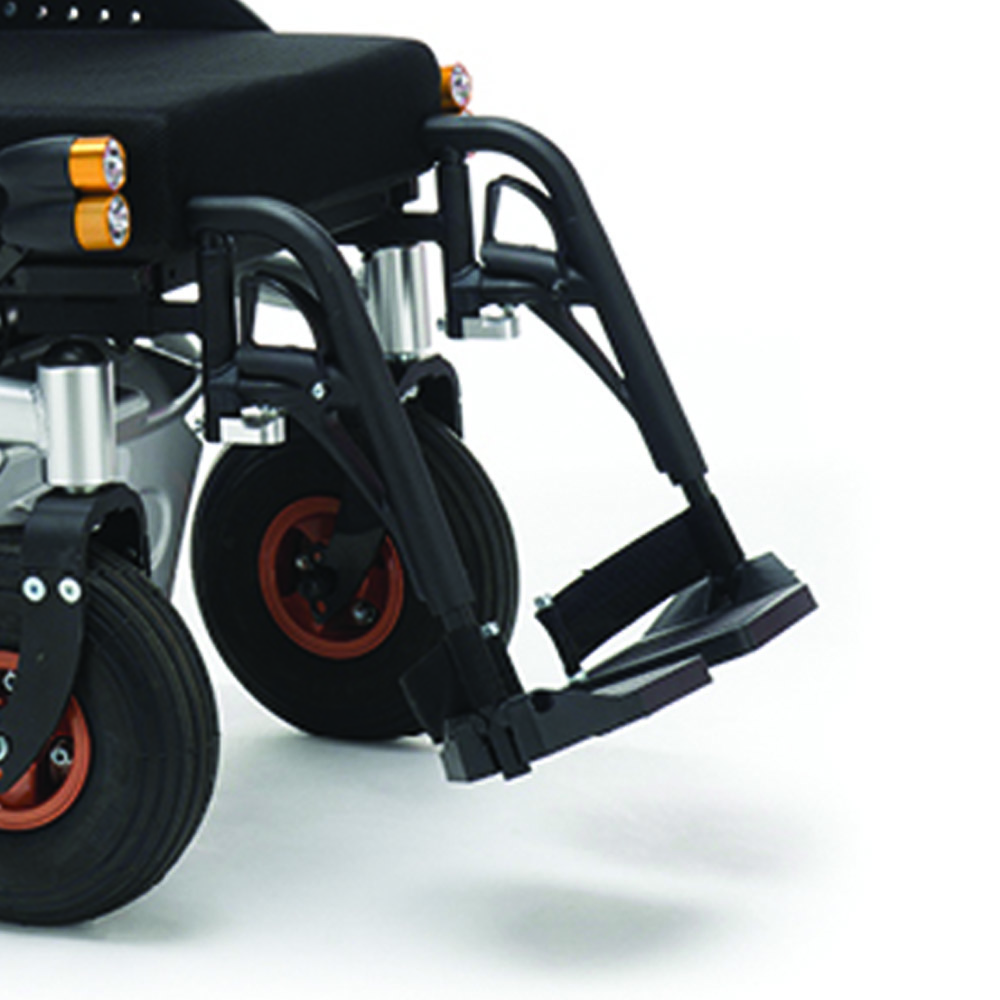

- Adjustable and removable footrests.

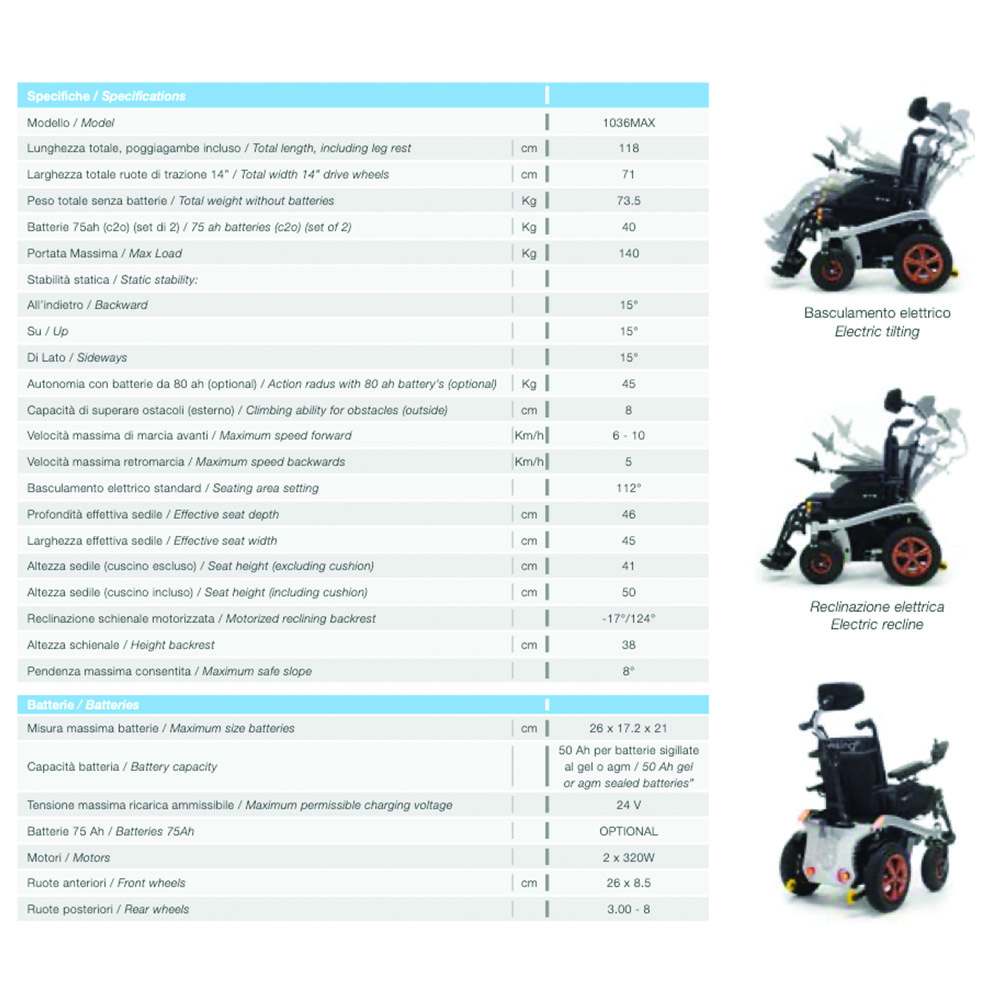

Technical features:
Total length, including leg rest: 118 cm
Total width of 14” drive wheels: 71 cm
Total weight without batteries: 73.5 kg
Batteries 75ah (c2o) (set of 2): 40 kg
Maximum load: 140 kg
Static stability:
Backwards: 15°
Up: 15°
Sideways: 15°
Autonomy with 80 Ah batteries (optional): 45 kg
Obstacle-clearance ability (outside): 8cm
Maximum forward speed: 6 - 10 km/h
Maximum reverse speed: 5 km/h
Standard electric tilt: 112°
Effective seat depth: 46 cm
Effective seat width: 45 cm
Seat height (excluding cushion): 41 cm
Seat height (including cushion): 50 cm
Motorized backrest recline: 17°/124°
Backrest height: 38 cm
Maximum permitted slope: 8°
Maximum battery size: 26 x 17.2 x 21 cm
Battery capacity: 50 Ah for sealed gel or agm batteries
Maximum allowable charging voltage: 24 V
75 Ah Batteries: OPTIONAL
Motors: 2 x 320W
Front wheels: 26 x 8.5 cm
Rear wheels: 3.00 - 8



code: 1036MAX
