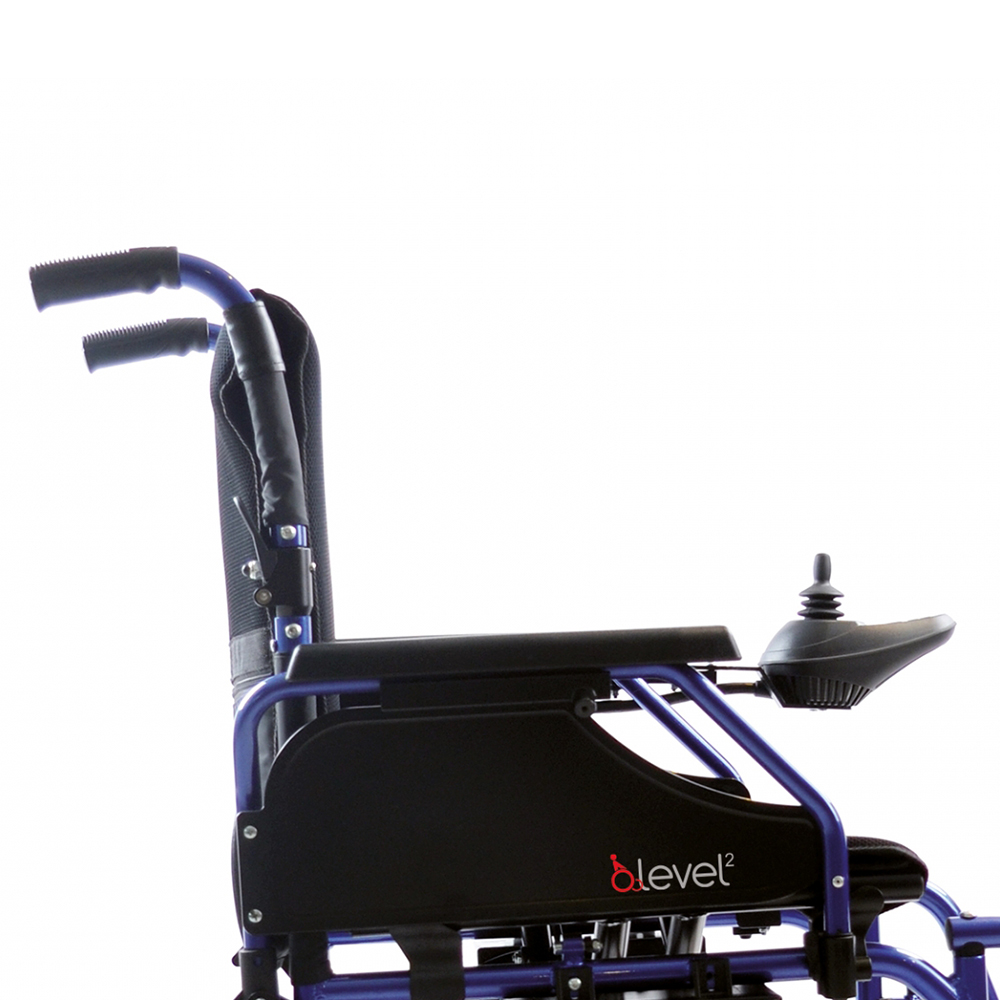

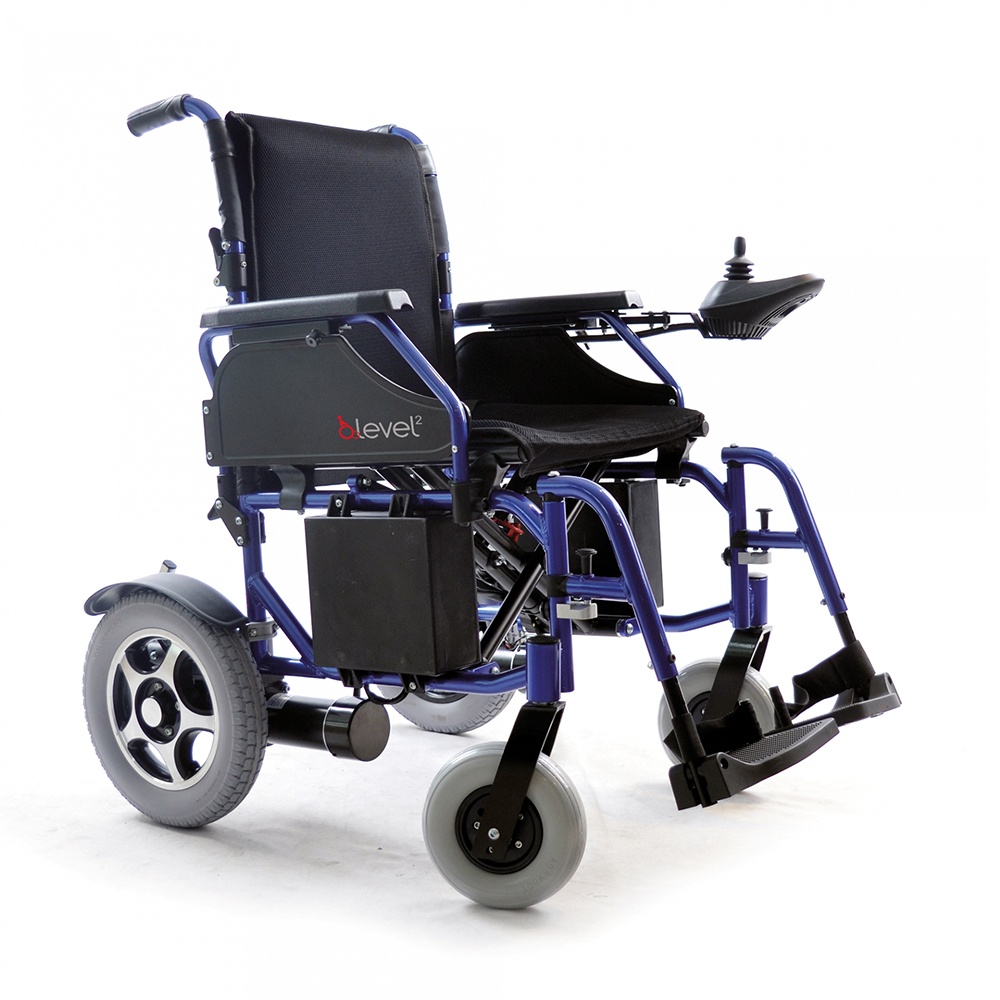

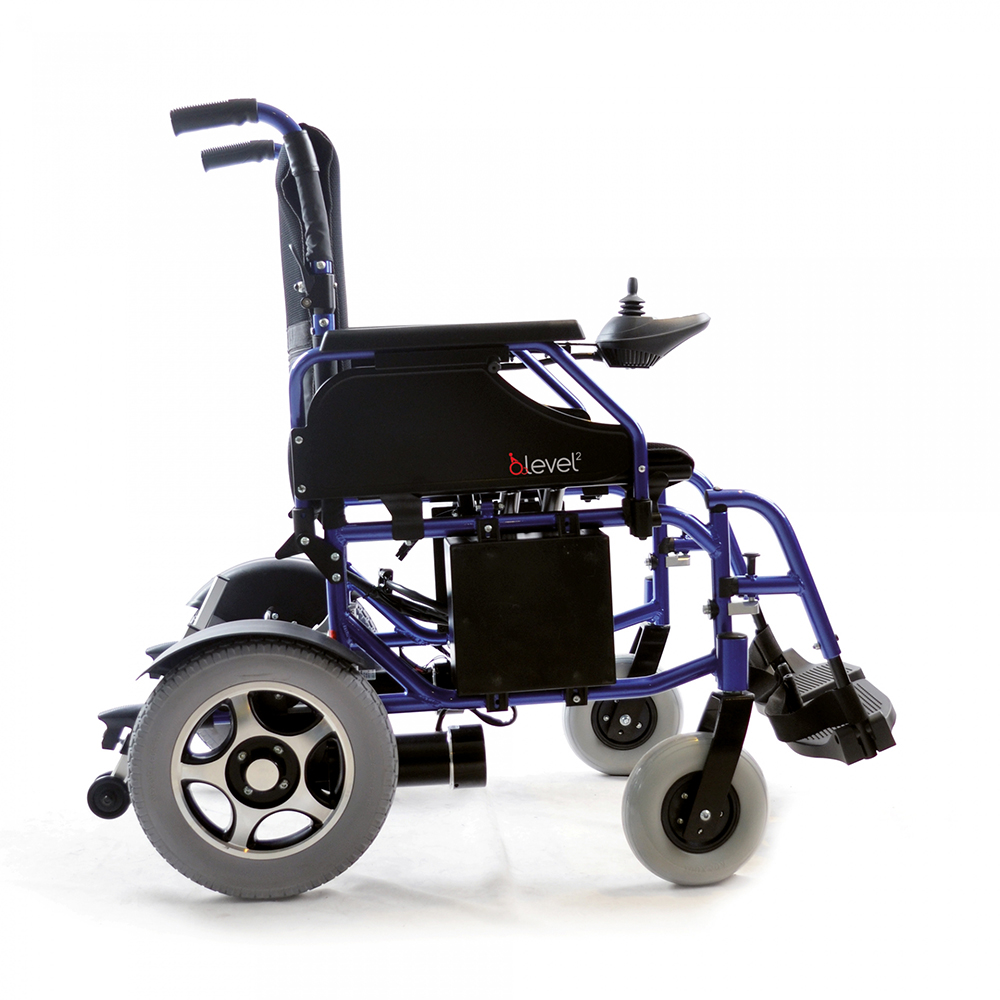

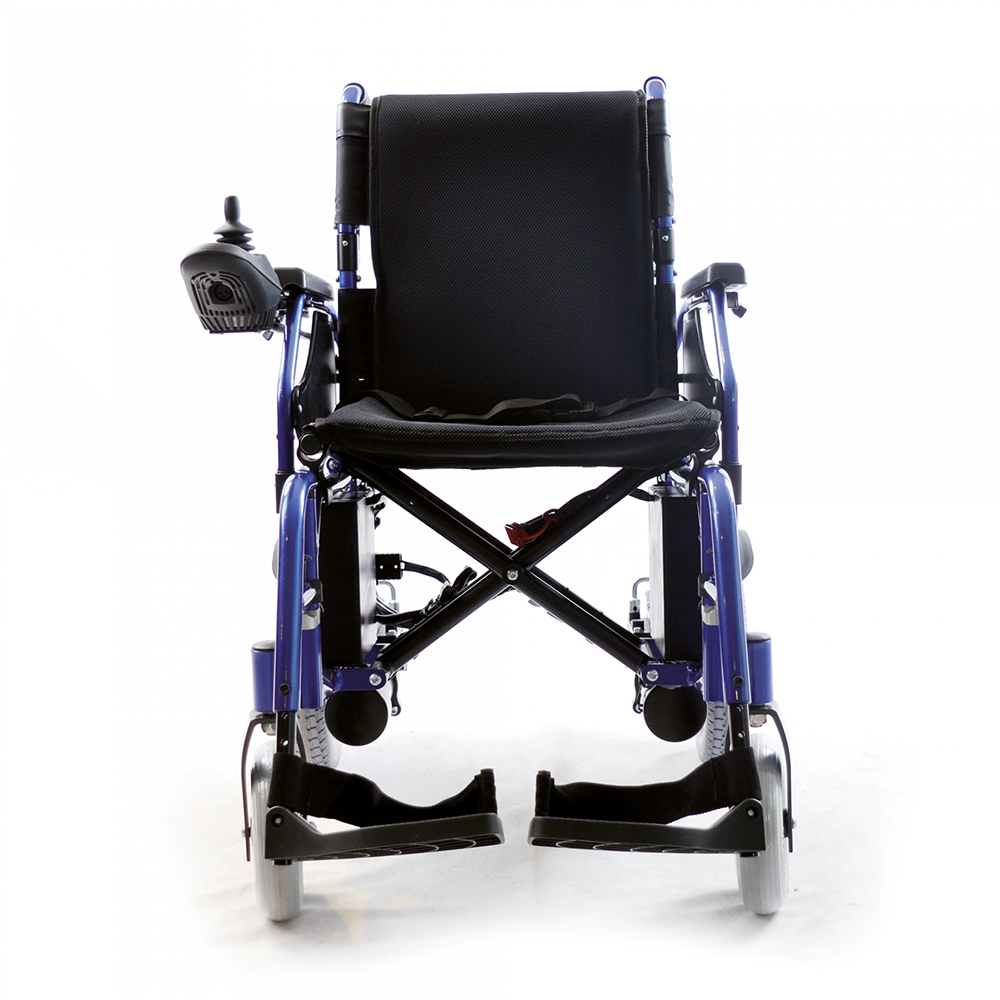

Electric wheelchair with folding aluminum frame and double crossbar.
Tensile and foldable backrest with padded nylon covering and storage pocket.
Folding armrests equipped with protective sides for clothes.
Removable and height-adjustable footrests with heel stop.
12” pneumatic rear wheels with mudguard on aluminum rim.
8” solid balloon front wheels on aluminum fork.
Anti-tip wheels.

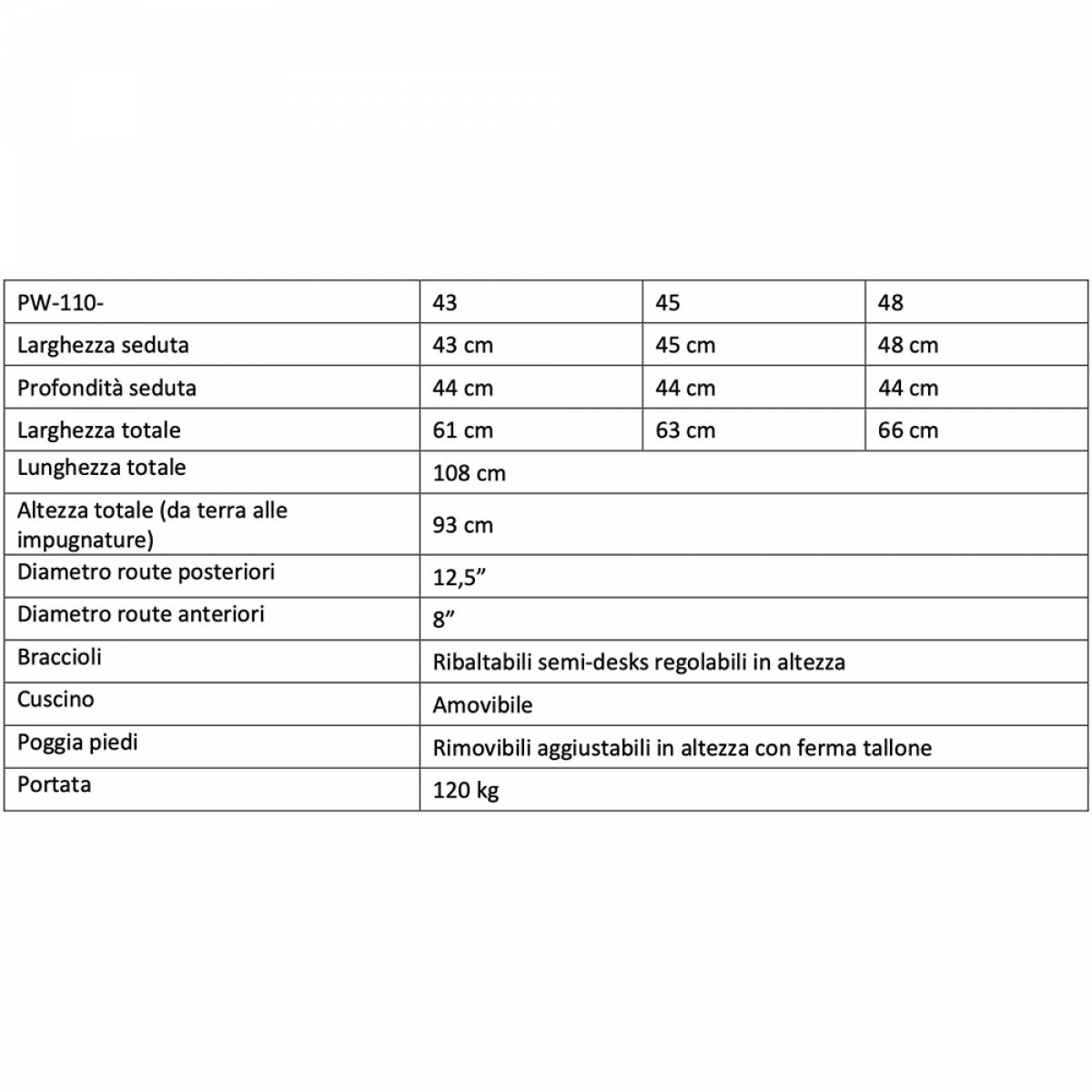

Three sizes: 43, 45 and 48 cm.
Metallic blue color.
Battery charger included.
Total length 108 cm
Seat depth 44 cm
8” front wheels
12.5” rear wheels
Weight (starting from) 30 kg
Capacity 120 kg

Basic technical data
HP 24V - 3A battery charger
Height-adjustable semi-desks folding armrests
Removable Cushion
Removable, height-adjustable footrests with heel stop
Battery weight 3.5 kg
Maximum slope that can be overcome 10°
Max speed 8 km/h
Autonomy (at medium speed on flat terrain) 15/18 km (*30 km with two lithium batteries)
2 x 200W Linix China motor
24V Control Maikong, China
Lithium battery no. 1 x 24 V, 20 Ah Lithium (*additional 20Ah lithium battery,
to increase autonomy on request)



barcode: 8052679970919
code: PW-110-48
