Elevation, Trendelenburg, 3-joint

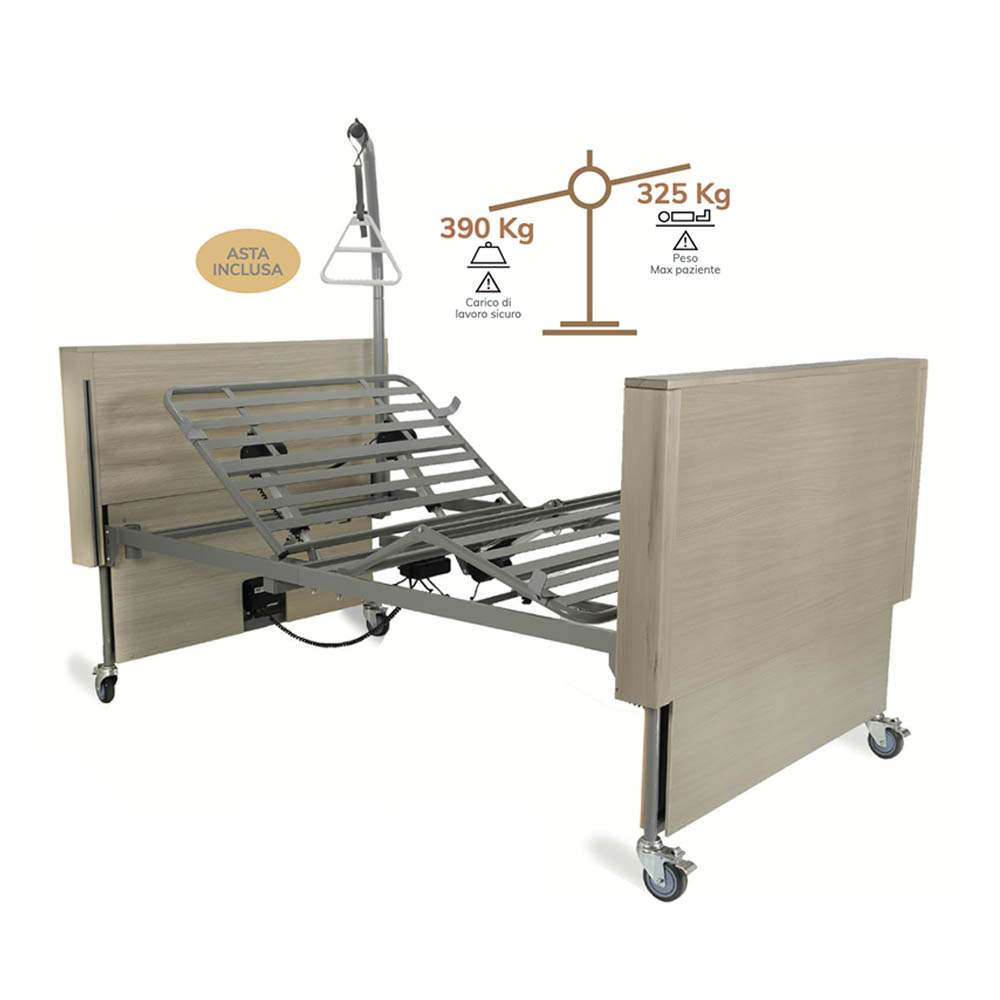

Designed to accommodate patients with high weight requirements, it offers an extraordinary load capacity of 325 kg.
It guarantees comfort, safety and advanced functionality and is the ideal choice for nursing homes, healthcare facilities and home care, where patient well-being and operator convenience are essential.
Equipped with four independent motors, the bed allows precise and fluid adjustments: two motors for vertical elevation and two for the movement of the backrest and
legs.
This versatility allows the bed to be adapted to the different needs of the patient, promoting
a correct and comfortable posture. The sturdy tubular steel structure guarantees stability and durability over time.
The wooden headboard and footboard give the bed a warm and welcoming look, integrating harmoniously into domestic environments.
In emergency situations, the lowering system with integrated battery ensures the restoration of the horizontal position even in the event of a power failure, guaranteeing continuity and safety.

In accordance with the
UNI CEI EN 60601-2-52 regulation.

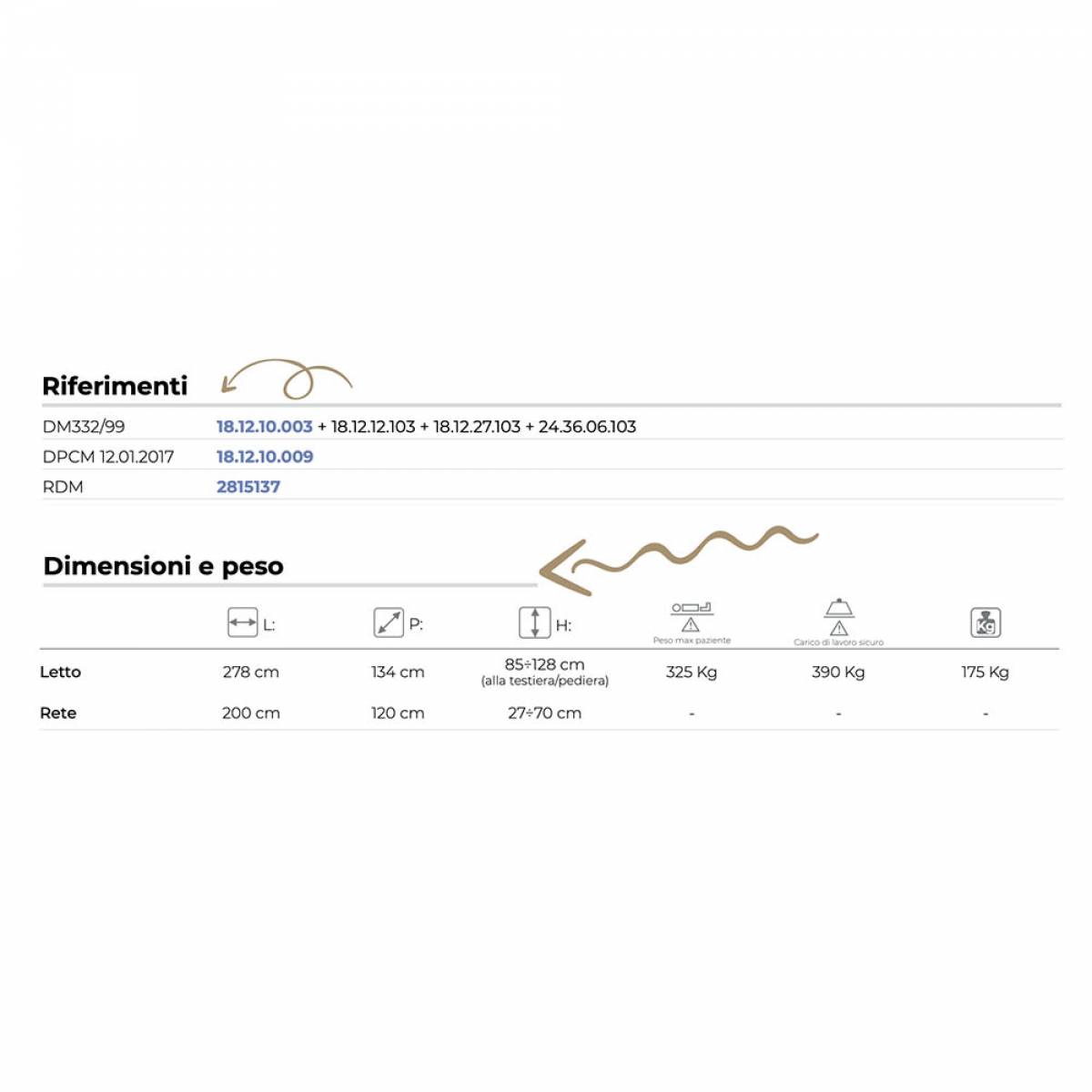

References
DM332/99 18.12.10.003 + 18.12.12.103 + 18.12.27.103 + 24.36.06.103
DPCM 12.01.2017 18.12.10.009
RDM 2815137

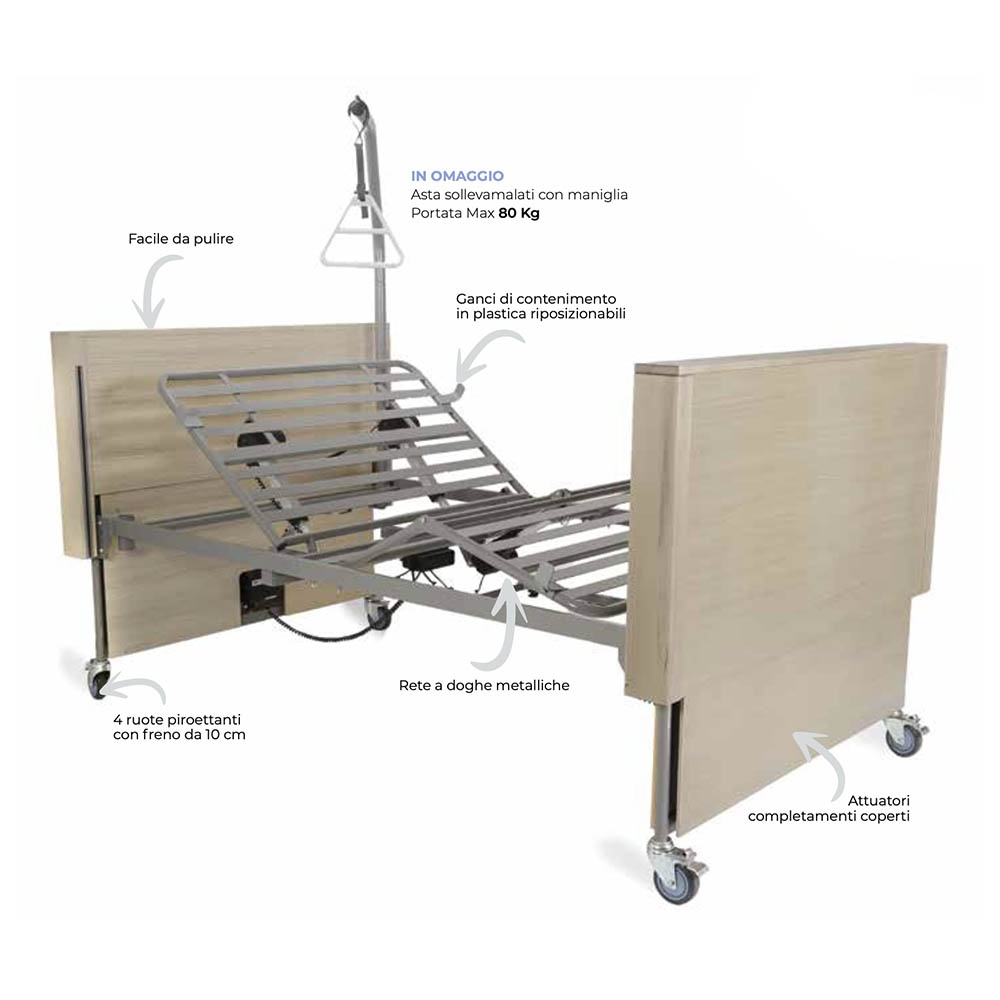

Characteristics:

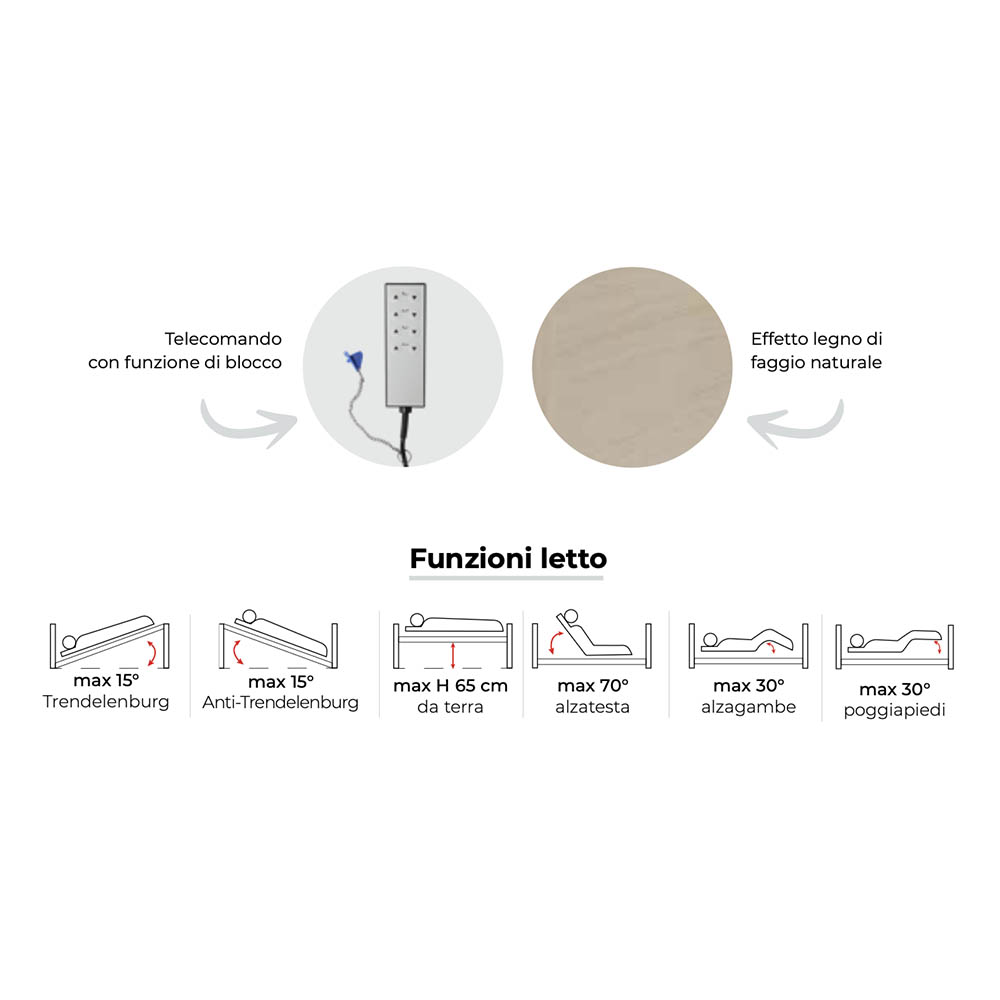

-Remote control with lock function
-easy to clean
-metal slatted base
-covered actuators
-repositionable plastic containment hooks
-4 10cm swivel wheels with brakes
-FREE Patient lifting pole with handle Max patient capacity 80 kg

Dimensions and weight
Bed:
-width 134cm
-length 278cm
-height 85-128CM (at headboard-footboard)
-capacity 325kg
-bed weight 175kg

Net:
-width 120cm
-length 200cm
-height 27-70cm



code: MP424
