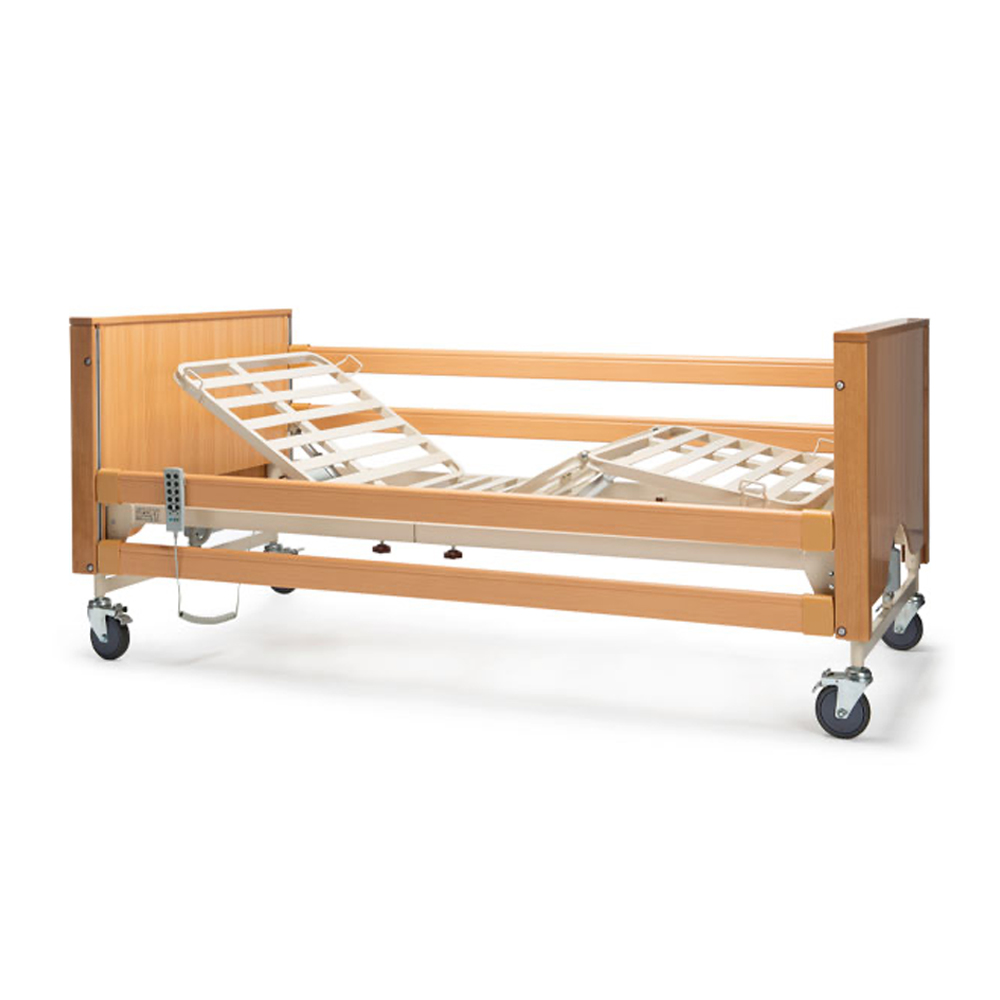

Construction features
Network frame
External perimeter load-bearing structure made of rectangular section steel profiles. Movable section frame made of oval section steel tube. Net sheet made of steel slats.
Mattress holder guides. Equipped with two supports for patient lifting pole and IV pole. 4-section bed base. Headrest section and leg section adjustable by means of two 24V DC electric motors and backlit keypad. Foot section with rack adjustment. Fixed pelvis section.

Variable height
The vertical movement of the bed base between approximately 40 cm. minimum height and 82 cm. maximum height is adjustable by means of two independent electric motors inserted inside the bed head panels.

Trendelenburg
Trendelenburg movement up to 12° and anti-Trendelenburg up to -12° via command on the same keypad.

Shores

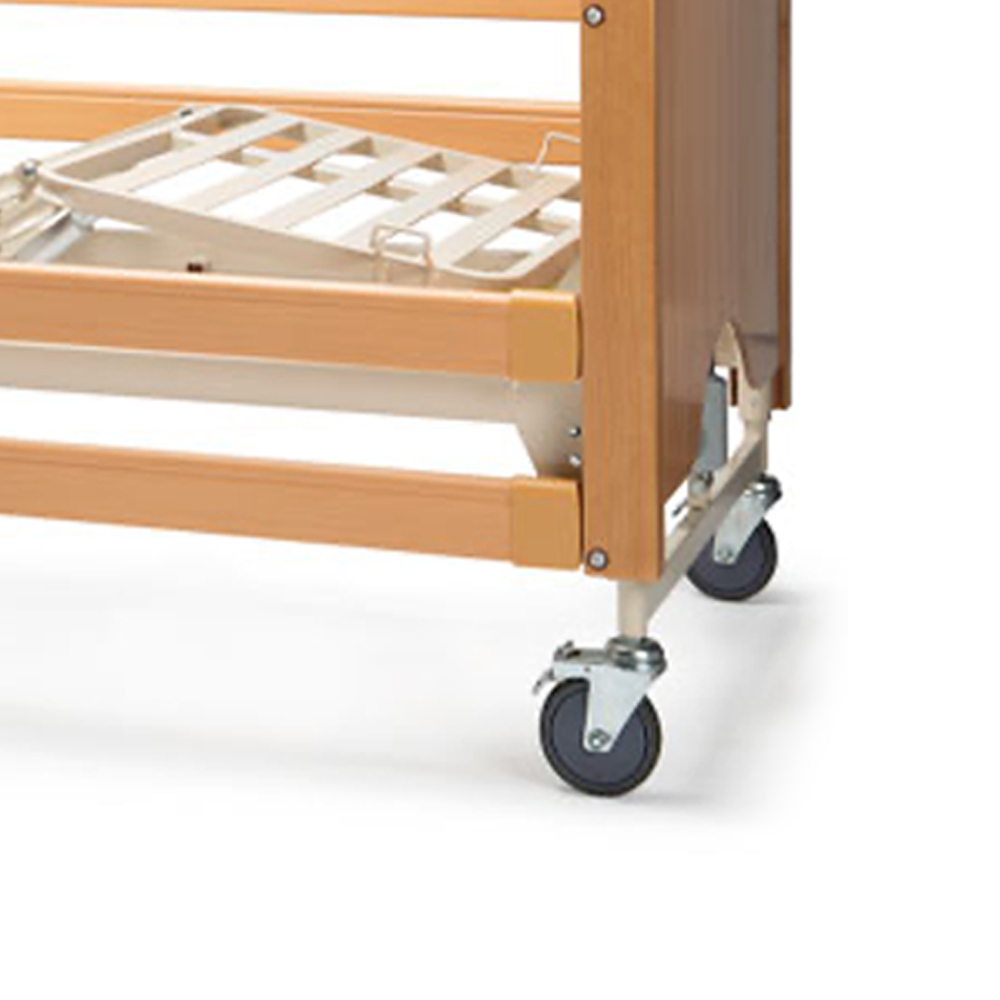

Vertical sliding with two uprights. Natural beech finish. Fixed to the headboards by means of sliding devices. Sides unlocked by means of a button on the headboard. Sides - Internal structure in painted steel tube. Wooden cover in natural beech finish with upper edge in solid wood, complete with built-in sliding guides for the insertion of side sides. Legs - Integrated into the backrests complete with 4 swivel wheels Ø 100 mm. each equipped with independent brake. Finish - Oven painted at 200°C with epoxy powders. Beige colour.

Equipment
Equipped with a lifting pole complete with triangle and adjustable nylon strap.

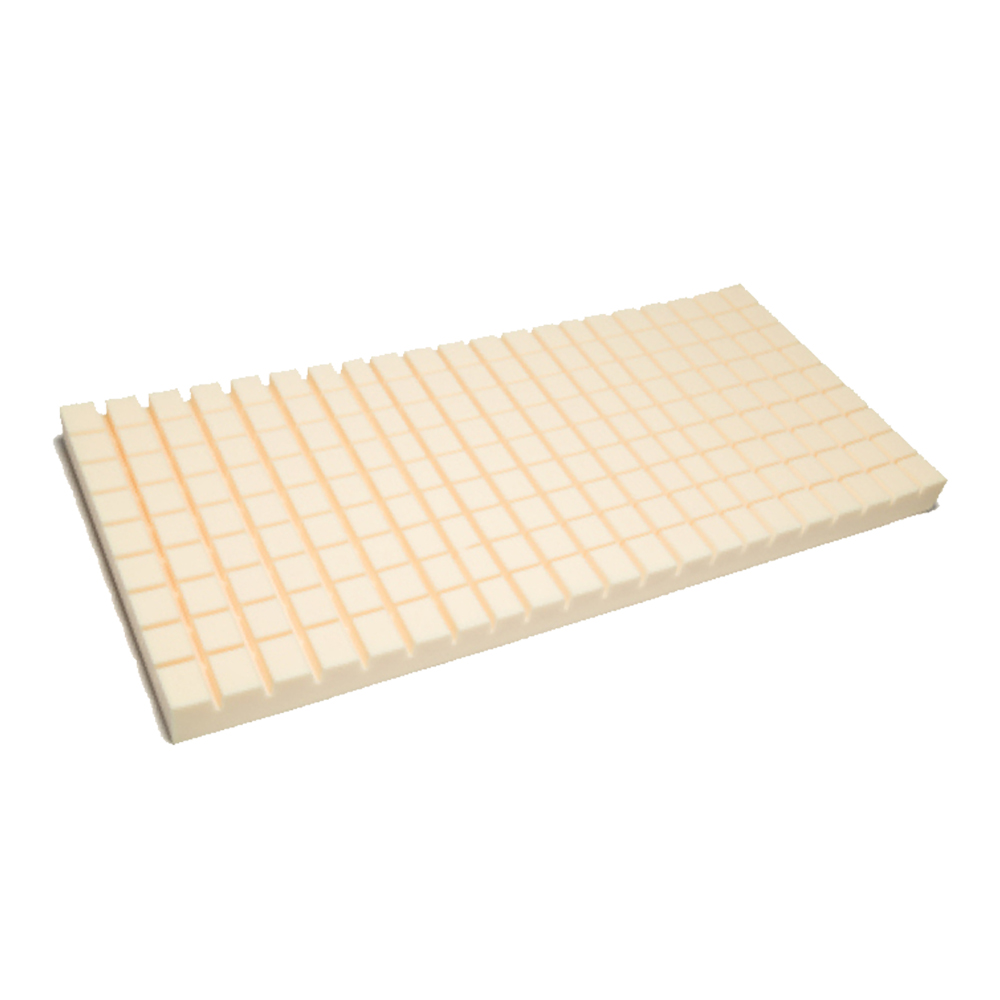

Ventilated anti-decubitus mattress with truncated pyramids and a single slab.
• Made of flexible, non-deformable, high-resistance polyurethane foam with a homogeneous cellular structure and completely permeable to air.
• Dimensions 195x90x12h cm

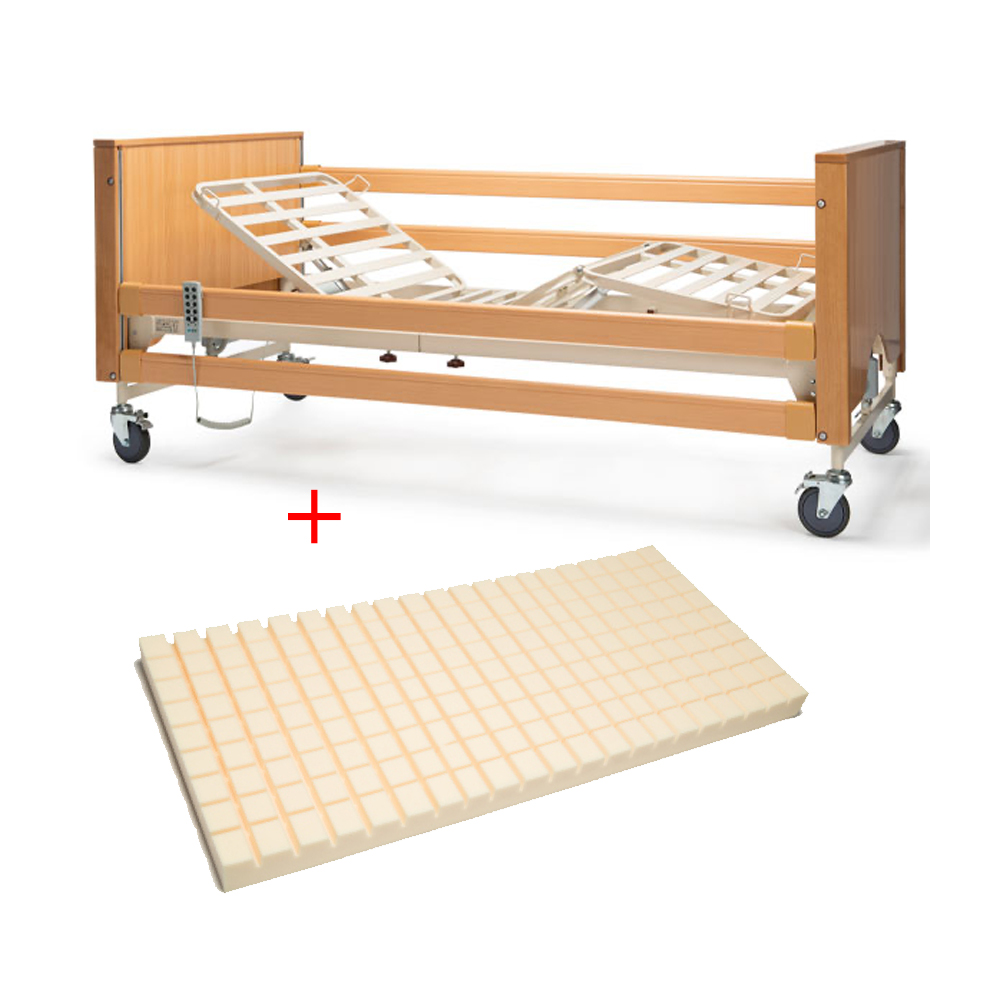

code: A8931A-A9501
