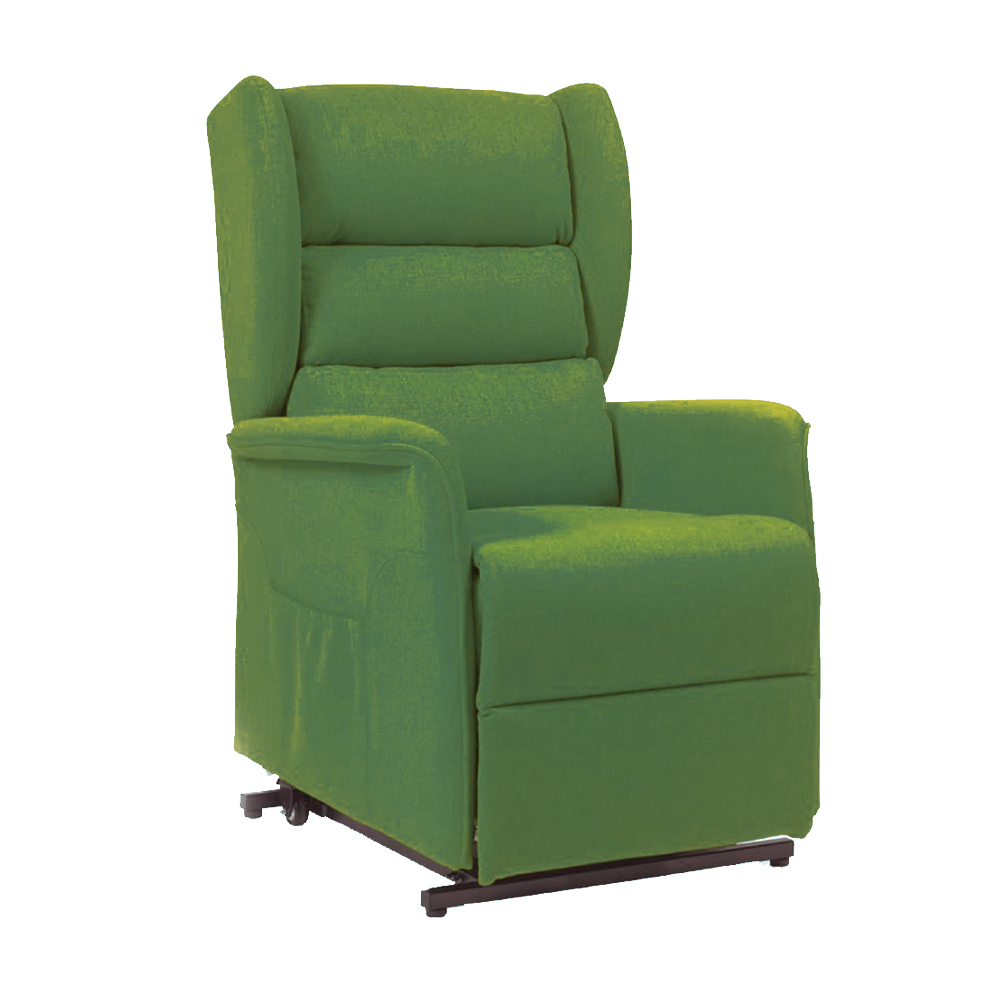

The OLIMPIA SLIM armchair is an electric armchair especially suitable for those with motor difficulties or difficulty moving and is designed for maximum practicality and safety, all conceived in a modern design.
The characteristics of the upholstery fabric used make it perfect for everyday use, being a stain-resistant, water-repellent and fire-retardant material.
The chair is equipped with a rear pedal lever that activates a mechanism called the Roller System.
Using the lever, the mechanism lifts the chair onto four wheels, two swiveling at the front and two fixed at the rear, equipped with a parking brake, allowing it to be easily moved around the space in complete safety, in a practical and functional way.

1.1. Main components
1) BACKREST
2) SITTING
3) ARMRESTS
4) REMOVABLE HEADREST WINGS
5) FOOTREST
6) FIXED FRONT WHEELS
7) SWIVEL REAR WHEELS WITH BRAKES
8) STORAGE POCKET
9) WIRELESS CONTROL
10) TRANSFORMER WITH POWER CORD
11) BACKREST ACTUATOR
12) ACTUATOR FOR BASE AND FOOTREST
13) ROLLER SYSTEM

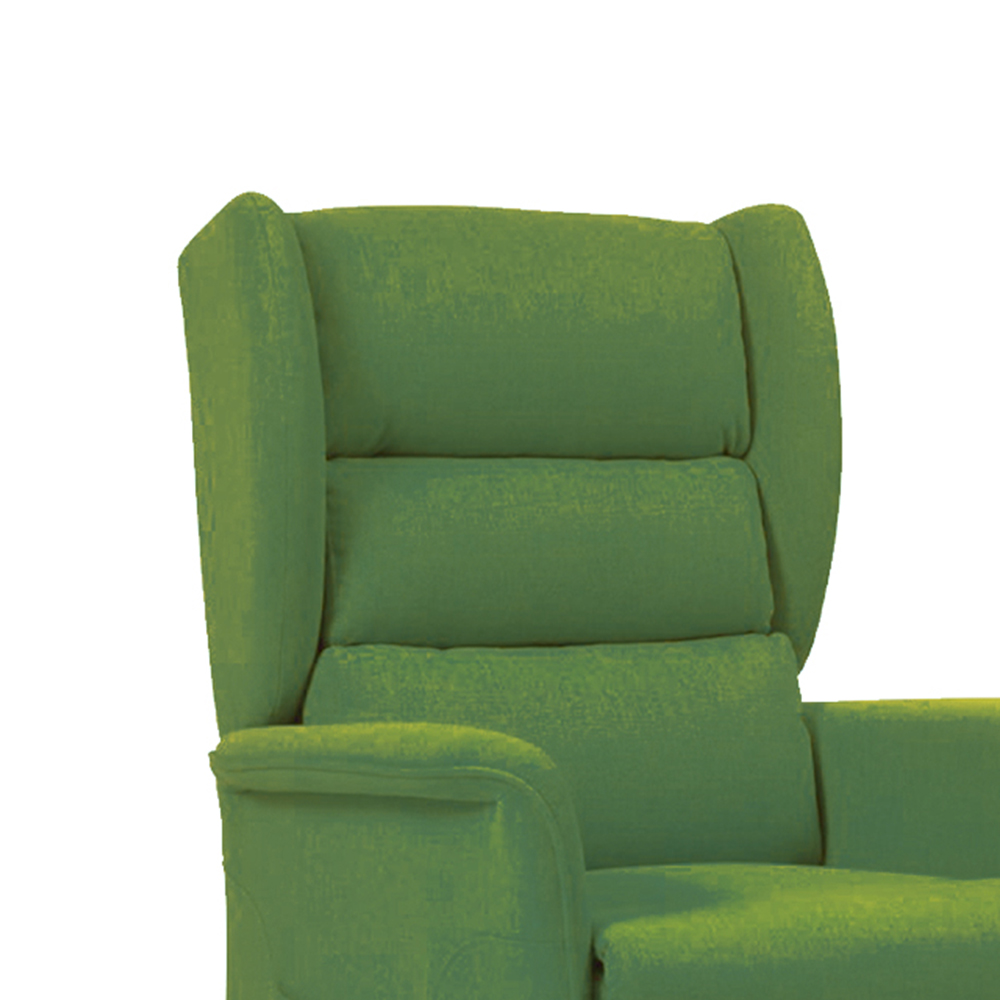

The headrest fins combined with the shape of the backrest and the finish of the padding increase comfort even for long periods of use.
Unlike other models, it allows for easy extraction of the fins
headrest, to facilitate the user's transfer from the armchair to the bed.

REMOVABLE SIDE HEADREST VENTS

TECHNICAL DESCRIPTION
2.1. REPERTOIRE REGISTRATION
The OLIMPIA SLIM armchair is a class 1 medical device as per Regulation 2017/745 and subsequent amendments.
Registered in the Medical Devices Registry of the Ministry of Health with the number:
RDM 2843495/R
CND Code V08020101

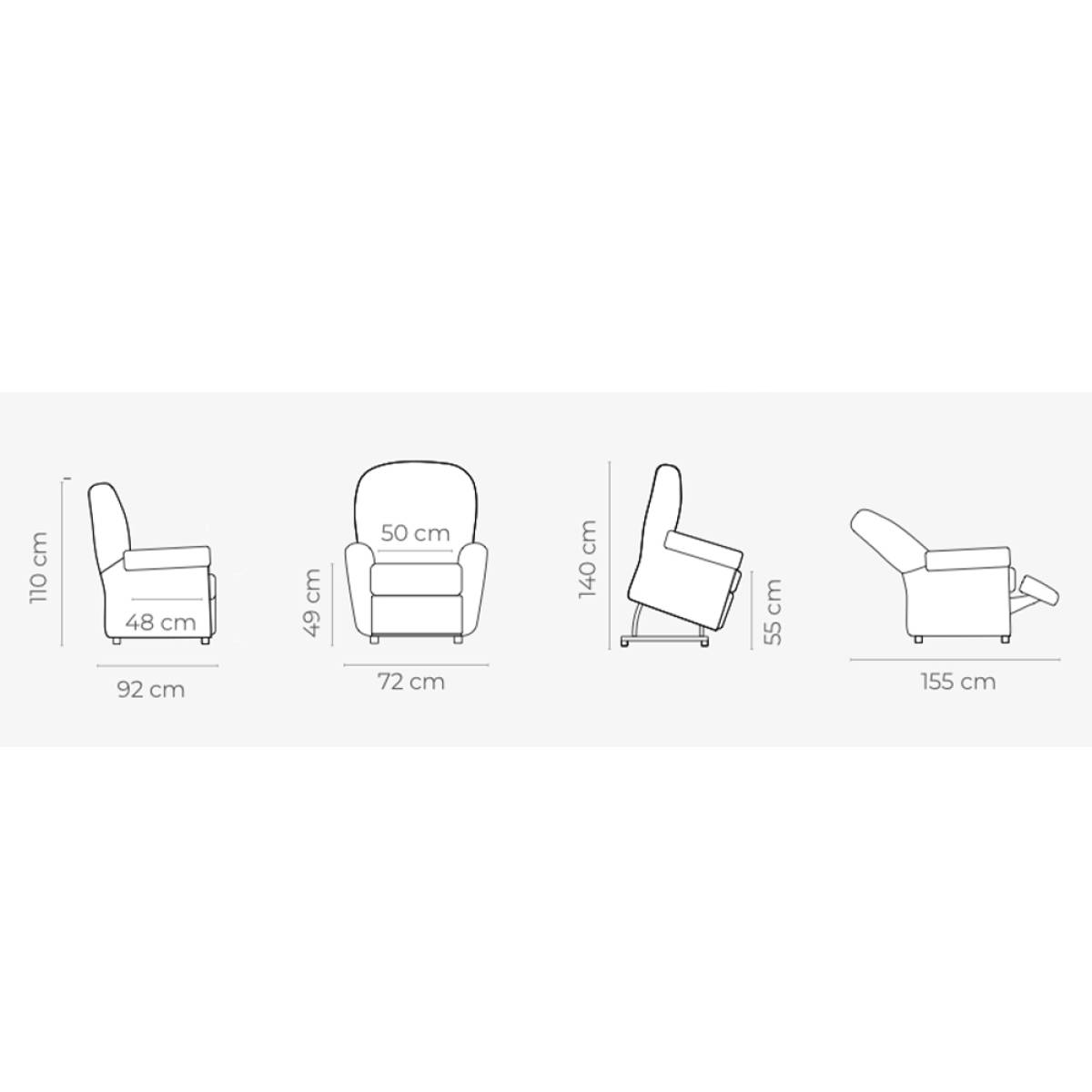

2.2. TECHNICAL DATA
OLIMPIA SLIM model
Length (mm) 920
Width (mm) 720
Height (mm) 1100
Seat width (mm) 500
Seat depth (mm) 480
Seat height from ground (mm) 490
Seat height in lift-up position (mm) 550
Backrest height in lift-up position (mm) 1400
Backrest height in relax position (mm) 920
Length in relaxed position (mm) 1750
Footrest height in relax position (mm) 450
Weight (kg) 47.8
Maximum load (kg) 120
Supply voltage (V) 100 - 240
Frequency (Hz) 50/60
External covering Fire-retardant, stain-resistant and water-repellent fabric
Green
Turtledove
Mustard

2.3. WIRELESS CONTROL OPERATION
1) LIFT UP / LOWER FOOTREST POSITION ACTIVATION BUTTON
2) FOOTREST LIFT BUTTON / RETURN TO REST POSITION FROM LIFT UP POSITION
3) BACKREST LIFT BUTTON
4) BACKREST LOWERING BUTTON
5) BACKREST LIFT BUTTON / LIFT UP POSITION ACTIVATION / FOOTREST LOWER
6) BACKREST LOWERING BUTTON/RETURN TO REST POSITION FROM LIFT UP POSITION/FOOTREST RAISING

2.4. TECHNICAL CHARACTERISTICS
The armchair, equipped with two motors, allows the user to adjust it into multiple positions that can be used in everyday life according to their preferences.
For example, to watch television you can stretch your legs horizontally by completely raising the footrest (TV POSITION), while if you want to reach a relaxing position to rest you must also recline the backrest by lowering it (RELAX POSITION).
If the user of the chair has motor difficulties, the OLIMIA SLIM can accommodate his needs, such as helping him to get up (LIFT-UP POSITION).

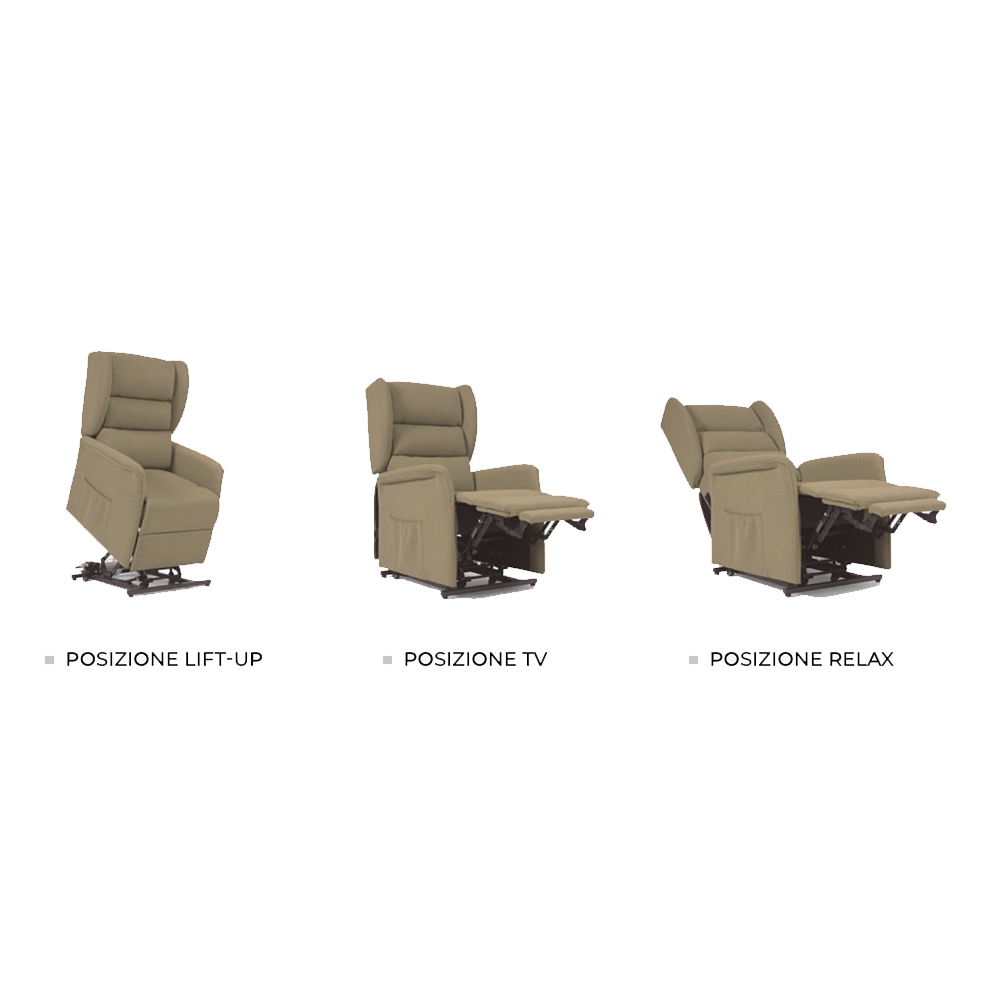

-TV POSITION
-RELAXING POSITION
-LIFT-UP POSITION

On the back of the armchair, in the lower part near the floor, you can see the lever for activating the Roller System.
When the lever is facing upwards, the chair is firmly braked to the floor, without being able to be moved.
By physically positioning yourself at the back of the chair, you can press the lever with your foot to activate the Roller System. Thanks to a series of levers, applying minimal force to the lever activates the mechanism and allows the wheels to take full load of the chair.
With the Roller System active, even with the user present in the chair, it will be easy to move it from one room to another, making everyday life more dynamic and free.
Upholstered in three different colors in 100% polyester fabric, fire-retardant, stain-resistant, and liquid-repellent. The chair's operating cycle is 1 minute on/8 minutes off, maximum 2 minutes.



barcode: 8052109691773
code: OLIMPIA SLIM-V
