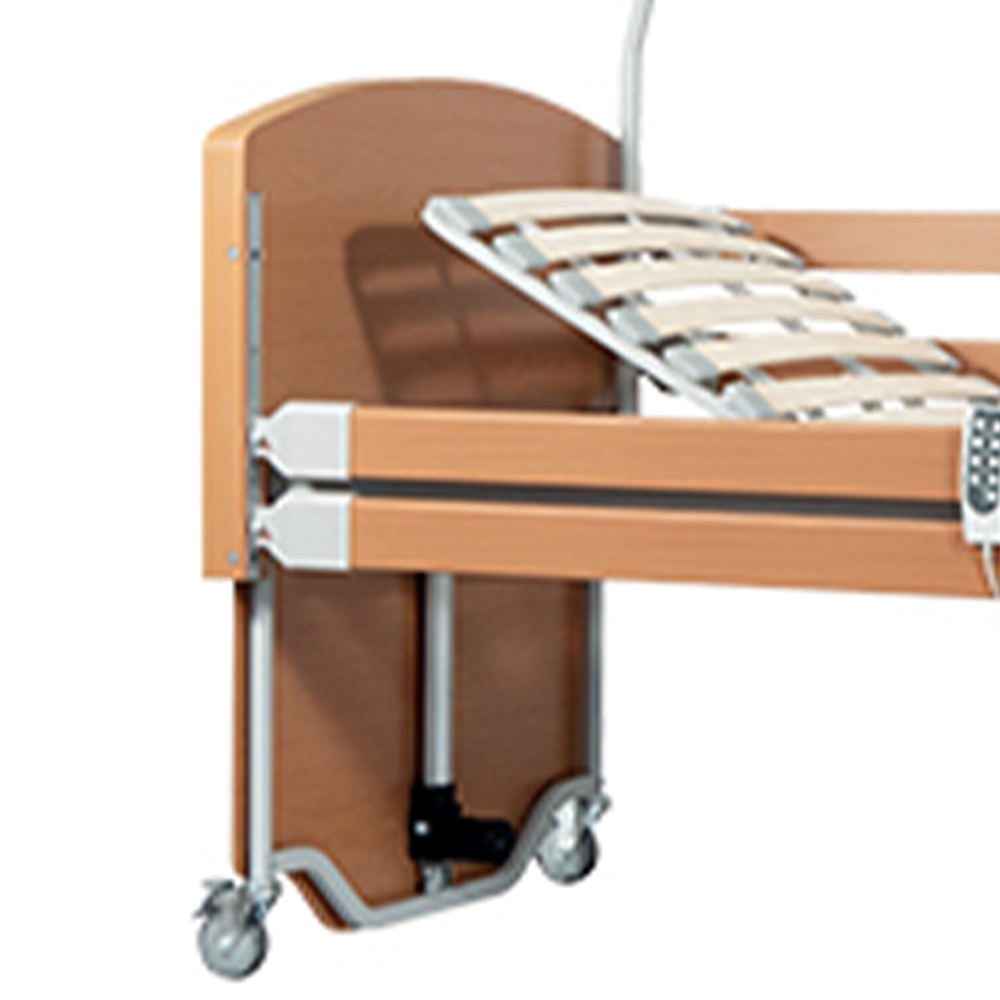

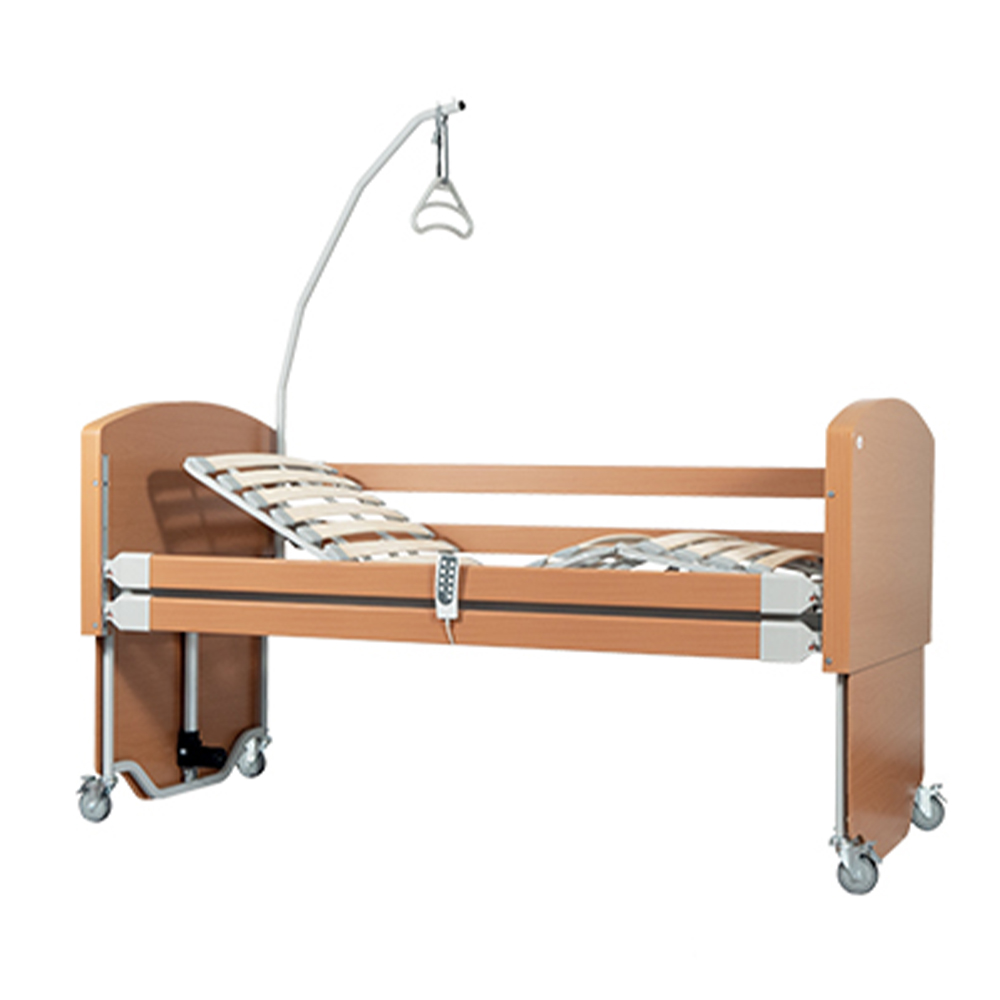

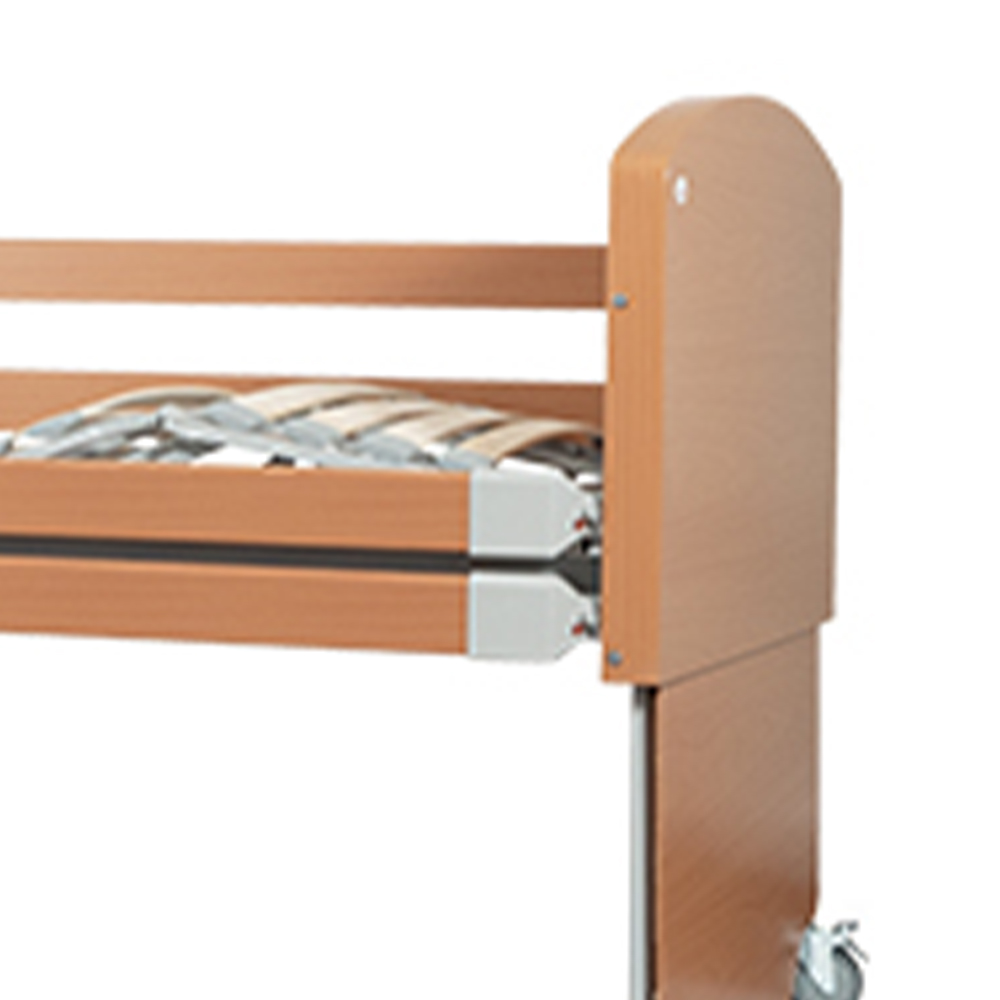

Electric wooden bed with rounded design, wooden slatted base.
• Height-adjustable side containment sides
• Mattress retaining blocks on the base
• Four swivel wheels with parking brake
• Electric adjustment of the backrest and thigh/leg area
• Height adjustment of the bed base
• Trendelenburg and Anti-Trendelenburg function
• Remote control equipped with Nurse Lock device which allows the activation of some functions only by authorised personnel

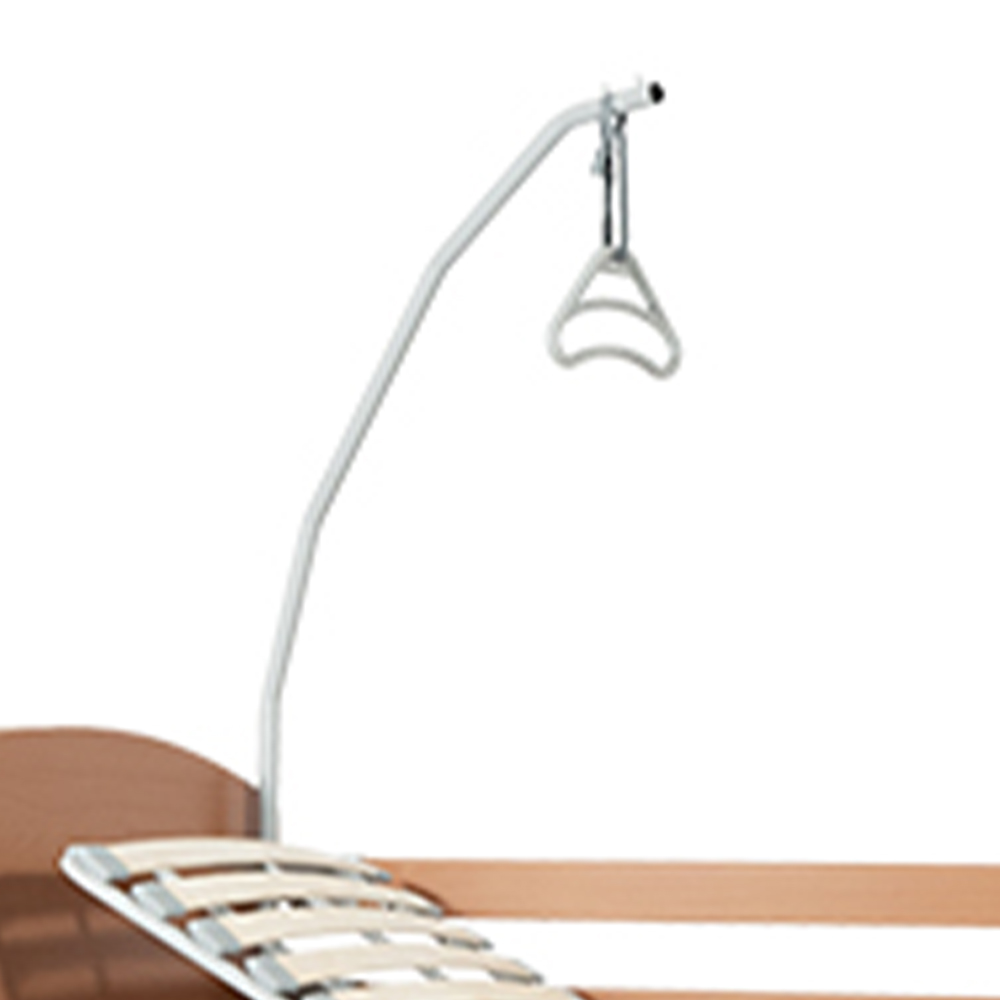

• Standard patient lifting triangle compliant with EN 60601-1
• Back section adjustment 0°-70°
• Thigh section adjustment 0°-35°, simultaneously with knee flexion 0°-13°
• Side guards available as ACCESSORIES - COD. 18/23/I

Dimensions Net width: 89 cm
Maximum overall width: 104 cm
Net length: 200 cm
Maximum overall length: 216 cm
Height of the bed base from the ground: adjustable from 25 cm to 66 cm
Height of footboard and headboard: 53 cm
User load 135 kg
Power Supply CONTROL UNIT
Type: Motek Twinmate
Input voltage: AC 230V, ±10%, 50Hz
Intermittent duty (periodic engine operation): 10% (2 min. – 18 min.)
Sound pressure level: Max 50 dB
PUSHBUTTON PANEL
Type: Motek
Electric motors for bed level adjustment
Type: Motek Gas Spring
Intermittent duty (periodic engine operation): 10% (2 min. – 18 min.)
Electrical protection class II
Materials Metal mesh
Wooden slats
Wooden structure



barcode: 08054181762334
code: 15000014
