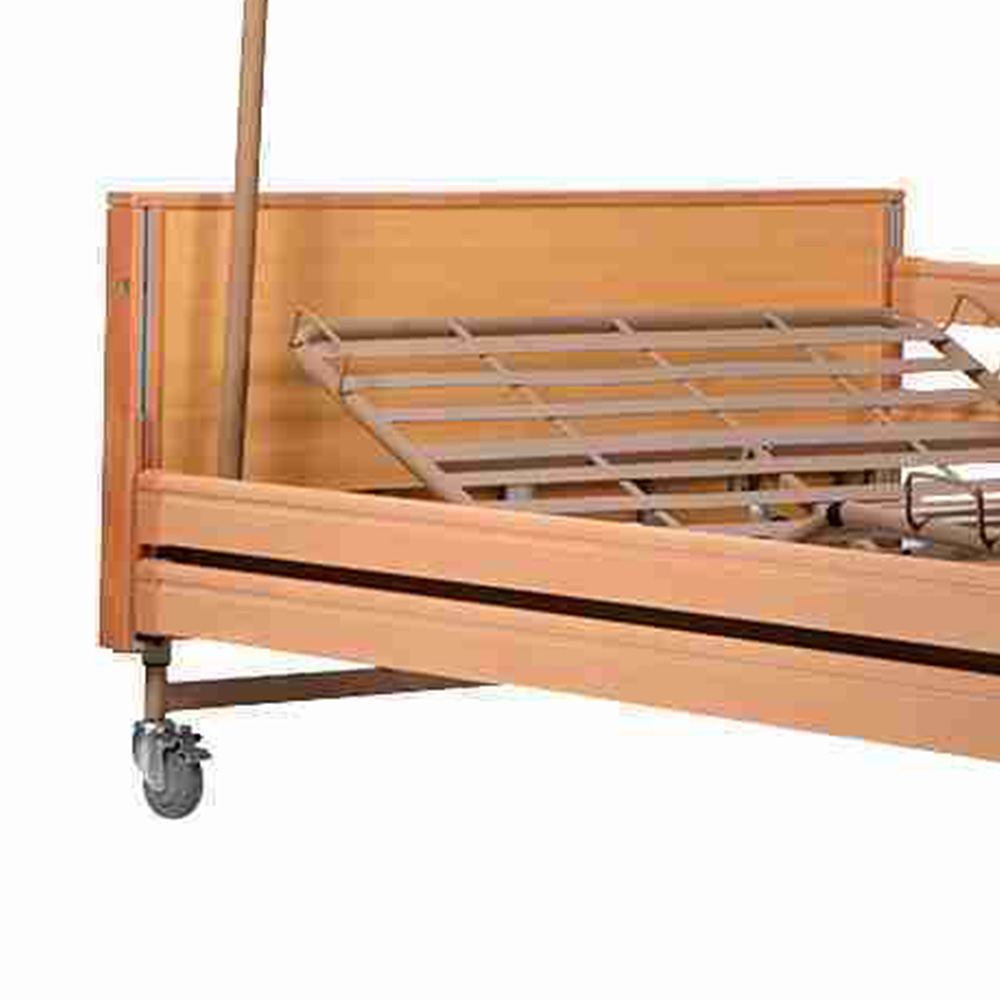

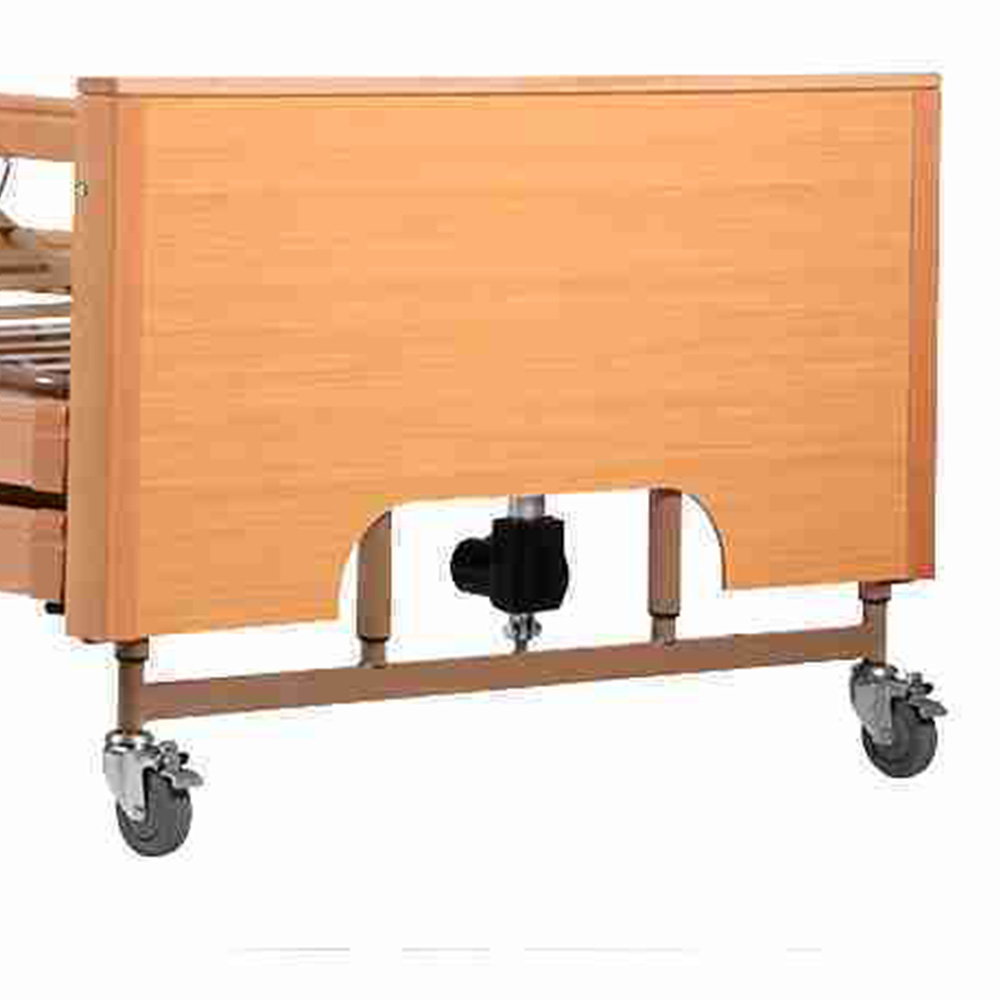

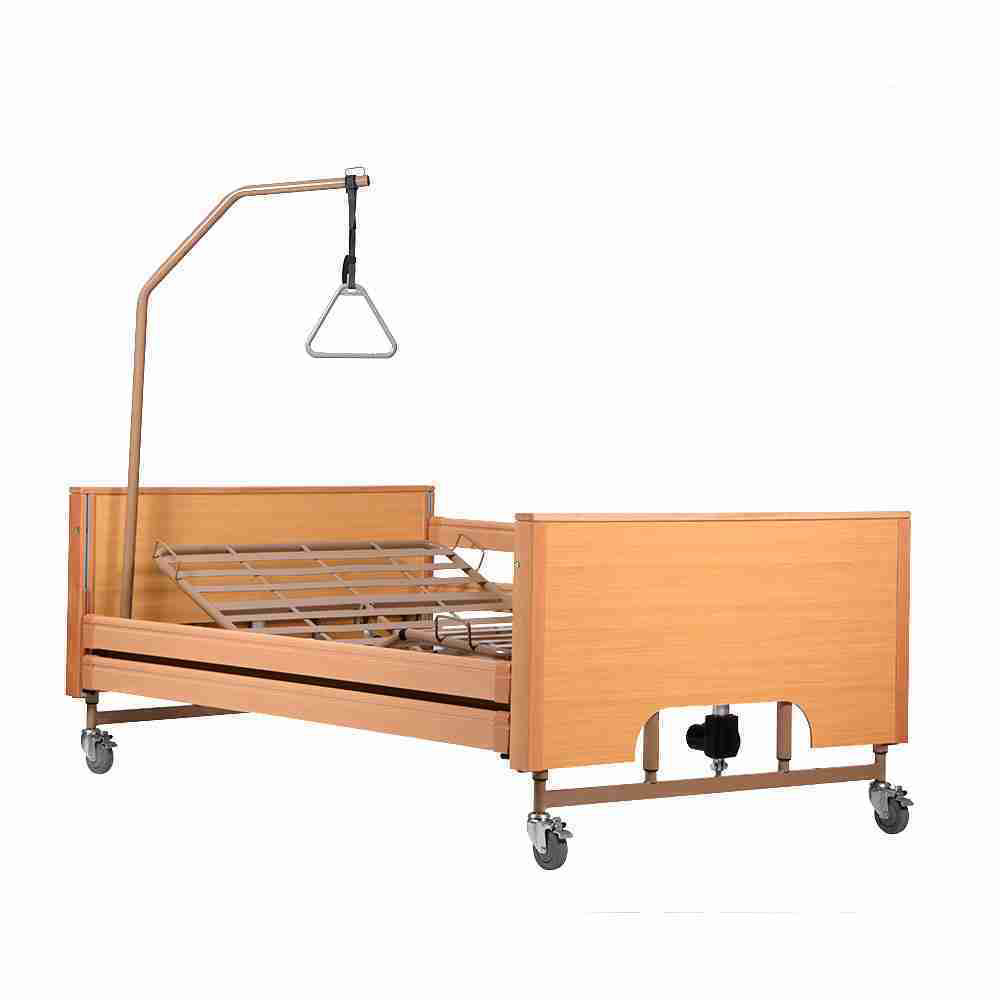

Fully electric adjustable-height wooden bariatric orthopedic bed, equipped with 4 motors.
SOCRATE 120 is a queen-size bariatric bed designed for home care and long-term care facilities.
It meets the highest safety standards, is fully electric with 4 motors and, thanks to the specially designed mattress platform with four sections that can be articulated together or independently, allow the patient to assume the most comfortable position possible, ranging from lying down to sitting.
The structure is made entirely of steel.
The wooden panels make the product particularly suitable for both domestic environments and nursing homes.
The side rails are designed to protect the patient from accidental falls. They are located on both sides and can act as a barrier or be lowered when not in use.
The fastening mechanism is locked and can be released by pressing the appropriate button on the side.
The various bed movement functions can be activated by both the assistant and the patient by acting on the controls on the keypad.
Trendelenburg and Reverse Trendelenburg function thanks to two actuators positioned at the ends.

Main features:
Height-adjustable side rails covered with a wood-effect film matching the headboard and footboard
Mattress retaining blocks on the bed base
Four swivel wheels with parking brake
Electric adjustment of the backrest and thigh/leg area
Additional manual adjustment of the foot area via rack
Height adjustment of the bed base
Remote control equipped with Nurse Lock function via key which allows the activation of some functions only by authorised personnel
Presence of anti-blackout buffer battery (n°2 9 Vdc batteries) to return the bed to the rest position in the absence of electrical power

Technical features:
Minimum height from the ground: 38 cm
Maximum ground clearance: 79 cm
Weight: 165 kg
Max load: 230 kg
Maximum working load (patient + mattress + accessories): 280 kg
Bed base dimensions: 200 x 120 cm
Maximum dimensions: 215 x 132 cm
Height from floor (min/max): 38 / 79 cm
Headboard/footboard height (from the base): 46.5 cm
Internal distance between footboard and headboard: 201 cm
Internal distance between side rails: 125 cm
Head section dimensions: 110.5 cm x 77 cm
Fixed basin section dimensions: 120 x 21 cm
Leg section dimensions: 110.5 cm x 33 cm
Foot section dimensions: 110.5 x 45 cm
Maximum inclination of the mobile back section: 70°
Maximum inclination of the mobile leg section: 25°
Maximum inclination of the mobile foot section: 20°
Maximum height of mobile leg section from the bed base: 21 cm
Storage temperature with packaging in a dry environment: -10 ÷ 50°C
Operating temperature: 10 ÷ 50°C
Maximum mattress weight: 30 kg
Motor unit weight: 6 kg
Net weight: 55 kg
Headboard/footboard weight (each): 29 kg
Weight of wooden sides (1 pair): 4.4 kg
Weight of the patient lift pole: 3.2 kg
Wooden side dimensions (each): 198.5 x 9.5 x 2.7 cm
Distance between the upper edge of the wooden sides and the bed base: Minimum 9 cm / Maximum 42 cm
Distance between the lower edge of the wooden sides and the bed base (maximum height): 13 cm
Distance between the side boards (in working position): 10 cm
Distance between the lift handle and the bed base: Minimum 95 cm / Maximum 100 cm
Maximum bed inclination: ± 11°

Included:
1. Sick lift rod
1 Triangle lifts sick people



barcode: 8052109690943
code: SOCRATE 120
