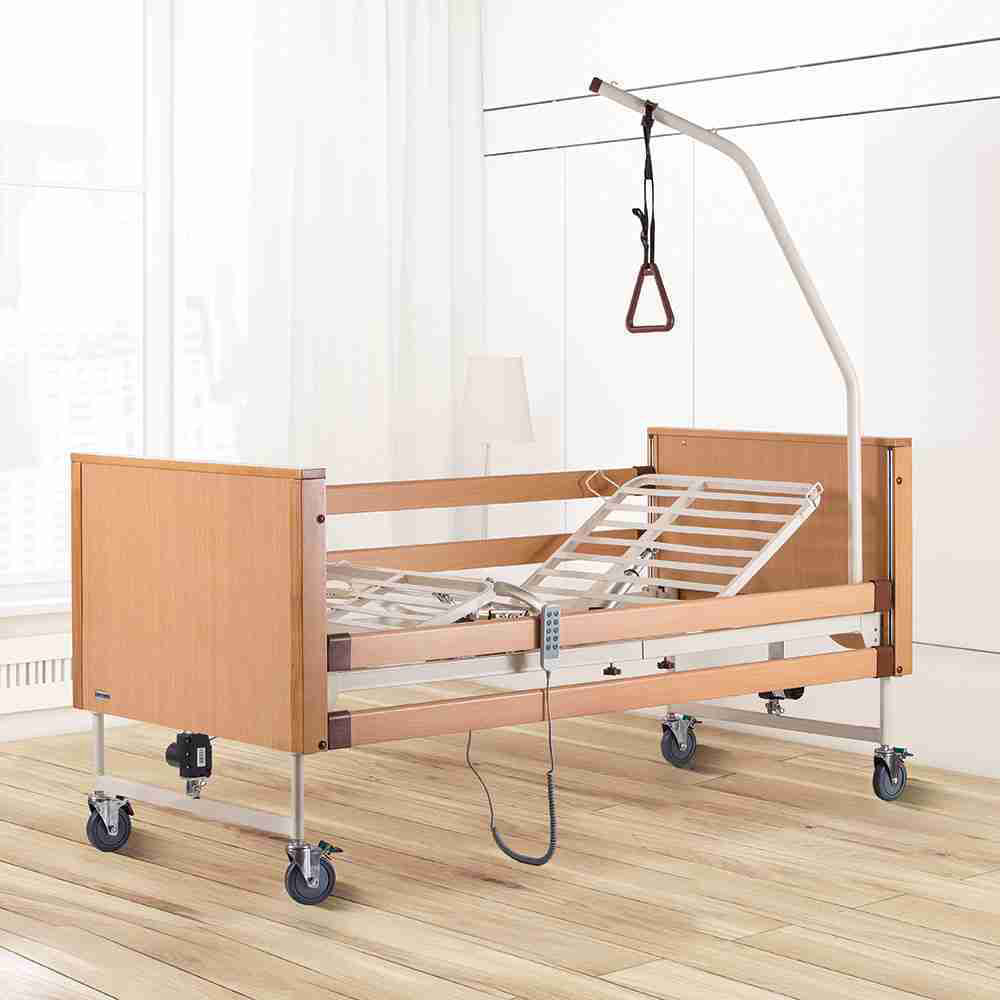

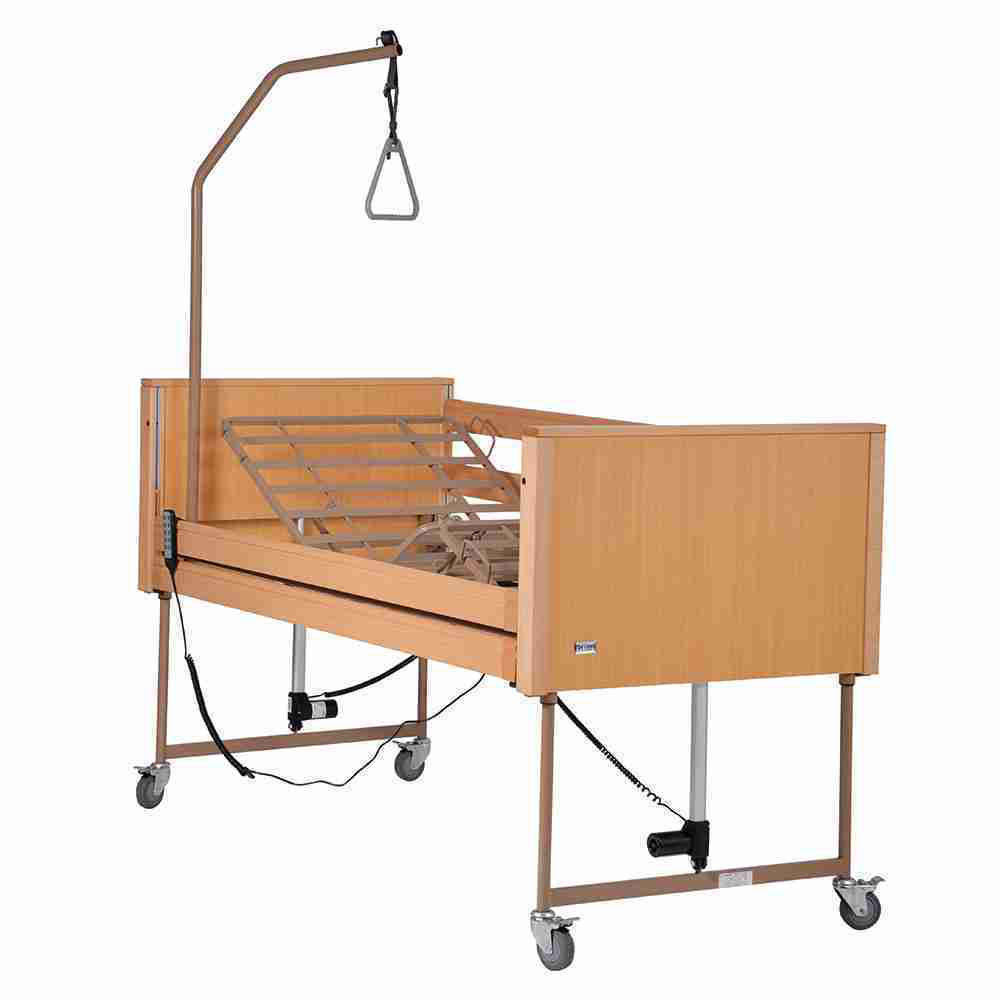

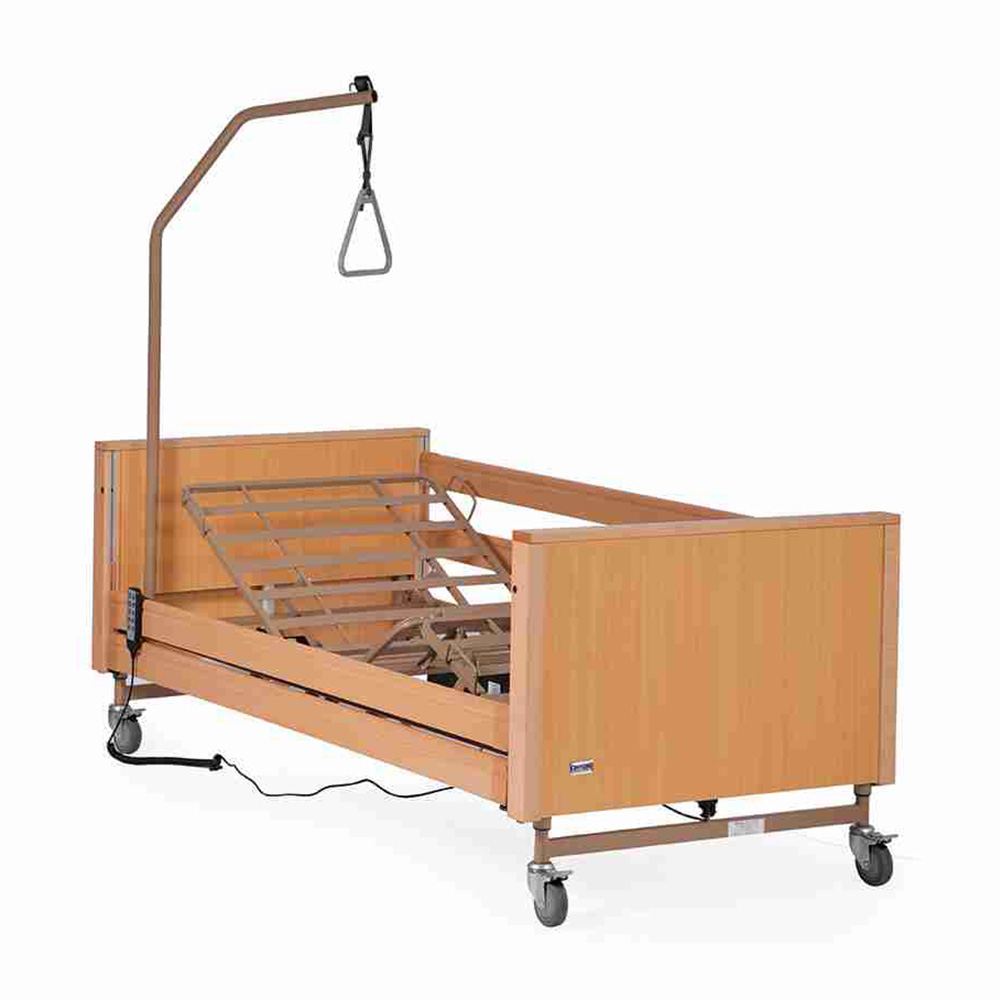

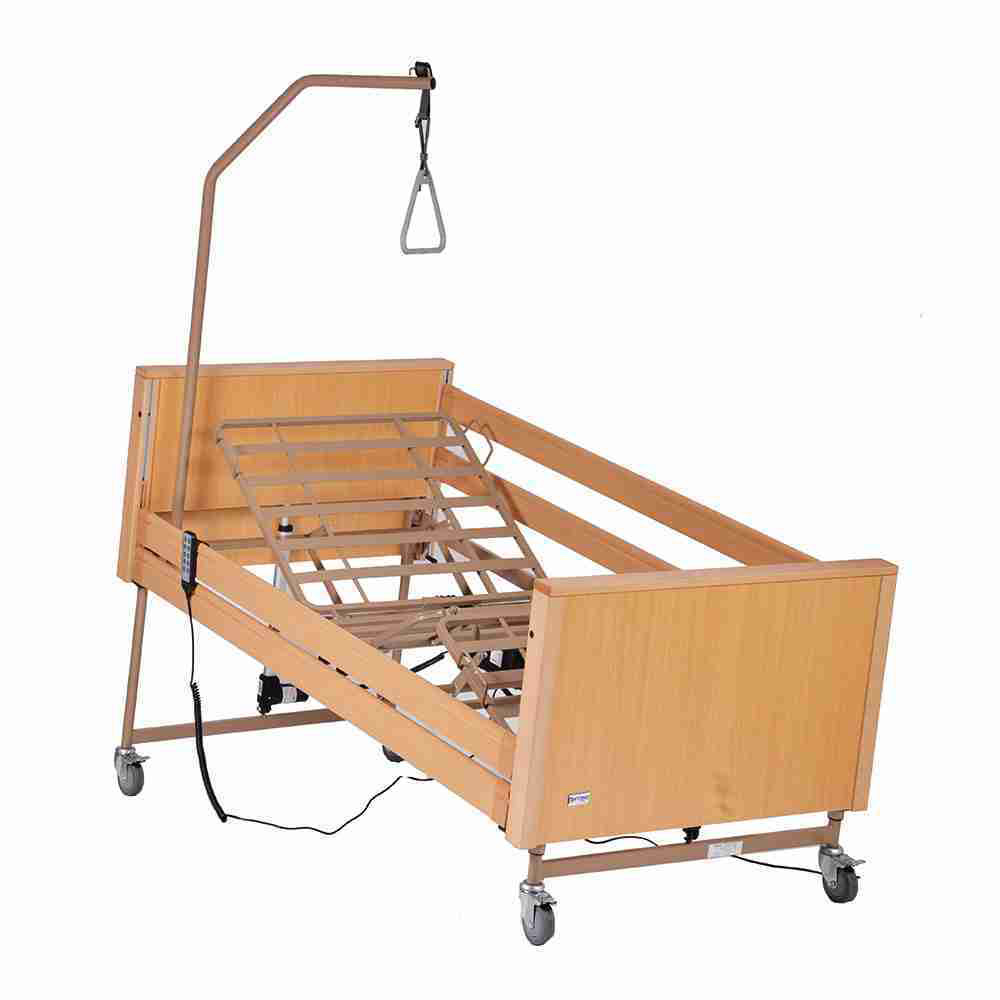

Fully electric adjustable height wooden orthopedic bed.
The SOCRATE bed is developed for home care and long-term care facilities.
It has been designed and built to provide a high level of quality and robustness.
The different sections allow the patient to assume the most comfortable and convenient position possible, ranging from lying down to sitting.
Bed with 4-section steel frame, covered in beech wood, equipped with side rails, 4 swivel wheels with brakes and a 5-function motor.
Remote control equipped with a Nurse Lock device that allows certain functions to be activated only by authorised personnel.
The medical device consists of a mattress platform, a support footboard and headboard, side rails, a patient lifting rod and a system of electrically operated actuators.

Main features:
Mattress retaining blocks on the bed base
Four swivel wheels with parking brake
Electric adjustment of the backrest and thigh/leg area
Additional manual adjustment of the foot area via rack
Height adjustment of the bed base
Remote control equipped with Nurse Lock function via key which allows the activation of some functions only by authorised personnel
Presence of anti-blackout buffer battery (n°2 9 Vdc batteries) to return the bed to the rest position in the absence of electrical power

Technical features:
Bed mass: 99 kg
Maximum load (mattress + user + accessories): 180 kg
User weight (max): 135 kg
Maximum dimensions: 216 x 102 cm
Height from floor (min/max): 38 / 79 cm
Headboard/footboard height (from the base): 46.5 cm
Internal distance between footboard and headboard: 202.5 cm
Internal distance between side rails: 95.5 cm
Head section: 80 x 74 cm
Basin section: 86 x 20.5 cm
Leg section: 80 x 30 cm
Foot section: 80 x 46 cm
Mobile back section inclination (max): 70°
Tilt of the mobile leg section (max): 35°
Mobile foot section inclination (max): 22°
Height of mobile leg section from the bed base (max): 22 cm
Storage temperature with packaging (in dry environment): -10 to 50°C
Operating environment temperature range: -10 to 50°C
Mattress weight (max): 20 kg
Weight of accessories (max): 25 kg
Bed base length: 190 cm
Width of the bed base: 83 cm
Net weight: 46 kg
Wooden side dimensions (each): 198.5 x 9.5 x 2.7 cm
Weight of wooden sides (1 pair): 4.4 kg
Weight of the lifting pole: 3.2 kg
Footboard/Headboard weight (each): 25.2 kg
Distance between the upper edge of the wooden sides and the bed base: Min. 10.5 cm / Med. 36.5 cm / Max. 40 cm
Distance between the lower edge of the wooden sides and the bed base (average height): 7.5 cm
Distance between the lower edge of the wooden sides and the bed base (maximum height): 11.2 cm
Distance between the side boards (in working position): 10 cm
Distance between the lifting pole handle and the bed base: Min. 85 cm / Max. 100 cm

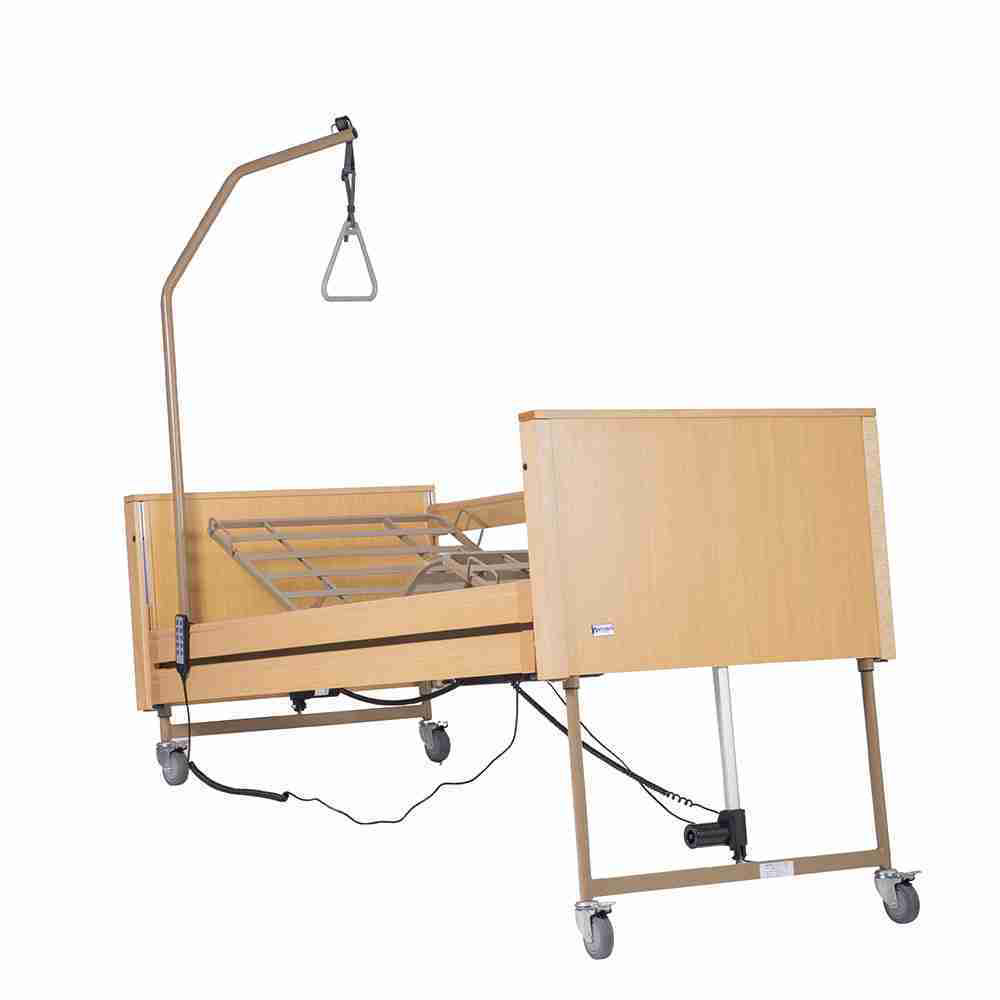

Trendelenburg inclination: 11°
Anti-Trendelenburg inclination: 11°
Power supply: 230V AC
Operating voltage: 24V DC
Maximum power consumption: 220 W
Maximum actuator thrust force: 6000 N
Remote control voltage: 24V DC

Included:
1. Sick lift rod
1 Triangle lifts sick people



barcode: 8052109690929
code: SOCRATE
