Self-propelled wheelchair for the elderly - foldable - narrow - seat width to choose from

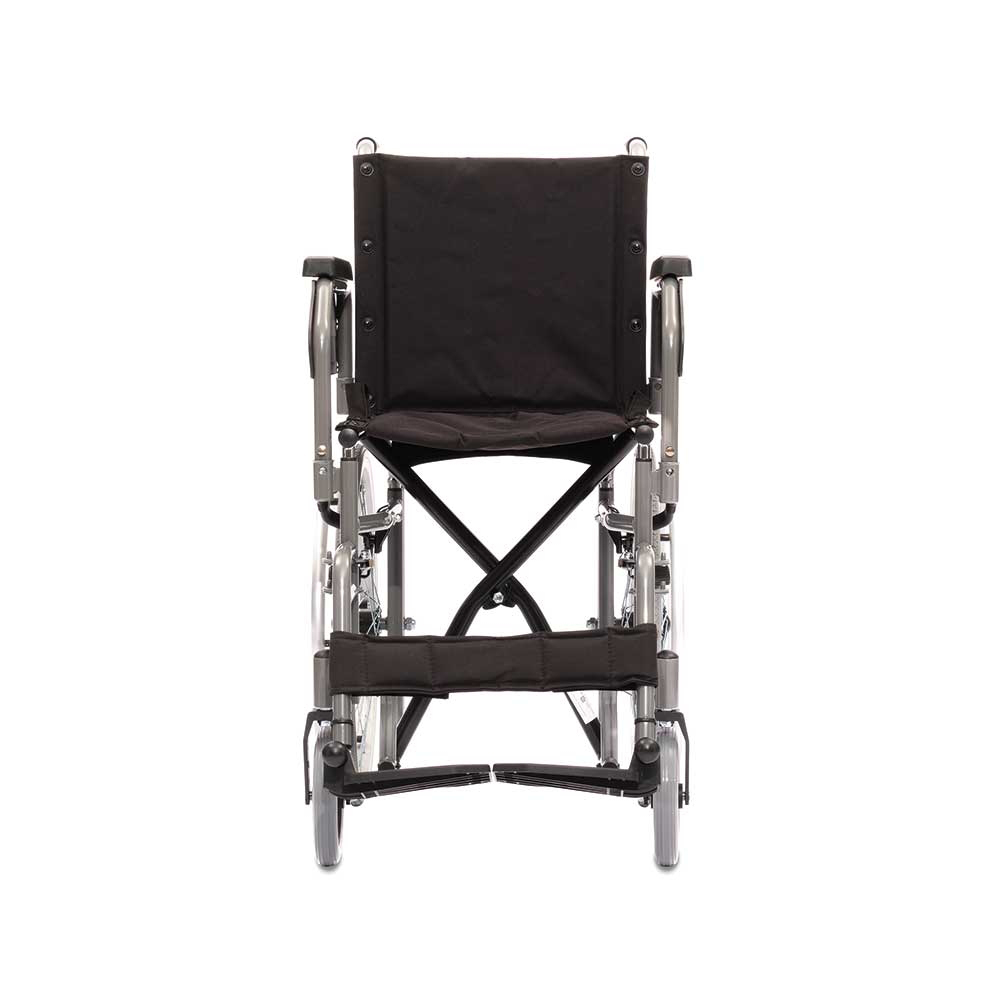

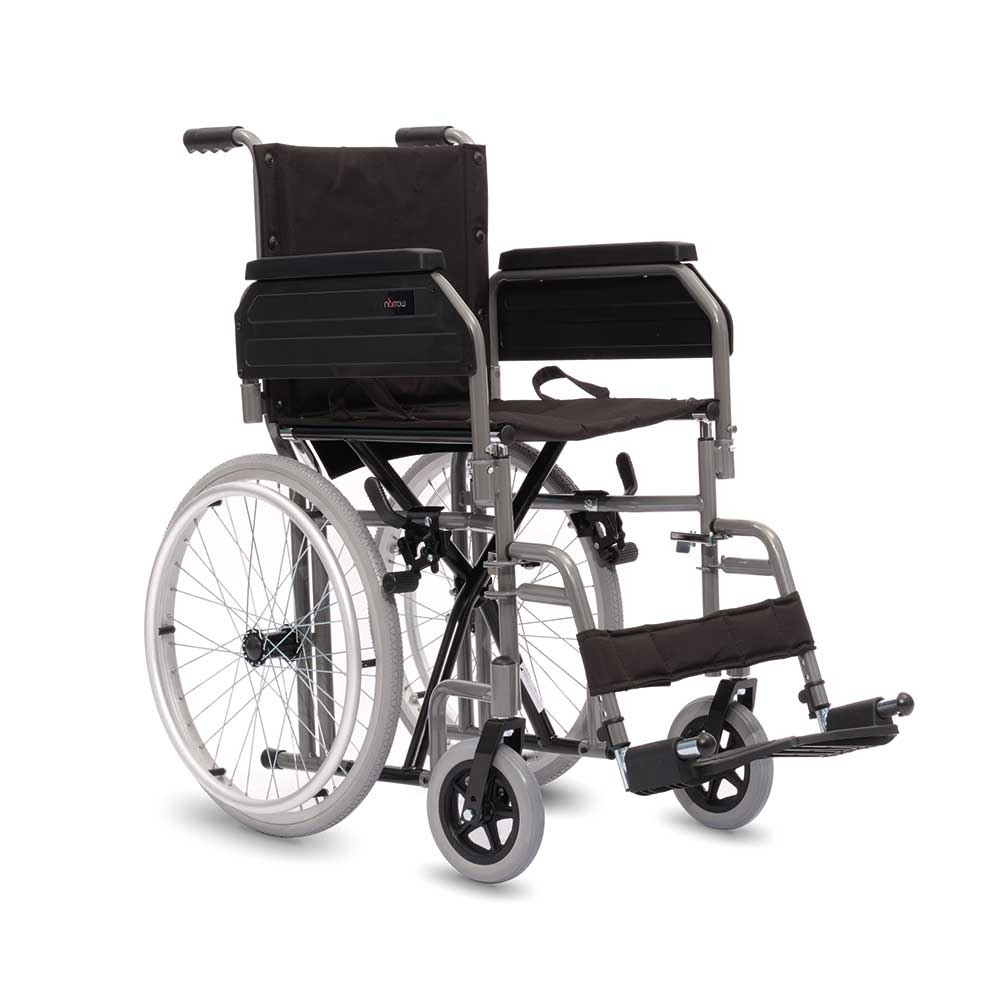

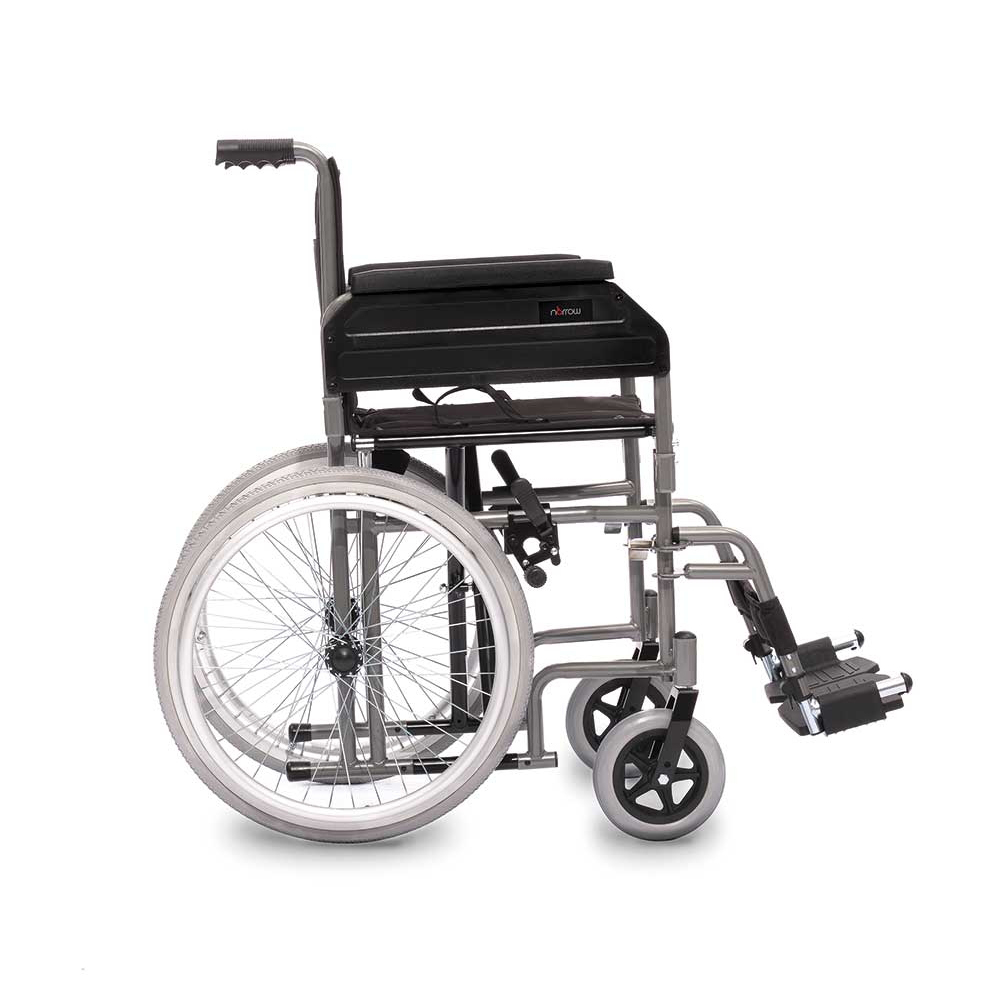

Self-propelled wheelchair with a compact size and foldable frame, for easier use in narrow spaces.

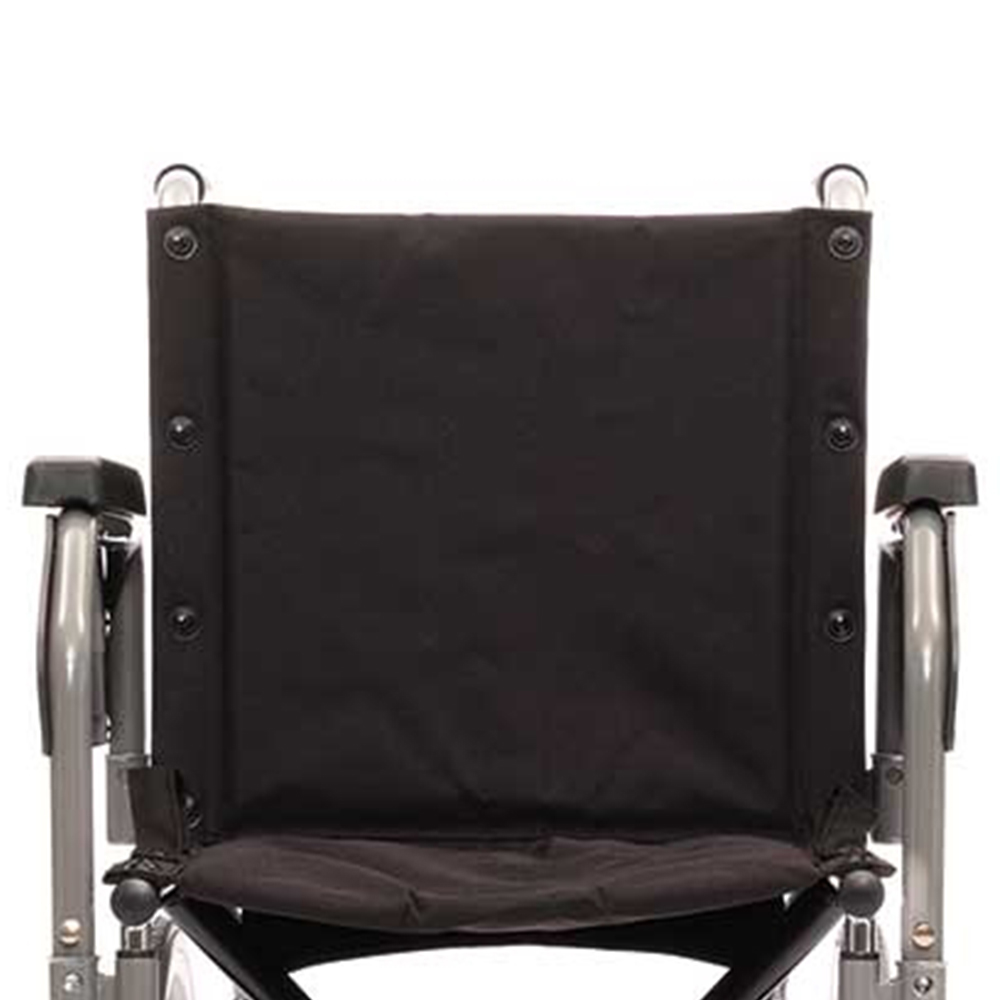

The structure is equipped with a single crosspiece, removable armrests that facilitate the patient's movements and rear handles for the assistant.
Rear wheels for self-propulsion diameter 20” front wheels diameter 7” swivel.

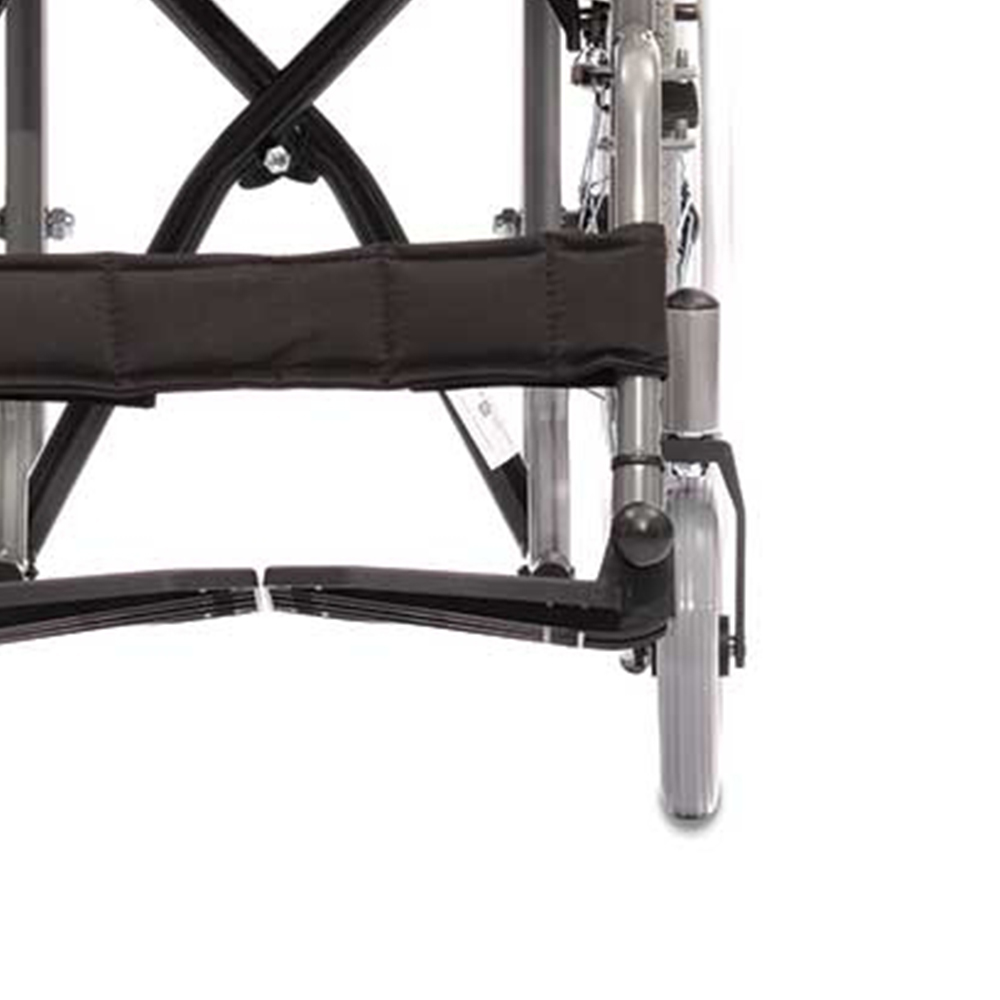

The footrests are rotatable, removable and height-adjustable.
The wheelchair is available in different sizes of 40, 43 and 45 cm.

Intended use: The wheelchair for the elderly allows the independent or assisted transport of people with mobility difficulties.

Medical device
CND Code Y122106

BD/RDM Recording ID:
- Ref. NARROW-40 - 2014256/R
- Ref. NARROW-43 - 2014260/R
- Ref. NARROW-45 - 2014262/R
Tariff Nomenclature Code
Compliance with Directive 93/42/EEC
amended by Directive 2007/47/EC
Medical device class - 93/42/EEC

Technical features
- Seat width: 40 cm / 43 cm / 45 cm
- Total width: 51 cm / 54 cm / 56 cm
- Seat depth: 42 cm
- Seat height: 56 cm
- Backrest height: 37 cm
- Total length: 102 cm
- Load capacity: 120 kg
- Weight: ≥ 16 kg, depending on configuration
- Frame tube diameter: 20 mm
- Diameter of cross tubes: 26 mm
- Rear wheel diameter: 20”
- Front wheel diameter: 7”x 1.25”
- Parking brakes: Manually operated iron levers
- Armrests: Semi-desk type

Materials:
- Steel frame.
- Backrest and seat made of fire-retardant material.
- Spoked rear wheels with aluminum handrails and solid PU tires.
- Plastic front wheels with solid PU tires.
- Aluminum front wheel fork.
- Polyurethane armrests.
- Iron braking system



code: NARROW II-40
