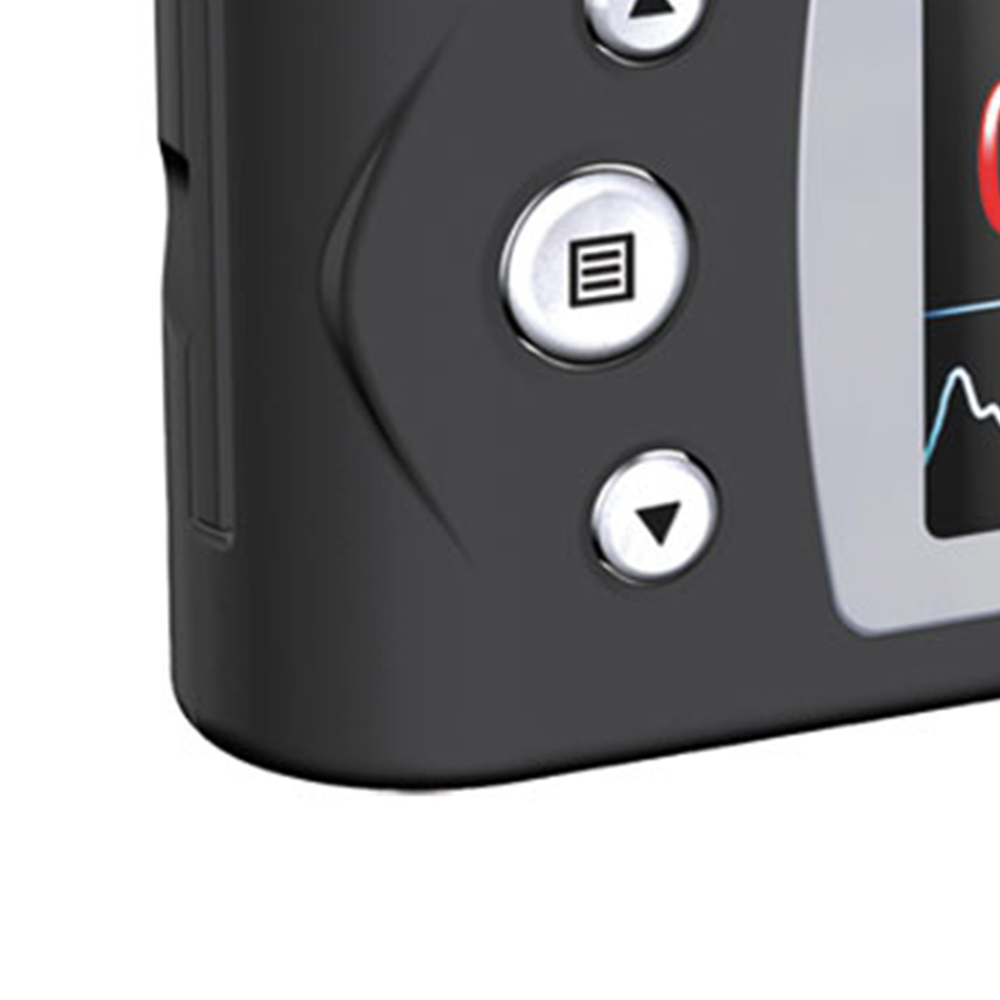

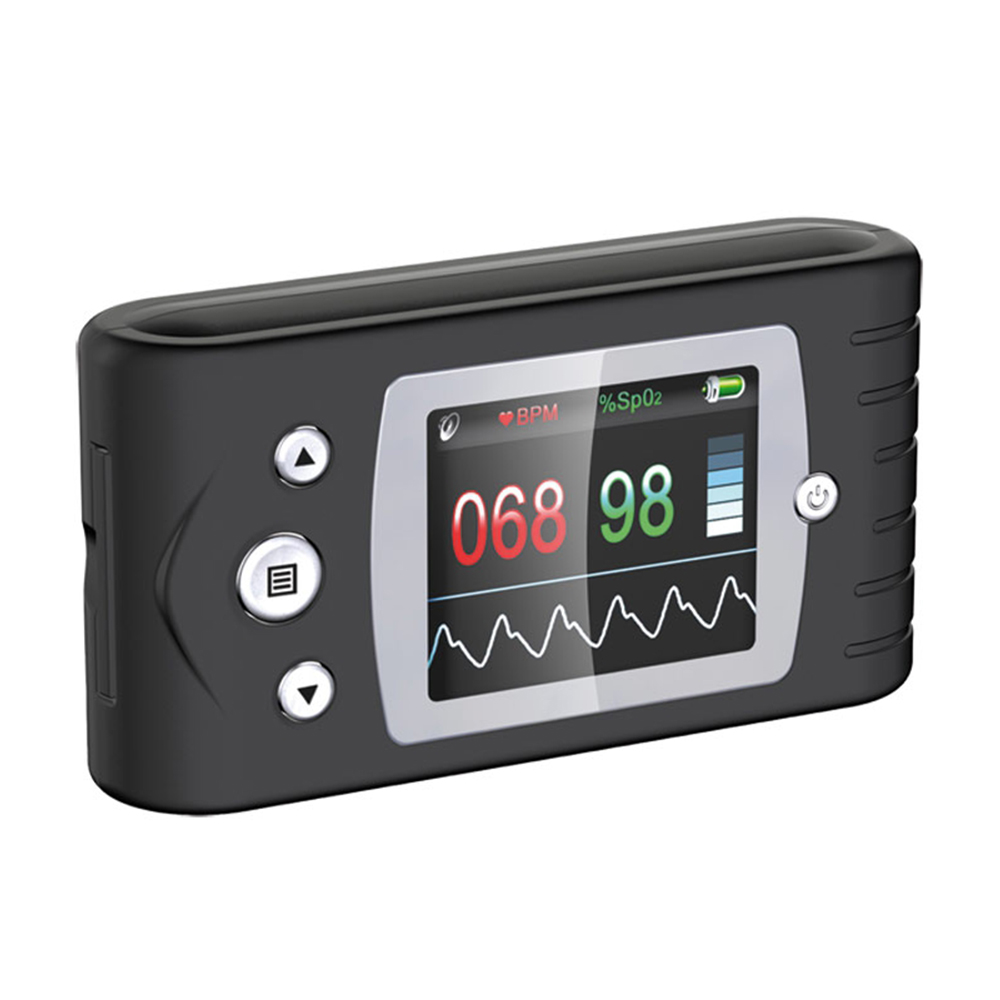

Portable instrument for the non-invasive detection of the amount of oxygen bound to hemoglobin in the blood and heart rate.
Suitable for short-term measurement and monitoring of adults, children and newborns, thanks to the use of dedicated interchangeable probes,
reusable and single-patient use.
Professional model, with large active matrix OLED colour display, adjustable in two positions.
Menu for setting threshold, audible and visual alarms for SpO2 and heart rate.

Detected parameters:
oxygen saturation
heart rate

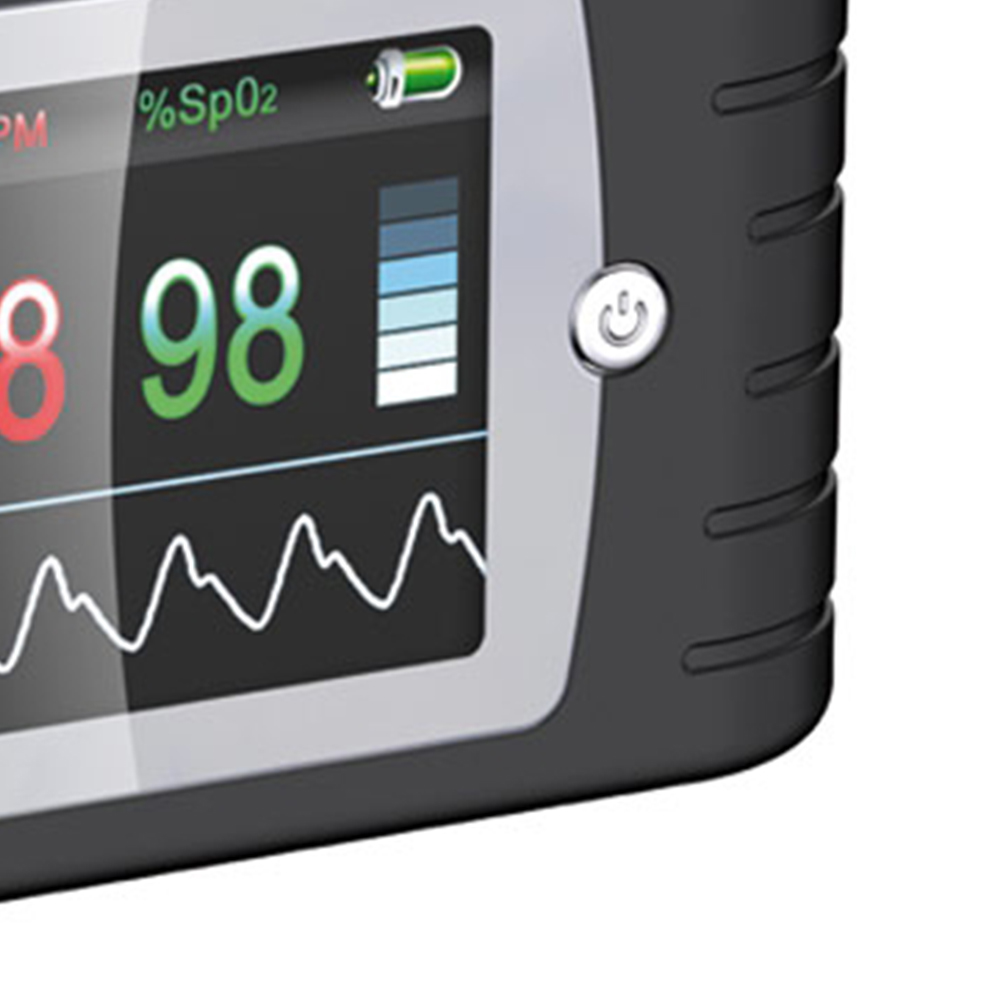

Display of plethysmographic wave, pulse signal intensity and battery charge status.
Windows operating environment software included, to analyze and print desaturation events as graphic and numerical trends and average SpO2 and heart rate values.
Data recording for up to 24 hours.

Characteristics:
rigid interchangeable finger probes, with circular connection;
dynamic segment signal quality indicator;
display brightness adjustable in 3 levels;
rapid detection in about 5 seconds;
operation with rechargeable lithium battery, easily replaceable, with 14 hours of continuous use;
connection to computer via USB port;
Function and software menu in Italian.

CND: Z1203020408
Repertoire: 18248/R

Infrared spectrophotometer measurement method
SpO2 measuring range 35% – 100% - heart rate 30 – 250 beats/minute
SpO2 Accuracy +/- 2% between 70% and 99% - less than 70% not specified
Heart rate accuracy +/- 2 beats/minute or +/-2%
Power supply Internal rechargeable lithium battery
Dimensions 87 (W) x 22 (H) x 45 (D) mm
Detected parameters: blood oxygen saturation and heart rate
Weight 175 g including batteries



barcode: 8052679978892
code: SAT-500
