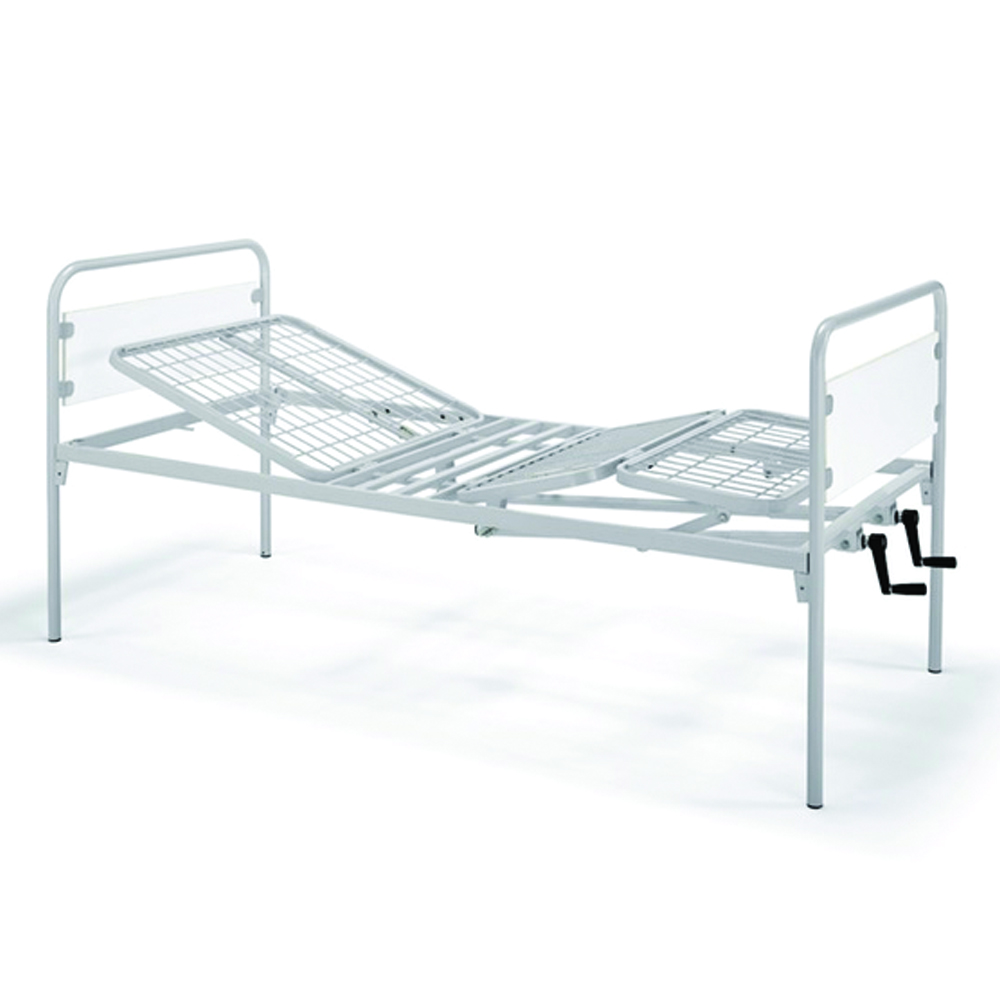

3-joint bed with 4 adjustable sections using two independent cranks.
Network frame
External perimeter load-bearing structure built in rectangular section steel profiles.
Frame with movable sections made of rectangular steel tubing with rounded edges. Rigid mesh made of 100x50 mm rectangular mesh steel rod, welded to the movable frame.
Equipped with two supports for a patient lifting pole and an IV pole.

Network plan sections
4-section bed base.

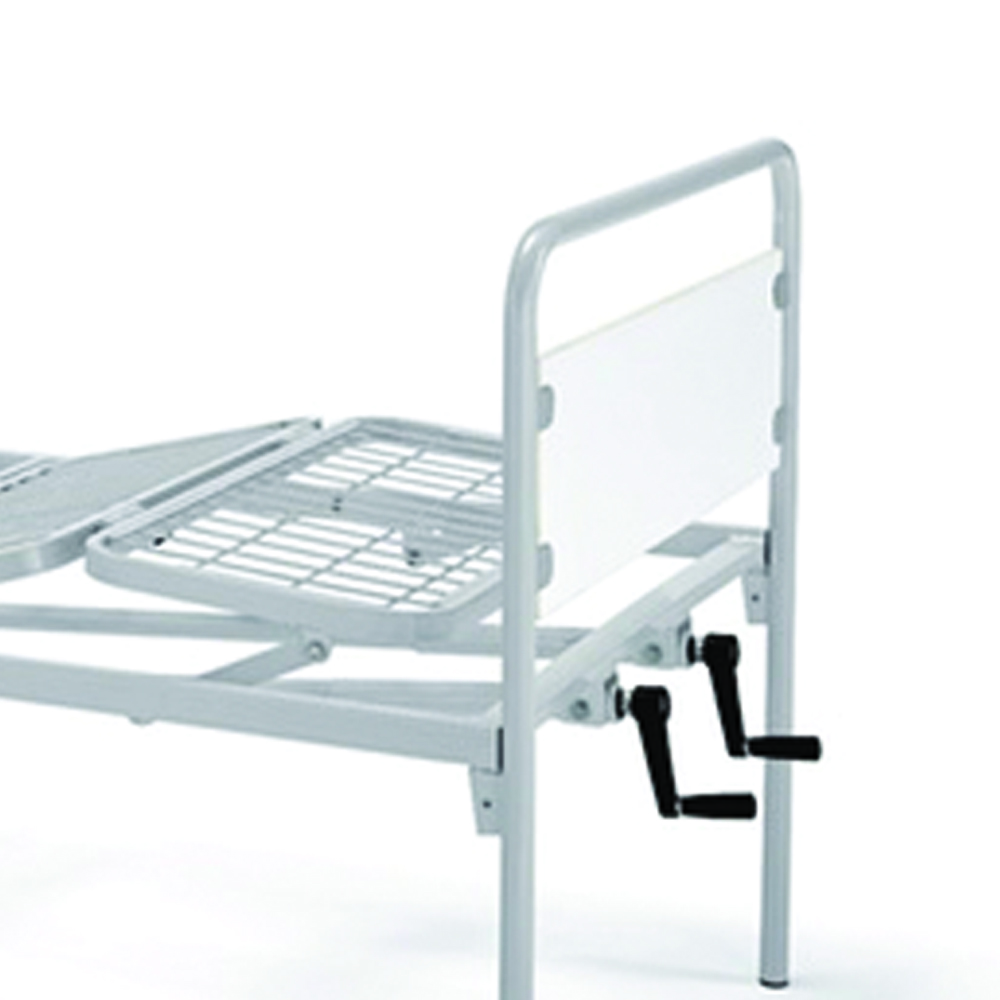

Headrest section and leg section adjustable by means of two independent screw pushers with folding and retractable cranks and with limit switch clutch
Foot section automatically adjustable with the leg section.
Fixed pelvis section.

Shoulders
Removable load-bearing headboard/footboard made of painted round section steel tube Ø 30x1.5 mm with plastic tips at the base (Standard version).
Removable 12 mm thick melamine faced panels. Standard color: White.

Finish
Oven-coated at 200°C with epoxy powders. Color: White.

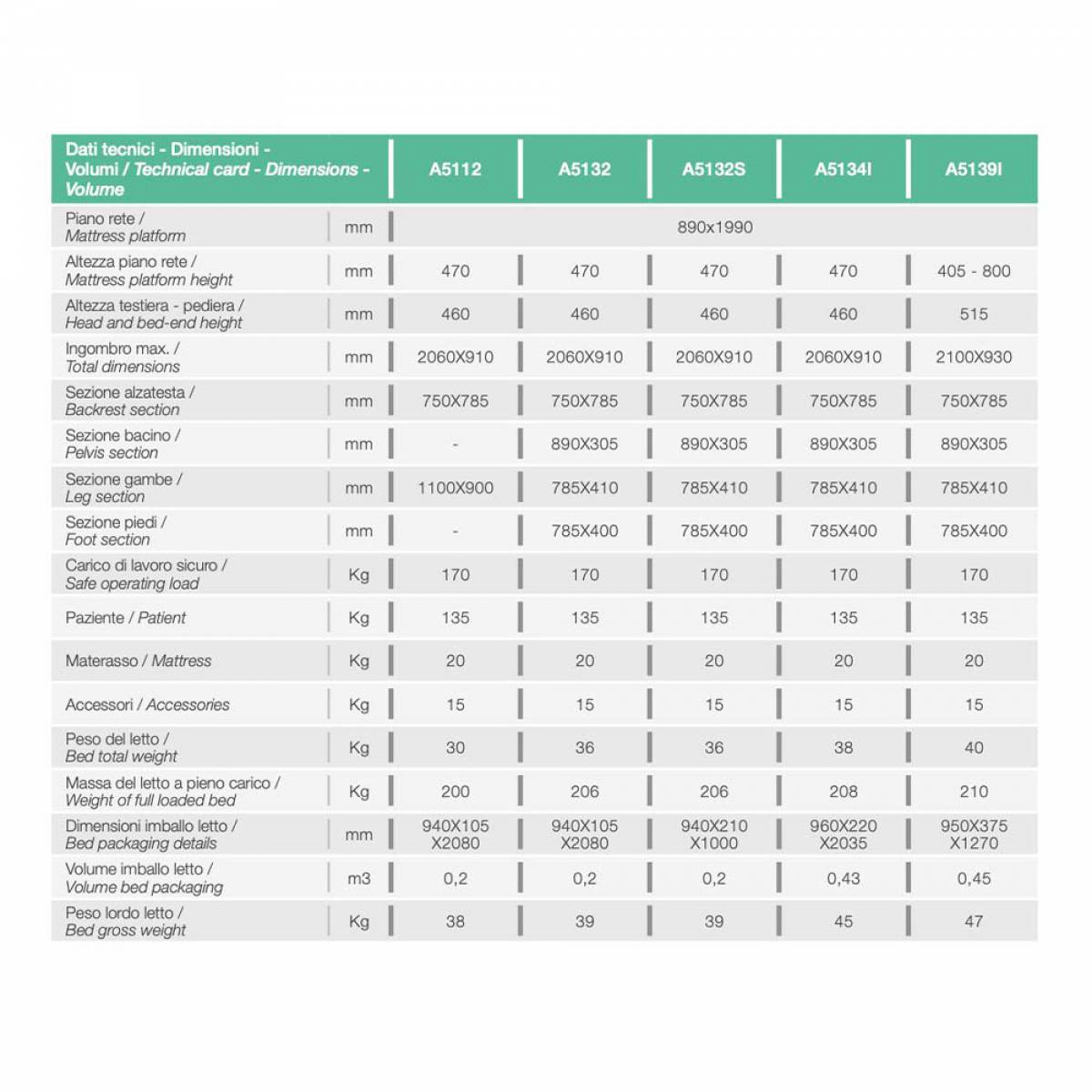

890x1990mm bed base
Safe working load 170kg
Patient 135kg
Bed weight 36kg

Bed packaging dimensions 100x200x10cm weight 40kg



barcode: 8055773182547
code: A5132
