Description:

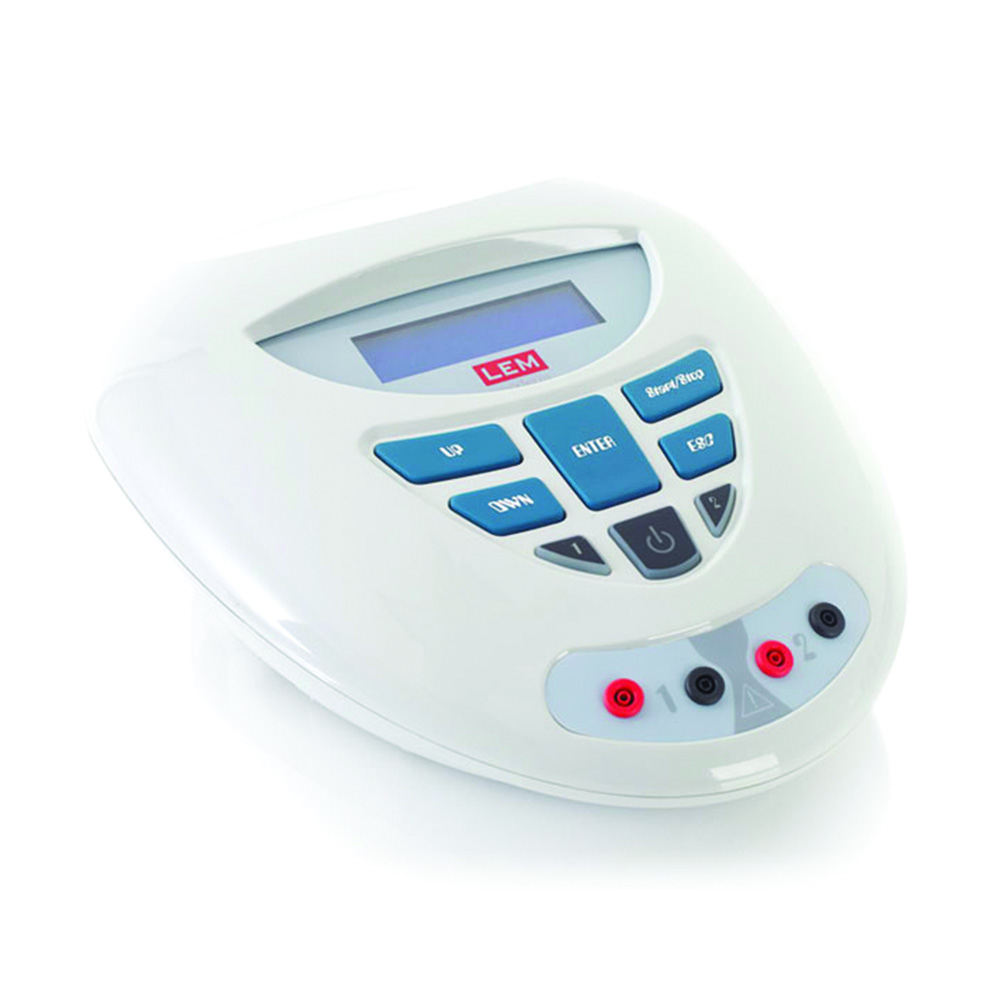

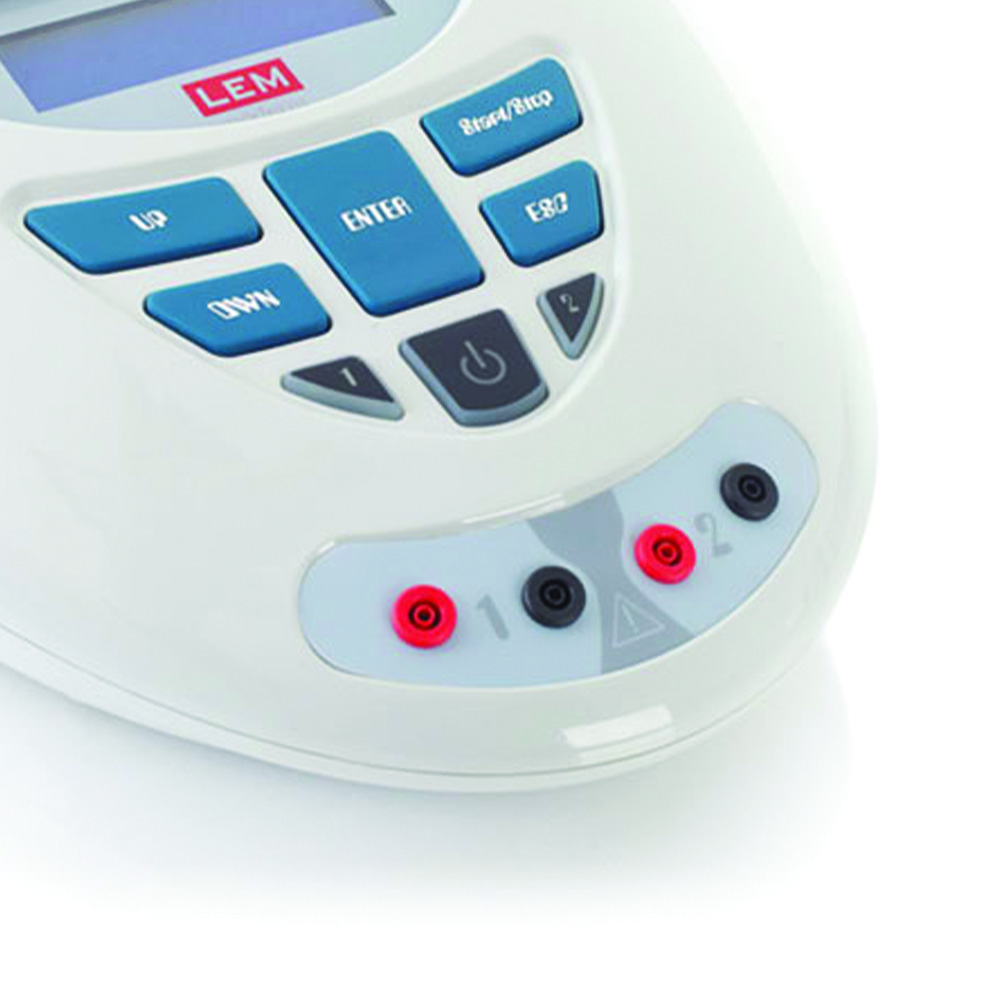

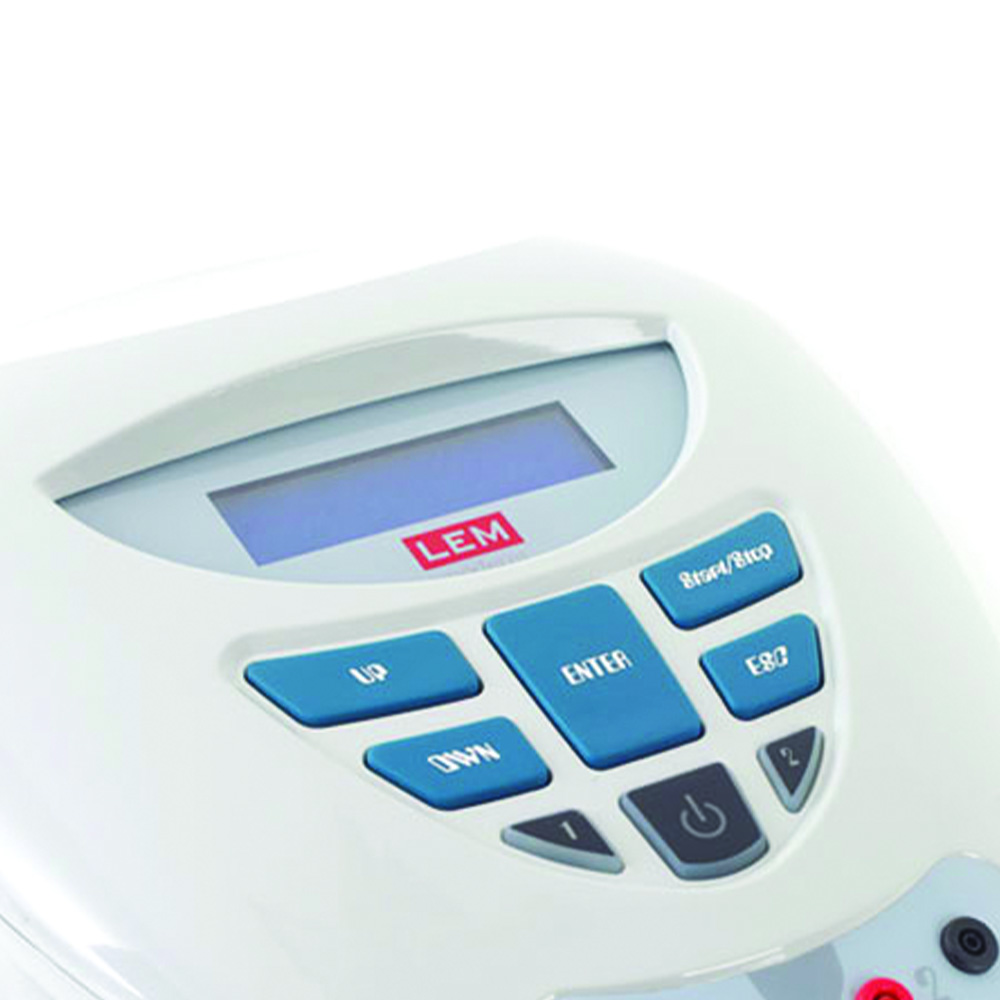

Ionoderm is a generator of therapeutic currents, for short-term use, suitable for galvanization and iontophoresis treatments.

The two types of direct current that can be delivered by the device allow it to be used for galvanisation, medicinal iontophoretic administration and treatment for hyperhidrosis.

The device allows you to work with direct current or with a fixed frequency square wave current, which is more suitable for vehicles as this type of current allows you to obtain an effective concentration of the product transported at a local level as well as possessing a safety level that is certainly more
higher than traditional direct current.

The Ionoderm device is completely managed and controlled by a microprocessor
and has 2 output channels.

The appliance can operate with parameter selection or with the use of programs stored inside.
Technical features:
- Power supply 230 / 50Hz
- Power consumption 22VA
- Internal fuse T 500mA
- Max output current 20 mA (Per Channel)
- Max output voltage 50 V DC
- Galv waveform. Mf square wave 10 Khz
- 2 output channels
- Current type direct current
- Treatment time from 1 to 60 minutes
- Indicat. par. alphanumeric display output
- Visual output indicator
- Safety class. electric II BF
- IP 20 protection rating
- Unit dimensions mm270LX220PX110h
- Weight 1.4 kg

Reference Standards and Directives:
- Directive 93/42/eec (Legislative Decree 46/97)
- Insurance Standard. Quality UNI EN ISO 9001 (2000), UNI CEI EN 13485 (2002)
- Safety Standards En60601-1, En60601-2-10, En60601-1-2
Equipment:
- 1 2m power cable
- 2 red cables with 4mm connectors
- 2 black cables with 4mm connectors
- 4 80x120mm conductive silicone electrodes with 4mm hole
- 4 conductive silicone electrodes 50x50cm
- 4 sponge bags for 80x120mm electrodes
- 4 sponge bags for electrodes 50x50cm
- 2 8x100cm elasticated electrode straps with hook and loop closure
- 2 8x60cm elasticated electrode straps with hook and loop closure



code: LTE340
