The SHERPA tracked stairlift is suitable for non-ambulatory individuals who need to climb flights of stairs in buildings not equipped with suitable equipment, thus proving useful for overcoming architectural barriers.
It consists of a metal structure that moves on rubber tracks, equipped with a rudder for guiding and anchoring a wide range of wheelchairs.
The control and emergency buttons are ergonomically arranged on the tiller.
Movement is entrusted to an electric motor managed by an electronic control unit that allows for soft starts and stops and provides a high level of driving comfort.
The power supply is battery-powered and the remaining charge is monitored on the control panel.
The tracks allow for forward and reverse maneuvers, while a pair of maneuvering wheels intervene when changing direction, which extend automatically.

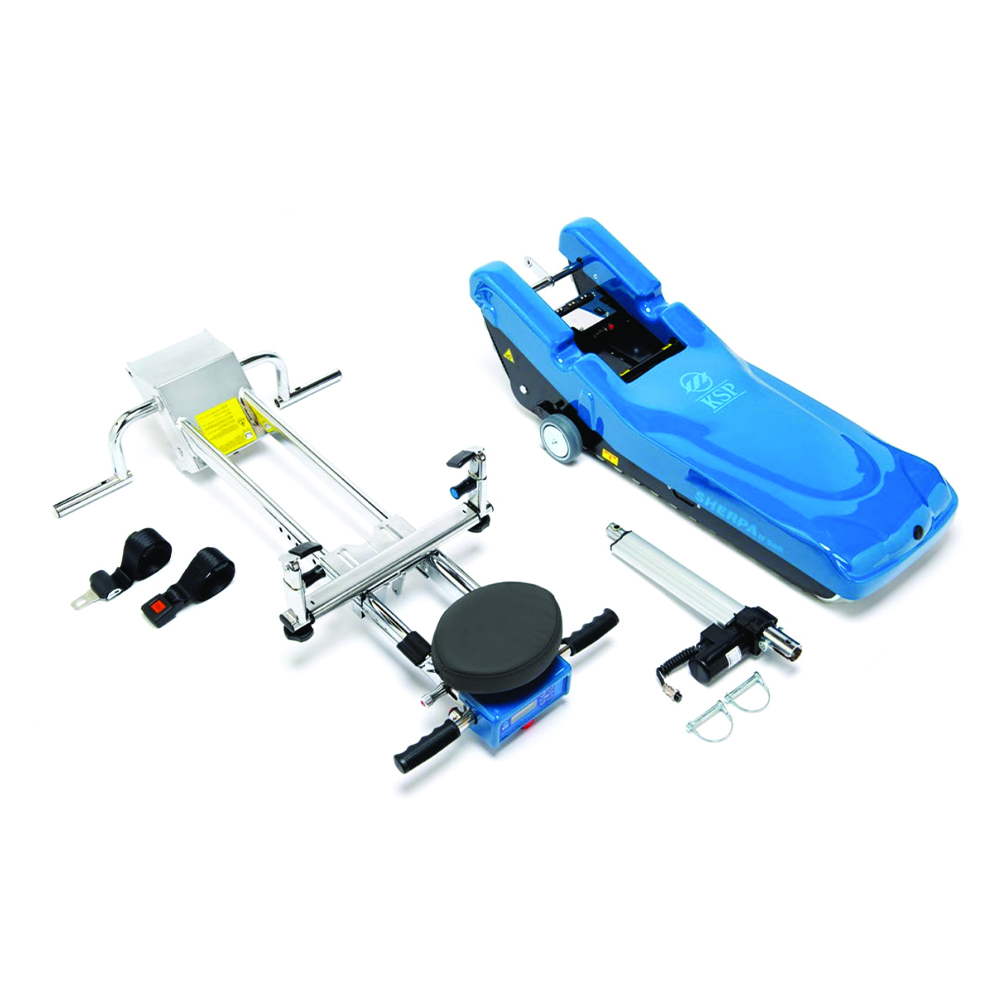

The machine is easily transportable since the detachable tiller reduces its size and weight, making it easier to handle.
The movement of the machine body is carried out via a button located on the control panel on the back.

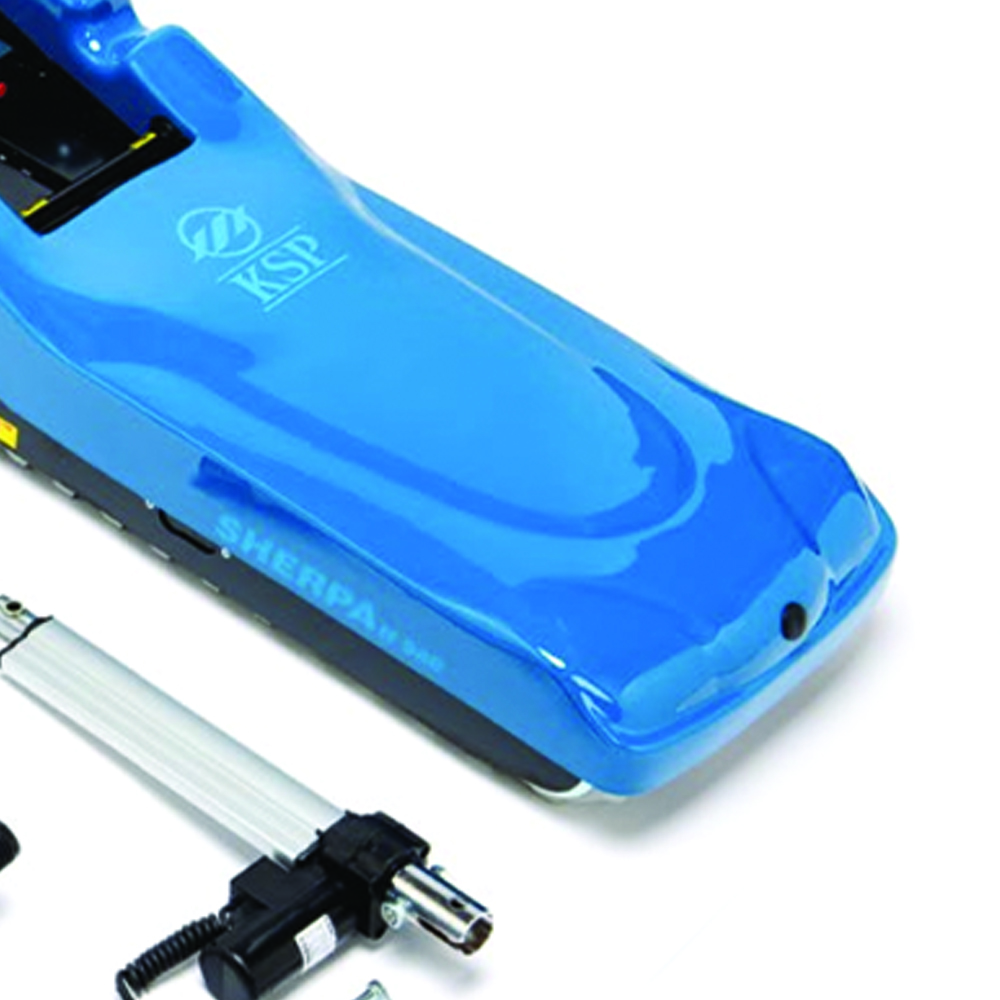

The supporting frame of the structure is made of electro-welded steel and treated with a cataphoresis process, while the rudder is made of steel tube trusses.
The shockproof thermoformed polystyrene covers finish the product with a refined and modern design.
The extremely low height of the stairlift makes it easier to accommodate various types of wheelchairs.
The new front and rear LED lighting devices ensure excellent visibility in both directions of travel even in poor lighting conditions or sudden blackouts.
Mechanical innovations for greater safety
- Battery terminal protection
- Self-resetting internal fuse protection
- Machine bottom protection
- Elimination of side openings

Visual messages and audible alarms for safer and more secure use
- Low battery alarm, very inhibited
- Visual and audible alarm for low battery level
- Excessive load signal
- Excessive slope, acoustic signal
- Negative tilt, anti-tip acoustic signal
- Excessive motor absorption control; if the machine collides with an obstacle, the device blocks motion in that direction and only takes reverse motion commands.
- Functions inhibited with battery charger inserted
- Acoustic alarm active during maneuvers with the additional wheels lowered
- Stand-by after 5 minutes of inactivity and audible alarm every 30 seconds

Main features:
New electronics that characterize the machine making it even more reliable with better performance
Extreme driving comfort with soft stops and starts
New simple and intuitive control panel
Emergency stop button
Seat belt

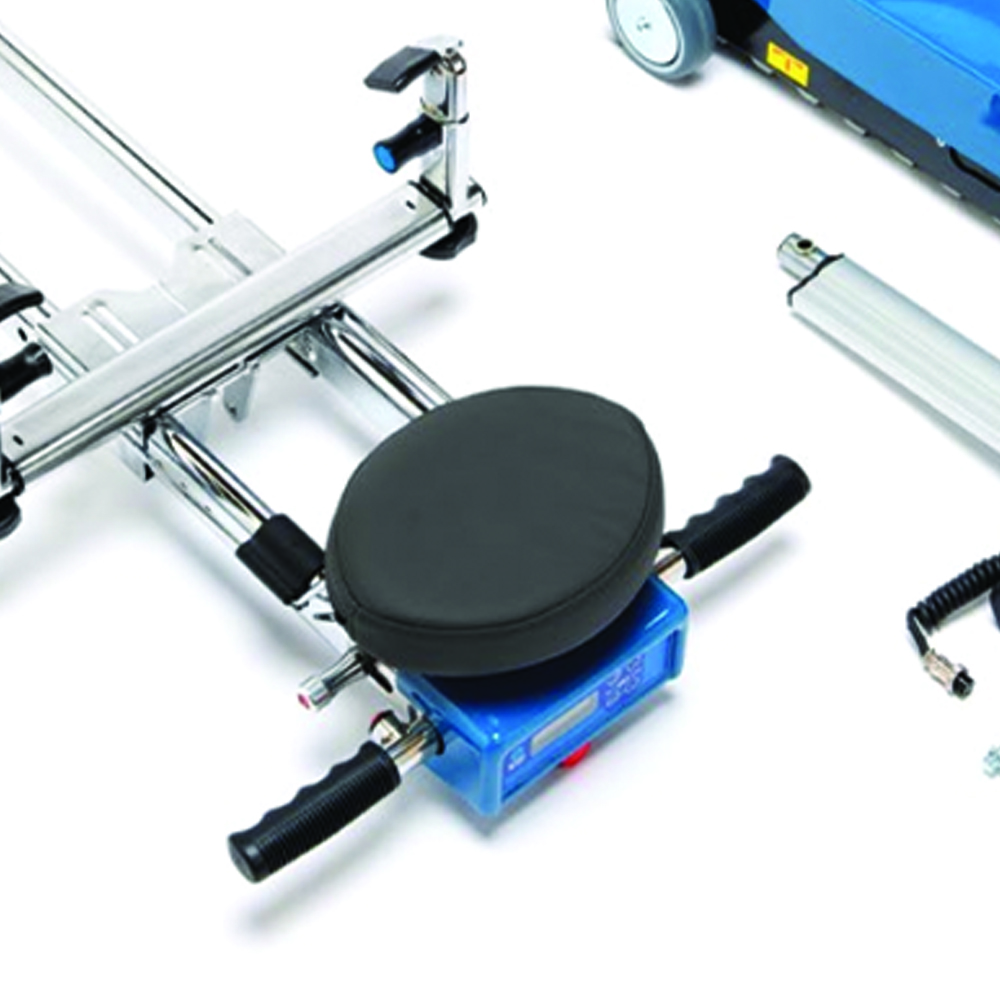

Locking/unlocking and steering safety controls located on the top of the tiller for easy access and use
Folding wheelchair attachment support arms
Adjustable and removable headrest

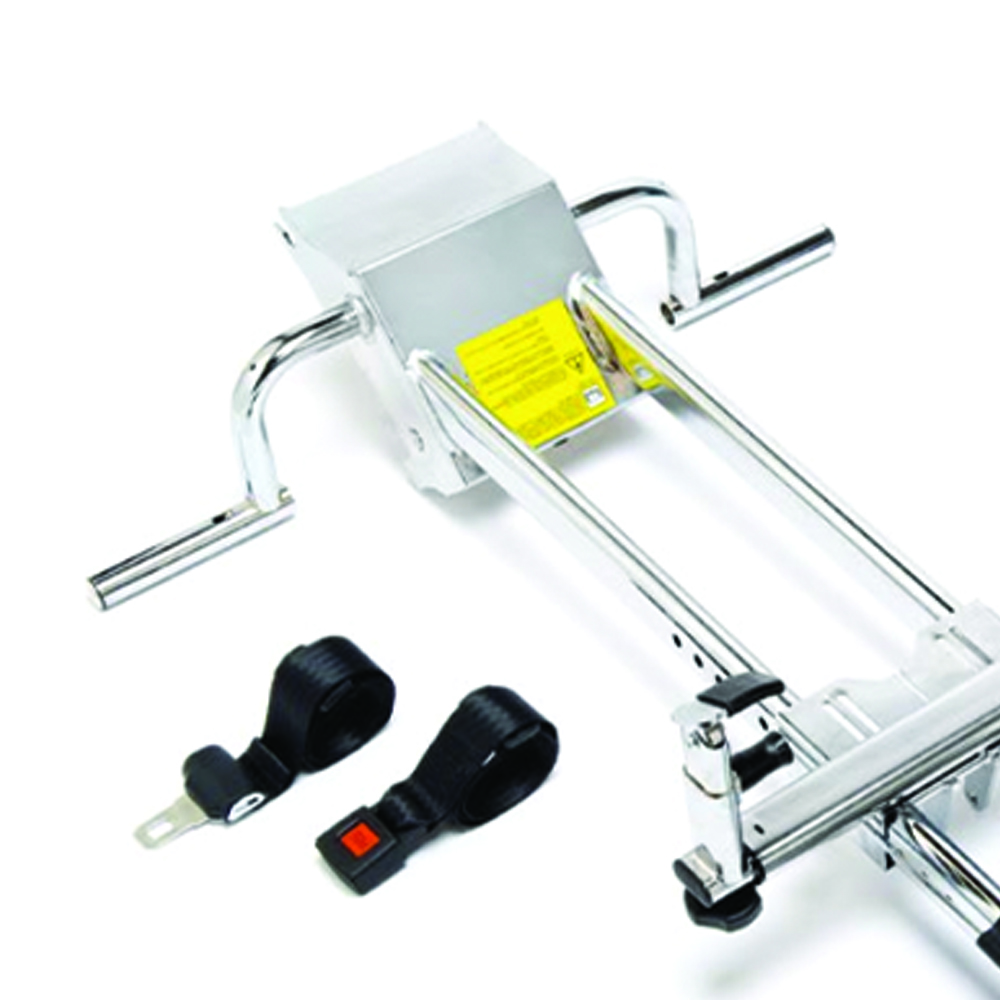

Wheelchair attachment bar adjustable in height and width with articulated clamps
External battery charger (standard version)

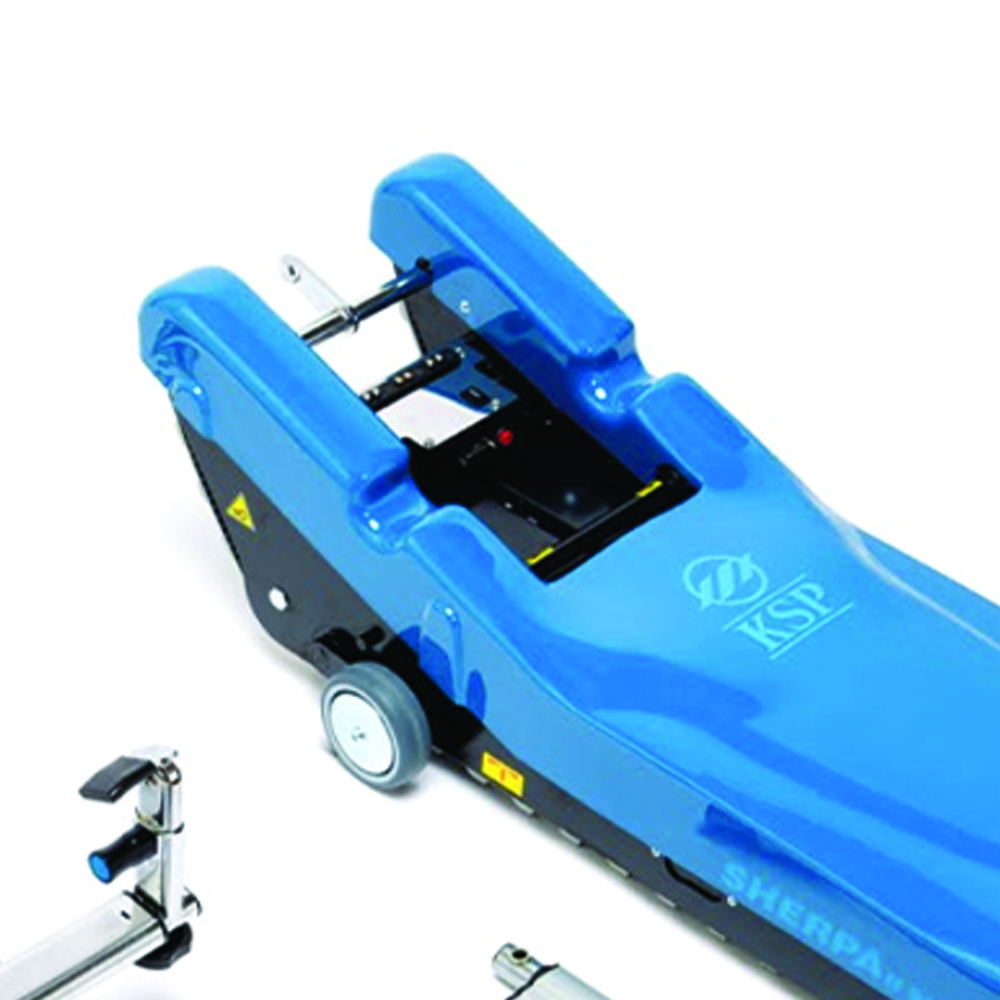

Self-balancing maneuvering wheels for immediate use on flat surfaces
Front and rear LED lighting
- Driven by irreversible gearmotor and electronic control with soft start and stop functionality
- Automatic self-locking system of the vehicle in case of emergency or power failure
- Silent running: elimination of “clamp” type noises when starting and stopping (absence of contactors)
- Driving comfort: soft starts and stops, no vibrations
- Safety: the adoption of electronic and mechanical measures guarantees a high level of general safety
- Maintenance: parts subject to wear are easy to replace thanks to the easy access and connectorization of the electrical system
- Design: modern and functional
- Quality: the control standards applied to the production process guarantee a high quality of the product
- Engine with “irreversible” mechanical transmission
- Complete protection of moving parts to prevent the intrusion of foreign bodies
- Power cable presence control device with operation inhibition
- Rudder attachment system equipped with safety lock
- Reduction of electromagnetic emissions
- Emergency button for total inhibition of functions
- Structure without openings for protection from water and dust as required by current regulations

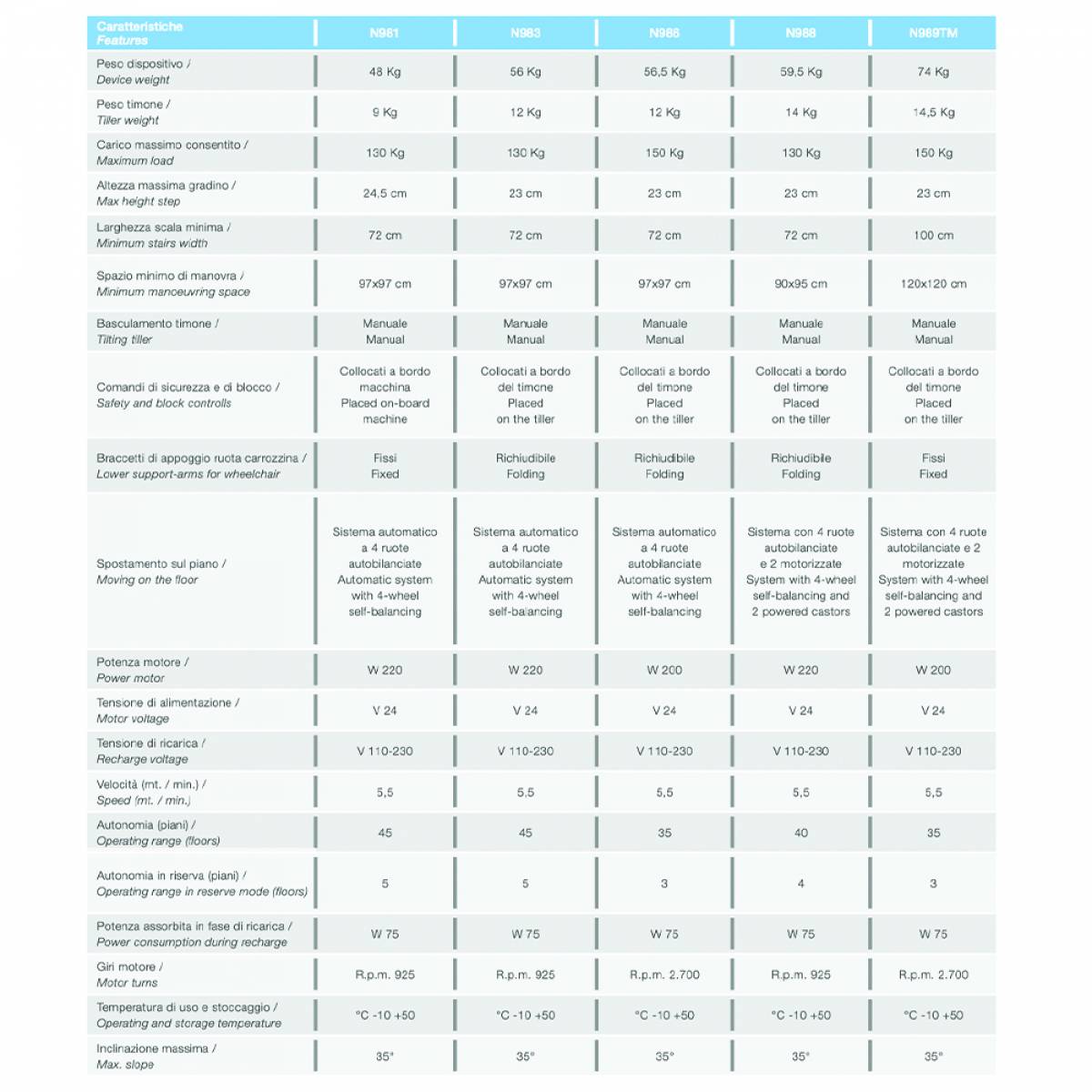

Technical features:
Device weight: 56.5 kg
Rudder weight: 12 kg
Maximum load allowed: 150 kg
Maximum step height: 23 cm
Minimum ladder width: 72 cm
Minimum maneuvering space: 97 x 97 cm
Rudder tilt: Manual
Safety and lock controls: Located on the helm
Wheelchair wheel support arms: Foldable
Moving on the plane: Automatic system with 4 self-balancing wheels
Motor power: 200 W
Supply voltage: 24 V
Charging voltage: 110 - 230 V
Speed (mt. / min.): 5.5
Autonomy (floors): 35
Reserve autonomy (floors): 3
Power consumption during charging: 75 W
Engine speed: 2,700 rpm
Usage and storage temperature: -10 +50 °C
Maximum inclination: 35°
Power supply: 24 VDC electronically controlled
Maximum slope: 70% equal to 35°

The price includes: installation and training on use by a KSP technician





code: N986
