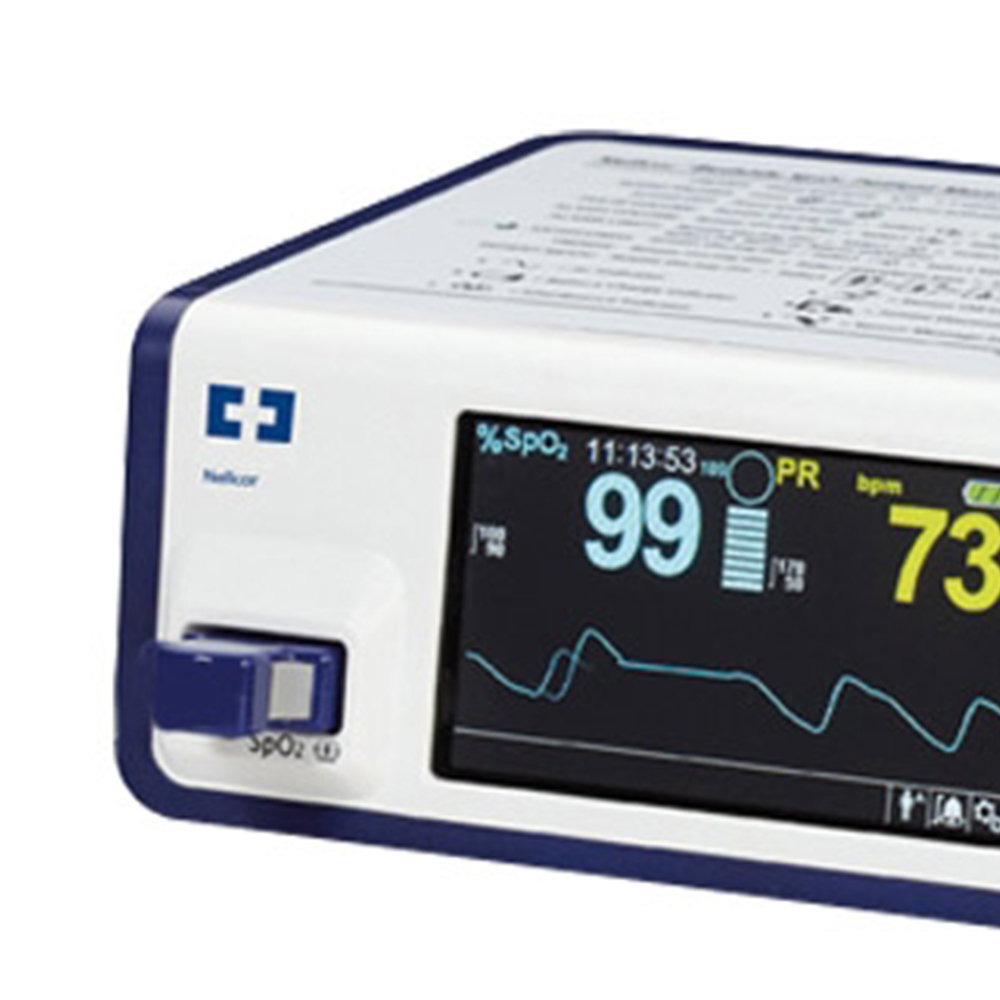

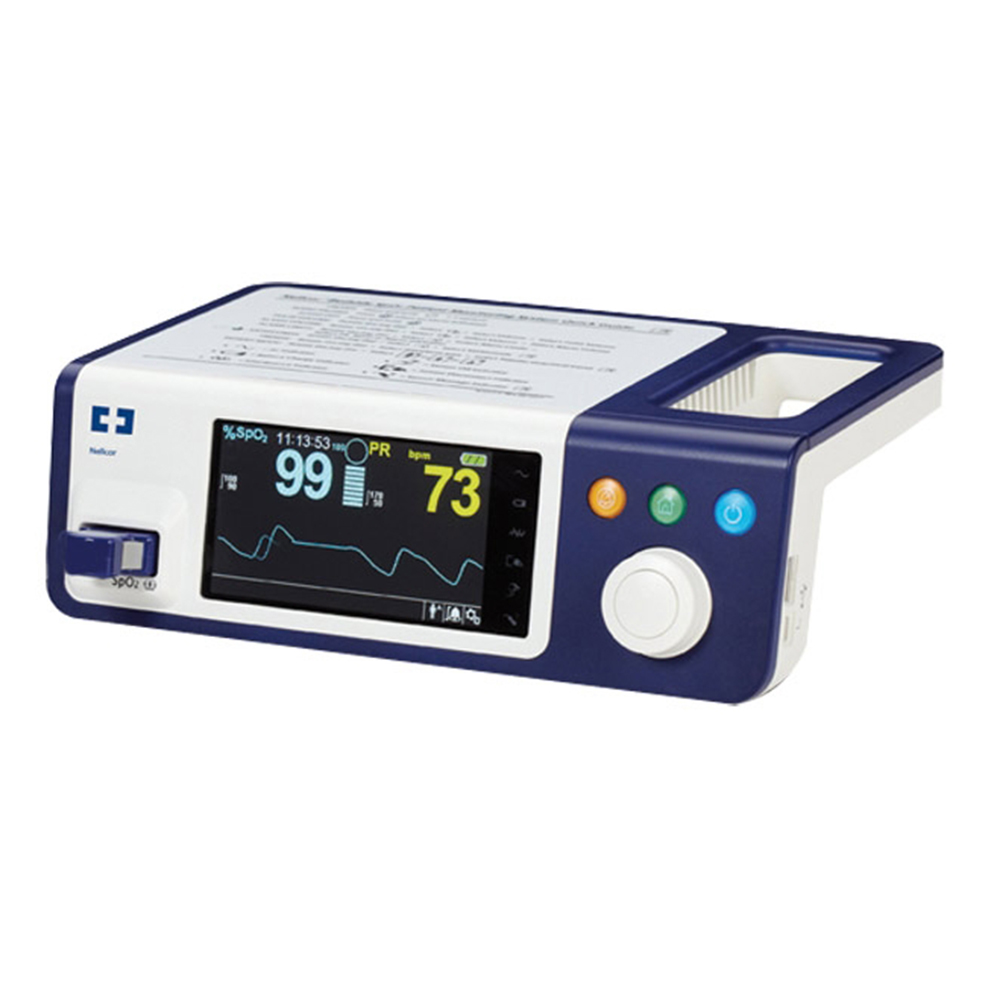

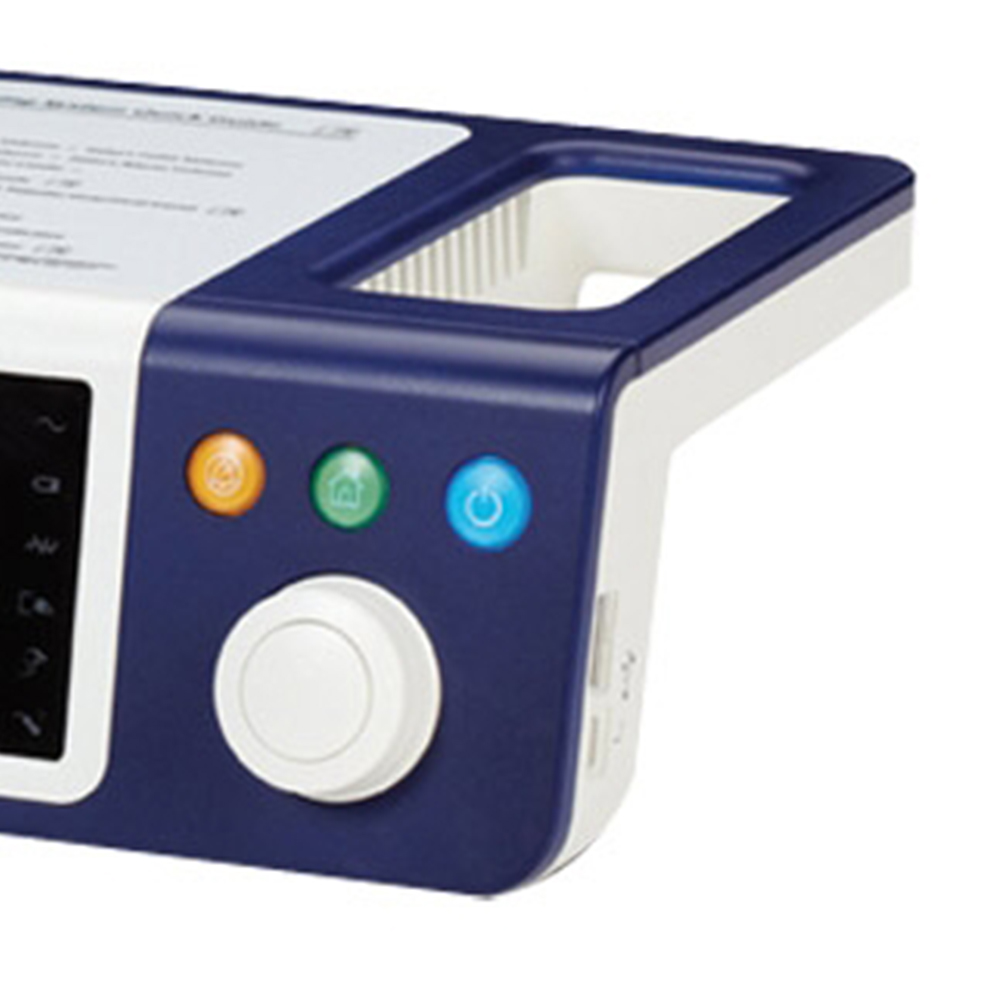

Bedside and transport monitor for the detection of functional arterial oxygen saturation, pulse rate and display of the plethysmographic curve
Indicated for adult patients and in the pediatric and neonatal fields.
The monitor and sensor form the OxiMax “system” capable of guaranteeing excellent performance in terms of precision and accuracy of the data detected even in conditions of movement and low peripheral perfusion of the patient.
The accuracy of the data collected with the OxiMax system reduces false alarms.
User-settable audible and visual alarms with three different priority levels: low, medium, high.
Alarm management with SatSeconds™ that allows clinicians, for the first time, to have a tool that allows them to manage false alarms caused by transient desaturations.
SatSeconds™ calculates a number that represents the severity and duration of an alarm violation.
Storage of 96 hours of trends.

Characteristics
power-on self-test;
quick reference menu;
data transmission port: USB cable for trend data download;
visual indicators for: mains connection, low battery, interference indicator, sensor disconnected, sensor not connected, sensor message;
Adjust the volume of the audible alarms/pulse tone.
CND: Z1203020408
Repertoire: 632359/R

Infrared spectrophotometer measurement method
SpO2 measuring range 1% – 100% - heart rate 20 – 250 beats/minute
SpO2 Accuracy Adults: +/- 2% between 70% and 100% - +/- 3% between 60% and 80%
newborns +/- 2% between 70% and 100%
low perfusion +/- 2% between 70% and 100%
adults in presence of movement +/- 32% between 70% and 100%
Adult and neonatal heart rate accuracy +/- 3 bpm between 20 and 250 bpm
low perfusion +/- 3 bpm between 20 and 250 bpm
adults and newborns in the presence of movement +/- 5 bpm between 20 and 250 bpm
Mains powered and rechargeable battery
Dimensions 255 (W) x 82 (H) x 165 (D) mm
Detected parameters: blood oxygen saturation and heart rate
Weight 1.6 kg including battery



code: SAT-BED
