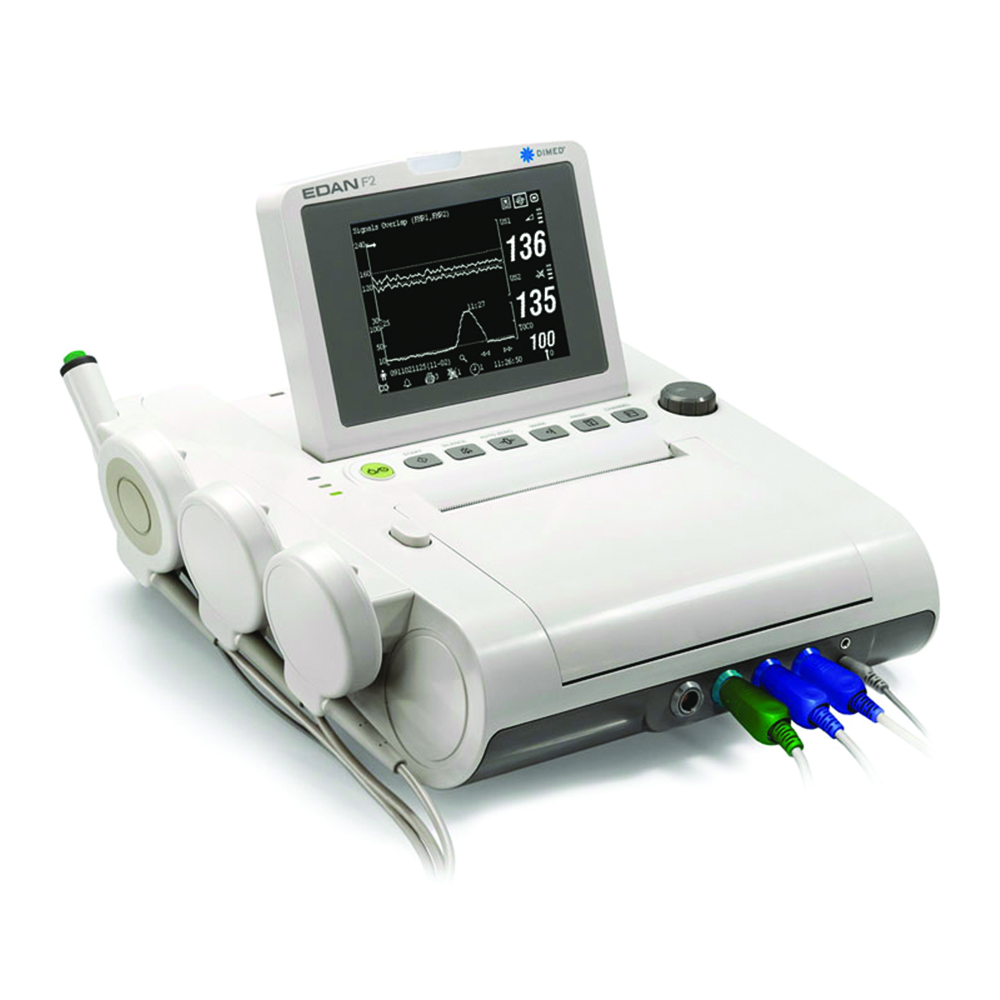

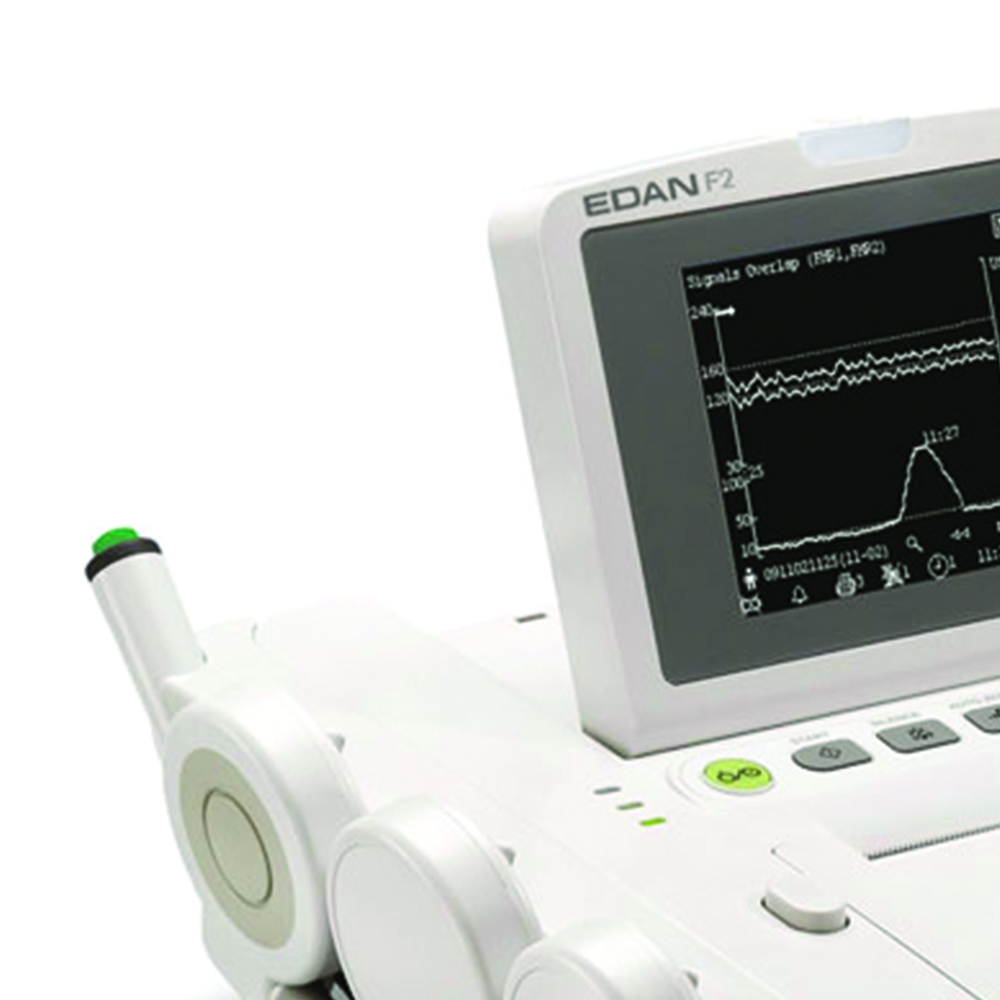

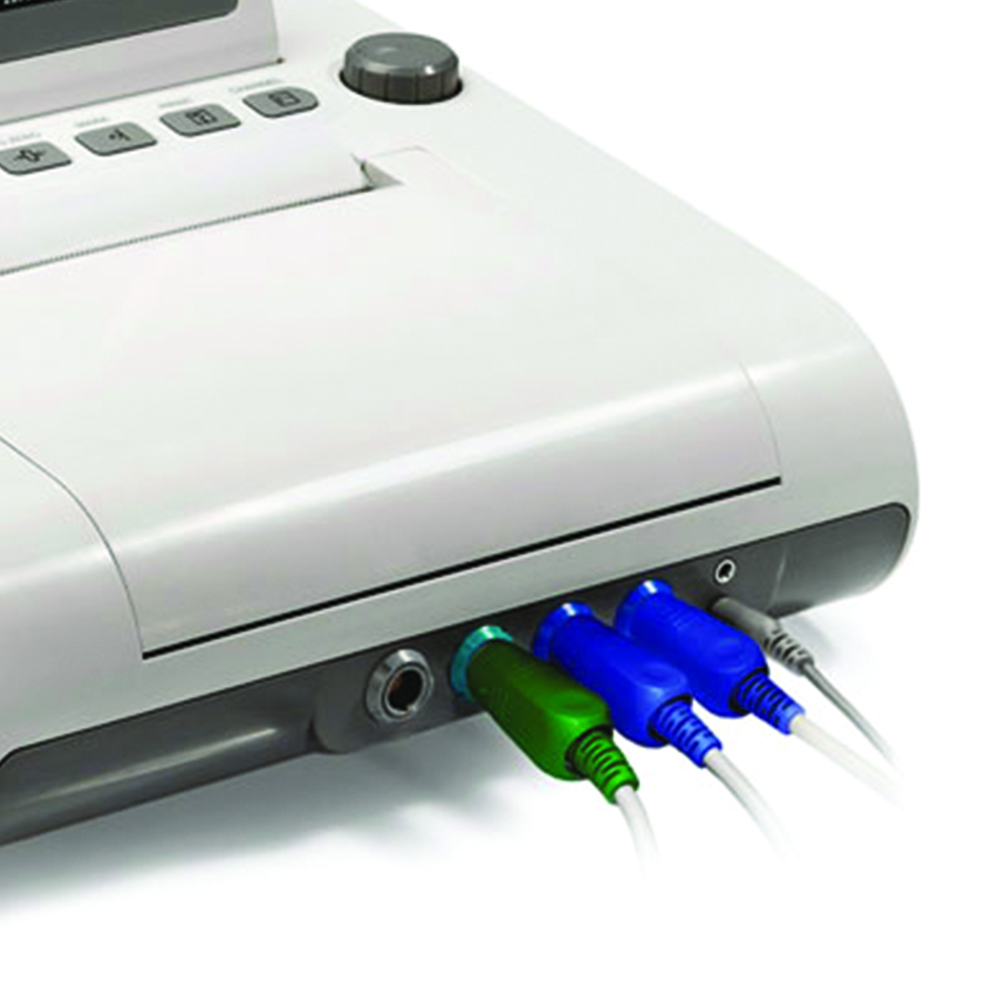

Lightweight, portable and extremely compact. Lithium battery (OPTIONAL). Large 5.6” LCD display, foldable. Advanced FHR features, check of overlapping signals to differentiate FHR of twins (only for LTD556-566), FHR signal quality indicator to optimize probe position. Basic functions of FHR, TOCO and automatic fetal movement recognition. Integrated printer. 12 hours of memory . Easy to use thanks to the PC software included in the package. Integrated USB port.
Supplied accessories:
– Event marker
– FHR probe
– TOCO probe
– 3 Spare paper (90mm × 152mm × 150p, US Standard, per piece)
– RS323 to USB Adapter and Driver CD, Software (CD)
– 2 Belts, Ultrasound Gel (CE Mark, 250g)

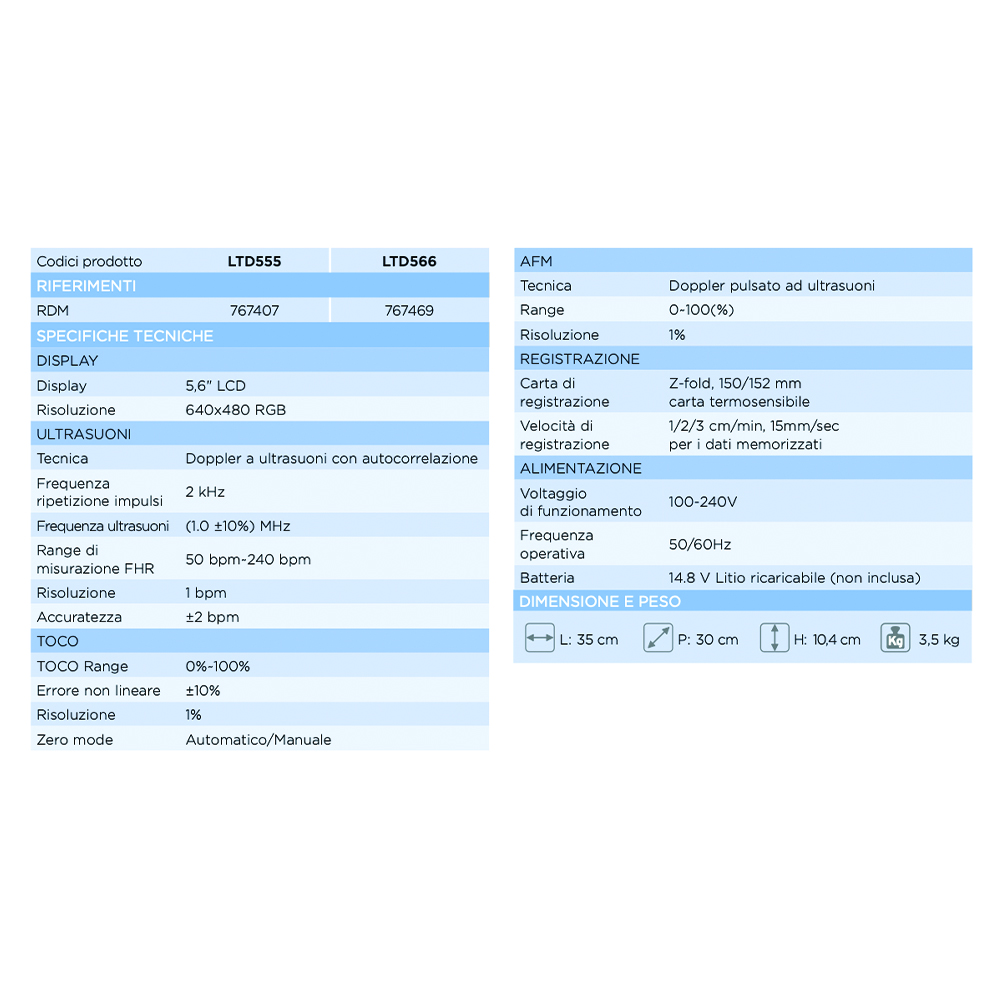

Display

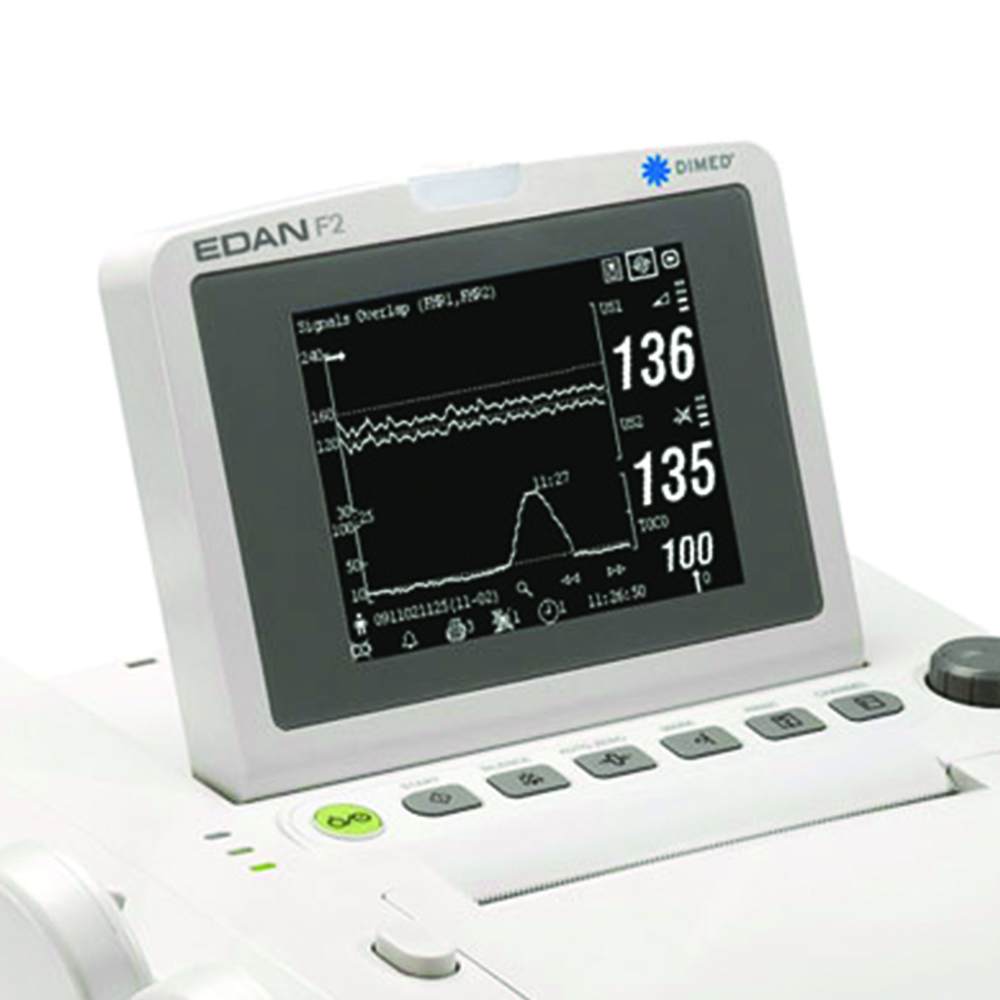

Display: 5.6" LCD
640×480 RGB resolution
Ultrasound channel
Technique: Pulse repetition rate with autocorrelation
Pulse repetition rate: 2kHz
Ultrasound frequency: (1.0 ±10%) MHz
FHR measuring range: 50bpm~240bpm
Resolution: 1 bpm
Accuracy: ±2 bpm
/ob: <10mW/cm2
Toco
TOCO Range: 0%~100%
Non-linear error: ±10%
Resolution: 1%
Zero mode: Automatic/Manual
AF extension
Technique: Pulsed Doppler ultrasound
Range: 0-100(%)
Resolution: 1%
Manual Fetal Movement
Method: Remote Indicator
Registration
Recording paper: Z-fold, 150/152 mm heat sensitive paper
Recording speed: 1/2/3cm/min, 15mm/sec for historical data
Diet
Operating voltage: 100-240V~
Operating frequency: 50/60Hz
Battery: 14.8V rechargeable lithium (not included)
Dimensions: W:35 x D:30 x H:10.4cm
Weight: 3.5kg
















code: LTD555
