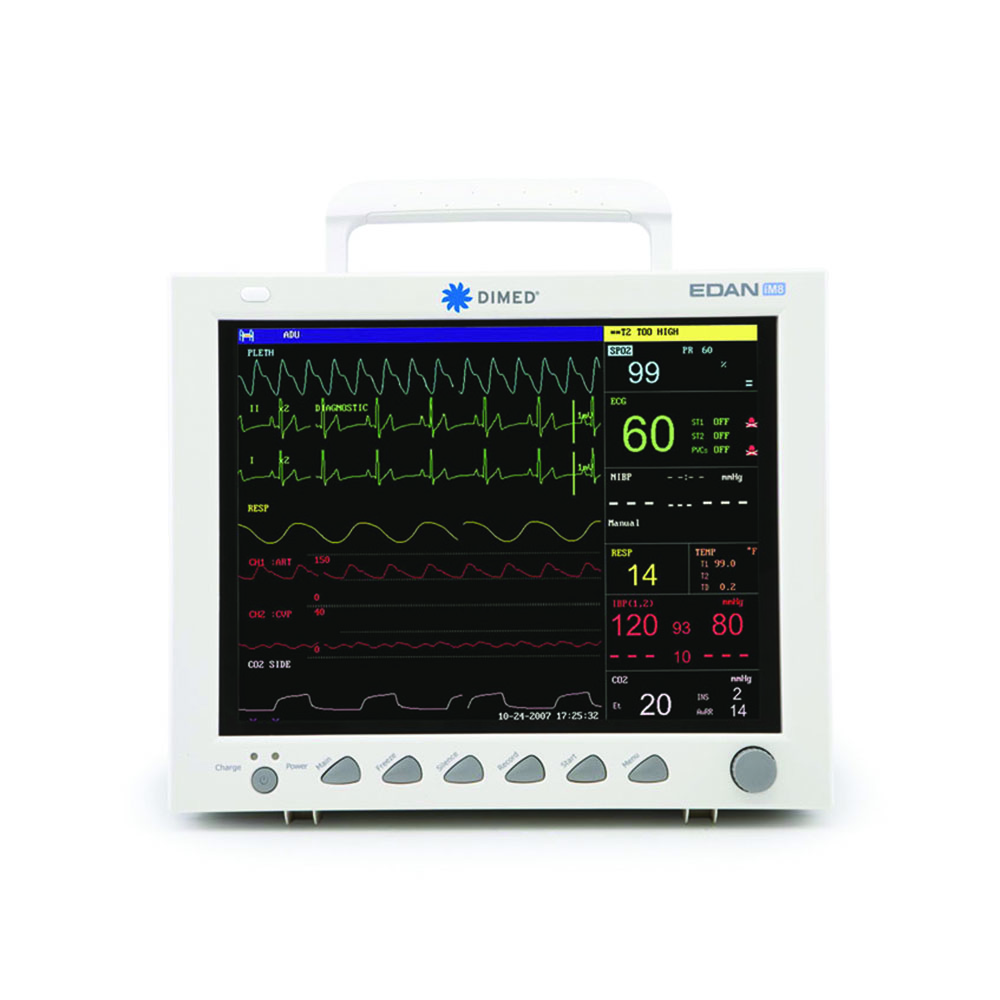

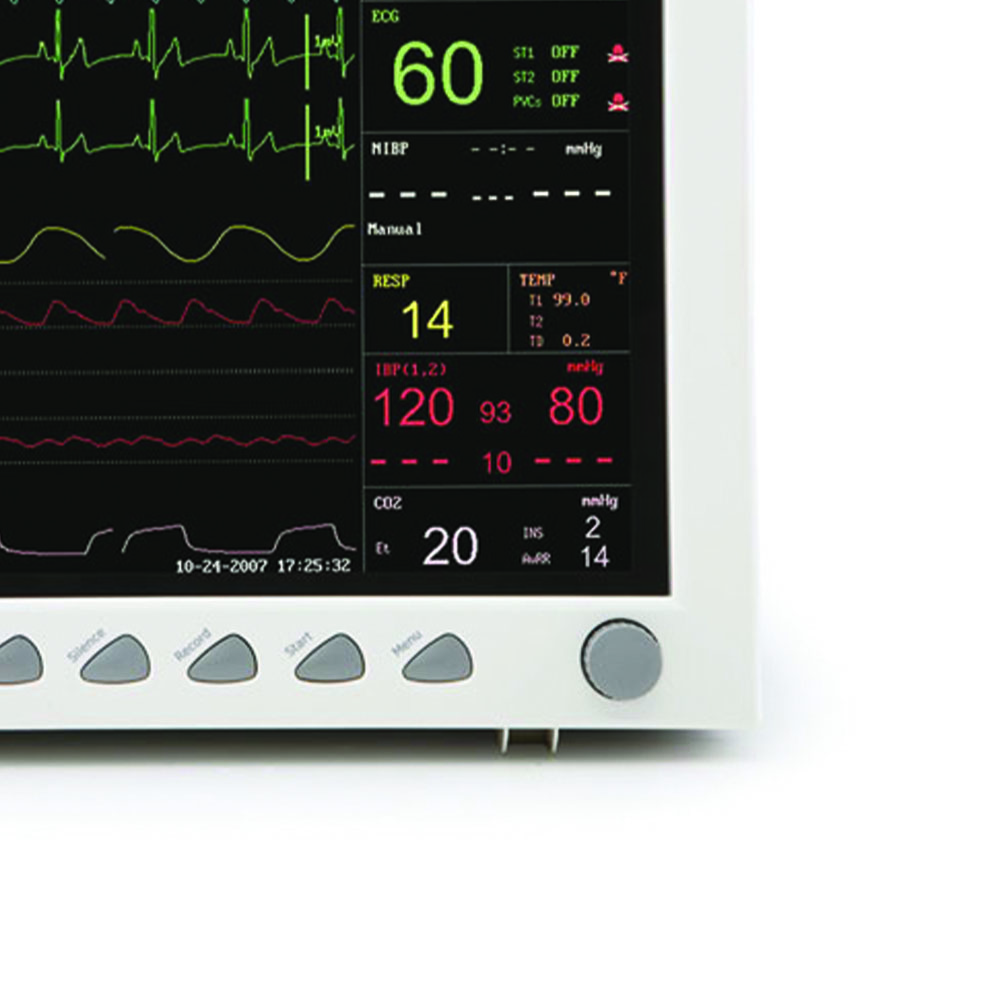

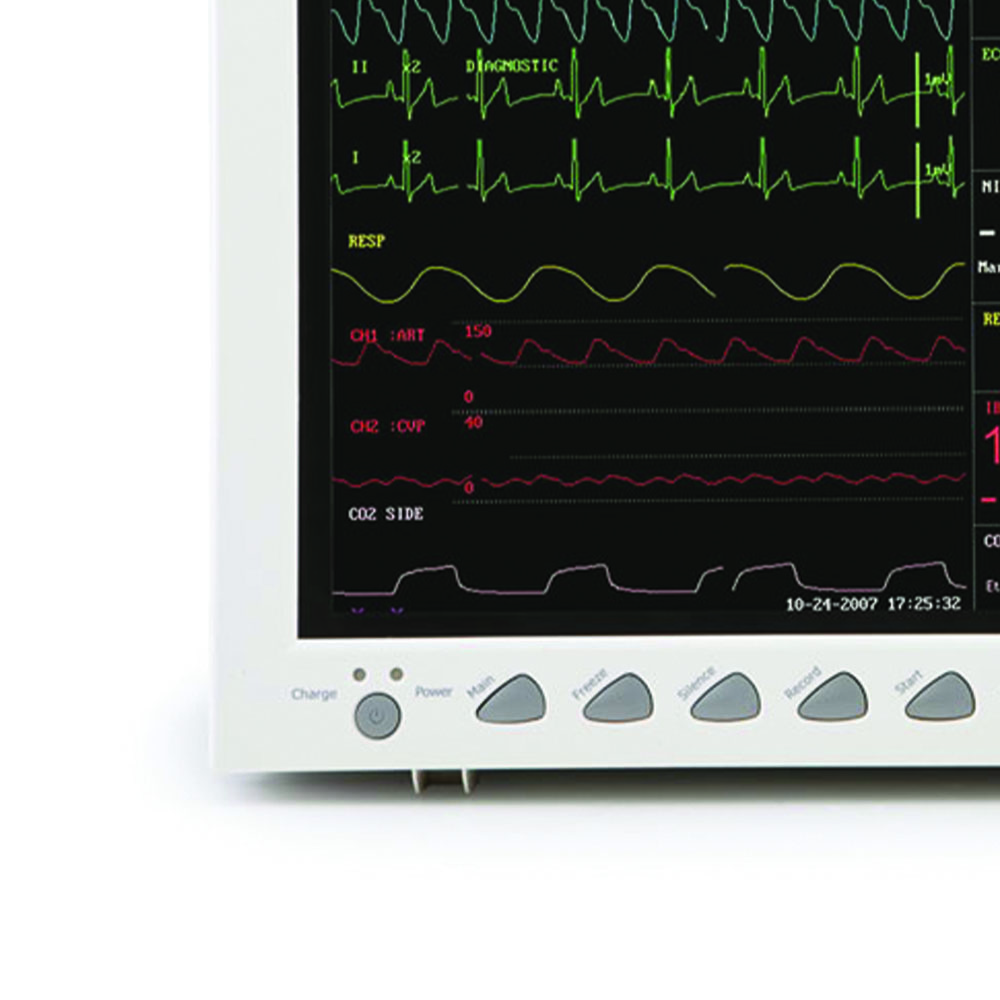

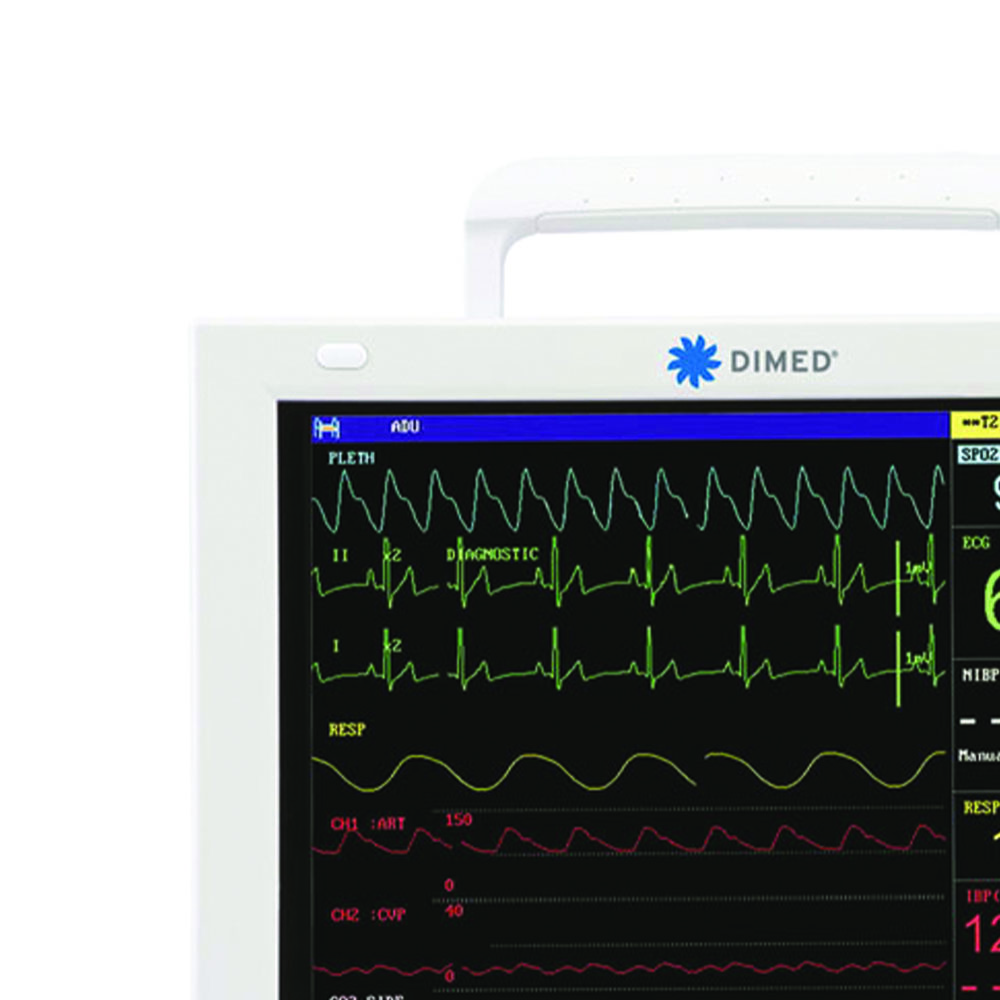

Resistant and compact structure, large high resolution LCD-TFT color display. Handle for easy movement. ECG, RESP, SpO2, NIBP, PR, 2-TEMP display. Indicated for use on adults and neonates. Arrhythmia analysis. Pacemaker detention, defibrillation and electrosurgical interference protection. 96 hours of memory of all values, 500 NIBP measurements and 60 alarm events. USB port.
Supplied accessories:
– 1 5-way anti-defibrillation clip ECG cable, IEC, 3.5m, reusable
– Power supply (standard EUR)
– Rechargeable lithium battery (14.8V, 2100mAh)
– SpO2 finger sensor, adult, 2.5m, reusable
– Adapter cable for LDR200
– NIBP cuff, Adult, 25cm-35cm, reusable
– Earth cable
– 30 ECG electrodes, adult, disposable
–NIBP tube, 3m
– Skin temperature probe, adult, 3m, reusable

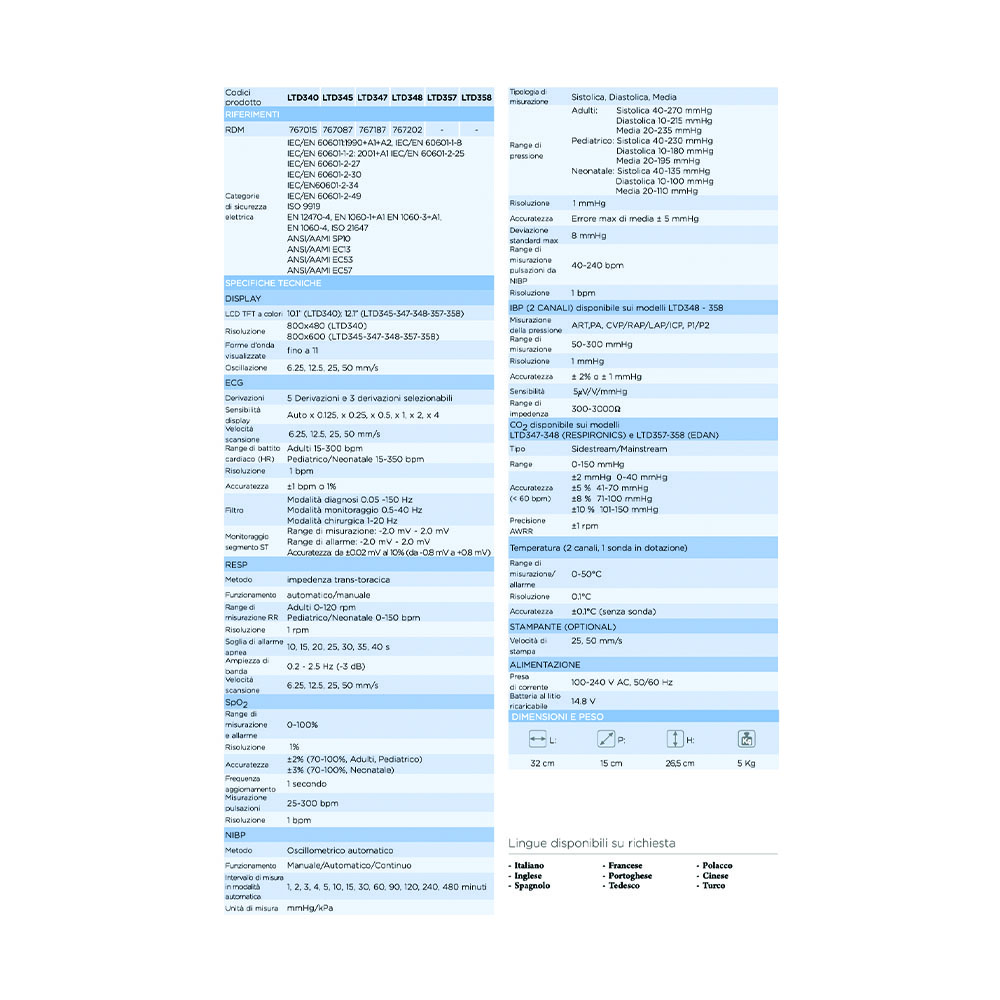

Display
Color TFT LCD: 12.1”
Resolution: 800×600
Tracks displayed: up to 8
Waveforms displayed: up to 11
Oscillation: 6.25, 12.5, 25, 50 mm/s
ECG
Leads: 5 leads and 3 leads selectable
Display sensitivity: Auto x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
Scan speed: 6.25, 12.5, 25, 50 mm/s
Heart rate range (HR):
Adults 15~300 bpm
Pediatric/Neonatal 15~350 bpm
Resolution: 1 bpm
Accuracy: ±1bpm or 1%
Filter: Diagnosis mode 0.05 – 150 Hz / Monitoring mode 0.5 – 40 Hz / Surgical mode 1 – 20 Hz
Diagnosis mode 0.05 ~150Hz
Monitoring mode 0.5~40Hz
Surgical mode 1~20Hz
Segment Tracking: Measurement range -2.0 mV ~ 2.0 mV; Alarm range -2.0mV ~ 2.0mV
RESP
Method: transthoracic impedance
Operation: automatic / manual
RR measuring range: Adult 0 ~150 rpm; Pediatric/Neonatal 0~150 bpm
Resolution: 1rpm
Apnea alarm threshold: 10, 15, 20, 25, 30, 35, 40 s
Bandwidth: 0.2 – 2.5Hz (-3dB)
Scan speed: 6.25, 12.5, 25, 50 mm/s
SpO2
Measurement and alarm range: 0~100%
Resolution: 1%
Accuracy: ±2% (70~100%, Adult, Pediatric); ±3% (70~100%, Neonatal)
Pulse measurement: 25~300 bpm
Resolution: 1 bpm
Update rate: 1 second
NIBP
Method: Automatic oscillometric
Operation: Manual / Automatic / Continuous
Measurement interval in automatic mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes
Unit of measure: mmHg/kPa
Measurement type: Systolic, Diastolic, Mean
Pressure range:
– Adults
Systolic 40~270mmHg; Diastolic 10~215mmHg; Average 20~235mmHg
– Pediatric
Systolic 40~200mmHg; Diastolic 10~150mmHg; Average 20~165mmHg
– Neonatal
Systolic 40~135mmHg; Diastolic 10~100mmHg; Average 20~110mmHg
Resolution: 1mmHg
Accuracy: Max error of mean ± 5 mmHg
Max Standard Deviation: 8mmHg
NIBP pulse measurement range: 40~240 bpm
Resolution: 1 bpm
Accuracy: 3bpm or 3.5%
Temperature (2 channels, 1 probe supplied)
Measurement/alarm range: 0~50°C
Resolution: 0.1°C
Accuracy: ±0.1°C (without probe)
Channel: 2
Printer (optional)
Print speed: 25, 50mm/s
Diet
Power outlet: 100~240V AC, 50/60Hz
Rechargeable lithium battery: 14.8V
Dimensions: W:32 x D:15 x H:26.5cm
Weight: 5kg

















code: LTD345
