Description

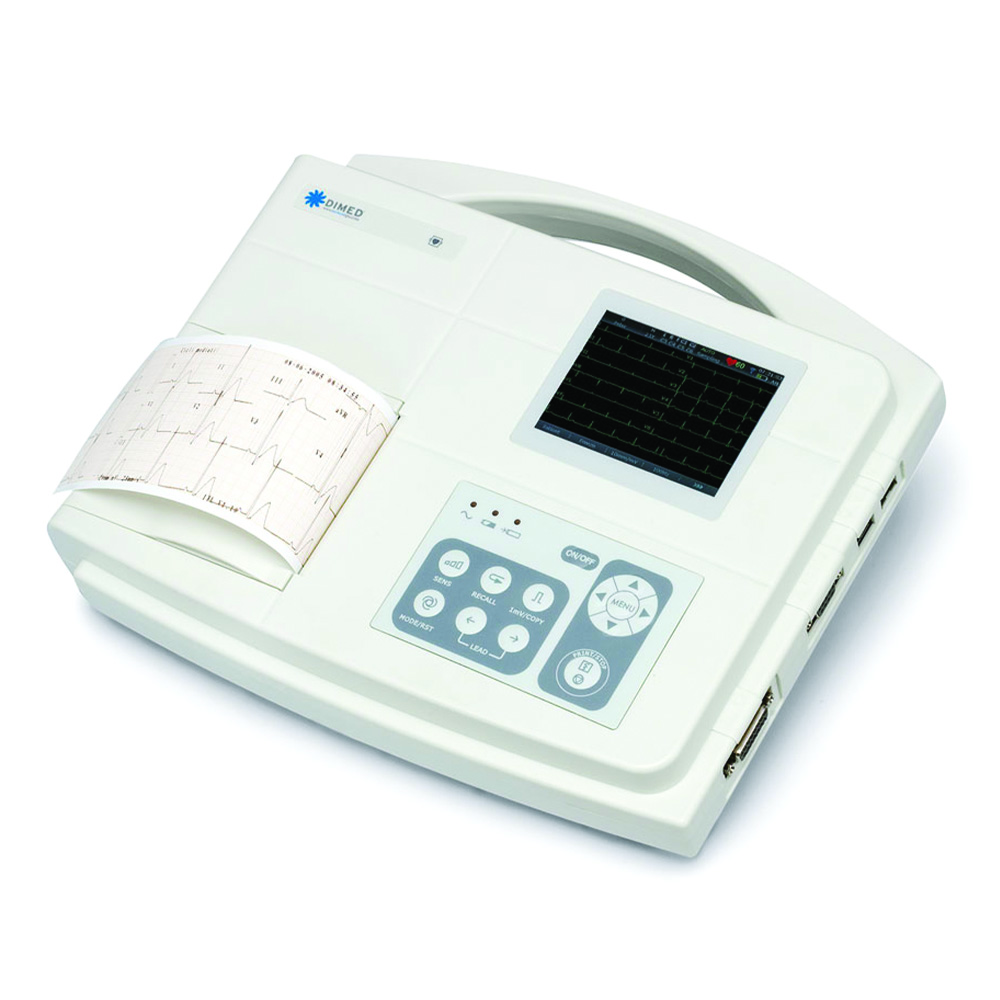

PRO WIDE 1/3 CHANNEL ELECTROCARDIOGRAPH
Compact, lightweight and easily transportable thanks to the comfortable handle.
The internal battery allows the use of the device in any location.
The resistant external structure protects the device from possible impacts.
Simple to use, immediate and intuitive software in Italian.
Automatic storage of traces and simple recall of them from memory.
Digital drift, AC and EMG filters.

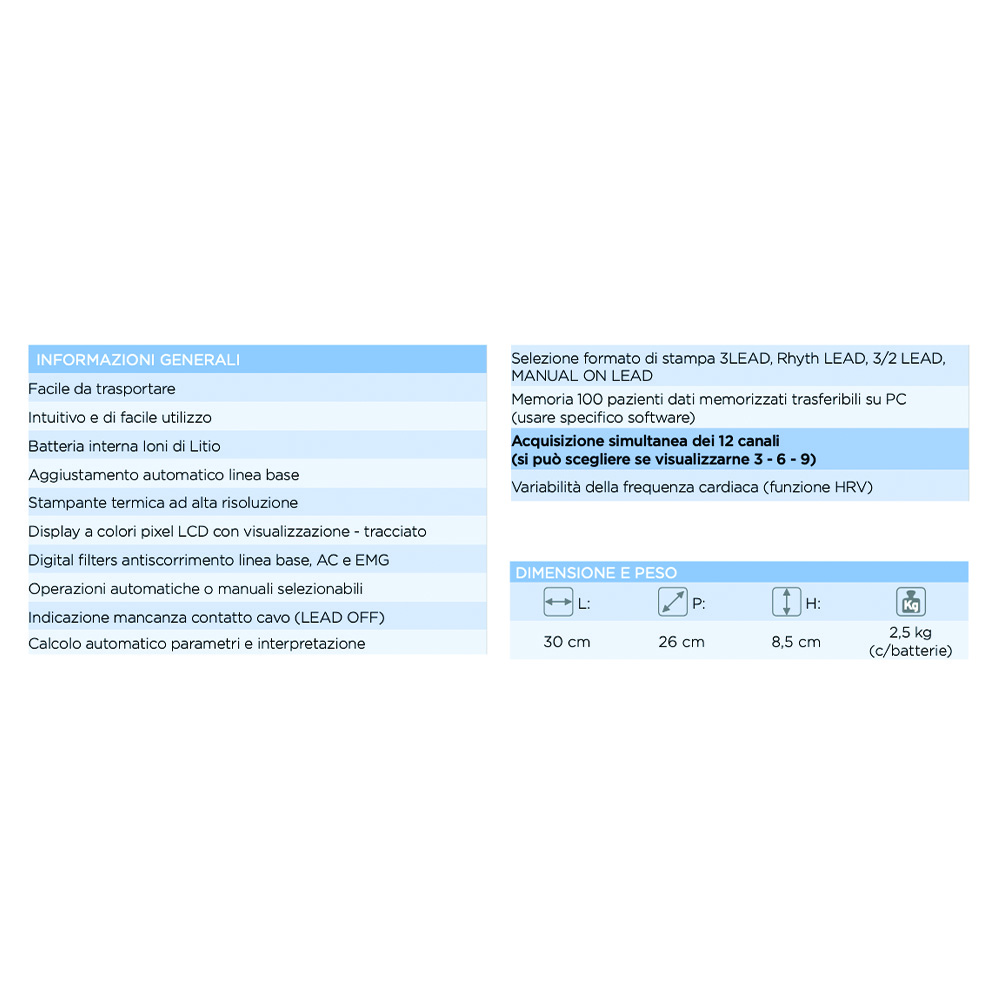

General informations
- Easy to carry
- Intuitive and easy to use
- Internal Lithium Ion battery
- Automatic baseline adjustment
- High resolution thermal printer
- 320X240 pixel LCD display with visualization - plot
- Digital filters anti-slip base line, AC and EMG
- Selectable automatic or manual operations
- Indication of lack of cable contact (LEAD OFF)
- Automatic calculation of parameters and interpretation
- Print format selection 3LEAD, Rhyth LEAD, 3/2 LEAD, MANUAL ON LEAD
- Memory of 100 patient data stored, transferable to PC (use with specific software)
- Simultaneous acquisition of 12 channels, you can choose whether to display 12 - 6 - 3
- Heart rate variability (HRV function)

Technical features
- Input circuit: floating type with defibrillator and pacemaker protection
- Cable: standard 12 LEAD
- Acquisition mode: 12 simultaneous channels
- A/D converter: 12 bit
- Measuring range: >±5mVpp
- Time constant: > 3.2 sec
- Frequency response: 0.05Hz – 150Hz
- ECG parameters and analysis: yes
- Memory: 10 patients
- Calibration voltage: 1mV ± 3%
- Sensitivity: 2.5 – 5 – 10 – 20 (mm/mV)
- Input impedance: > 10MΩ
- Current on the input circuit: 100nA
- Noise level: <15 μ Vp-p
- Anti-slip base line: auto
- Current loss to patient: <10μA (220V - 240V/Hz)
- Loss of auxiliary currents on patient: < 0.1μA (DC)
- Filters: EMG filter 35Hz (-3db) - AC filter 50Hz/60Hz (-20db)
- CMRR: > 100db
- Recording mode: auto/manual
- Rhyth Lead: each selectable
- Lead selection: auto/manual
- Safety standard: IEC I/CF
- Power supply: AC 100v-115v/220v-240v, 50/60Hz internal Li-Ion battery 14.4V

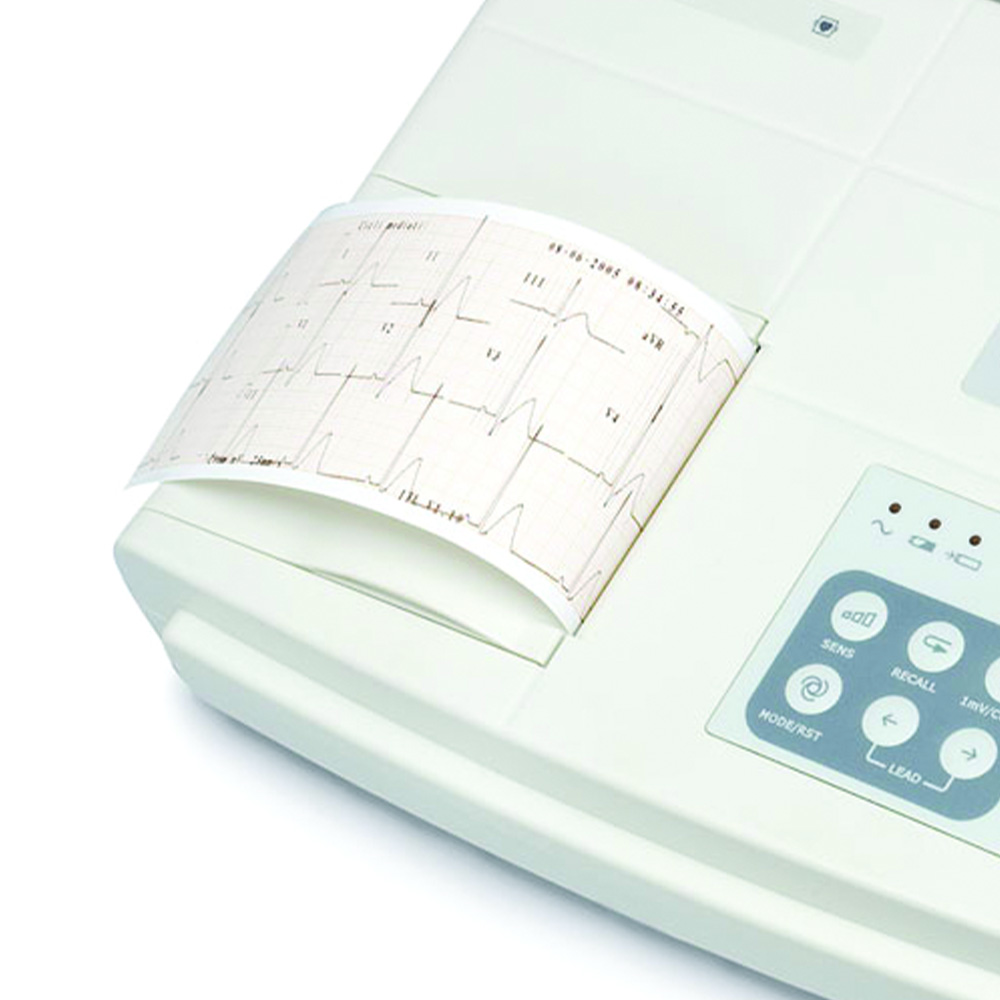

- Thermal printer
- Paper: 80mm x 30m
- Paper speed: 5mm/s, 10mm/s, 25mm/s, 50mm/s ± 3%
- Display: 320x240 pixels LCD

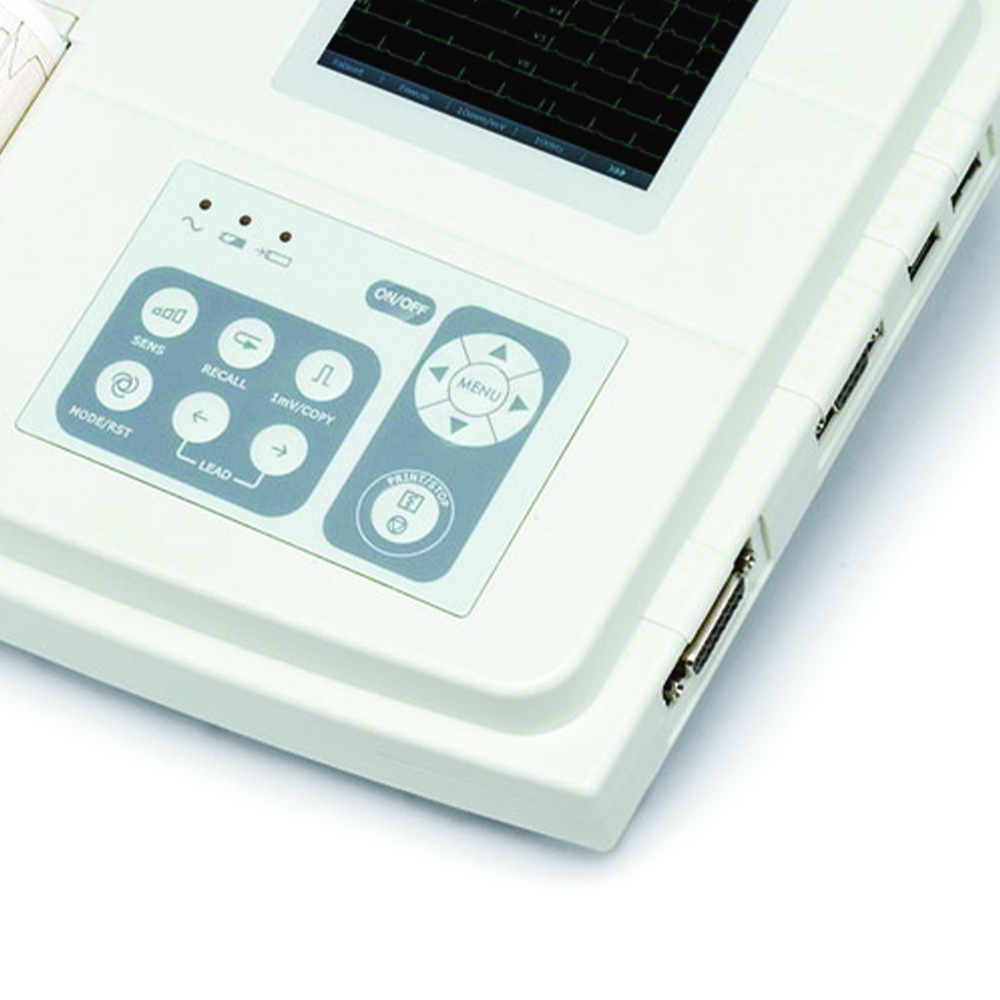

- Connectivity: RS232, USB, ETHERNET

Dimensions: L:28.8 D:21 H:7 cm
Weight: 2.5kg

Equipment
- 1 patient cable
- 1 Set of electrodes
- 1 Gel
- 1 power cable
- 1 Thermal paper (DRV1521)
- 1 user manual



code: LTD405W
