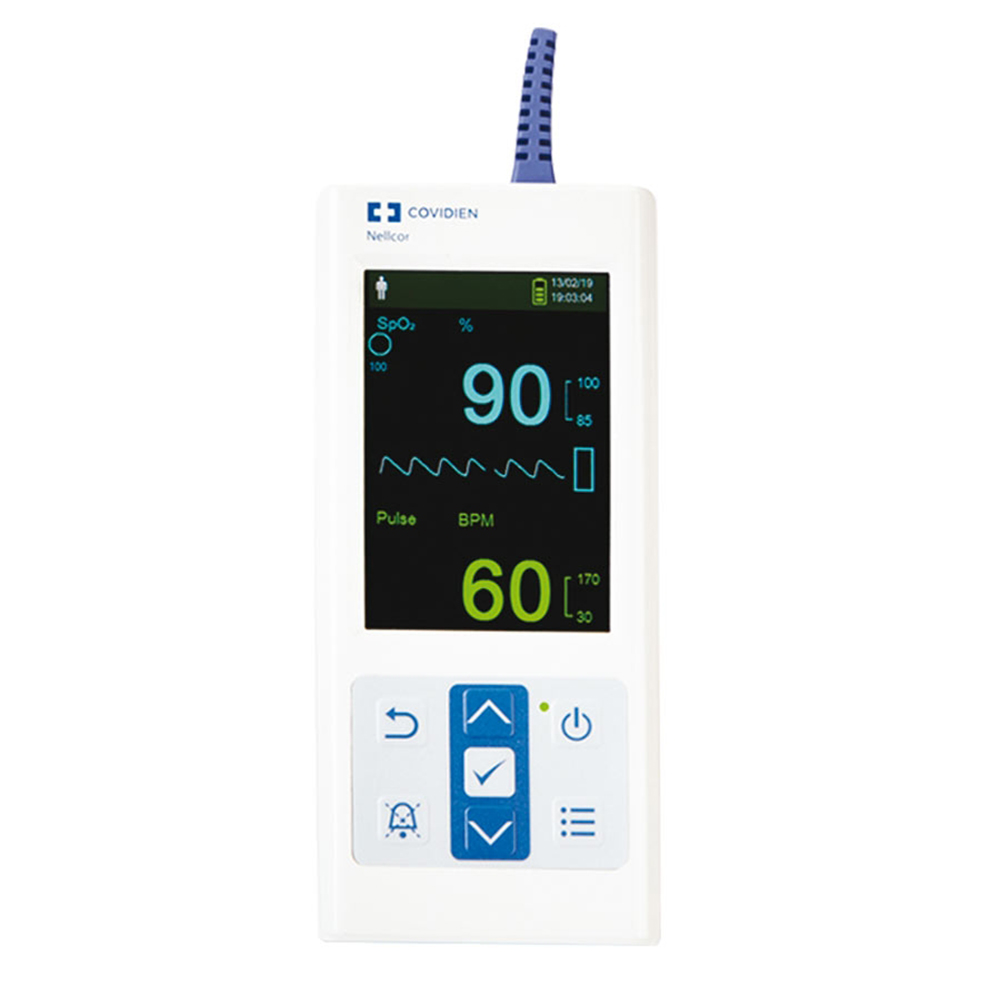

Palm-sized, lightweight and ergonomic model for continuous and instantaneous monitoring of blood oxygen saturation and heart rate

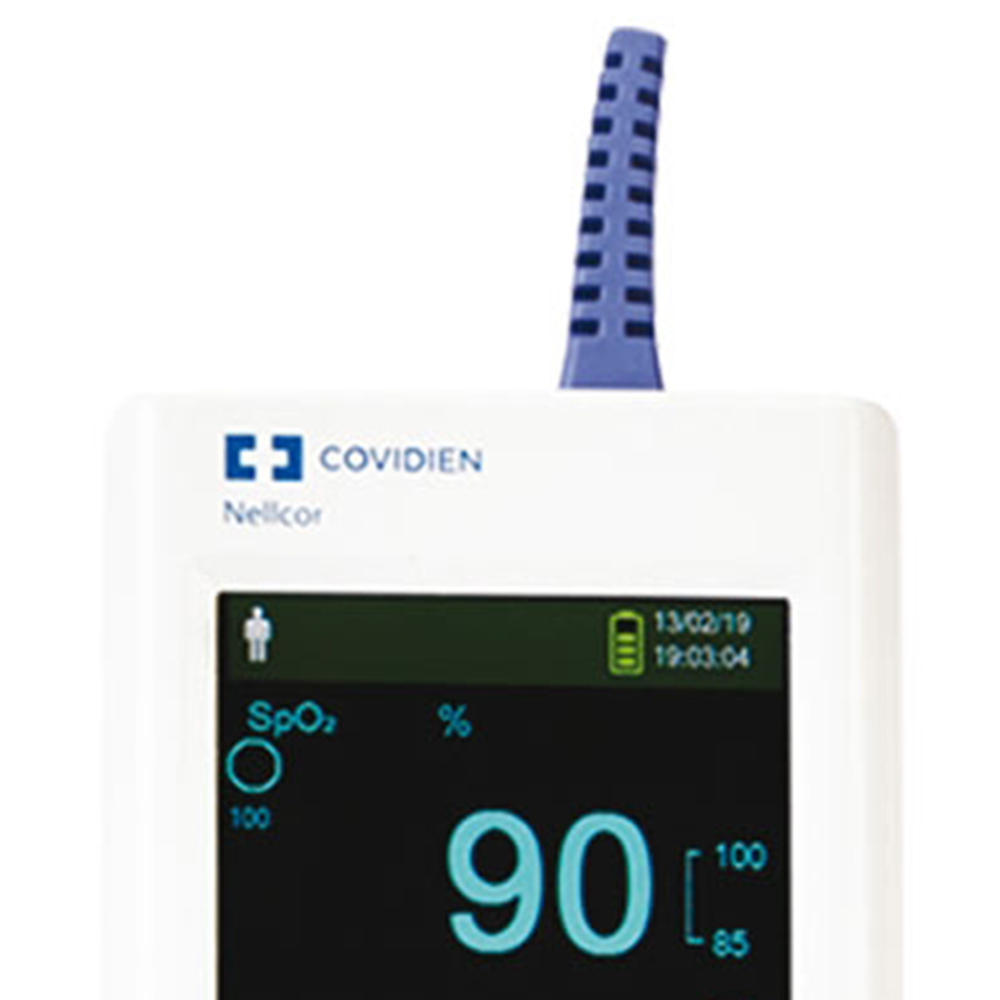

3” LCD display with real-time display of SpO2 and heart rate values, parameter alarms, plethysmographic curve, plethysmographic bar and tabular trend data.
Ability to select standard mode and home mode for use in hospitals, during transport and at the patient's home.
Sleep study mode, which allows the clinician to dim the LCD display and turn off alarms to avoid waking the patient.
Nellcor's latest signal processing technology ensures accurate measurements even under challenging monitoring conditions, such as low perfusion and signal interference, including patient motion.

Characteristics:
expanded LoSat accuracy range (60%-100% SpO2) when used with Nellcor adhesive sensors with OxiMax technology;
compatible with the entire range of Nellcor specialty, reusable and disposable sensors featuring OxiMax technology;
ability to store up to 80 hours of trend data and export trends via cable to an external personal computer for subsequent data analysis and printing:
function and software menu in Italian.

CND: Z1203020408
Repertoire: 1168153/R

Detected parameters: blood oxygen saturation and heart rate
Infrared spectrophotometer measurement method
SpO2 measuring range 1% – 100% - heart rate 20 – 250 beats/minute
SpO2 Accuracy Adults: +/- 2% between 70% and 100% - +/- 3% between 60% and 80%
newborns: +/- 2% between 70% and 100%
low perfusion: +/- 2% between 70% and 100%
adults in presence of movement: +/- 32% between 70% and 100%
Adult and neonatal heart rate accuracy: +/- 3 bpm between 20 and 250 bpm
low perfusion: +/- 3 bpm between 20 and 250 bpm
Adults and neonates in the presence of movement: +/- 5 bpm between 20 and 250 bpm
Power supply 4 x 1.5V alkaline batteries – type AA
Dimensions 70 (W) x 156 (H) x 32 (D) mm
Weight 270 g including batteries



code: PM10-N
