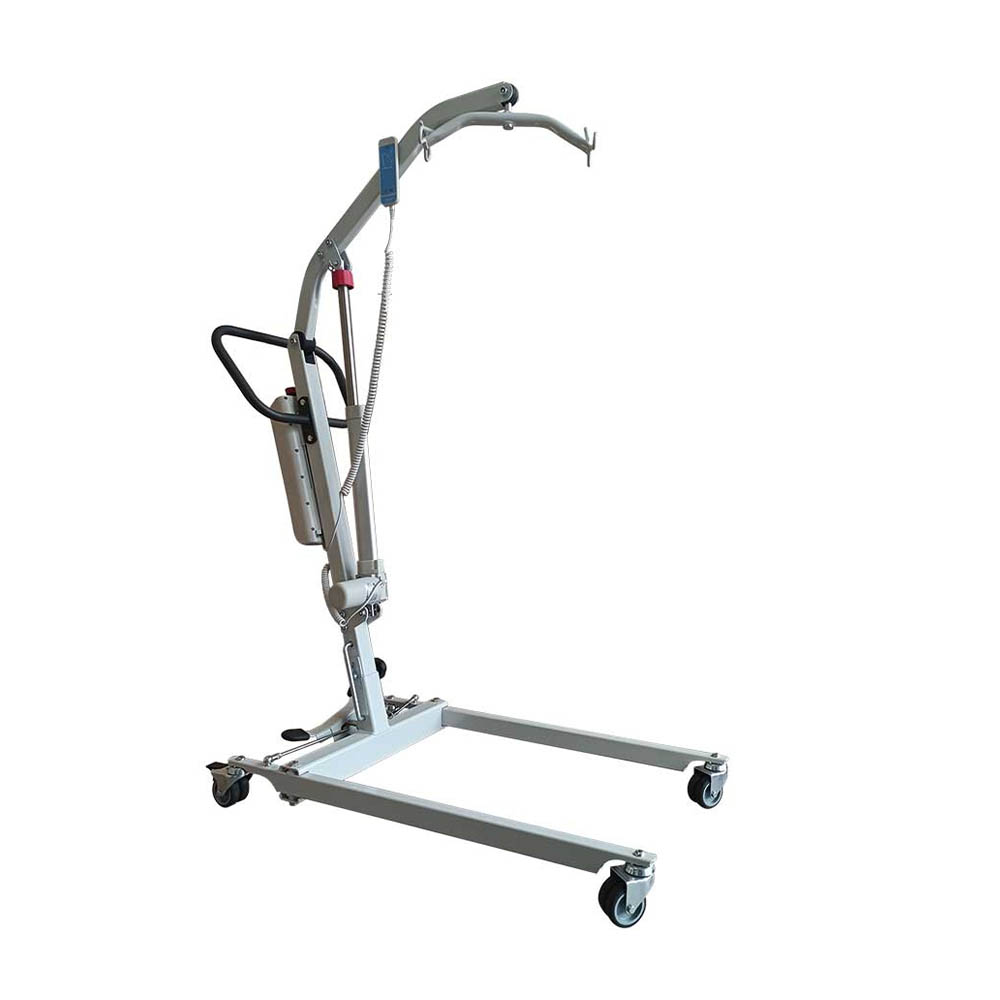

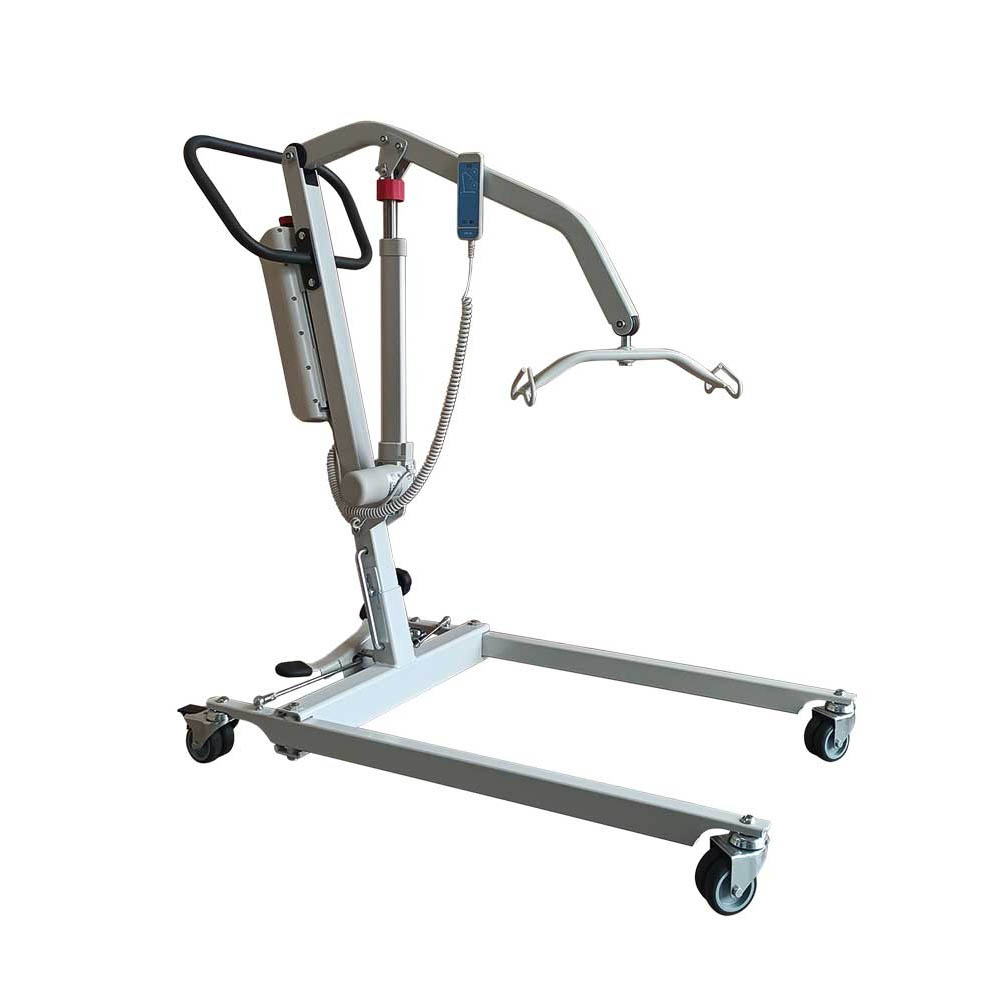

The SA-170 electric patient lift, with its compact steel frame, allows patients to be lifted from the floor. It can lift up to 160 kg and offers significantly greater mobility than any other electric patient lift currently available.
The lifting height makes patient handling safe and comfortable, even when picking up directly from the floor.
The base of the lift is easily adjustable in width via a convenient pedal (or lever upon request), to ensure maximum stability.
It is simple and intuitive to use, designed to be stable, practical and safe.
It is equipped with an electric emergency release and an additional mechanical release system for emergency lowering.

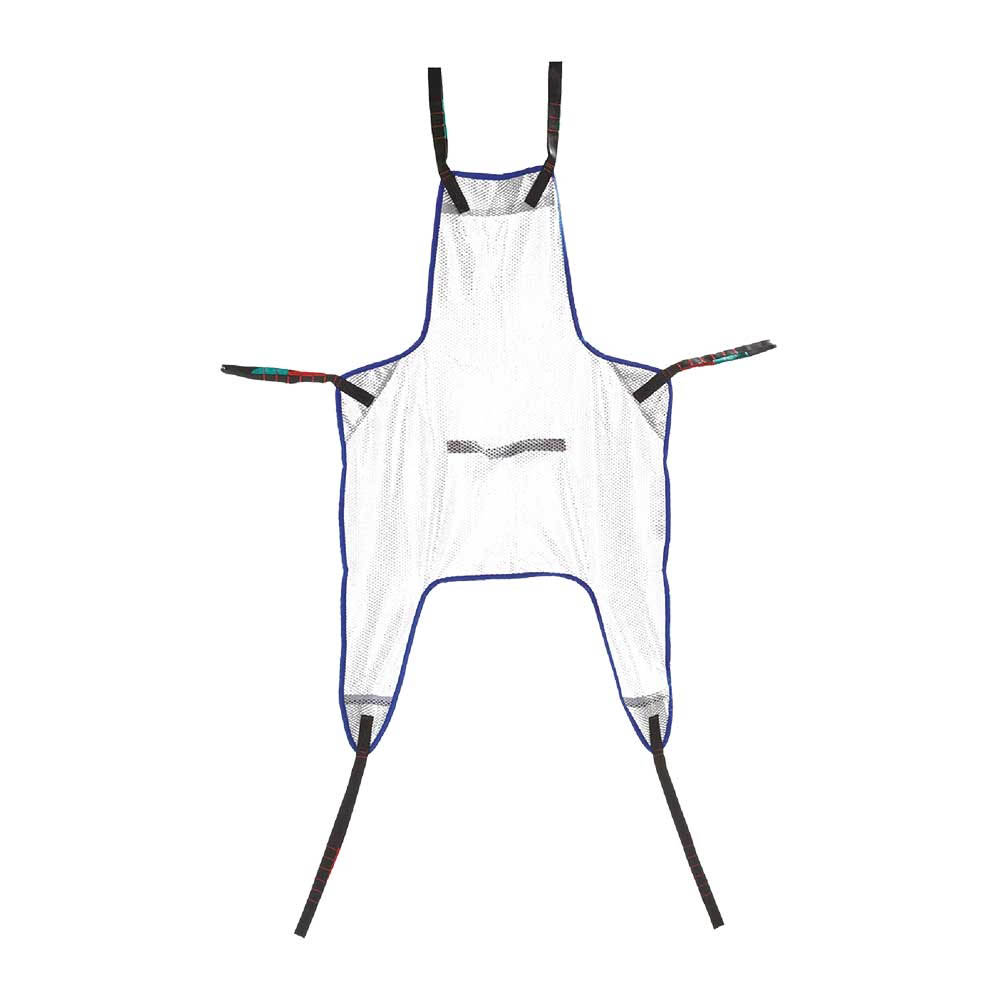

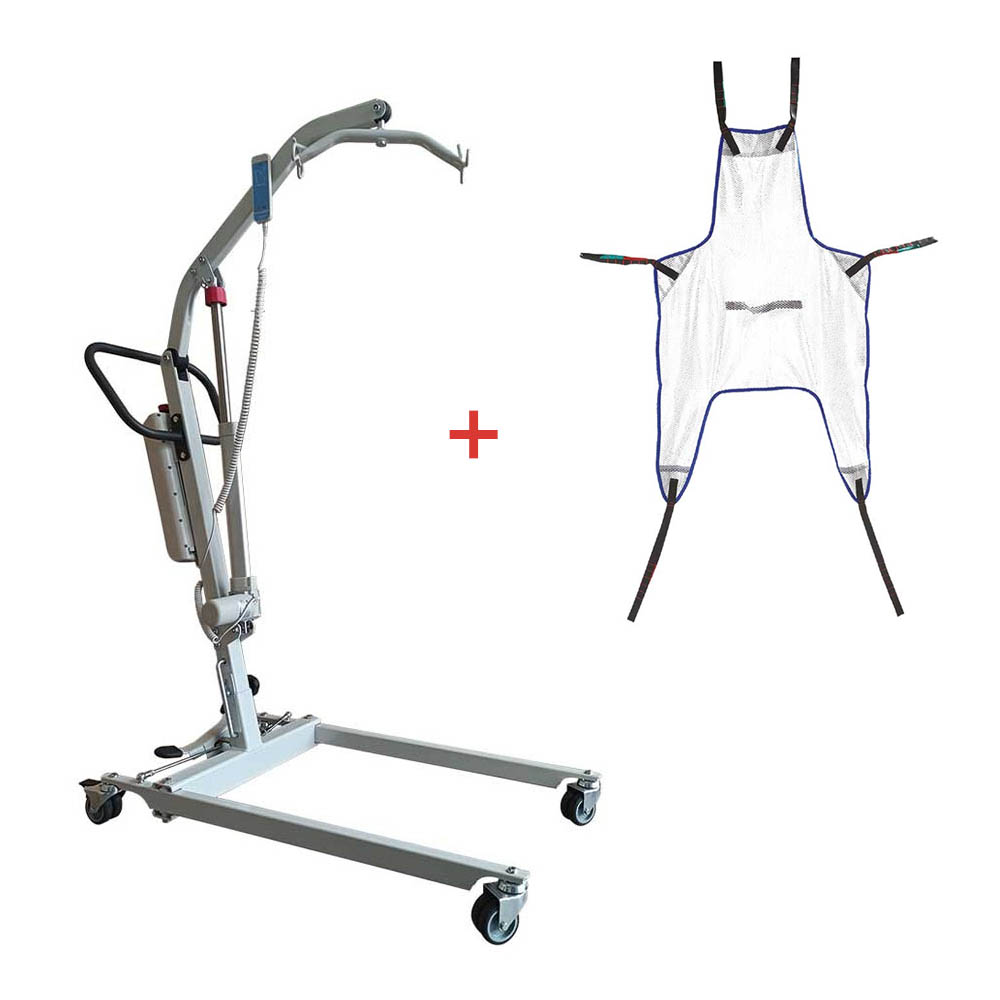

The SA-170 lift is equipped with a hammock harness with headrest and 1 lithium battery that guarantees a long-lasting charge, so that it is always ready for use.

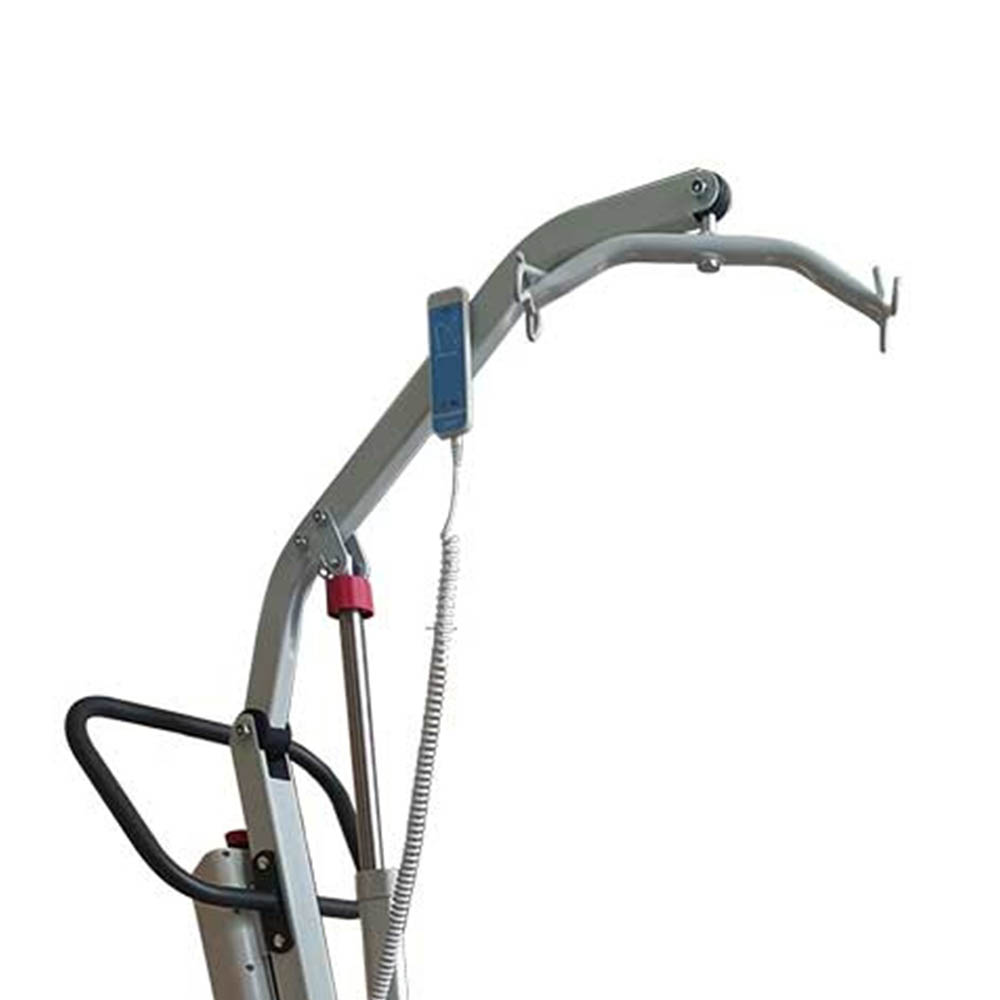

The 360° rotation of the sling makes it easier for the assistant to position the patient.
This compact version is the ideal solution when space is limited.
Upon request, it can be equipped with an external base for charging a second battery, thus allowing continuous use of the lift.

Equipped in the basic configuration:
High wrap-around harness with head containment.
Four swivel wheels, the rear ones equipped with a parking brake.
Base with pedal-operated spreadable legs.
Electric piston actuator.
Accumulator with rechargeable lithium battery.
Power supply.

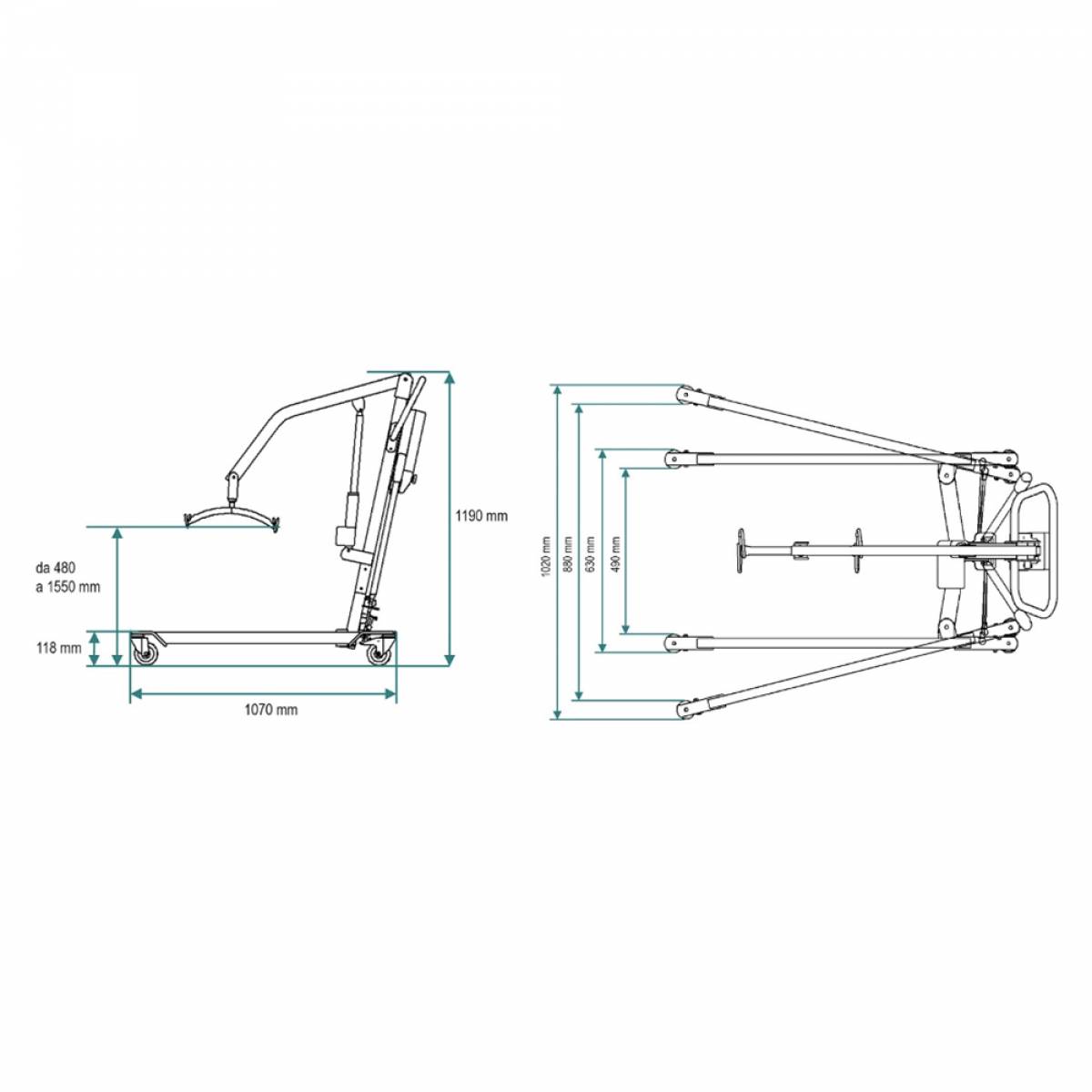

Spread from 48 to 102 cm
Base length 107 cm
Base height 11.8 cm
Barbell height from 48 to 155 cm

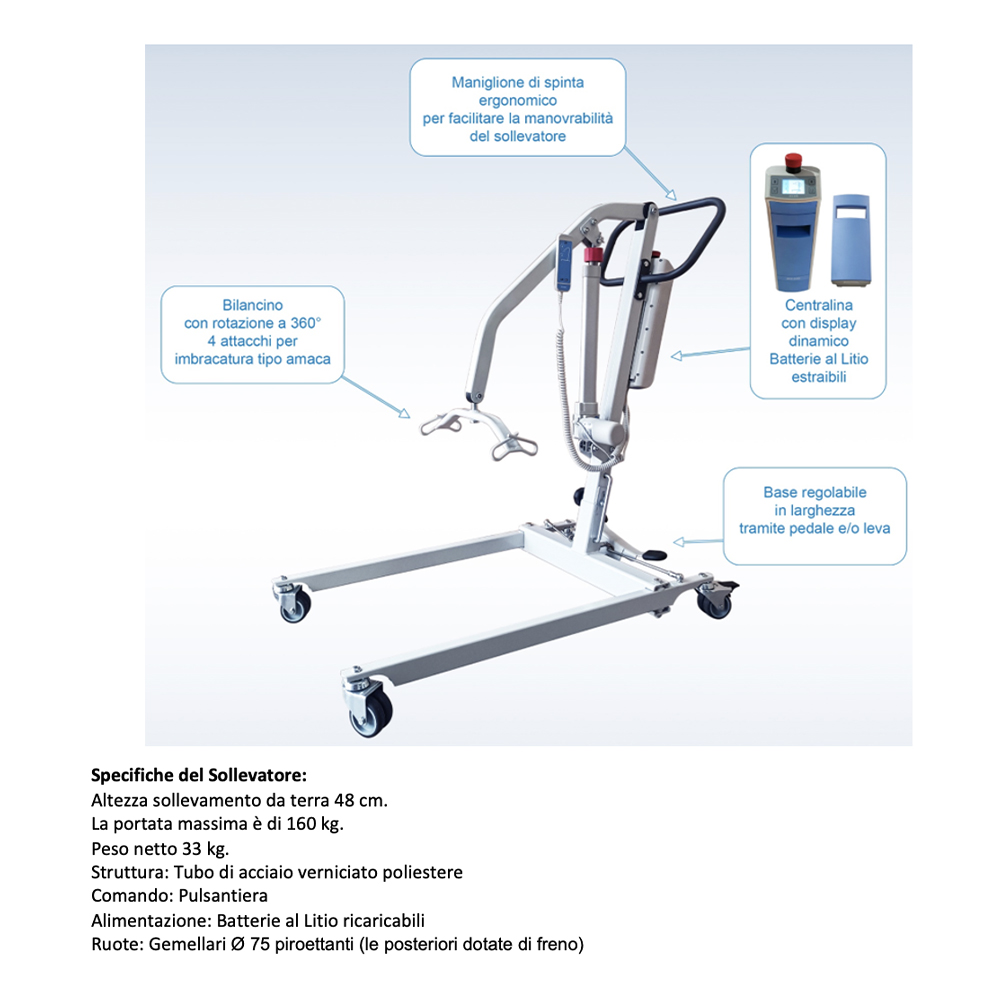

The maximum load capacity is 160 kg.
Net weight 33 kg
Lifting height from ground 48 cm
Structure: Polyester painted steel tube
Command: Keypad
Power supply: Rechargeable lithium batteries
Wheels: Twin Ø 75 swivel wheels (rear wheels with brakes)





barcode: 8056992231436
code: SA-170
